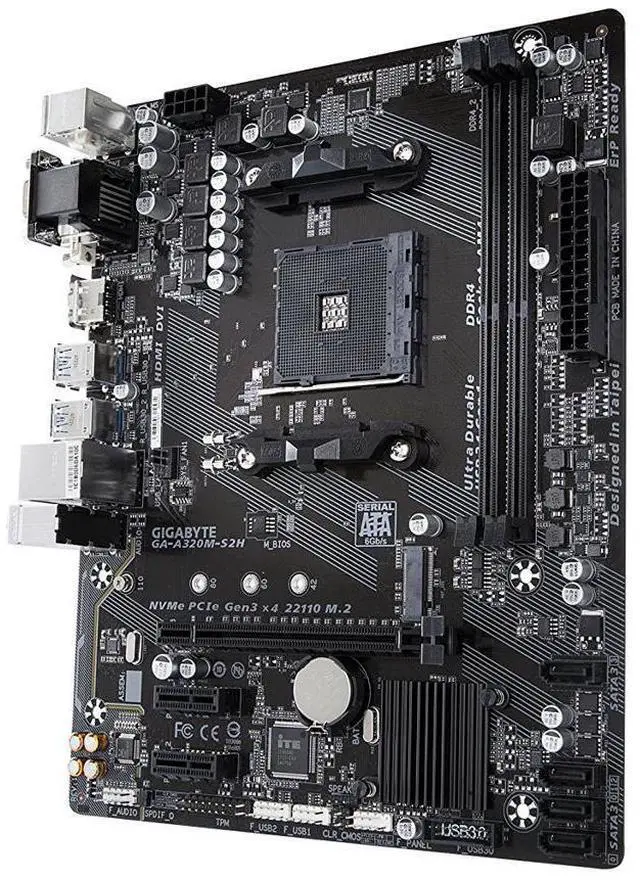

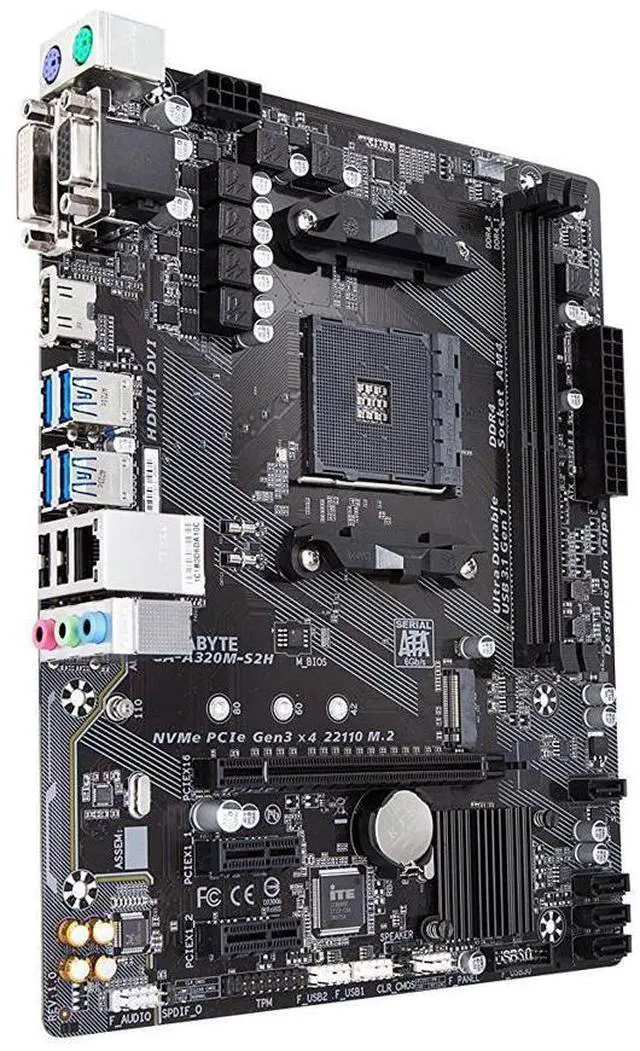

Gigabyte GA-A320M-S2H AMD A320 Socket AM4 DDR4 Hdmi Micro ATX Motherboard AMD Socket AM4 Motherboard

Model: GA-A320M-S2H_UA

Chipset: AMD A320

Socket: AMD AM4

Compatible/Supported CPU: AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon? Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors

Max Supported Memory: 64GB
Number of
Memory Slots: 2

Memory Type: DDR4 SDRAM

Storage Interface: SATA 6Gb/s
RAID
Support: RAID 0, RAID 1 and RAID 10

Wireless Lan Support: Realtek GbE LAN chip (10/100/1000 Mbit)

Audio: Realtek High Definition Audio Codec

Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x CPU fan header; 1x system fan header; 1x M. 2 Socket 3 connector; 4x SATA 6Gb/s connectors; 1x front panel header; 1x front panel audio header; 1x S/PDIF Out header; 1x USB 3.1 Gen 1 header; 2x USB 2.0 / 1.1 headers; 1x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM 2.0 module only); 1x speaker header; 1x Clear CMOS jumper; 1x chassis intrusion header.

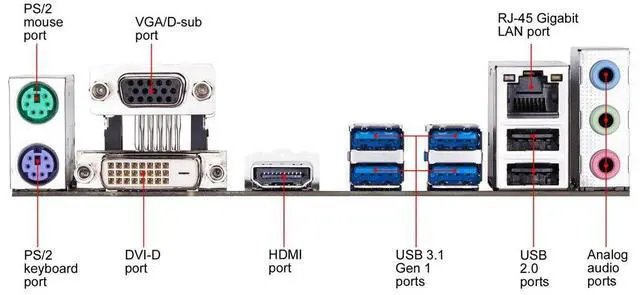

Input/Output Ports: 1x PS/2 keyboard port; 1x PS/2 mouse port; 1x D-Sub port; 1x DVI-D port; 1x HDMI port; 4x USB 3.1 Gen 1 ports; 2x USB 2.0 / 1.1 ports; 1x RJ-45 port; 3x audio jacks (Line In, Line Out, Mic In).

Expansion Slots: 1x PCI Express x16 slot, running at x16 (PCIEX16); 2x PCI Express x1 slots.

Form Factor: Micro ATX

Type: Desktop Motherboard

Supported Operating System: Support for Windows 10 64-bit, Windows 7 64-bit (To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU).

Features: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors; Dual Channel Non-ECC Unbuffered DDR4, 2 DIM
Ms; Ultra-Fast PCIe Gen3 x4 M. 2 with PCIe NVMe & SATA mode support; High Quality Audio Capacitors and Audio Noise Guard; Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software; Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers; GIGABYTE UEFI BIOS; All New GIGABYTE APP Center, Simple and Easy Use.

Please note, this motherboard does not include an I/O Shield, cables, or any other accessories!

• Grade A, Like New Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
