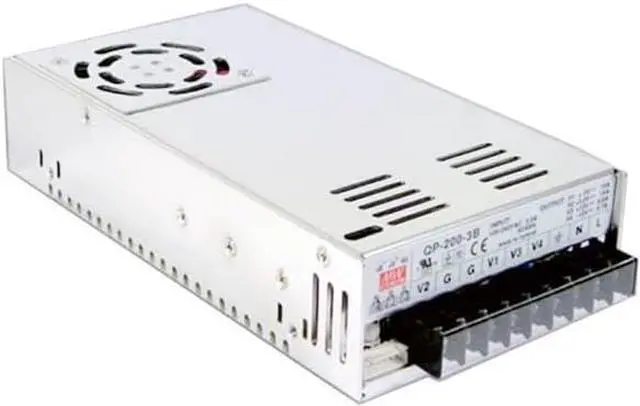

Qp-200-3b Drive Power Supply 200W Four-Way with PFC Switching Power Supply

Industrial Power Suppl
Item number: JWQP-200-3B
Model: QP-200-3B
Type: AC/DC power supply
Modulation method: Pulse width modulation (PWM) type
Transistor connection method: single-ended
Input voltage: 90264VAC/127370VDC
Output power: 200
Output voltage: +5/ +3.3/+12/ -12
Productivity: 72
Output ripple noise: 100mV / 100mV / 150mV / 150mV
Output voltage accuracy: ±3 / ±3 / +8,-10 / ±6
Load regulation: +-2~6
Product certification: CCC
Output current: 20A/20A/8A/1A
Working frequency: 47~63
Working temperature: -10~60
Material number: QP-200-3B
Order number: QP-200-3B
Minimum number of packages: 1
Specifications: QP-200B
Series: QP-200
Number of power supply phases: four phases
Input voltage range: 90264VAC/127370VDC
Number of circuits: single circuit
Scope of application: Mechanical and equipment
Extended function: mechanical pen
Working environment temperature: -10~60
Installation method: screw installation
Remarks: Unless otherwise specified, all specifications and parameters are measured at an input of 230VAC, rated load, and an ambient temperature of 25°C.
Rated power: 200W
Reset method: power off and restart
Adjust voltage: potentiometer adjustment
Cooling fan type: forced air cooling
Power supply type: switching power supply

QP-200-3B Product Description
The power supply model with high power factor is a must-select model in Europe. Built-in active power factor correction circuit (PFC) helps improve energy utilization and reduce harmonic interference. It has a global full range of voltage input and complete functions.
QP-200-3B Main features
Full range AC input voltage
Built-in active power factor correction circuit, power factor: PF>0.98 at 115VAC; PF>0.95 at 230VAC
With short circuit protection/overload protection/overvoltage protection/overheating protection
Loop 4 is an isolated ou
