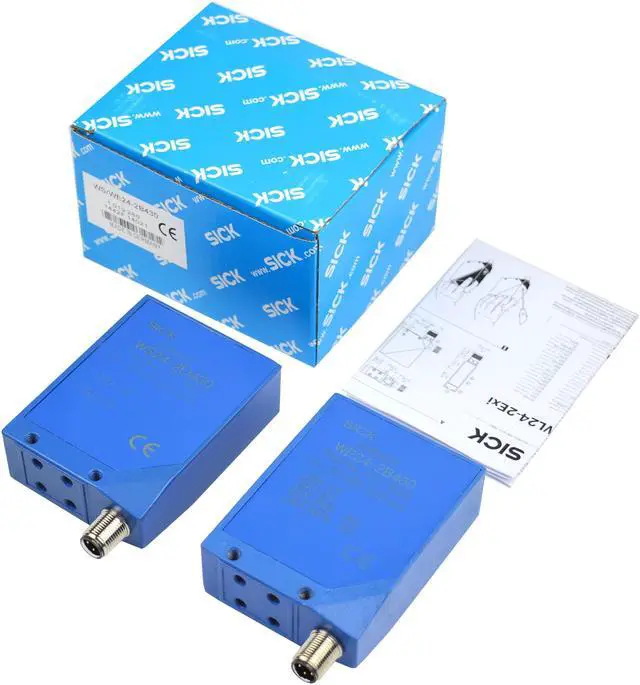

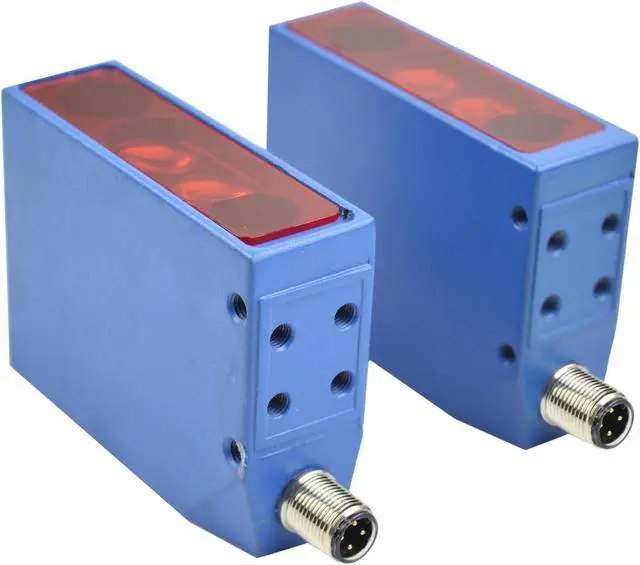

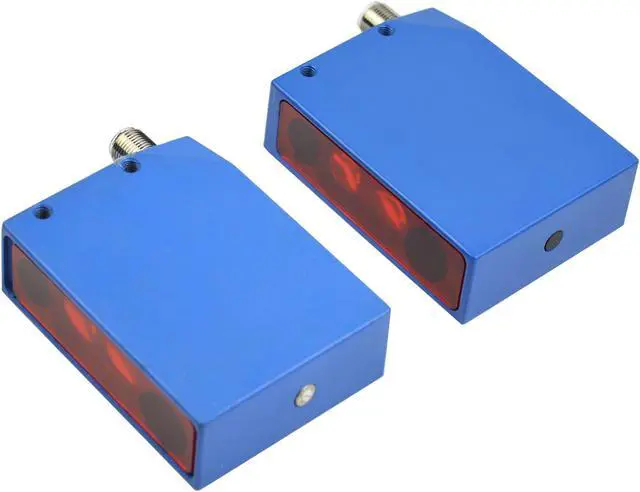

SICK WS/WE24-2B430 Compact Photoelectric Sensors ,NPN ,PNP,New
- SICK WS/WE24-2B430 Compact Photoelectric Sensors ,NPN ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Through-beam photoelectric sensor
Dimensions (W x H x D) 27 mm x 87.5 mm x 65 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m... 60 m
Sensing range 0 m... 50 m
Type of light Visible red light
Light source LED 1)
Light spot size (distance) Ø 700 mm (50 m)
Angle of dispersion Approx. 1°
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC... 30 V DC 1)
Ripple < 5 Vpp 2)
Power consumption, sender 50 mA 3)
Power consumption, receiver 40 mA 3)
Switching output
NPN
PNP
Switching mode Light/dark switching
Switching mode selector Selectable via PNP/NPN selector, selectable via light/dark selector
Output current Imax. 100 mA
Response time = 500 µs 4)
Switching frequency 1, 000 Hz 5)
Angle of reception Approx. 2.5 °
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class II 9)
Weight 660 g
Housing material Metal, Zinc diecast
Optics material Plastic, PMMA
Enclosure rating IP69K
Test input sender off TE to 0 V
Ambient operating temperature 40 °C... +60 °C
Ambient storage temperature 40 °C... +75 °C
UL File No. NRKH. E181493 & NRKH7. E181493

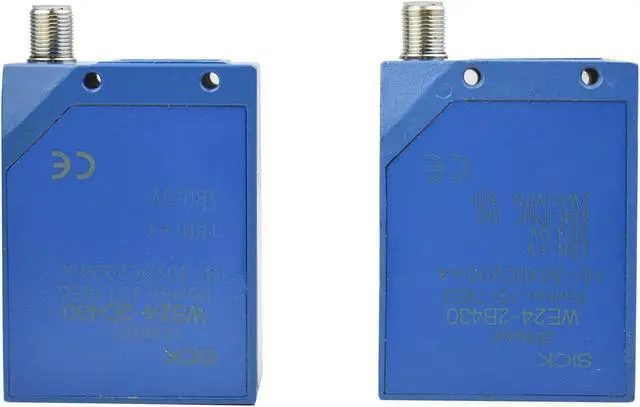

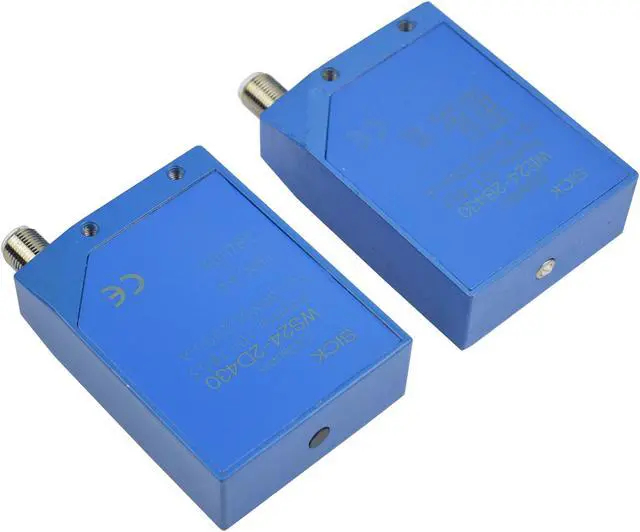

Part number of individual components 2021144 WS24-2D430 2021145 WE24-2B430
Sensor/ detection principle Through-beam photoelectric sensor
Dimensions (W x H x D) 27 mm x 87.5 mm x 65 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m... 60 m
Sensing range 0 m... 50 m
Type of light Visible red light
Light source LED 1)
Light spot size (distance) Ø 700 mm (50 m)
Angle of dispersion Approx. 1°
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC... 30 V DC 1)
Ripple < 5 Vpp 2)
Power consumption, sender 50 mA 3)
Power consumption, receiver 40 mA 3)
Switching output
NPN
PNP
Switching mode Light/dark switching
Switching mode selector Selectable via PNP/NPN selector, selectable via light/dark selector
Output current Imax. 100 mA
Response time = 500 µs 4)
Switching frequency 1, 000 Hz 5)
Angle of reception Approx. 2.5 °
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class II 9)
Weight 660 g
Housing material Metal, Zinc diecast
Optics material Plastic, PMMA
Enclosure rating IP69K
Test input sender off TE to 0 V
Ambient operating temperature 40 °C... +60 °C
Ambient storage temperature 40 °C... +75 °C
UL File No. NRKH. E181493 & NRKH7. E181493
Part number of individual components 2021144 WS24-2D430 2021145 WE24-2B430
