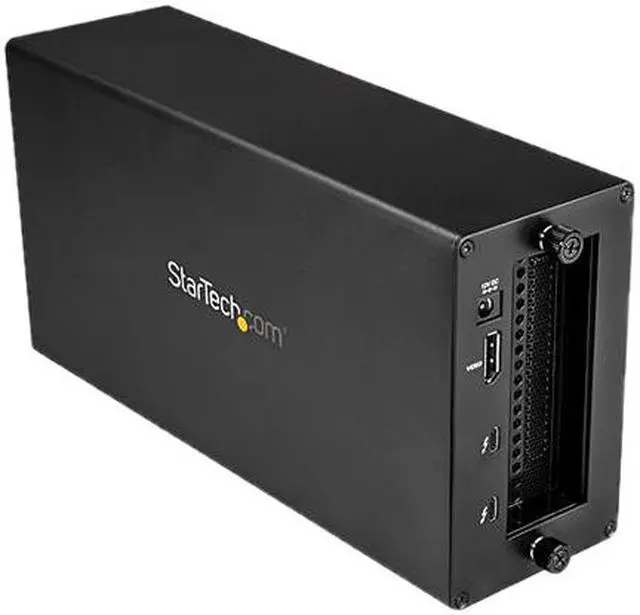

StarTech BNDTB1394B3 Thunderbolt 3 to Firewire Adapter - 1394 FireWire - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port

The Thunderbolt 3 to 1394 FireWire adapter connects your FireWire peripherals to your Thunderbolt 3 computer
Connect FireWire peripherals to TB3 devices

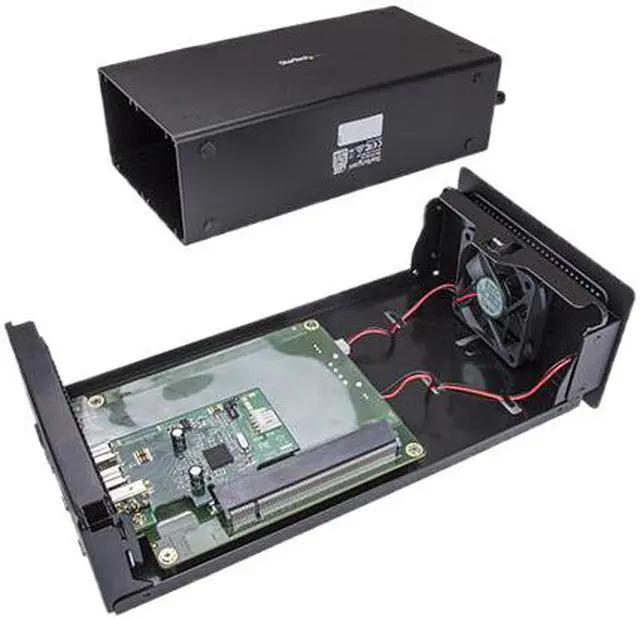

Easily swap PCIe cards with screwdriver
Thunderbolt 3 to FireWire 400 adapter / Thunderbolt 3 to FireWire 800 adapter / External PCI express enclosure / External PCI express slot / PCIe expansion slot / PCIe slot / Thunderbolt 3 expansion chassis / Thunderbolt 3 FireWire adapter / Thunderbolt 3 PCIe box / Thunderbolt 3 PCIe enclosure

Overview

Specs

Reviews

Thunderbolt 3 to FireWire Adapter, Black

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Return for refund within: 30 days

Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.

This item is covered by Newegg.com's International Order Return Policy. Read full return policy for details.
*Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.

Color	Black
Type	Enclosure
AC Adapter	Yes
Material	Aluminum / Steel
Thunderbolt 3	Yes
Internal Interface	1 x LP4 (4 pin, Molex Large Drive Power) Male 1 x PCI Express x16 Female
External Interface	1 x FireWire 400 (6 pin, IEEE 1394a) Female 2 x FireWire 800 (9 pin, IEEE 1394b) Female 2 x Thunderbolt 3 USB-C (24-pin) Female 1 x DisplayPort (20 pin) Female
Fan	1 x 92mm Sleeve Bearing fan
Power	Center Tip Polarity: Positive Input Current : 2A Input Voltage : 100 ~ 240 AC Output Current: 5.417A Output Voltage: 12 DC Plug Type: N Power Consumption (In Watts): 65W Power Source: AC Adapter Included

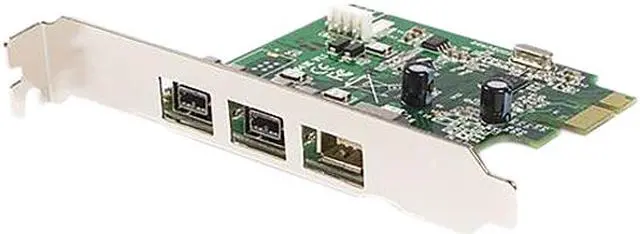

Specifications	The Thunderbolt 3 to 1394 FireWire adapter connects your FireWire peripherals to your Thunderbolt 3 computer. This adapter combines StarTech.com’s Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and 1394 FireWire adapter card (PEX1394B3). The chassis uses Thunderbolt 3 technology, the fastest connection available, supporting your FireWire devices, plus one DisplayPort output and one additional Thunderbolt 3 port. Save on upgrade costs Use your legacy FireWire devices with your next-generation Thunderbolt 3 computer, without having to pay for upgraded peripherals. Increase productivity with Thunderbolt 3 Thunderbolt 3 is the fastest connection available. By avoiding performance bottlenecks, you can accomplish more in the same amount of time. With 40Gbps of throughput and support for other high-performance PCIe cards, you can swap the card in and out, to add the peripherals you need connected to a Thunderbolt 3 desktop or laptop computer. Install with ease Both hot-swap and backward compatible, you can assemble and connect this adapter in minutes. Install the PCIe card using only a Phillips type screwdriver, then plug and play with automatic driver installation. Bandwidth: 3.94 GB/s (x4 PCIe 3.0 ) Maximum Data Transfer Rate: 40Gbps (Thunderbolt 3) 800Mbps (Firewire) 400Mbps (Firewire) Type and Rate: Thunderbolt 3 - 40 Gbit/s

Dimensions	11.00" x 5.60" x 3.20"
Weight	3.70 lbs.
