Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for SATA 6 Gbps
Compatible with Servers & Desktop computers with 3 available 5.25in bays and SATA or SAS hard drives
Trayless SATA Backplane / Hot Swap Bay / Backplane / Mobile Rack / SATA 6 Gbps / Key Lock / 70mm Fan
Onsite data backup as a secure alternative to cloud storage
Add a hot-swap bay to a server or workstation computer that you can use as a removable backup
+
+
Overview
Specs
Reviews (52)
Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer
Learn more about the STARTECH HSB4SATSASBA
Model
Brand
StarTech.com
Model
HSB4SATSASBA
Color
Black
Details
Conversion Tray
2 x SATA Power (15 pin) Receptacle 4 x SATA (7 pin; Data) Receptacle
Mobile Rack Drives Support
4 x SFF-8482 (29 pin; Data & Power; Internal SAS) Receptacle
Mobile Rack Interface
SATA I/II/III/SAS
Protection Case
Multiple Drives
Compatible Products
3.5" & 5.25"
Specifications

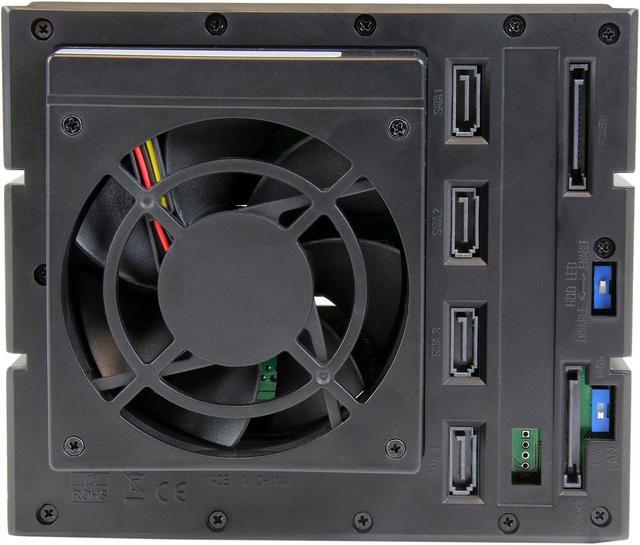

Drive Installation: Removable Fan Bearing Type: Sleeve Bearing Fan: 1 - 70 mm
Key Lock: Yes Number of Drives: 4 Number of internal 3.5 inch bays: 4 Max Drive Capacity: Currently tested with up to 6TB 7200 RPM hard drives Maximum Data Transfer Rate: 6 Gbit/s OS Compatibility: OS independent; No software or drivers required System and Cable Requirements: Flammability rating: UL94 - V0

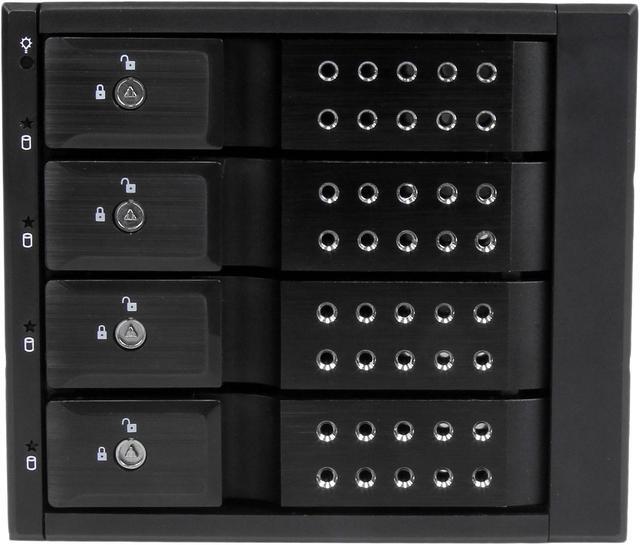

LED Indicators: 1 x Power LED 1 x Drive 1 Activity LED 1 x Drive 2 Activity LED 1 x Drive 3 Activity LED 1 x Drive 4 Activity LED
Humidity: 5% to 85% RH Operating Temperature: 0 to 55 degree C Storage Temperature: -20 to 60 degree C
Dim.: 4.90" x 5.70" x 7.80" (HWD) Weight: 2.90 lbs.
Features
Features

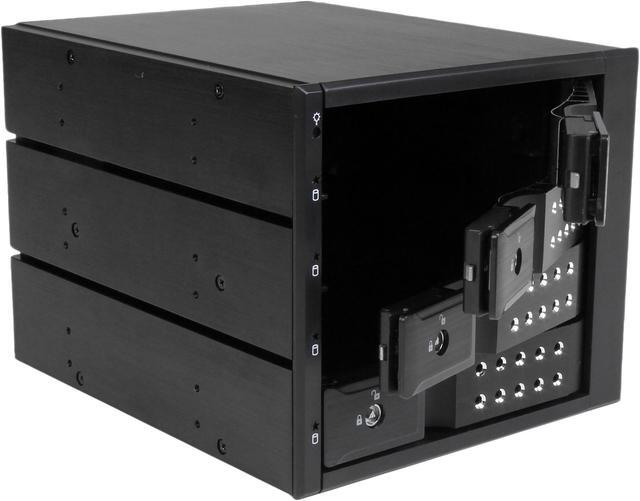

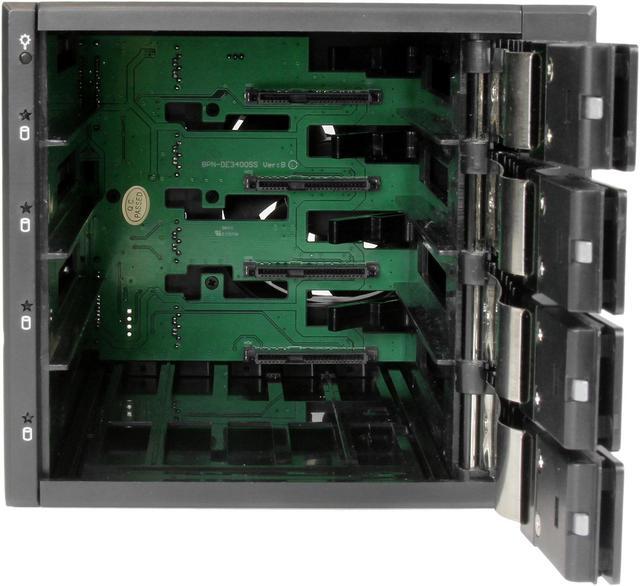

Solid aluminum construction Key lock design Built-in fan 4 drive bay design Installs in three 5.25" drive bays Trayless design for easier hot swapping Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps) Support for SAS revision I/II (3.0/6.0 Gbps) Power and Activity LEDs for each drive UL94 - V0 flammability rating

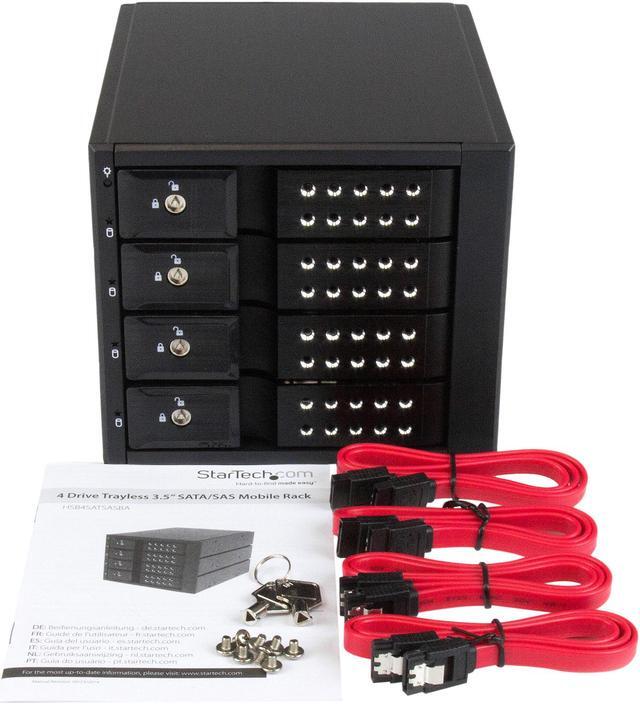

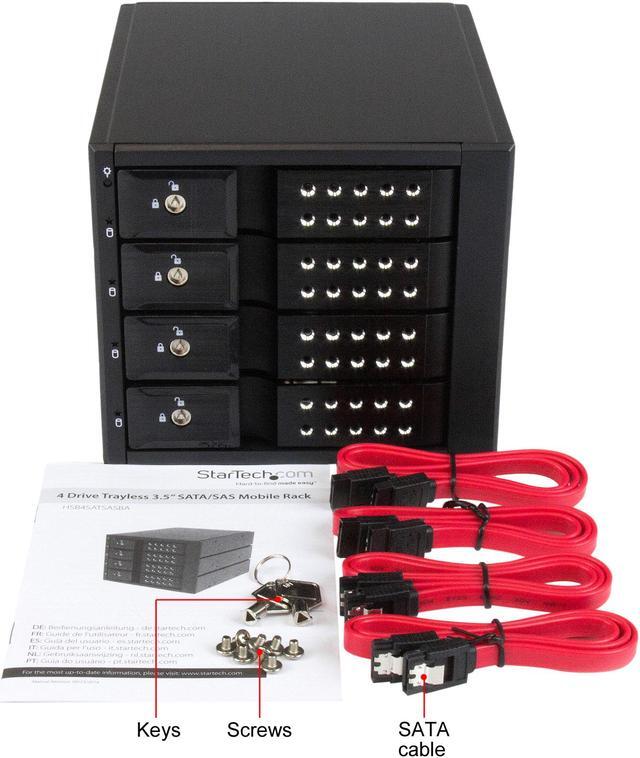

Package Contents
1 x 4 Drive Trayless 3.5in SATA/SAS Mobile Rack 8 x Installation screws 2 x Drive bay keys 4 x SATA cables 1 x Instruction manual
