SYBA SD-DAC63106 Input: 3.5mm Line-In 1 - To stereo audio source 3.5mm Line-In 2 - To stereo audio source USB Power (Micro USB 5V input) Output: 3.5mm Headphone Jack 3.5mm Line-Out - To Active speaker Connector Sonic Stereo Tritone Equal
- Input:

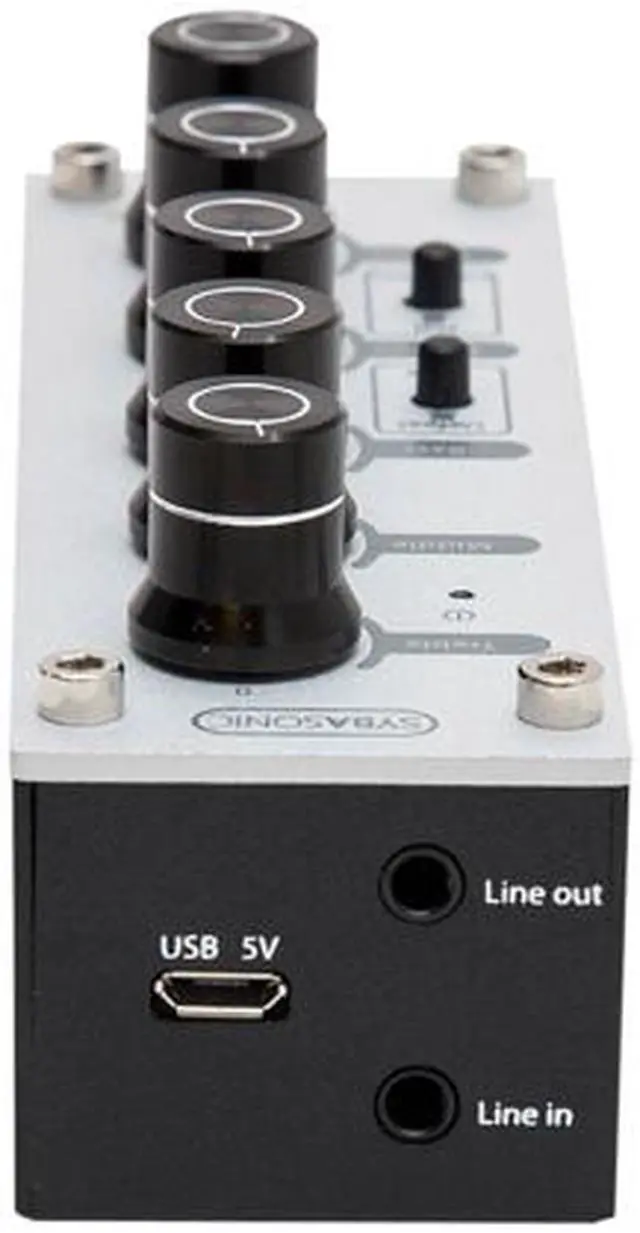

- 3.5mm Line-In 1 - To stereo audio source 3.5mm Line-In 2 - To stereo audio source USB Power (Micro USB 5V input)
- Output:

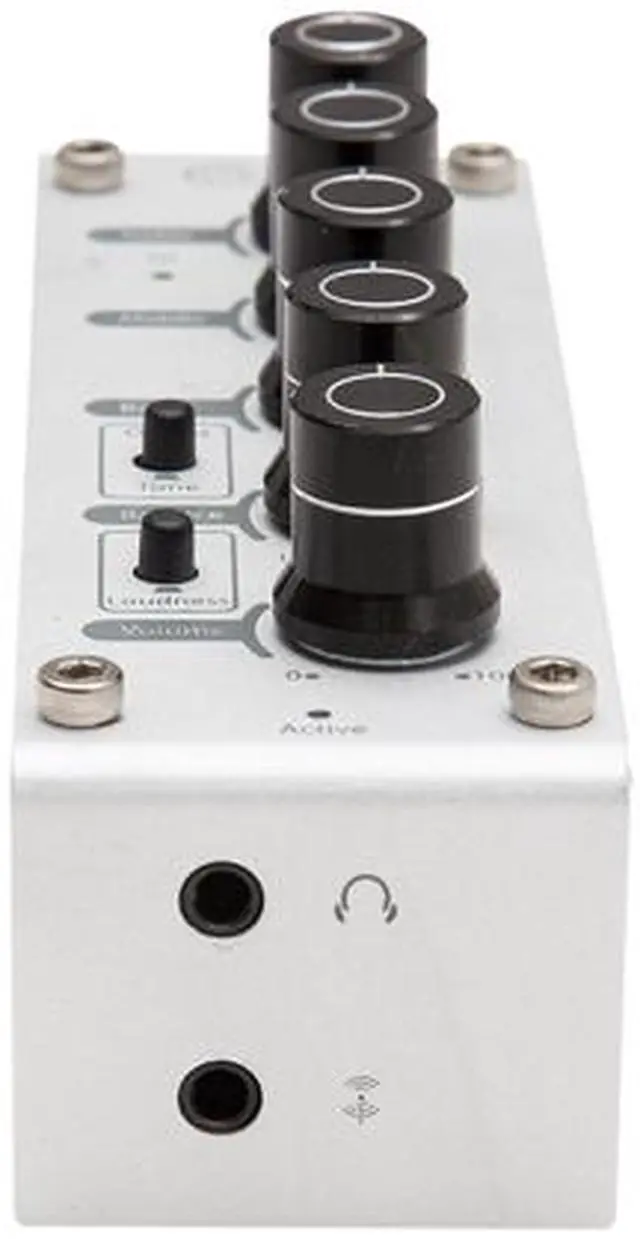

- 3.5mm Headphone Jack 3.5mm Line-Out - To Active speaker Connector
+
+
Specs
Reviews
Learn more about the Syba SD-DAC63106
| Brand | SYBA |
|---|---|
| Model | SD-DAC63106 |
| Type | Headphone Amplifier |
|---|---|
| Power Supply | Max. Headphone Output power: around 200mW/16ohm, 120mW/32ohm at 1KHz |
| Connector | Input: 3.5mm Line-In 1 - To stereo audio source 3.5mm Line-In 2 - To stereo audio source USB Power (Micro USB 5V input) Output: 3.5mm Headphone Jack 3.5mm Line-Out - To Active speaker |
| Weight | 0.95 |

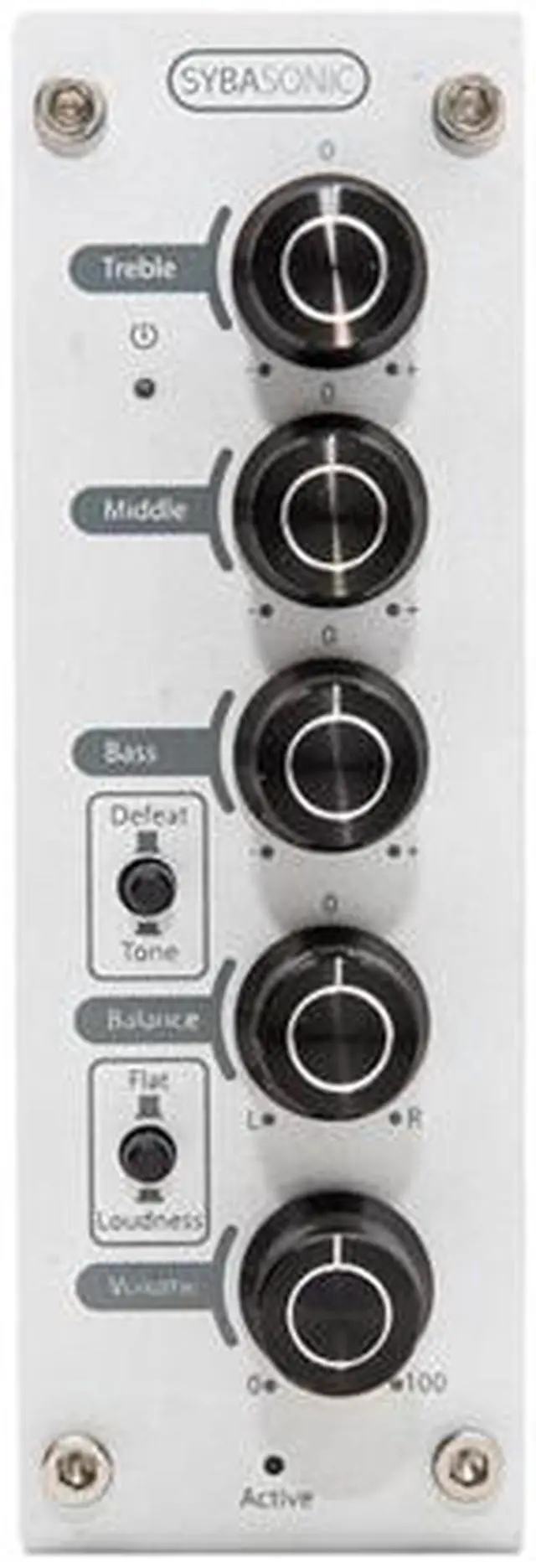

| Features | Control Knobs: Treble Middle Bass Balance Volume Switches: Defeat: Bypass the tone control Loudness: Flat or Loudness Quad Op-Amp design 3 way equalizing: Treble, Middle, and Bass Treble: Control Range: 3KHz-20KHz Trim Range: -12dB to +12dB Center Freq: 18KHz Middle: Control Range: 200Hz-4KHz Trim Range: -10dB to +10dB Center Freq: 1KHz Bass: Control Range: 20-250Hz Trim Range: -14dB to +14dB Center Freq: 0Hz Audio channel balance control trim range 10dB+ Independent Op-Amp for each channel to minimize the crosstalk Stereo Crosstalk: 90dB SNR: around 112dB (A-weighting) THD: 0.003% (A-weighting) Direct switch for by-pass hardware tone control Hardware loudness EQ Intergrated power isolation to boost 5V to +/- 12V USB Powered Power On LED |
|---|
| First Listed on Newegg | June 11, 2025 |
|---|
