Specifications | Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt compatible

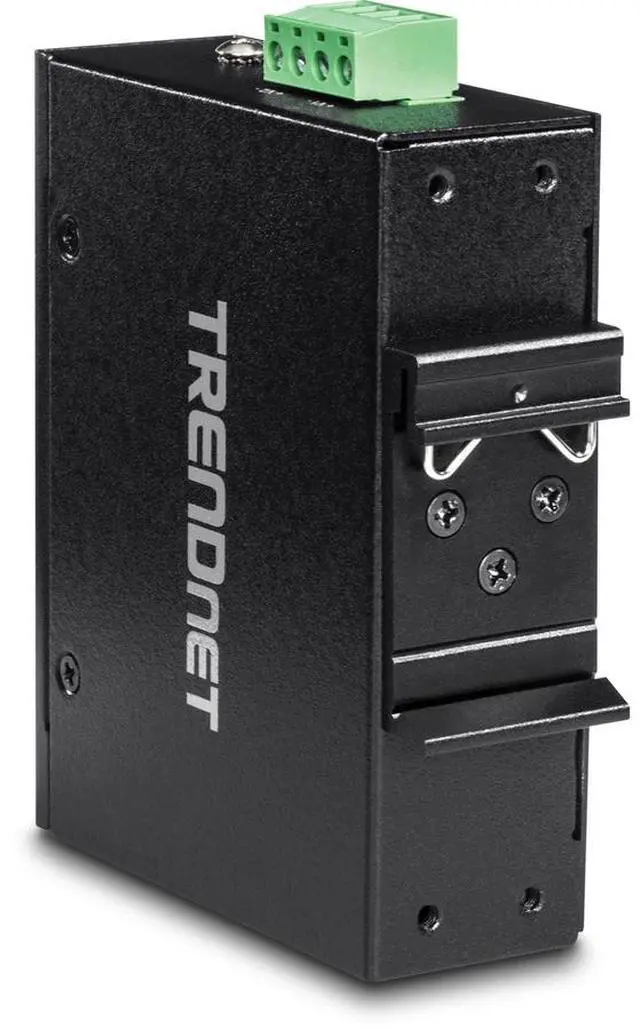

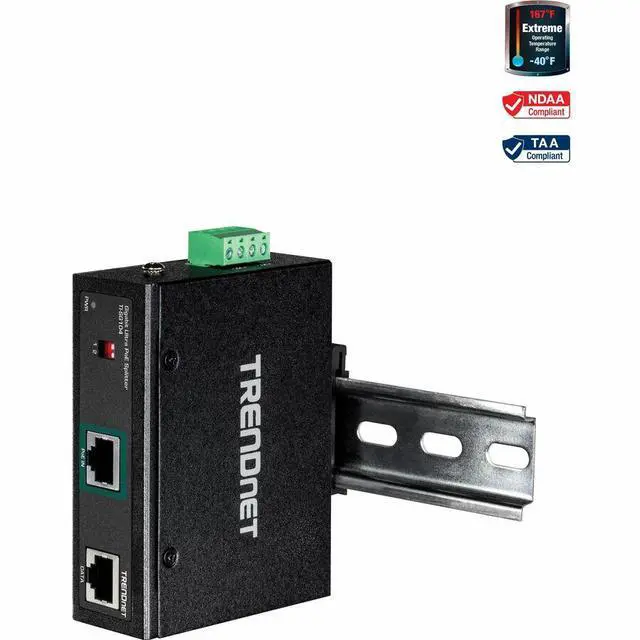

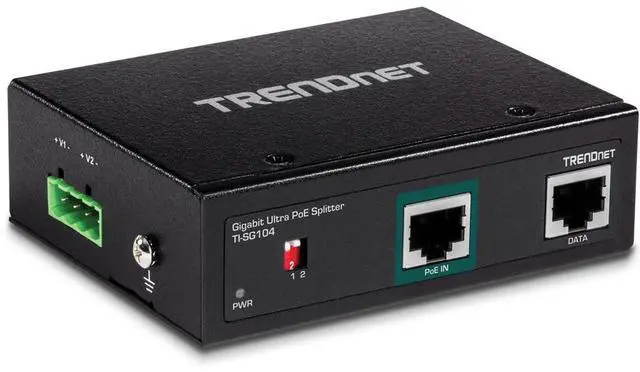

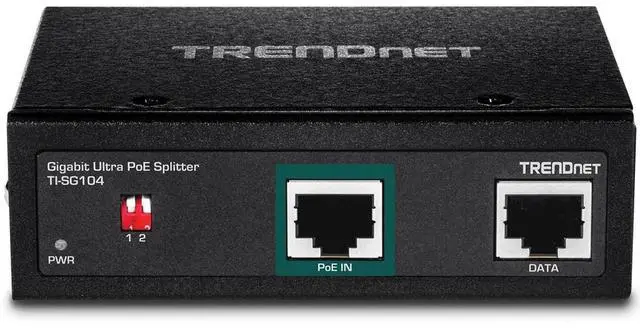

Device Interface: 1 x Gigabit port 1 x Gigabit Ultra PoE in port 4-pin removable terminal block (dual DC output) Adjustable output power DIP switch (48V, 24V, 16V, 12V) LED indicator DIN-Rail mount Wall mount Grounding point
Data Transfer Rate: Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
Special Features: Hardened components rated for extreme temperatures Dual DC power output Auto-Negotiation ESD 4kV and Surge 2kV protection
Power: Input: 15.4W / 30W / 60W / 95W PoE power Max. Consumption: 7W (splitter only) Max. Combined DC Output: 48V (1.25A), 24V (2.3A), 16V (2.3A), 12V (2.3A)

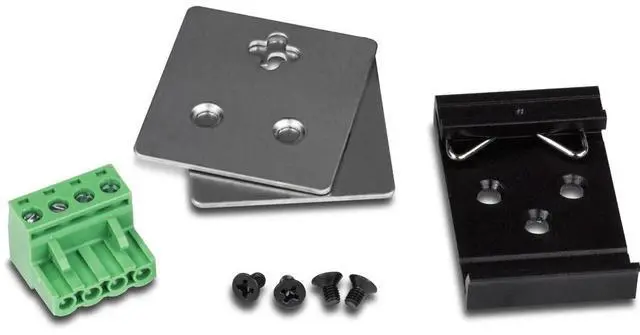

Package Contents: TI-SG104 Quick Installation Guide Removable terminal block DIN-rail and wall mount kit |
---|
