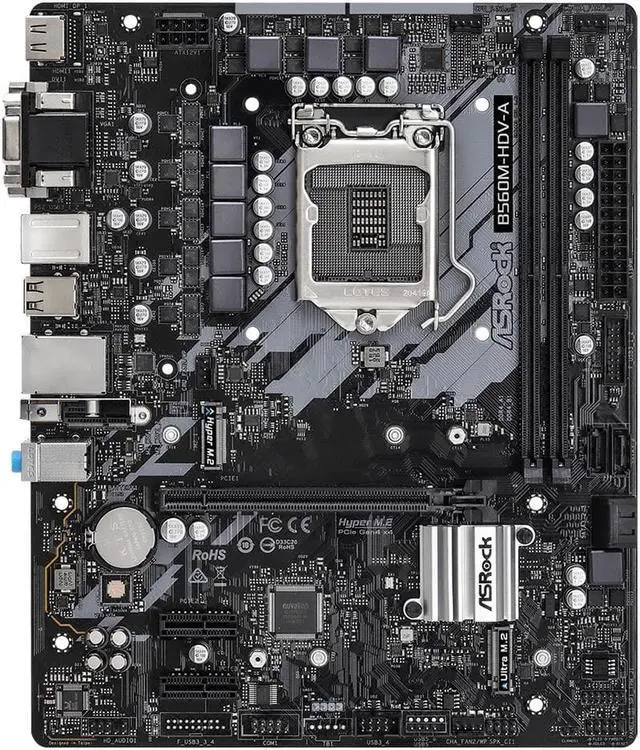

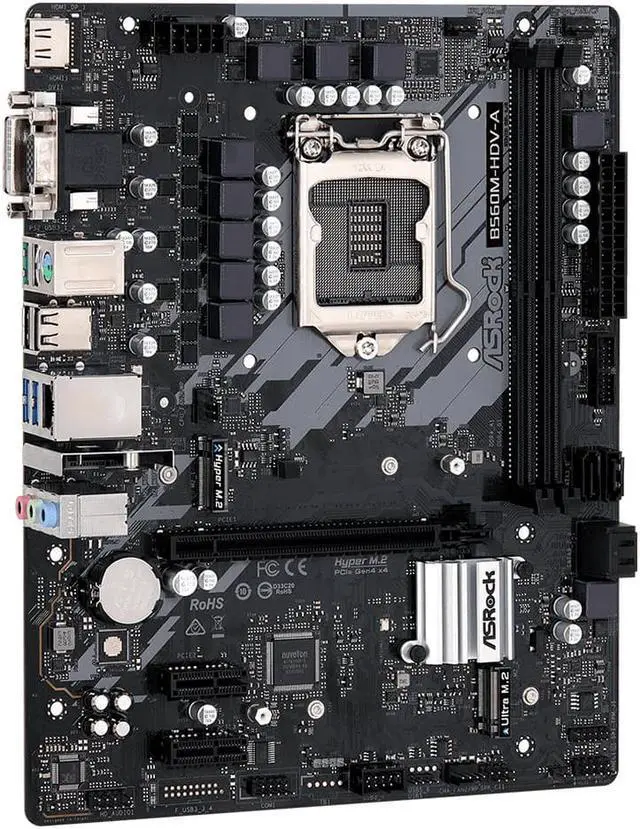

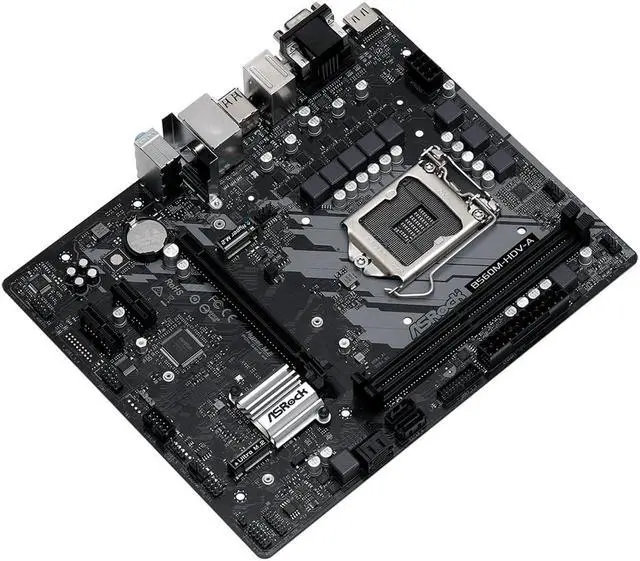

ASRock B560M-HDV-A DDR4 5000MHz (OC) 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 HDMI, DVI-D, D-Sub 7.1 PCIe Gen4 x4 PCIe Gen3 x4 & SATA3 Motherboards

Exclusive function
HuaEng Super Alloy
- 50A High Efficiency Inductance
-Ruby Black PCB
-High Density Moisture-proof Fiber PCB China Engine Super M. 2 (PCIe Gen4x4)
China Engine Full Protection (supports all USB, sound source, network interfaces)
China Engine Instant Update & Application Market
processor
- Support for 10th and 11th generation Intels ® Core Processor (slot 1200)
-Digital Power Supply
-Support Intel ® Turbo Boost Max 3.0 Technology
chip
- Intel ® B560
Memory
-Dual Channel DDR4 Memory Technology
- 2 x DDR4 memory slot
- 11th Generation Intel ® Core Processor supports DDR4 (non-ECC), un-buffered memory up to 5000+ (OC) *
-10th generation Intel ® Core Processor supports DDR4 (non-ECC), un-buffered memory up to 4600+ (OC) *
- Supports ECC UDIMM memory modules (running in non-ECC mode)
-Maximum system memory capacity: 64GB**
-Support Intel ® Extreme Memory Configuration (XMP) 2.0 Technology
*11th Gen Intel ® Core (i9 / i7 / i5) native support for DDR4 3200; Core (i3), Pentium and Eleron ® Native support up to DDR4 2666.
10th Gen Intel ® Core (i9 / i7) native support for DDR4 2933; Core (i5 / i3), Pentium and Eleron ® DDR4 2666 is supported natively.
** Due to operating system limitations, on Windows ® The 32-bit operating system will actually use less than 4GB of memory. On Windows ® There is no limit to using 64-bit CPUs on 64-bit operating systems.
BIOS
- Multilingual 128Mb AMI UEFI Legal BIOS with GUI support
-ACPI 6.0 compliant wake-up events
- Support SMBIOS 2.7
- CPU Core/Cache, GT, Memory, VPPM, VCCIN_ AUX, VCCST, VCCSA Voltage Multifunctional Regulator
Onboard graphics card
- 11th Generation Intel ® Core Processor support for Intel ® Xe Graphics Architecture (Gen 12). 10th Generation Intel ® Core Processor support Gen 9 Graphics

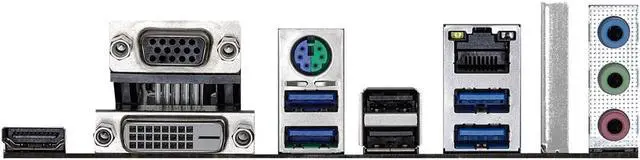

-3 Display output options: D-Sub, DVI-D and HDMI
- Supports simultaneous output of three monitors
- Supports HDMI 2.0 with maximum resolution of 4K x 2K (4096x2160) @ 60Hz with 11th generation Intel ® Core processor
- Supports HDMI 1.4 technology with maximum resolution of 4K x 2K (4096x2160) @ 30Hz with 10th generation Intel ® Core processor
- DVI-D support, maximum resolution 1920x1200 @ 60Hz
-Supports D-Sub with maximum resolution of 1920x1200 @ 60Hz
- Supports HDMI 2.0 Port Auto Picture and Sound Synchronization, Dark (12bpc), xvYCC and HBR (High Bit Speed Audio) (HDMI compatible display required)
- Supports HDCP 2.2 with DVI-D and HDMI interfaces (HDCP 2.3 ready with 11th generation Intel) ® Core Processor)
*Intel is only supported by processor with built-in GPU ® UHD display chip has built-in visual technology and display output.
Display specifications may vary depending on the processor type.
Sound effect
- 7.1 Channel High Fidelity Audio (Realtek ALC897 Audio Codec)
- Support anti-break
LAN
-Gigabit Network Card 10/100/1000 Mb/s
- Giga PHY Intel ® I219V
- Support network wake-up (Wake-On-LAN)
-Supports lightning protection/ESD static electricity
- Support for Energy Efficient Ethernet 80
