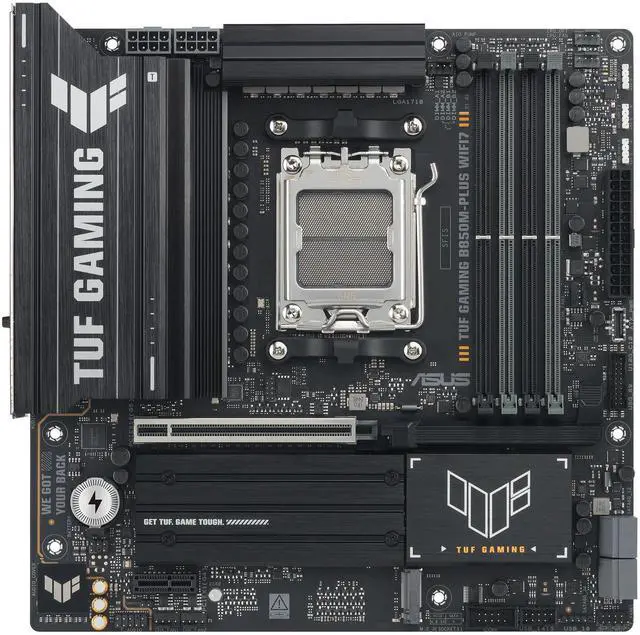

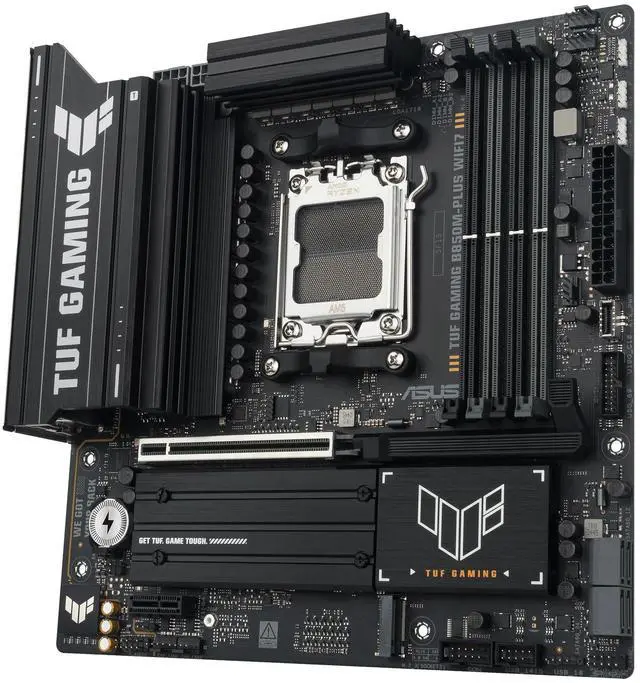

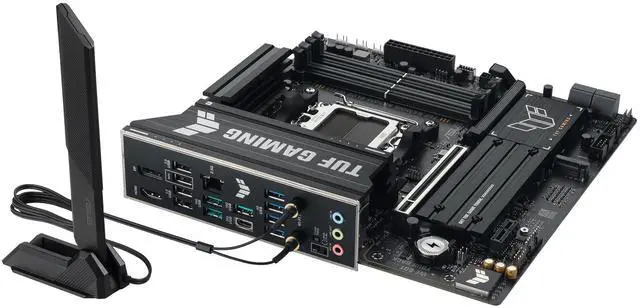

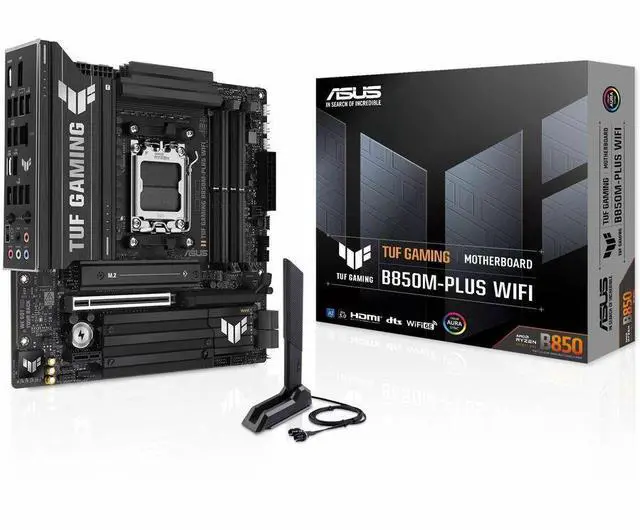

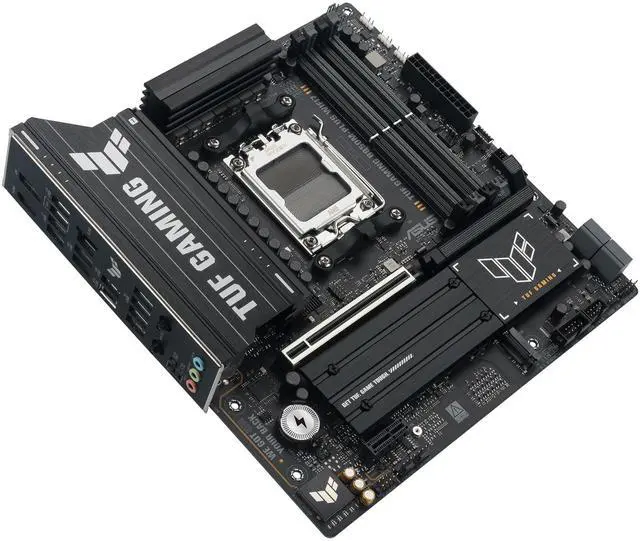

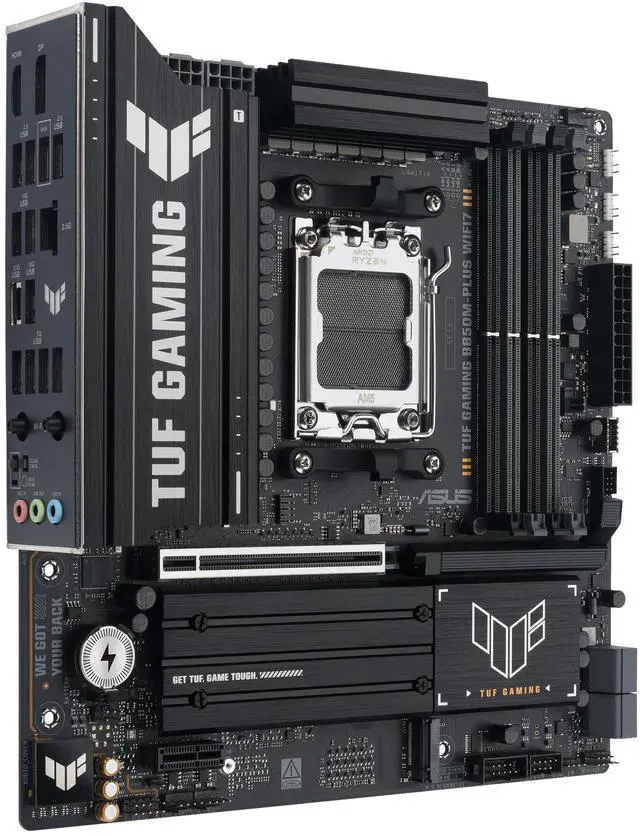

The ASUS TUF GAMING B850M-PLUS WIFI7 AM5 Micro ATX Motherboard with 14+2+1 80A DrMOS, DDR5, PCIe 5.0, three M.2 slots, WiFi 7, 2.5GbE, rear USB-C 20Gbps and front USB-C 10Gbps
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Enhanced Power Solution: 14+2+1 80A DrMOS power stages, 8-layer PCB, 8+8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery
- Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots
- Ultrafast Connectivity: WiFi 7, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C port, front USB 10Gbps Type-C connector
- Comprehensive Cooling: Enlarged VRM heatsink, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- DIY Friendly Design: PCIe Slot Q-Release, new M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™, Clear CMOS button and Pre-mounted I/O shield
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- Renowned Software:ASUS DriverHub, ASUS AI Advisor, DTS Audio Processing
+
+
Overview
Specs
Reviews (2)
TUF GAMING B850M PLUS WIFI7
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies*
- Return for refund within: 30 days
- Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.
- This item is covered by Newegg.com's International Order Return Policy.
- Read full return policy for details.
- *Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 1-888-678-3688
- Support Website
- View other products from ASUS
LOADING...
LOADING...
The ASUS TUF GAMING B850M-PLUS WIFI7 is a Micro-ATX AM5 motherboard for Ryzen 9000, 8000, and 7000 Series desktop processors, suited to gaming-PC builders who want DDR5, a PCIe 5.0 x16 slot, Wi-Fi 7, and robust power delivery in a compact board.
Recommended For
- Builders making a compact micro-ATX gaming PC around one graphics card: this AM5 board supports Ryzen 7000, 8000, and 9000 processors, and its tested power delivery suits a performance-focused build.
- PC builders who want Wi-Fi without a separate wireless card, such as a gaming or work PC placed away from the router: the board includes Wi-Fi 7 and Bluetooth, plus 2.5Gb Ethernet for wired networking.
- AM5 system builders who plan to use multiple internal SSDs for a game library or active project files: the board provides three M.2 slots, including PCIe 5.0 support with Ryzen 7000 or 9000 processors.
- First-time or occasional PC builders who value board-level setup and troubleshooting aids: ASUS includes features such as a pre-mounted I/O shield, M.2 Q-Latch, Q-LED indicators, and BIOS FlashBack.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Micro-ATX desktop builds using supported AMD Ryzen 7000, 8000, or 9000 Series processors, with DDR5 memory and PCIe expansion |
| Processor And Platform | AMD B850 chipset with an AM5 socket for Ryzen 7000, 8000, and 9000 Series processors |
| Memory Configuration | Four DDR5 memory slots support up to 256 GB, dual-channel operation, memory speeds up to 8000 MHz, AMD EXPO and ASUS AEMP profiles, ECC, and unbuffered memory |
| Expansion And Storage | Three PCIe slots, including one PCIe 5.0 x16 and one PCIe 4.0 x16 slot; three M.2 slots support PCIe 5.0 x4 and PCIe 4.0 x4, alongside four SATA ports and RAID 0/1/5/10 |
| Wired And Wireless Networking | Realtek 2.5Gb Ethernet, Wi-Fi 7 (802.11be), and Bluetooth |

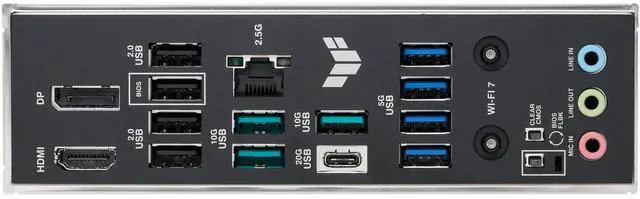

| Rear I/O And Display Connectivity | 12 rear USB ports, one HDMI 2.1 port, one DisplayPort, one RJ-45 port, one COM port, and three audio ports |
| Internal Connectivity | USB-C header with USB 3.2 Gen 2x1, plus two USB 3.2 and three USB 2.0 connections |
| Audio | Realtek ALC1220P audio chipset with 7.1-channel audio |
| Form Factor And Dimensions | Micro-ATX motherboard measuring 9.6 × 9.6 inches |
| Power And Lighting | 24-pin main power connector and RGB lighting |
| Model Identifiers | ASUS TUF GAMING B850M-PLUS WIFI7; part number TUF GAMING B850M-PLUS WIF |
