Features
- eSATAp (also known as Power over eSATA, Power eSATA, eSATA/USB Combo, eSATA USB Hybrid Port/EUHP) is a combination connection for external storage devices.
- An eSATA or USB device can be plugged into an eSATAp port. Power eSATA is eSATA + USB combo, NOT eSATA or USB port

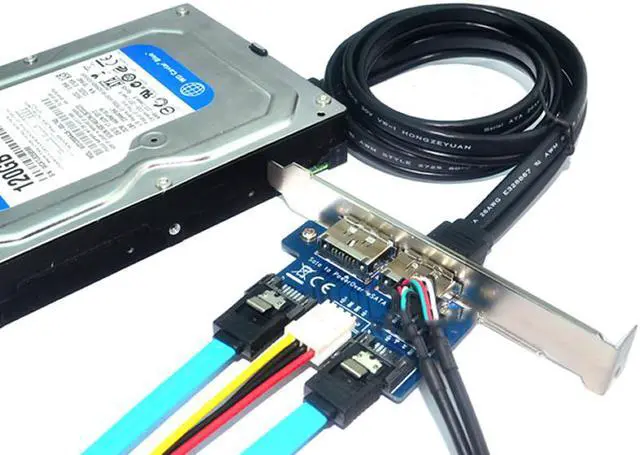

Expand two eSATAp port from motherboard SATA host - Power by SATA interface from PSU, providing 12V/5V power over the external port ( SATA 15pin to SP4 4pin power adapter cable MUST be connected ) for any 2.5" / 3.5" eSATA devices
- The 9pin header on this board must be connected with a 9pin header on your motherboard to make sure the eSATAp have USB 2.0 functions, data transfer speed up to 480Mbps
- Plug and play, no driver is needed
Note
- SATA 15pin to SP4 4pin power adapter cable MUST be connected to PSU
- USB 9pin header cable MUST be connected to motherboard USB 9pin header
- Two SATA cables are required (sold separately, do not include in the package)

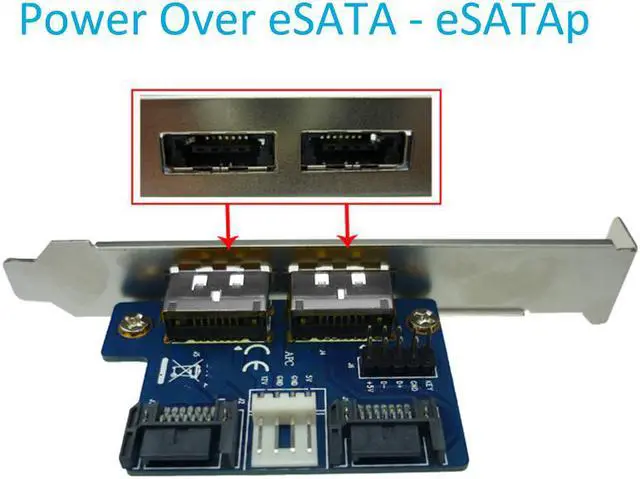

eSATAp port, aka
-Power Over eSATA
-Power eSATA
-eSATA COMBO(eSATA/USB2.0)
-eSATA/USB COMBO
-eSATA-USB 2in1
-USB-eSATA combo
-eSATA/USB power- eSATA combo port
-11 pin USB/eSATA
-eSATA/USB port

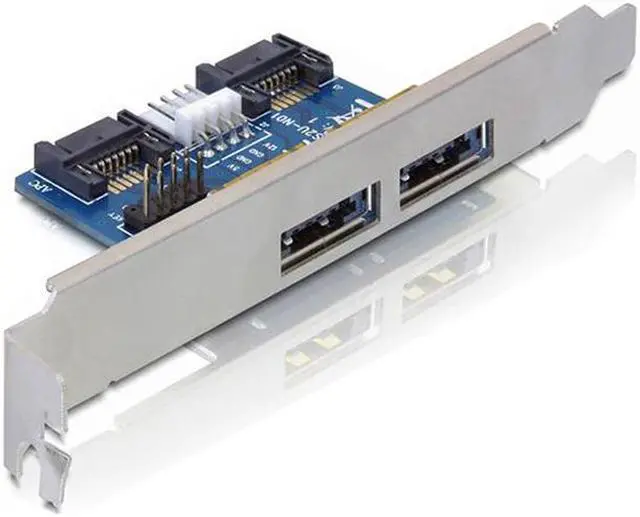

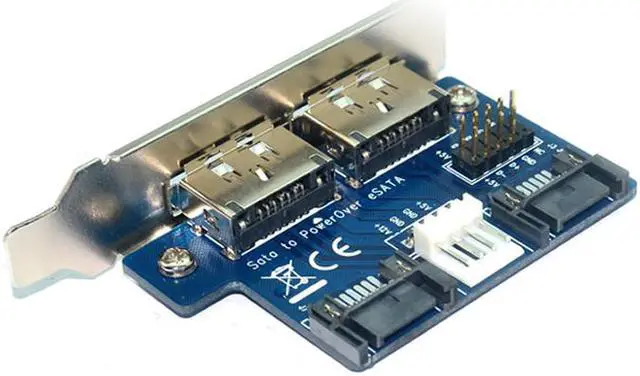

- 2x SATA to 2 x eSATAp Adapter
- Support 2.5" / 3.5" eSATA Devices of data transfer speed up to 3Gbps
- Support USB devices of data transfer speed up to 480Mbps
- SATA 15pin to SP4 4pin power adapter cable MUST be connected to PSU
- USB 9pin header cable MUST be connected to motherboard USB 9pin header
- Two SATA cables are required
- SATA cables are sold separately, do not include in the package
Specification
| Type | SATA to eSATAp Adapter |
|---|---|
| Input-A | 2x SATA 7Pin |
| Input-B | SATA Power |
| Input-C | USB 2.0 9Pin |
| Output | 2x eSATAp Ports |
| eSATA Data Transfer Speed | 3Gbps |
| USB Function | USB 2.0 480Mbps |
| USB Cable Length | USB 9Pin Female to Female Cable,12 Inches |

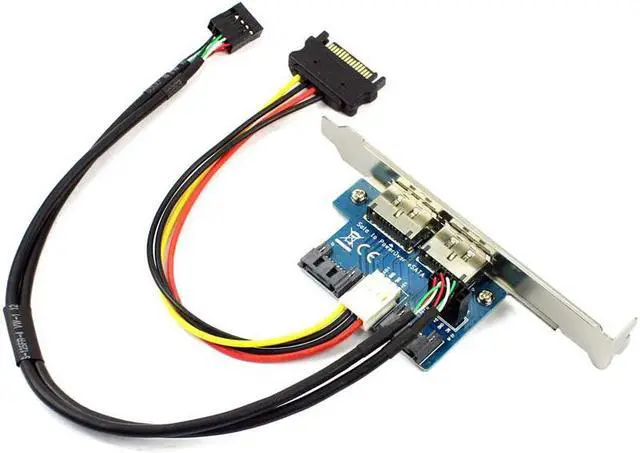

| Power Adapter Cable | SATA to SP4 Power Adapter,6 Inches |
| Package Contents | Adapter Card, USB 9Pin Cable, Power Adapter Cable |
