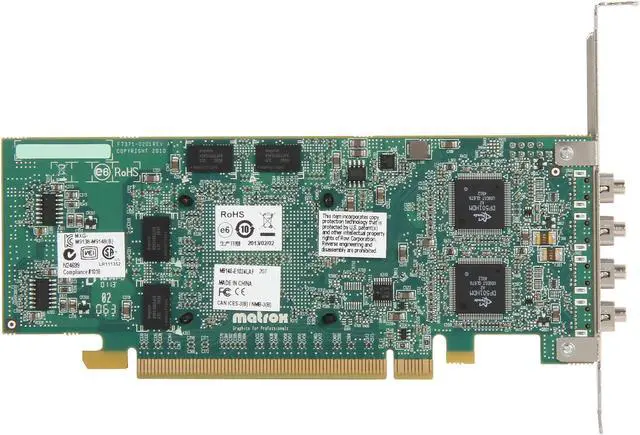

The Matrox M9148 LP PCIe x16 quad graphics card renders pristine image quality on up to four DisplayPort monitors at resolutions up to 2560 x 1600 per output for an exceptional multi-monitor user experience. With 1 GB of memory and advanced desktop management features, the M9148 LP PCIe x16 card supports either independent or stretched desktop modes and drives business, industrial, and government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems. It offers multiple operating system support, and can be paired with another M9148 graphics card to support up to eight DisplayPort monitors from a single system.API Supported: OpenGL 2.0Number of Monitors Supported: 4Chipset Manufacturer: MatroxChipset Series: MChipset Model: M9148Standard Memory: 1 GBHost Interface: PCI Express x16DisplayPort: YesNumber of DisplayPort Outputs: 1DVI: YesTotal Number of DVI Outputs: 1Form Factor: Plug-in CardCard Height: Low-profileHeight: 2.7Length: 6.6"Platform Supported: PCGreen Compliant: YesGreen Compliance Certificate/Authority: RoHSGreen Compliance Certificate/Authority: WEEELimited Warranty: 3 Year"
Learn more about the matrox M9148-E1024LAF
Model
Brand
Matrox
Model
M9148-E1024LAF
Interface
Interface
PCI Express x16
Chipset
Chipset Manufacturer
matrox
GPU
M9148
Memory
Memory Size
1GB
3D API
OpenGL
OpenGL 2.0
Ports
DisplayPort
4 x Mini DisplayPort
Details
Digital Resolution
2560 x 1600
Max Displays Per Board
4
Cooler
Fanless
Operating Systems Supported
Windows 7 (32/64bit) Windows Vista (32/64bit) Windows XP (32/64bit) Windows Server 2003/2008 (32/64bit) Linux
Features
Features
High-resolution four DisplayPort monitor support -Support resolutions up to 2560 x 1600 per output
Native PCI Express x16 performance -Maximum bandwidth to ensure best performance
1 GB of memory -For enhanced performance in demanding multi-monitor applications
Low-profile form factor -To fit in a wide variety of systems; includes bracket for full-height ATX form factor
Passive cooling and low power consumption -Fanless design eliminates noise and increases product reliability
Stretched and independent desktop modes -Expand your desktop across multiple monitors or set each monitor independent of each other
M-Series multi-card support1 -Add multiple Matrox M-Series cards into the same system to drive more monitors
Joined graphics card mode1 -Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
Matrox Clone -View a copy of one display on the other displays
Wide enterprise flexibility -Unified driver package compatible with other Matrox products
Matrox PowerDesk software -Easily configure and manage program windows on multiple monitors
Multiple operating system support -Display drivers for Windows 7 (32/64 bit), Windows Vista (32/64 bit), Windows XP (32/64 bit), Windows Server 2003/2008 (32/64 bit), and Linux
Packaging
Package Contents

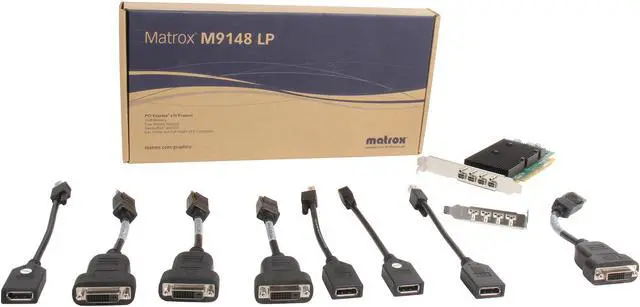

Matrox M9148 LP PCIe x16 graphics card with factory-installed ATX bracket (low-profile bracket in the box) Four miniDP to DP adapters Four DP to DVI connector adapters
