Noctua NH-L12Sx77, Low-Profile CPU Cooler (120mm, Brown)

  • Performance-enhanced taller version of the award-winning NH-L12S: Six heatpipes for improved thermal headroom, increased clearance for better motherboard and RAM compatibility
  • 77mm total height and bottom-to-top airflow direction for optimal acoustics and direct exhaust of hot air in compact cases, ideal for the Fractal Design Terra, Silverstone Milo ML12 or Louqe Raw S1 chassis
  • Highly optimised NF-A12x15 slim 120mm fan with Low-Noise Adaptor and PWM for automatic speed control: full cooling performance under load, near-silent at idle
  • Includes high-end NT-H2 thermal paste and SecuFirm2 mounting system for easy installation on Intel LGA1851, LGA1700, LGA1200, LGA115x and AMD AM5 & AM4 (offset mounting option for best efficiency)
  • Perfect for powerful yet compact and quiet Small Form Factor builds and ITX systems, deluxe choice for Intel Core i9, i7, i5, i3 (e.g. 14900K, 14700K, 14600K) and AMD Ryzen (e.g. 7950X3D, 7900X3D, 7800X3D, 7700)
+
+
Overview
Specs
Reviews (3)

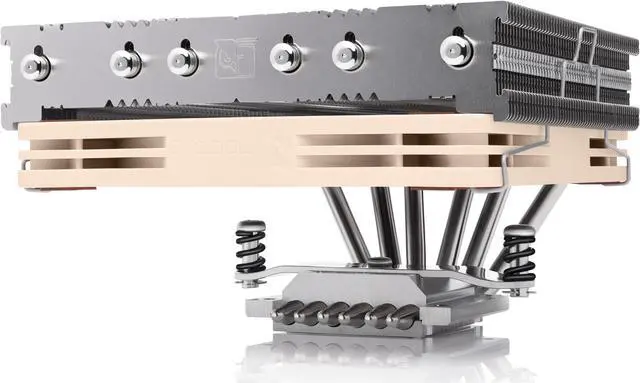

The NH-L12Sx77 is a slightly taller variant of the award-winning NH-L12S, offering improved cooling performance as well as enhanced motherboard and RAM compatibility. With six instead of four heatpipes, it provides additional thermal headroom while maintaining the same default fan setup with the fan installed below the fin stack blowing upwards, which not only guarantees optimal acoustics in situations with perforated case panels right above the cooler, but also helps to exhaust hot air from the case. Due to the increased height, clearance for tall motherboard heatsinks or RAM modules could be improved significantly, yet at a height of 77mm, the NH-L12Sx77 is still compact enough to fit popular Small Form Factor (SFF/SFX) cases such as the Fractal Design Terra, Silverstone Milo ML12 or Louqe Raw S1.

Topped off with the renowned SecuFirm2 mounting system, Noctuas award-winning NT-H2 thermal compound and a 6-year manufacturers warranty, the NH-L12Sx77 is the perfect choice for SFF builds that require strong cooling performance but cannot fit the larger NH-C14S or NH-D9L.
logo
header

The NH-L12Sx77 is a slightly taller variant of the award-winning NH-L12S, offering improved cooling performance as well as enhanced motherboard and RAM compatibility. With six instead of four heatpipes, it provides additional thermal headroom while maintaining the same default fan setup with the fan installed below the fin stack blowing upwards, which both guarantees optimal acoustics in situations with perforated case panels right above the cooler, and helps to exhaust hot air from the case. Due to the increased height, clearance for tall motherboard heatsinks or RAM modules could be improved significantly, yet at a height of 77mm, the NH-L12Sx77 is still compact enough to fit popular Small Form Factor cases. Topped off with the renowned SecuFirm2 mounting system, Noctuas award-winning NT-H2 thermal compound and a 6-year manufacturers warranty, the NH-L12Sx77 is the perfect choice for SFF builds that require strong cooling performance but cannot fit the larger NH-C14S or NH-D9L.

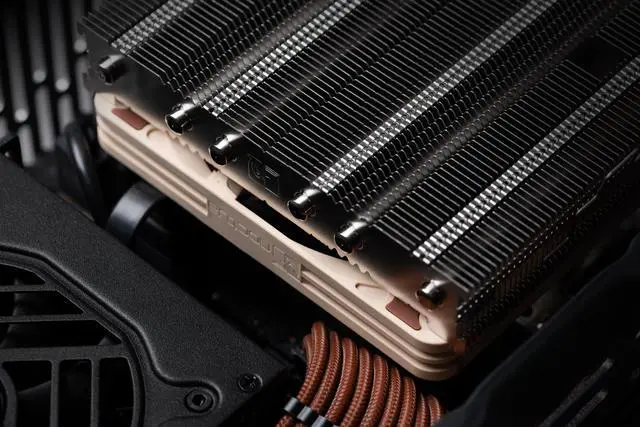

Low-profile mode
Better performance, better compatibility

The NH-L12Sx77 not only improves performance but also motherboard and RAM compatibility versus the original NH-L12S: Due to the x77 versions taller construction, clearance for RAM modules as well as motherboard heatsinks and shrouds could be increased significantly, which makes the cooler an easy fit in most configurations.






High-clearance mode
High clearance mode

Run with the NF-A12x15 fan installed on top, the NH-L12Sx77 provides extended clearance underneath the fin stack. This way, it is fully compatible with chipset coolers and RAM modules with up to 56mm in height (compared to 44mm in the default configuration with the fan installed underneath the fin stack).






NF-A12x15 slim 120mm premium fan
NF-A12x15 slim 120mm premium fan

Featuring sophisticated aerodynamic optimisations such as Flow Acceleration Channels, the NF-A12x15 is a premium-grade slim 120mm fan. Its outstanding efficiency enables the NH-L12Sx77 to combine excellent cooling performance with superb quietness of operation.






NT-H1
NT-H2 next-gen thermal compound

For high-end builds in compact cases, every degree counts. This is why the NH-L12Sx77 includes a tube of Noctuas next-generation NT-H2 compound that provides even better performance than the award-winning NT-H1, allowing you to achieve the best possible cooling results.










specs
Cooler Specifications

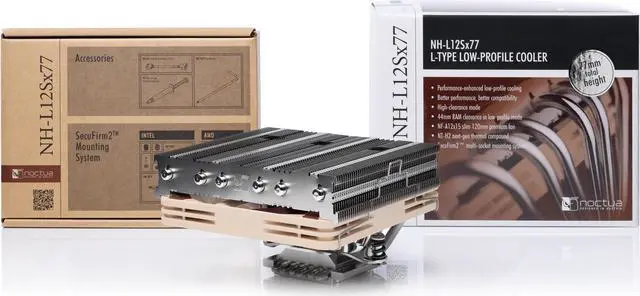

Scope of delivery
  • NF-A12x15 PWM premium fan
  • NA-RC7 Low-Noise Adaptor (L.N.A.)
  • NT-H2 high-grade thermal compound
  • SecuFirm2 mounting kit
  • Noctua metal case-badge
Fan compatibility

120x120x15, 120x120x25



Measurements
  • Height (without fan): 77 mm

  • Width (without fan): 128 mm

  • Depth (without fan): 131 mm

  • Height (with fan): 77 mm

  • Width (with fan): 128 mm

  • Depth (with fan): 131 mm

  • Weight (without fan): 410 g

  • Weight (with fan): 540 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating




Performance-enhanced low-profile cooling

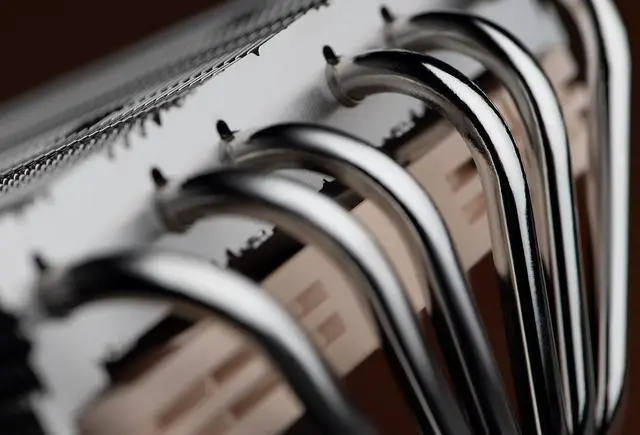

With 6 instead of 4 heatpipes, the NH-L12Sx77 offers significantly more headroom for higher heat-loads compared to the original NH-L12S. As such, it is ideal for getting the most out of todays high-end CPUs in compact cases.



Banner
Products
LGA1851, LGA1700
LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156)
LGA20xx Square ILM with NM-i20xx with NM-i20xx with NM-i20xx
LGA20xx Narrow ILM - - -
LGA4189 - - -
LGA4677 - - -
AM5
AM4
TR4, SP3, sTRX4, sWRX8 - - -
sTR5, SP6 - - -
