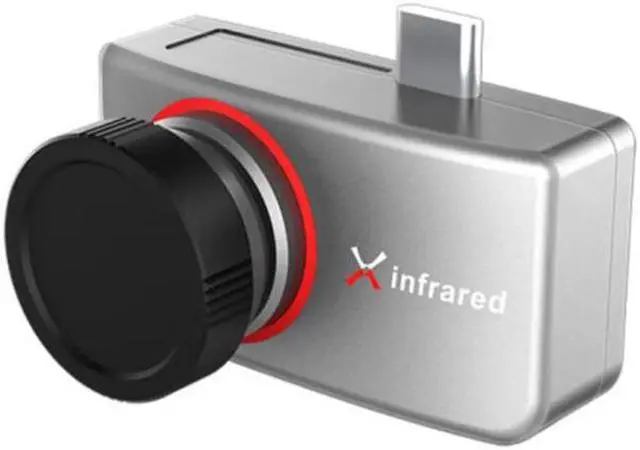

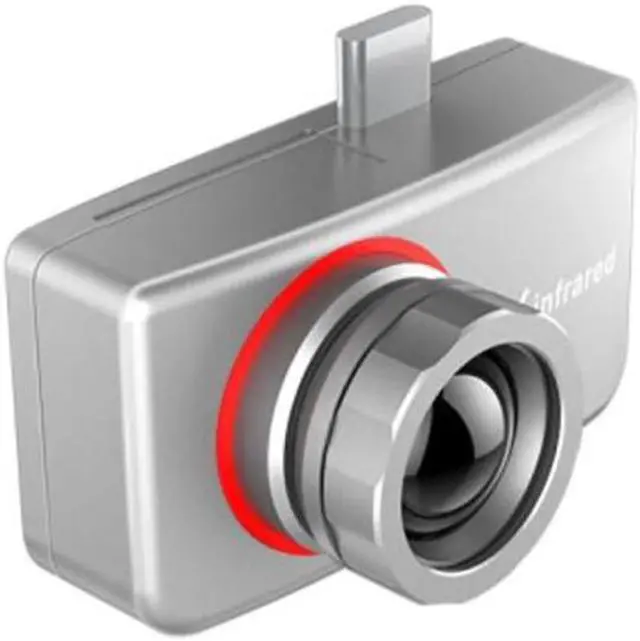

InfiRay T3S Thermal Camera Mini Thermal Scope for Android Industrial PCB Floor Heat Detection Thermal Imager
- Please note that this is the Android version!
- This is the Android version! This is the Android version!
- Main technical parameters:

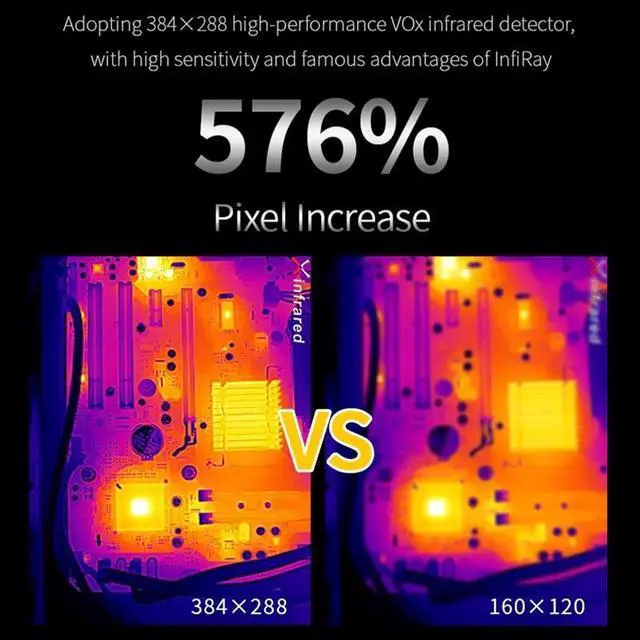

- Resolution: 384x288
- Pixel Size: 17m
- Spectral Band: 8~14m
- Lens: 13mm
- Focusing Mode: Manual
- Image Frame Rate: 25Hz
- NETD: 50mk
- MRTD: 500mK
- Operating Temperature: -20~+ 50
- Measuring Range: -20~+120
- Accuracy: ±3
- Temperature Correction: Manual/Automatic
- Power Consumption: < 500mW
- Weight (with lens): <40g
- Dimension (with lens): 49.5mmx26mmx27.5mm
- Shell: Alloy body
- Image Enhancement: Digital detail enhancement (DDE)
- Image Correction: Manual

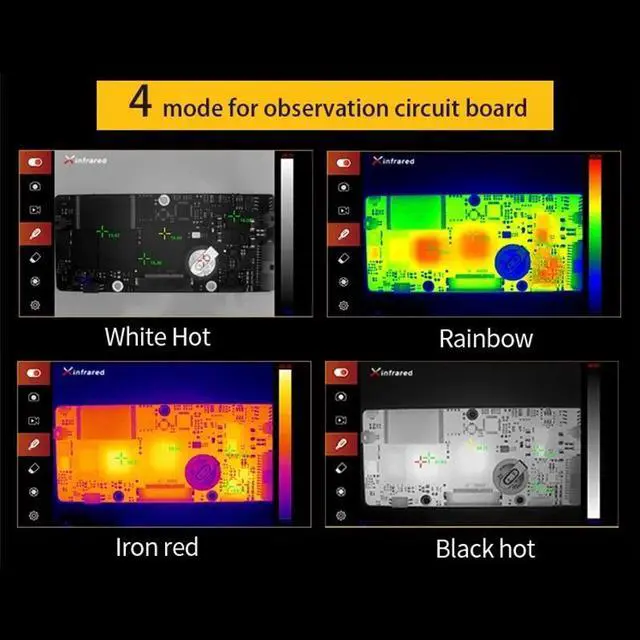

- Palette: White-hot/black-hot/iron-red/rainbow/high contrast rainbow/iron-grey
- Secondary Development: Provide SDK
- Temperature Statistics: Support high /low/central point temperature display, and point/line/area analysis,statistics
- Video Saving: Support the functions of photographing and video saving
- Software Update: Support online software update

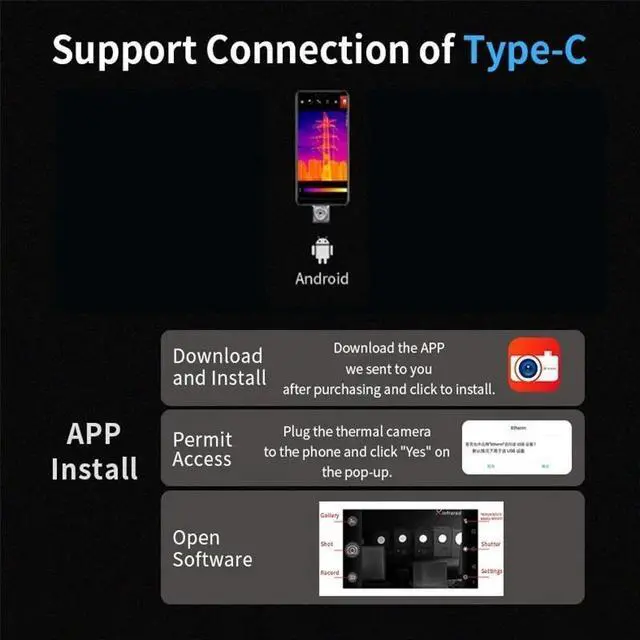

- Supported System: Android 6.0 and Above
+
+
Overview
Specs
Reviews
Please note that this is the Android version!
This is the Android version! This is the Android version!
Main technical parameters:
Resolution: 384x288
Pixel Size: 17m
Spectral Band: 8~14m
Lens: 13mm
Focusing Mode: Manual
Image Frame Rate: 25Hz
NETD: 50mk
MRTD: 500mK
Operating Temperature: -20~+ 50
Measuring Range: -20~+120
Accuracy: ±3
Temperature Correction: Manual/Automatic
Power Consumption: < 500mW
Weight (with lens): <40g
Dimension (with lens): 49.5 mmx26mmx 27.5 mm
Shell: Alloy body
Image Enhancement: Digital detail enhancement (DDE)
Image Correction: Manual
Palette: White-hot/black-hot/iron-red/rainbow/high contrast rainbow/iron-grey
Secondary Development: Provide SDK
Temperature Statistics: Support high /low/central point temperature display, and point/line/area analysis, statistics
Video Saving: Support the functions of photographing and video saving
Software Update: Support online software update
Supported System: Android 6.0 and Above
This is the Android version! This is the Android version!
Main technical parameters:
Resolution: 384x288
Pixel Size: 17m
Spectral Band: 8~14m
Lens: 13mm
Focusing Mode: Manual
Image Frame Rate: 25Hz
NETD: 50mk
MRTD: 500mK
Operating Temperature: -20~+ 50
Measuring Range: -20~+120
Accuracy: ±3
Temperature Correction: Manual/Automatic
Power Consumption: < 500mW
Weight (with lens): <40g
Dimension (with lens): 49.5 mmx26mmx 27.5 mm
Shell: Alloy body
Image Enhancement: Digital detail enhancement (DDE)
Image Correction: Manual
Palette: White-hot/black-hot/iron-red/rainbow/high contrast rainbow/iron-grey
Secondary Development: Provide SDK
Temperature Statistics: Support high /low/central point temperature display, and point/line/area analysis, statistics
Video Saving: Support the functions of photographing and video saving
Software Update: Support online software update
Supported System: Android 6.0 and Above
