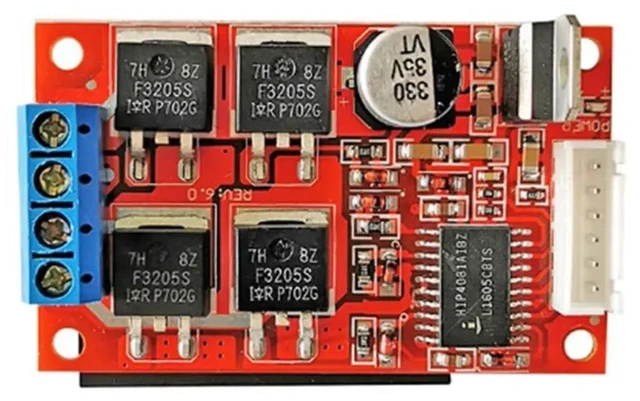

Brushed PWM Motor Driver Module H-Bridge High Power DC Motor Driver Board 450W DC 12V/24V/36V Reversing Brake
- Brushed PWM Motor Driver Module H-Bridge High Power DC Motor Driver Board 450W DC 12V/24V/36V Reversing Brake
+
+
Overview
Specs
Reviews
High Power DC Motor Driver Board H-Bridge Brush Motor Driver Controls Module 450W DC 12V/24V/36V Reversing Brake
Features:
1.
Compact Size: With dimensions of just 6.6 cm x 3.8 cm, this brushed PWM motor driver module is incredibly compact. Even with a 1cm thick heat sink attached, the total height remains at just 2.8 cm, making it easy to integrate into various setups.
2.
Versatile Voltage Support: This high power DC motor driver board supports a wide voltage range of 10-36V, providing versatility in usage. It offers undervoltage protection and can be independently powered up to a maximum of 50V, ensuring reliable performance in diverse applications.
3.
High Load Capacity: Capable of sustaining a maximum continuous load current of 20A (with a simple heat sink attached), this PWM DC motor speed controller can handle demanding tasks. It can even withstand short-time peak currents of up to 110A, enabling efficient control of high-power motors.
4.
Comprehensive Control Options: This brush motor driver controls module allows for three-wire speed control, bidirectional rotation, and brake functions. It supports full PWM control and can be easily operated using buttons for direction control. The PWM range spans from 0% to 100.0 %, providing precise motor control.
5. Easy Integration with
Microcontrollers: Seamlessly interface this brushed DC motor driver board with PLC systems and 3.3V /5V microcontroller IO ports. It features built-in level buffering capabilities, eliminating concerns about damaging the microcontroller IO pins. Enjoy hassle-free integration and reliable control functionality.
Specification:
Origin: Mainland China
Motor Type: DC Motor
Module Nature: H-Bridge Brush DC Motor Driver Module For 3-36V High Power DC Motors
Scope of Application: High-Power DC Motor Drive. Wide Input Voltage (11-36v) Requirements Of The Occasion. Such As Large Cars, Robots And Other Various Control.
Driving Voltage: DC 11-36V Input DC Voltage (Prohibited Input AC)
Output Current: Rated Continuous Output 24V 15A 360W Or Less Without Heat Sink, Maximum 36V 15A 450W
Output Power: Natural Cooling Rated 450W Measured At 36V 15A Power Supply
Operating Temperature: Industrial Grade (-40C To +85C)
Full Load Temperature: 45C
Weight: 293g
Product Size: 66.00 x 38.00 x 28.00 mm/ 2.6 x 1.5 x 1.1 inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1*Brushed PWM Motor Driver Module
Features:
1.
Compact Size: With dimensions of just 6.6 cm x 3.8 cm, this brushed PWM motor driver module is incredibly compact. Even with a 1cm thick heat sink attached, the total height remains at just 2.8 cm, making it easy to integrate into various setups.
2.
Versatile Voltage Support: This high power DC motor driver board supports a wide voltage range of 10-36V, providing versatility in usage. It offers undervoltage protection and can be independently powered up to a maximum of 50V, ensuring reliable performance in diverse applications.
3.
High Load Capacity: Capable of sustaining a maximum continuous load current of 20A (with a simple heat sink attached), this PWM DC motor speed controller can handle demanding tasks. It can even withstand short-time peak currents of up to 110A, enabling efficient control of high-power motors.
4.
Comprehensive Control Options: This brush motor driver controls module allows for three-wire speed control, bidirectional rotation, and brake functions. It supports full PWM control and can be easily operated using buttons for direction control. The PWM range spans from 0% to 100.0 %, providing precise motor control.
5. Easy Integration with
Microcontrollers: Seamlessly interface this brushed DC motor driver board with PLC systems and 3.3V /5V microcontroller IO ports. It features built-in level buffering capabilities, eliminating concerns about damaging the microcontroller IO pins. Enjoy hassle-free integration and reliable control functionality.
Specification:
Origin: Mainland China
Motor Type: DC Motor
Module Nature: H-Bridge Brush DC Motor Driver Module For 3-36V High Power DC Motors
Scope of Application: High-Power DC Motor Drive. Wide Input Voltage (11-36v) Requirements Of The Occasion. Such As Large Cars, Robots And Other Various Control.
Driving Voltage: DC 11-36V Input DC Voltage (Prohibited Input AC)
Output Current: Rated Continuous Output 24V 15A 360W Or Less Without Heat Sink, Maximum 36V 15A 450W
Output Power: Natural Cooling Rated 450W Measured At 36V 15A Power Supply
Operating Temperature: Industrial Grade (-40C To +85C)
Full Load Temperature: 45C
Weight: 293g
Product Size: 66.00 x 38.00 x 28.00 mm/ 2.6 x 1.5 x 1.1 inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1*Brushed PWM Motor Driver Module
