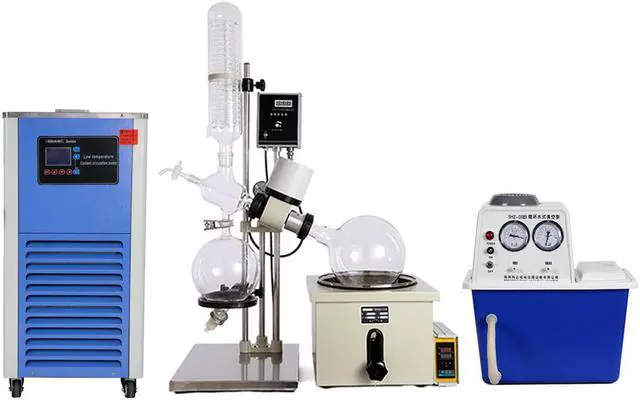

Rotary Evaporator 5L Turnkey Combination HNZXIB RE-501 Rotavaps Vacuum Pump Refrigerated Circulating Pump Cooling Chiller 110V Laboratory Equipments

Rotary evaporators are distillation units that incorporate an efficient condenser with a rotary flask system. As the flask containing the solvent is rotated it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation that is effected by heating from the accessory water or oil bath. The solvent steam is cooled by a high efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency, especially for the concentration and purification of the biologic which are easily decomposed at high temperature.

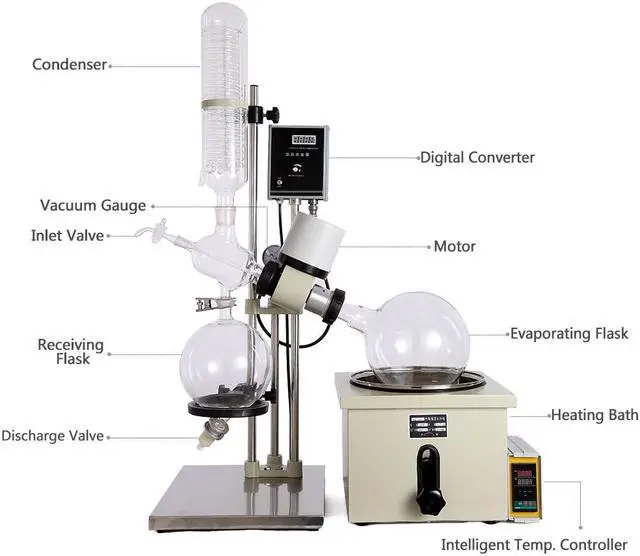

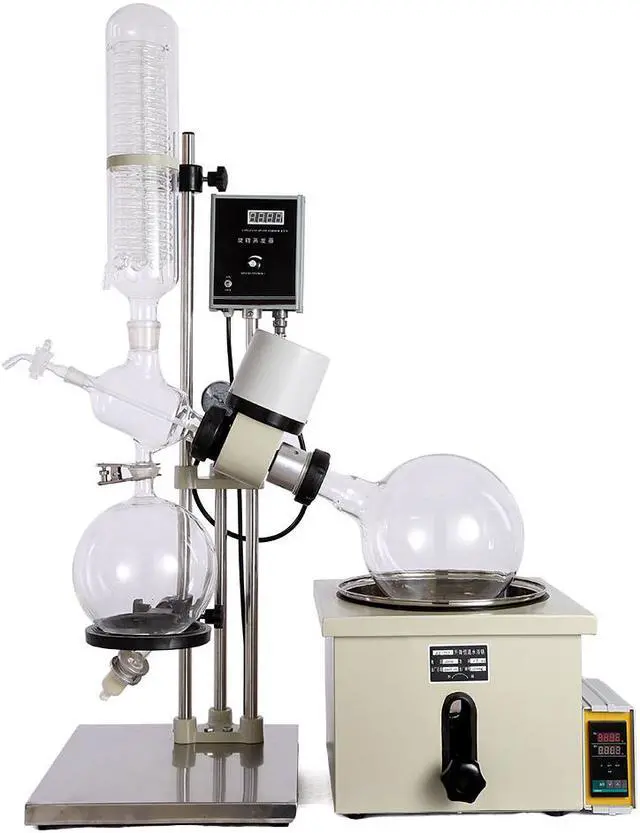

>>>> 5L Rotary Evaporator
Model Number: RE-501
Voltage: 110V/60HZ (220V optional)
Plug Type: US
Plug Evaporating Flask: 5L
Receiving Flask: 3L
Motor Power: 40W (Stepless Speed Regulation)
Rotating Speed: 0-120 r/min,
Digital Display Lifiting Mode: Screw Rod Manual Lifting Lifting Height: 0-150mm
Water/Oil Bath Power: 1500W
Temperature Accurancy: ±1°C
Water Bath Size: f28*17cm
Vacuum degree: 0.098M pa
Glassware: High borosilicate
Sealing Mode: PTFE, fluoro Rubber sealing
Condensor: The double backflow integration standard condenser.
Certification: CE ISO Explosion-Proof
Optional Evaporation Rate: =1 L/H, H2O
External Size: 680*590*670 (mm) >>>>

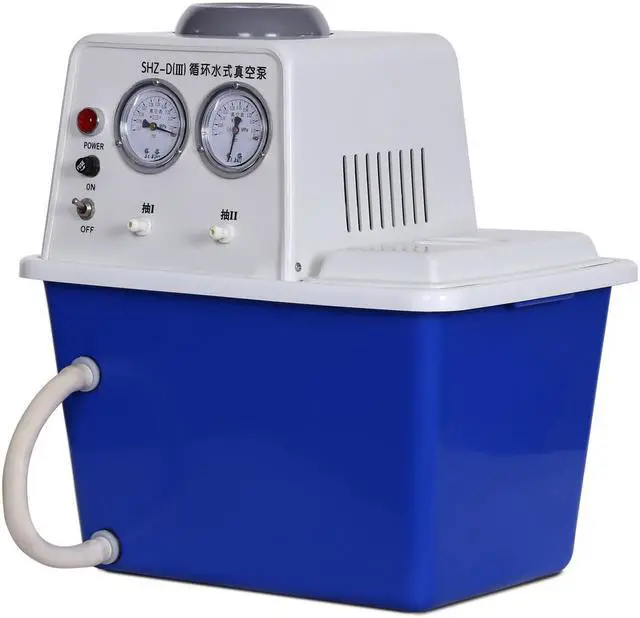

Double-tap Vacuum Pump Model: SHZ-D (III) 110V
Double-gauge/Double-tap Voltage: 110V/60Hz (220V optional)
Flow: 60 L/m, Lift: 8 m Max.
Vacuum Degree: 0.098 MPa Sucking Rate for
Each Tap: 10 L/min
Tank Capacity: 15 L, Power: 180W
Body material: Anti-corrosive Material, static spraying >>>>

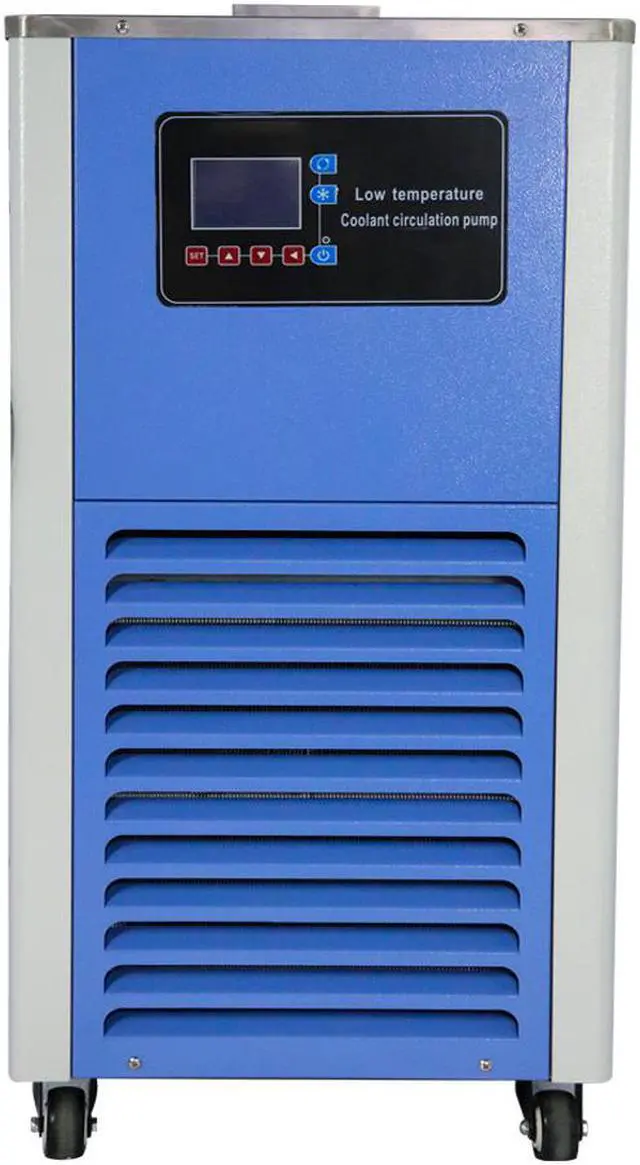

Chiller Model: DLSB-10/10
Volume: 10L
No load minimum temperature: -14°C
Refrigerant Capacity: 1894-884W
Flow: 20L/min
Lift: 4-6m
Tmeperature Range: -10°C
Temperature Precision: ± 0.2 °C
Power Supply: 110V
Environment Temperature: 25°C
Environment Humidity: 60-80%
Ventilation Machine Dimension: 500*450*650 (mm)
