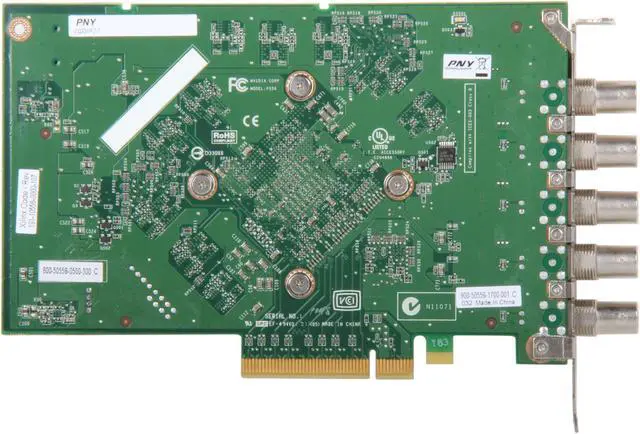

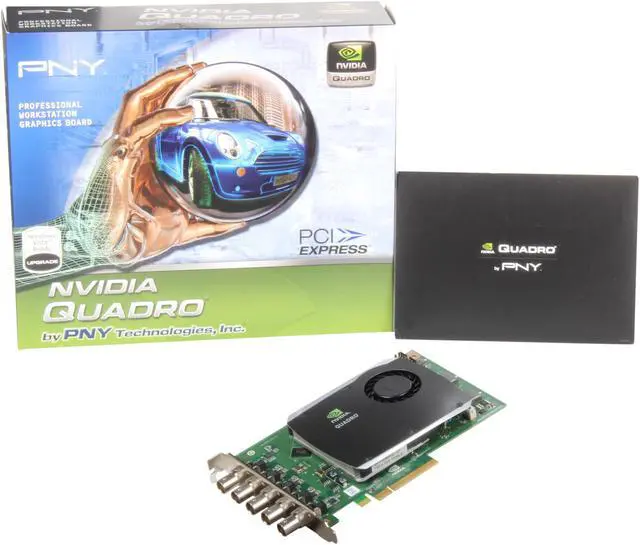

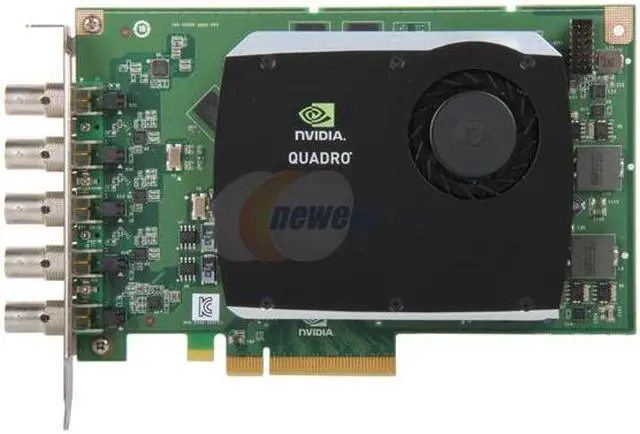

PNY VCQFXSDINPUT-PB PCI Express x8 Graphics Card
- PCI Express x8
+
+
Specs
Reviews
Learn more about the PNY Technologies, Inc. VCQFXSDINPUT-PB
| Brand | PNY |
|---|---|
| Model | VCQFXSDINPUT-PB |
| Interface | PCI Express x8 |
|---|

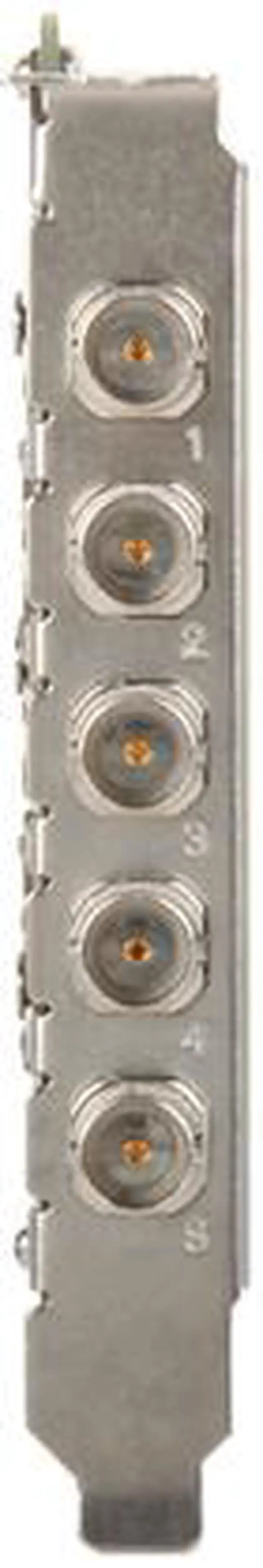

| Other Ports | Inputs: 4 BNCs (4 Single Link, 2 Dual Link, 2 3G-SDI Single Link, 1 3G-SDI Dual Link) Outputs: 1 Monitor out (BNC) |
|---|
| Cooler | Fanless |
|---|---|
| Operating Systems Supported | Microsoft Windows XP (64-bit and 32-bit) Linux - Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit and 32-bit) |
| Features | Capture Uncompressed 8-,10-, or 12-Bit SDI formats Enables on-air broadcast, video production and post production professionals to capture live video, uncompressed 8-,10-,12-bit SDI directly to graphics memory in 3G, 2K, SD, or HD resolutions. Capture up to 4 SDI Sources Directly to GPU Memory Quadro SDI input card is the only capture card that enables direct transfer of video directly to graphics memory. Ancillary Data Support Support for ancillary data through an NVIDIA API. Support for the capture of SMPTE RP188 ancillary data into GPU memory. This ancillary data can include up to 16 channels of embedded 24-bit digital audio as defined by SMPTE 272M and SMPTE 299M as well as timecode. Monitor Out Monitor out can be used as a sync source for the optional SDI Output card. Compatible Quadro solutions: NVIDIA Quadro FX 5800 / 4800 / 3800 Specifications: Form Factor: Full Height, Half Length Thermal Solution: Active Genlock: All inputs must be genlocked Communication to Graphics Card: Direct to GPU memory through PCIe bus. Quadro SDI Capture - Programmable Modes: - Up to 4 Channel Fill or 2 channel Fill + 2 channel Key - 8-, 10-, 12-bit - RGB 4:4:4 - YCrCb 4:2:2 or 4:4:4 - 2x YCrCb 4:2:2 + 4:2:2 - YCrCbA 4:2:2:4 - RGBA 4:4:4:4 (8-bit only) Full support for outputs in the following 3G, 2K, HD, and SD formats: - 480i 59.94 Hz (SMPTE259) NTSC - 576i 50.00 Hz (SMPTE259) PAL - 720p 23.98 Hz (SMPTE296) - 720p 24.00 Hz (SMPTE296) - 720p 25.00 Hz (SMPTE296) - 720p 29.97 Hz (SMPTE296) - 720p 30.00 Hz (SMPTE296) |
|---|
| First Listed on Newegg | July 26, 2021 |
|---|
