10 Total Outlets: 6 Outlets provide UPS Battery Backup and Surge Protection; 4 Outlets offer Surge Protection Only
Sine Wave battery output is compatible with Modern Computers using Active PFC Power Supplies
One USB Type C and one standard USB charging port with 3A of shared power
Dataline Surge Protection protects connected equipment from power surges on the data lines
User-replaceable and Hot-swappable batteries extend useable product lifetime
Automatic Voltage Regulation (AVR) instantly corrects voltage fluctuations

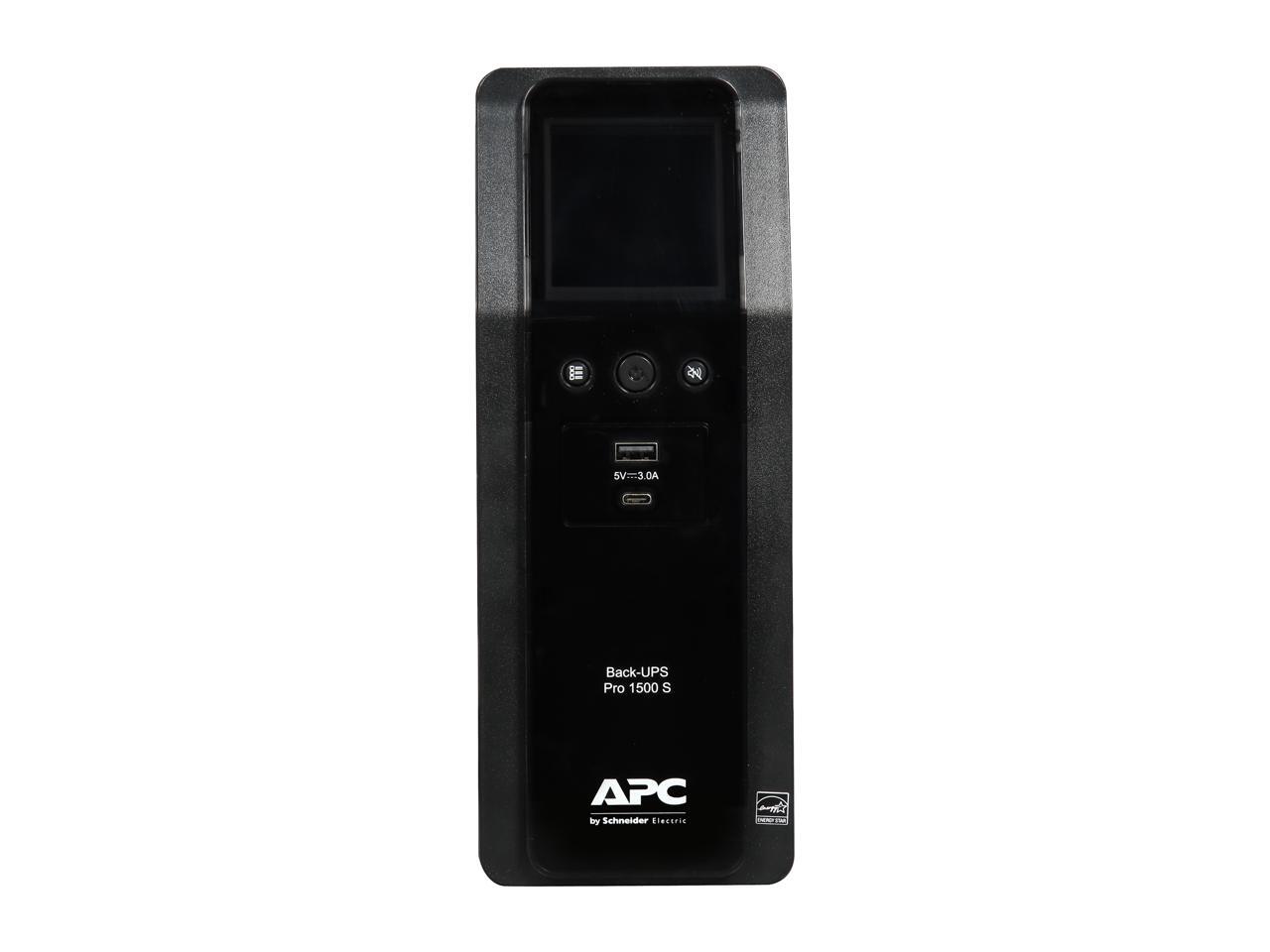

Learn more about the APC BR1500MS
Back UPS PRO
Input Voltage Range
88 - 147V
60 Hz +/- 3 Hz
60 Hz +/- 3 Hz

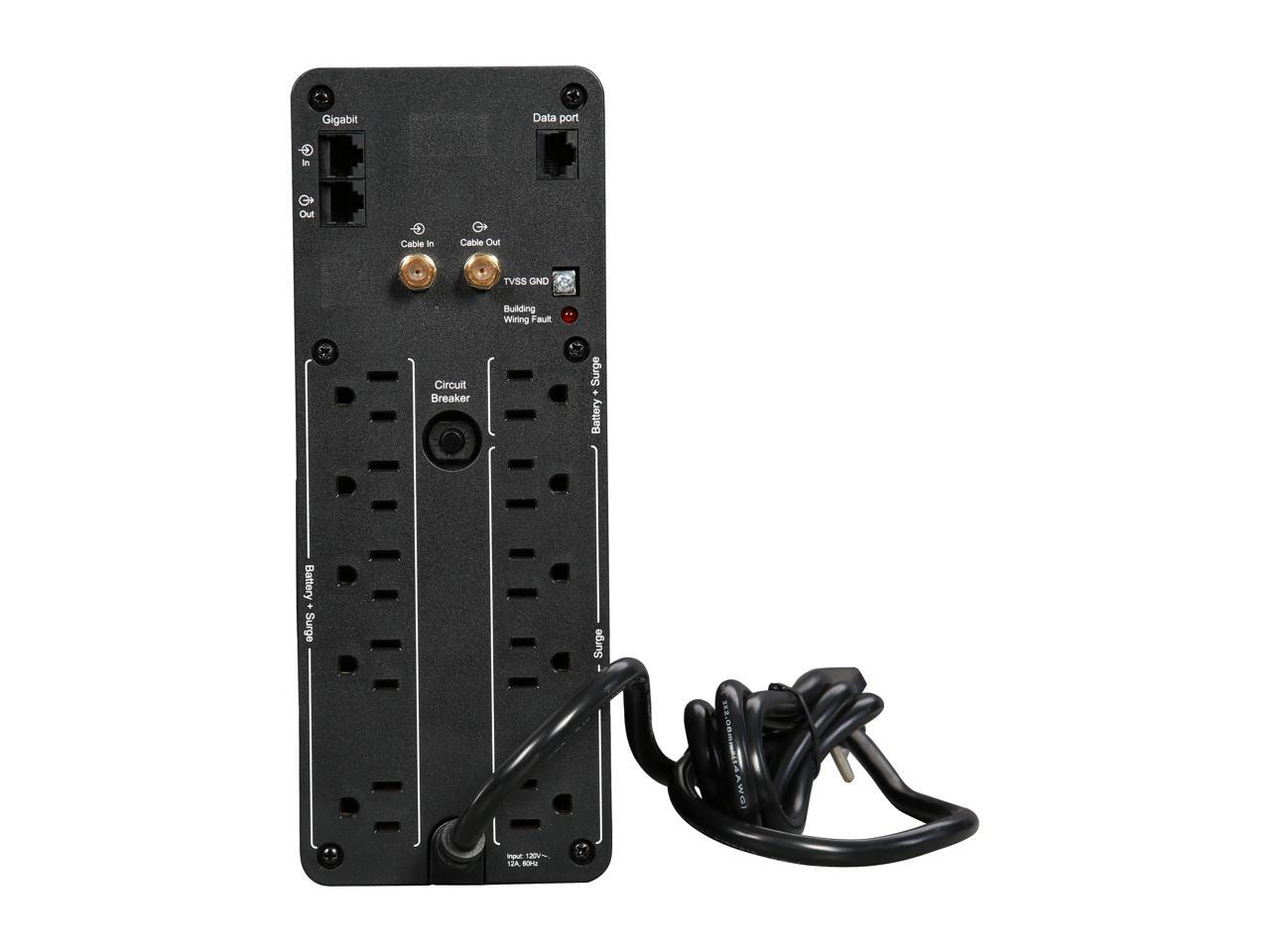

4 x NEMA 5-15R (Surge Protection) 6 x NEMA 5-15R (Battery Backup)
Sealed Lead Acid
Battery Run Time
Full Load: 4 Minutes
Battery Recharge Time
Alarm when on battery / distinctive low battery alarm / overload continuous tone alarm
ENERGY STAR V2.0 (USA), FCC part 15 class B, NOM, TUV C-US certified
Data Line Protection
Coaxial cable for CATV/SATV/modem/audio-video, RJ45 10/100/1000 Base-T Ethernet protection
Surge Energy Rating
Boost Automatic Voltage Regulation (AVR): Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy Management Function: Energy saving feature automatically power off peripherals when the a master device, usually a PC, hibernates or is shut down. Power to peripherals is immediately restored when the master device wakes up or is switched on.
LCD Status Display: Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Battery-protected and surge-only outlets: Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment.
Dimensions & Weight

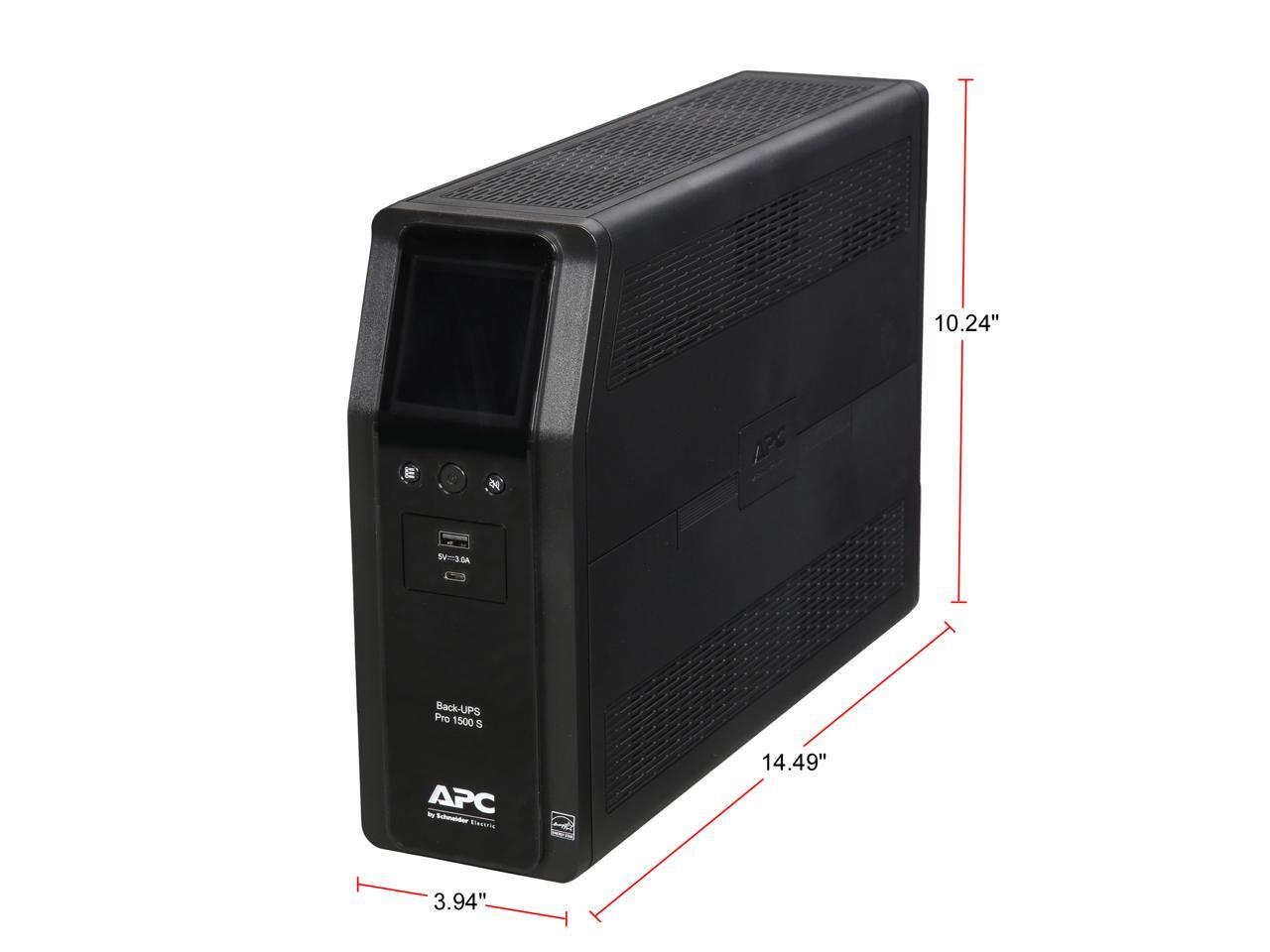

10.24" x 3.94" x 14.49"
New In Box item may be reboxed prior to shipping, inclduing custom foam molding when applicable.
Date First Available
December 27, 2017
