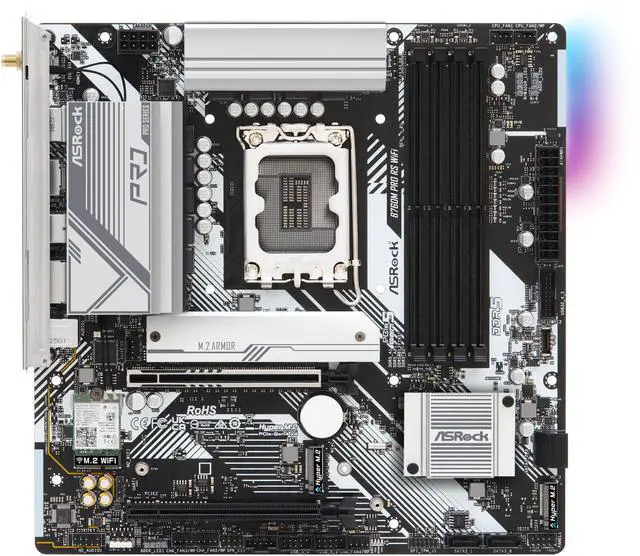

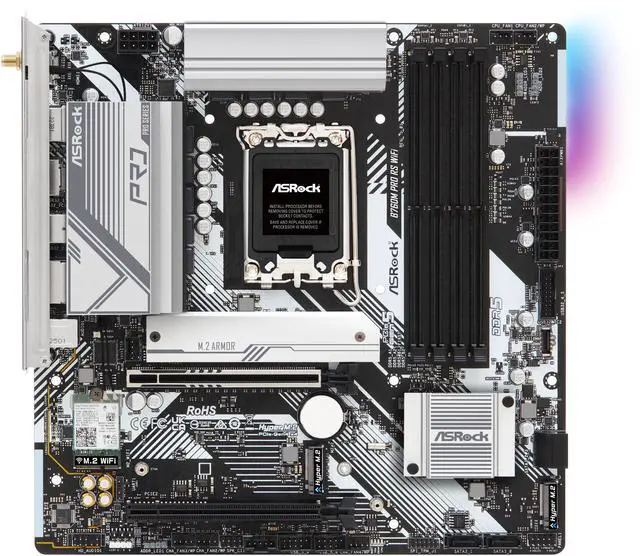

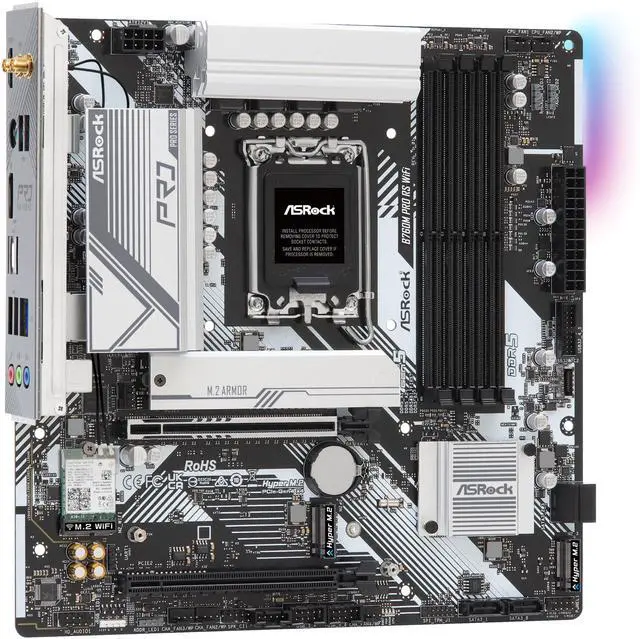

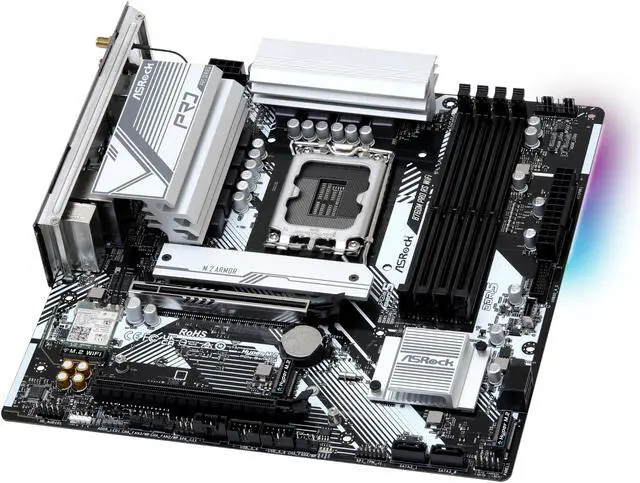

ASRock B760M PRO RS WiFi LGA 1700 Intel B760 Micro ATX Motherboard
- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
- 7+1+1 Power Phase, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 7200+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
- 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
- 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN
- Killer 802.11axe WiFi 6E + Bluetooth
- Supports ASRock Auto Driver Installer
+
+
Specs
Reviews (3)
Learn more about the ASRock B760M PRO RS WiFi
| Brand | ASRock |
|---|---|
| Model | B760M PRO RS WiFi |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) |
| Chipset | Intel B760 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Up to 7200+(OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| Memory Feature | Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. |
| PCI Express 5.0 x16 | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
|---|---|
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* * Supports NVMe SSD as boot disks |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 2.5Gbps |
|---|---|
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | Bluetooth 5.3 |

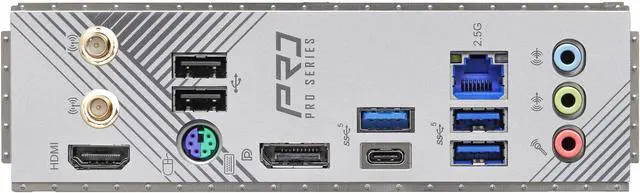

| Back I/O Ports | 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| Onboard USB | 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header |
|---|---|
| Other Connectors | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~4/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. |
| BIOS Feature | 128Mb AMI UEFI Legal BIOS with GUI support |
|---|---|
| Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - Killer Control Center - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, Dr.MOS for VCore+GT - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN, Killer 802.11axe Wi-Fi 6E Module EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|---|

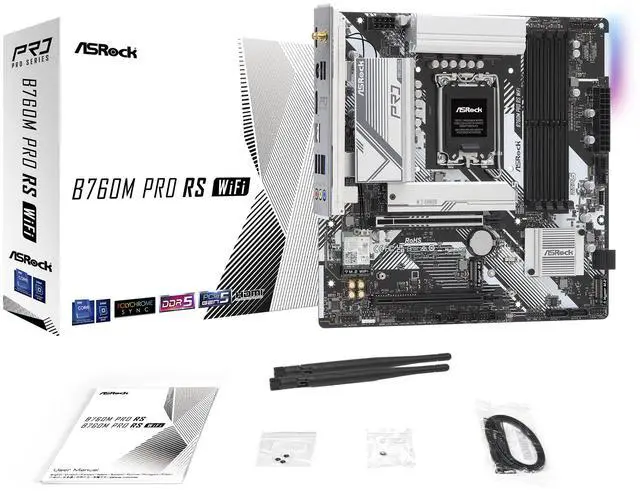

| Package Contents | 1 x User Manual 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 3 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket |
|---|
| First Listed on Newegg | July 28, 2025 |
|---|
