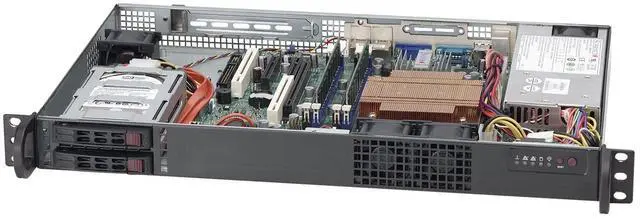

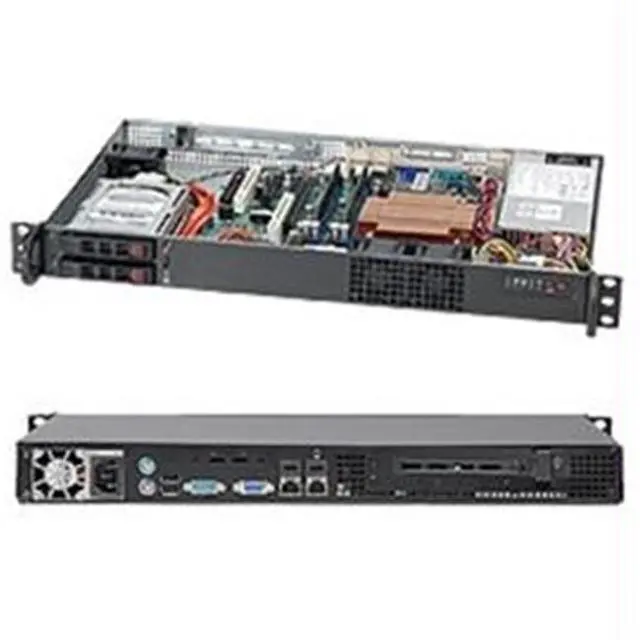

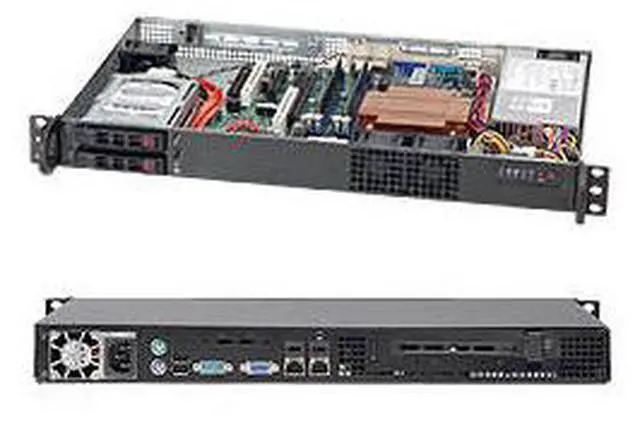

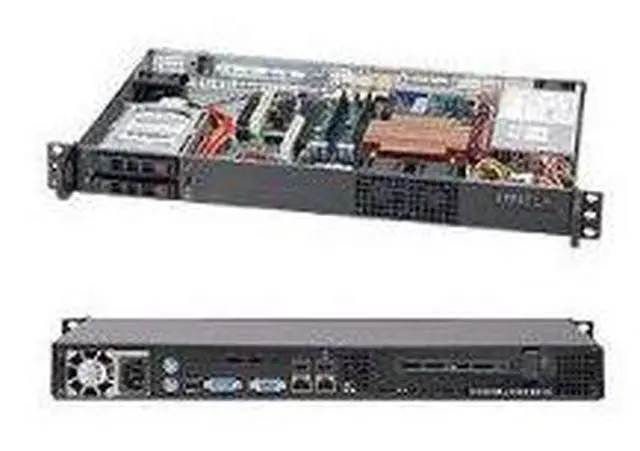

Supermicro CSE-510T-203B Supermicro Case CSE-510T-203B 1U High-Efficiency Low Noise 2.5inch Drive Bay 200W Black

Supermicro's mini-sized SC510 1U chassis features a depth of only 11.3" with advanced air flow / thermal design for client nodes, firewall applications, mail servers, web servers & other server applications. It supports a wide range of single processor based Micro ATX 9.6" x 9.6" motherboards. SC510T also supports dual 2.5" hot-swap drive bays, easy for upgrade and maintenance. In addition the SC510 is a perfect solution for home/office servers, with system noise level running at low 30 dB under the normal operation.

Key Features

• Extra Compact Size
• 200W High-efficiency Power Supply Gold Level Certified
• Low noise level
• 2x 2.5" hot-swap SAS/SATA HDD Bays
• 1x Low-profile PCI expansion slot
• 3x 8500 RPM Cooling Fan
• Power Switch, Reset Button & 5 LED Indicators

Specifications

• Dimensions
  • Height 1.7" (43 mm)
  • Width 17.2" (437 mm)
  • Depth 11.3" (287 mm)
  • Weight 12 lbs (5.44 kg)
• Available Color Black
• Expansion Slots
  • 1 low-profile expansion slot(s)
  • Riser Card Required; use the full-height I/O bracket on the low-profile add-on card to install
• Drive Bays
  • 2 x 2.5" hot-swap SAS/SATA drive bay
  • SAS or enterprise SATA HDD only recommended
• Backplane 2-port 1U (SC510T) direct-attached backplane, support up to 2x 2.5-inch SAS/SATA HDD/SSD
• Front Panel
  • LEDs
    • 2 Network Activity LEDs
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Power Status LED
  • Buttons
    • Power On/Off button
    • System Reset Button
• Systems Cooling
  • Fans 3 x 8500 RPM Cooling fan(s)(s) (2 for motherboard & 1 for HDD)

Standard Parts List

• HD Backplane
  • BPN-SAS-510T - Qty: 1
  • 2-port 1U (SC510T) direct-attached backplane, support up to 2x 2.5-inch SAS/SATA HDD/SSD
• Cable(S)
  • CBL-0061L - Qty: 2 - SATA,INT,FLAT,31.5CM,26AWG
  • CBL-0087 -Qty: 1 - CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
  • CBL-0260L - Qty: 1 - US power cord 18AWG 6ft, PBF (default for low watt)
• Fan(S)
  • FAN-0106L4 - Qty: 3
  • High current (0.14A) version of Fan-0100L4 (40x28mm PWM)
• Front Panel
  • FPB-FP813-D - Qty: 1
  • Front control board dual color for SC815,SC813M (C)
• Drive Tray(s)
  • MCP-220-00047-0B - Qty: 2 - Black gen 3rd hot-swap 2.5inch HDD tray
  • MCP-220-00062-0N - Qty: 1 - SC510T HDD cage for 2.5 hot swappable 2.5 HDD
• Part(s)
  • MCP-260-00064-0B - Qty: 1 - 1U I/O shield for X9/X10 STD Server I/O use in SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF
  • MCP-260-00065-0B - Qty: 1 - 1U I/O shield for X8 STD Server I/O use in SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF
  • MCP-290-51001-0N - Qty: 1 - SC510 card retainer
  • MCP-320-00036-0B - Qty: 1
  • MCP-340-00001-01 - Qty: 1 - Dummy fan 40x28mm
• Power Supply & Accessory
  • PWS-203-1H - Qty: 1
  • 1U 200W Multi-output 80Plus Gold PWS
