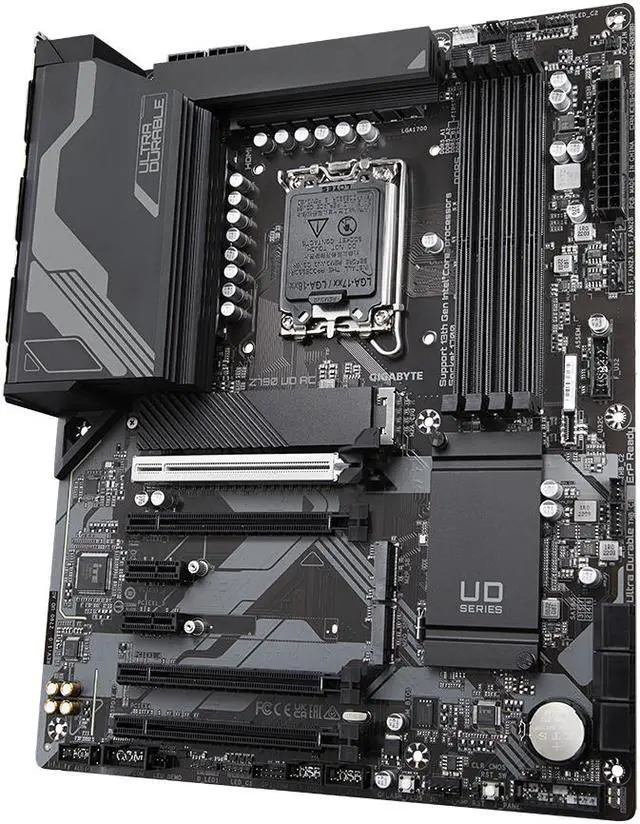

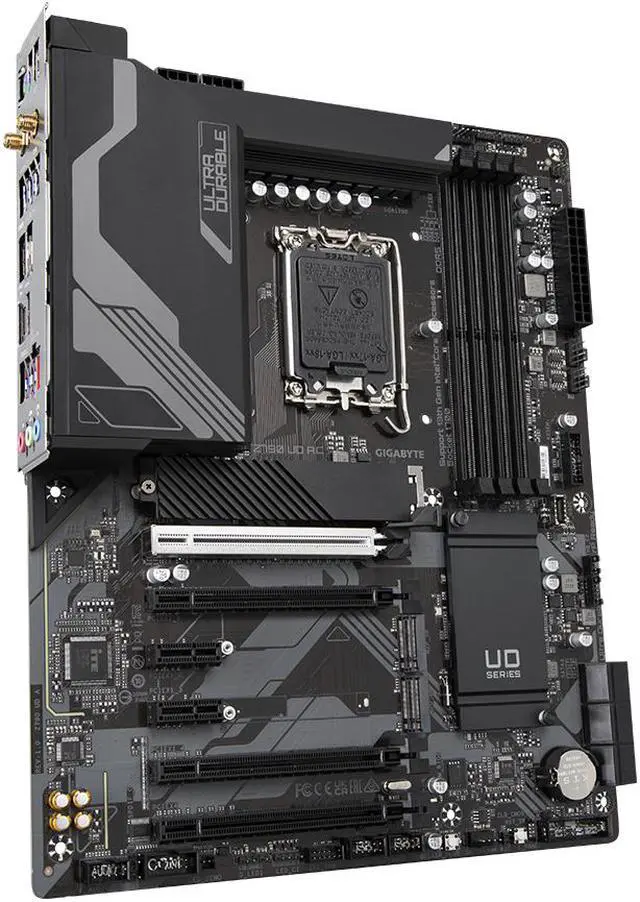

GIGABYTE Z790 UD AC LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key
- Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors.
- DDR5 Compatible: Dual Channel DDR5, 4 DIMMs.
- Sturdy Power Design: 16+1+1 Twin Hybrid Phases Digital Power Design with 60A DrMOS.
- Comprehensive Thermal Design: Fully Covered MOSFET Heatsinks, M.2 Thermal Guard, Ultra Durable Armor, 6-layer PCB.
- Next Gen Connectivity: PCIe 5.0, Triple NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C.
- Fast Networking: 2.5GbE LAN, Intel Wi-Fi, BT.
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU.
+
+
Specs
Reviews (685)
Learn more about the GIGABYTE Z790 UD AC
| Brand | GIGABYTE |
|---|---|
| Model | Z790 UD AC |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors |
| Chipset | Intel Z790 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|---|---|
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| PCI Express 3.0 x16 | 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_4) |
| PCI Express x1 | 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) |
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Additional RAID Controller | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| Audio Chipset | Realtek Audio CODEC High Definition Audio |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 2.5GbE LAN chip |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi AC 9560 WIFI a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate *Actual data rate may vary depending on environment and equipment. |
| Bluetooth | Bluetooth 5.1 |

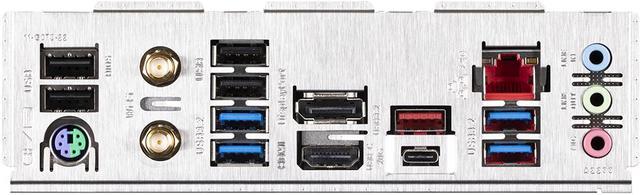

| Back I/O Ports | 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Features | H/W Monitoring - Voltage detection - Temperature detection - Fan speed detection - Water cooling flow rate detection - Fan fail warning - Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS - 1 x 256 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features - Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - Support for Q-Flash - Support for Q-Flash Plus - Support for Smart Backup |
|---|
| Date First Available | October 20, 2022 |
|---|
