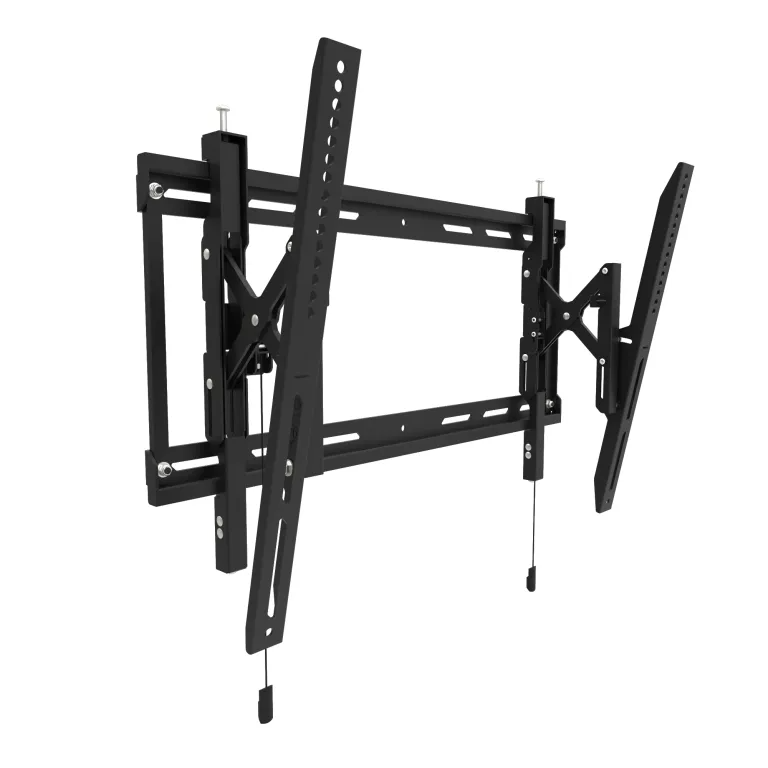

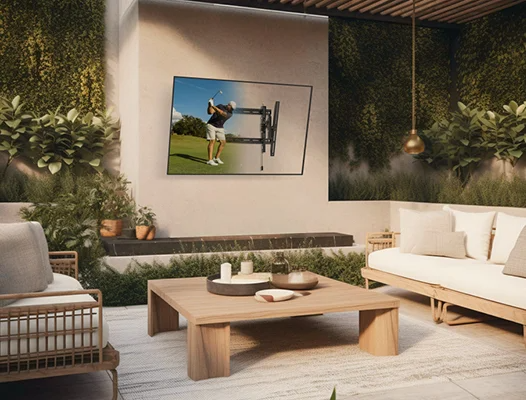

The TE300SG outdoor extendable tilting TV mount keeps your TV safe during stormy weather and gives you features you can’t get from a standard tilt mount. A latching system lets you to lock your TV into place when wind kicks up to prevent accidental damage. A simple pull on the release cord allows you to extend your TV up to 6” providing access to the rear of your TV for easy cable management at any time. Included stainless steel Security Torx TV screws provide security and peace of mind while the galvanized coating protects against rust. Capable of supporting up to 150 lbs, nearly any TV between 45” to 100” can mount safely and securely to TE300SG.
100 x 100
- 600 x 450
150 lb
45" - 100"
Outdoor
Tilting

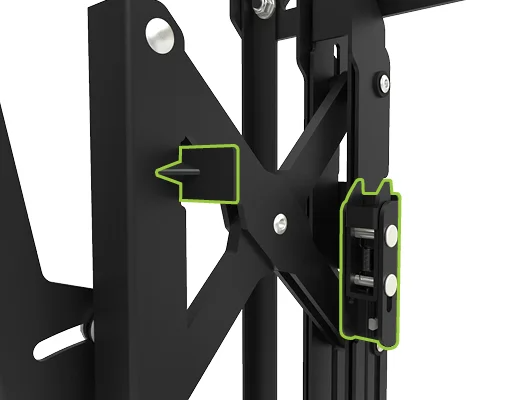

A latch locks your TV in the home position keeping it safe during windy weather. A simple pull of the release cable unlocks the TV allowing for adjustments.
TE300SG is fully galvanized and coated with UV-resistant paint to stand strong against rain, snow, and sun for years of outdoor entertainment.

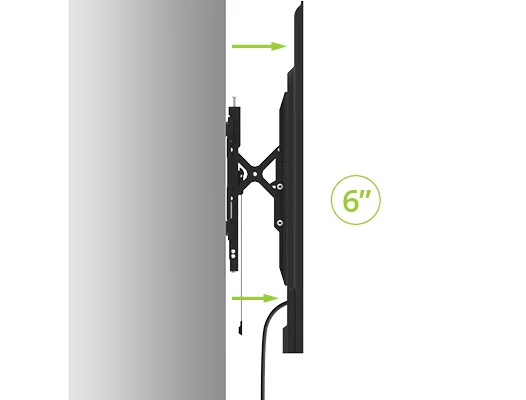

Accessing the cables and inputs at the rear of your TV is a breeze with the 6 inches of extension, a function that standard tilt mounts lack.

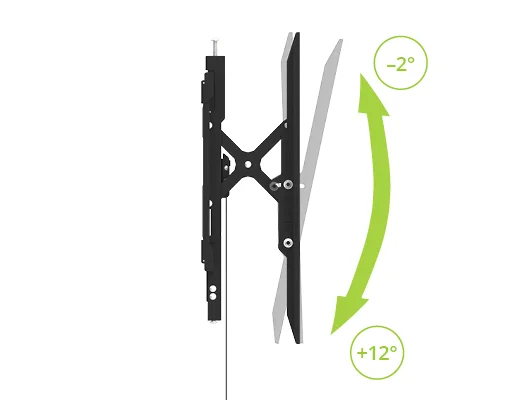

Improve visibility with your screen and reduce glare by adjusting the angle of your TV. Tilt up to 12° forward or 2° backward to find the perfect viewing angle.

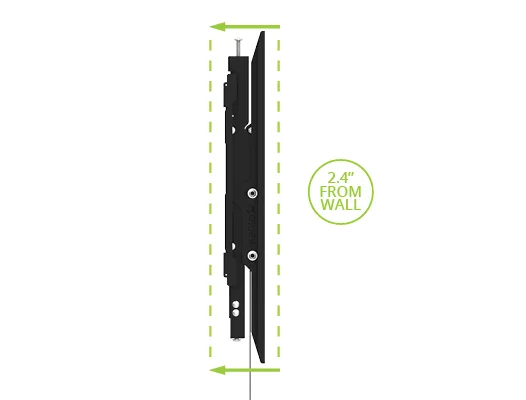

The TE300SG outdoor tilt and extend TV wall mount positions your screen 2.4" away from the wall when fully retracted.

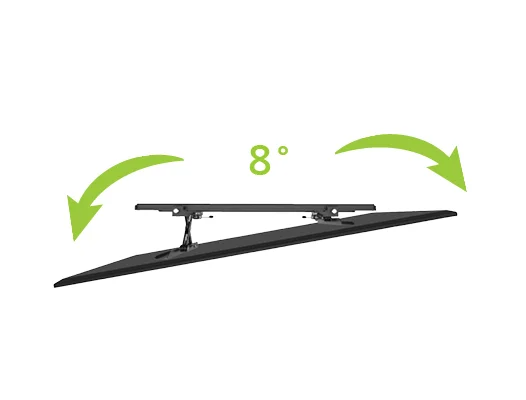

Enhance your viewing comfort with the TE300SG TV mount’s ability to pan your TV up to 8 degrees left or right, ensuring a perfect angle for your enjoyment.

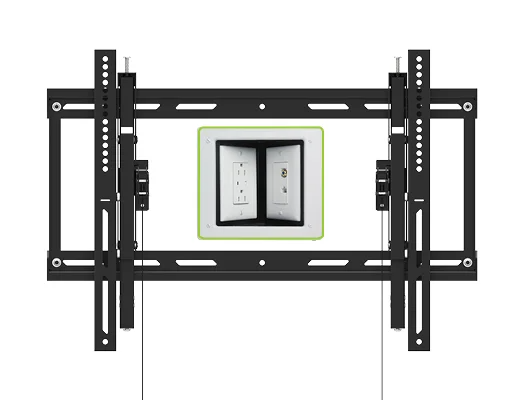

With a roomy open wall plate, you have the convenience of mounting electrical outlets or media boxes while keeping your cables organized and tidy.

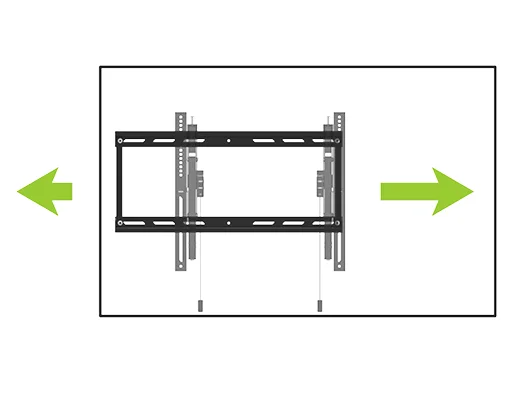

Adjust your screen vertically using the oversized TV brackets, and make horizontal adjustments with the wide wall plate to ensure your TV is perfectly placed.

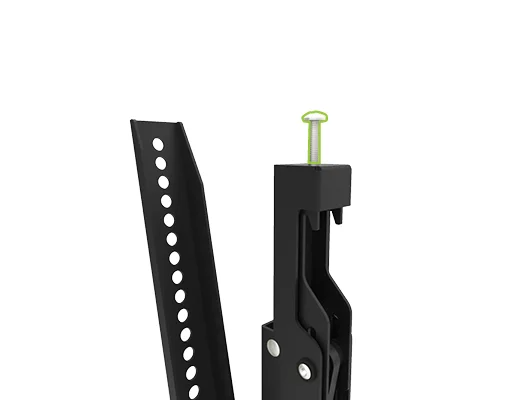

Achieve the perfect level for your screen by adjusting the individual screws situated on the top of each mounting bracket. This simple step will ensure that you enjoy a perfectly level install.
This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto TE300/TE300SG extend & tilt TV wall mount.
Warranty
What’s Included
- TE300SG Outdoor Tilt & Extend TV Wall Mount
- Installation Manual
- Drill Template
- All mounting hardware for wood stud and concrete installation
Profile: Sits 2.4" (6.1 cm) from the wall
Extension: Up to 6" (15.2 cm) from the wall
Material: Fully galvanized steel with durable UV-resistant powder-coated finish
Adjustable horizontal leveling
100×100 to 600×450
TV Sizes: 45” to 100”
Weight Allowance: 150 lb (68 kg)
VESA Sizes: 100×100 to 600×450
Wall Plate: 27” (68.6 cm) dual stud wall plate accommodates up to 24 stud spacing
Shipping box weight: 14.7 lb (6.7 kg)
Shipping box dimensions: 30.4" x 8.1" x 3.9" (77.3 x 21.7 x 9.8 cm)
Product weight: 12.3 lb (5.6 kg)
