Technical Information- Application/Usage: Data Networking
Interfaces/Ports- Interfaces/Ports Details: 1 x 10GBase-LR
Media & Performance- Media Type Supported: Optical Fiber
- Ethernet Technology: 10 Gigabit Ethernet
- Network Technology: 10GBase-LR
- Maximum Data Transfer Rate: 10 Gbit/s

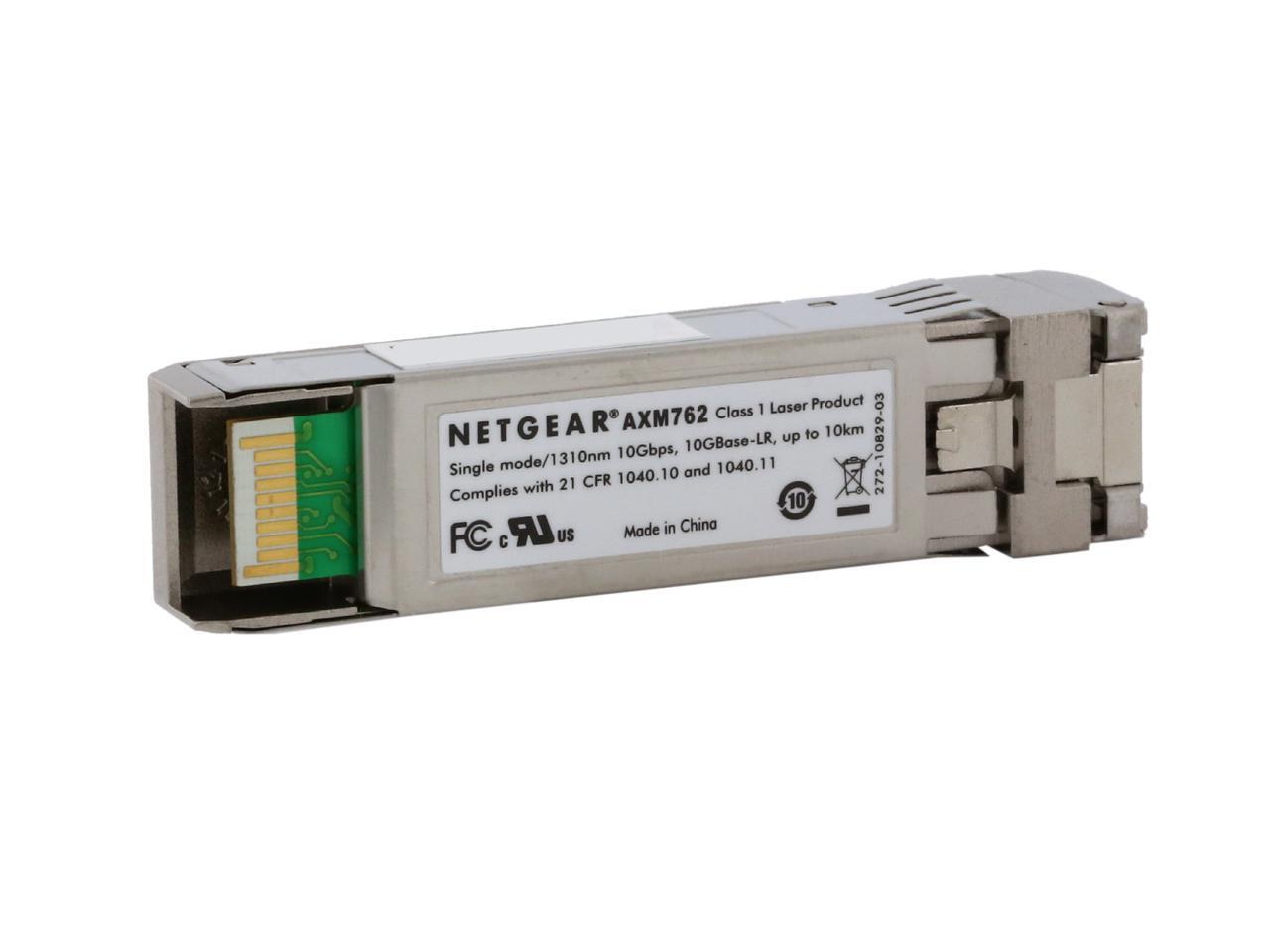

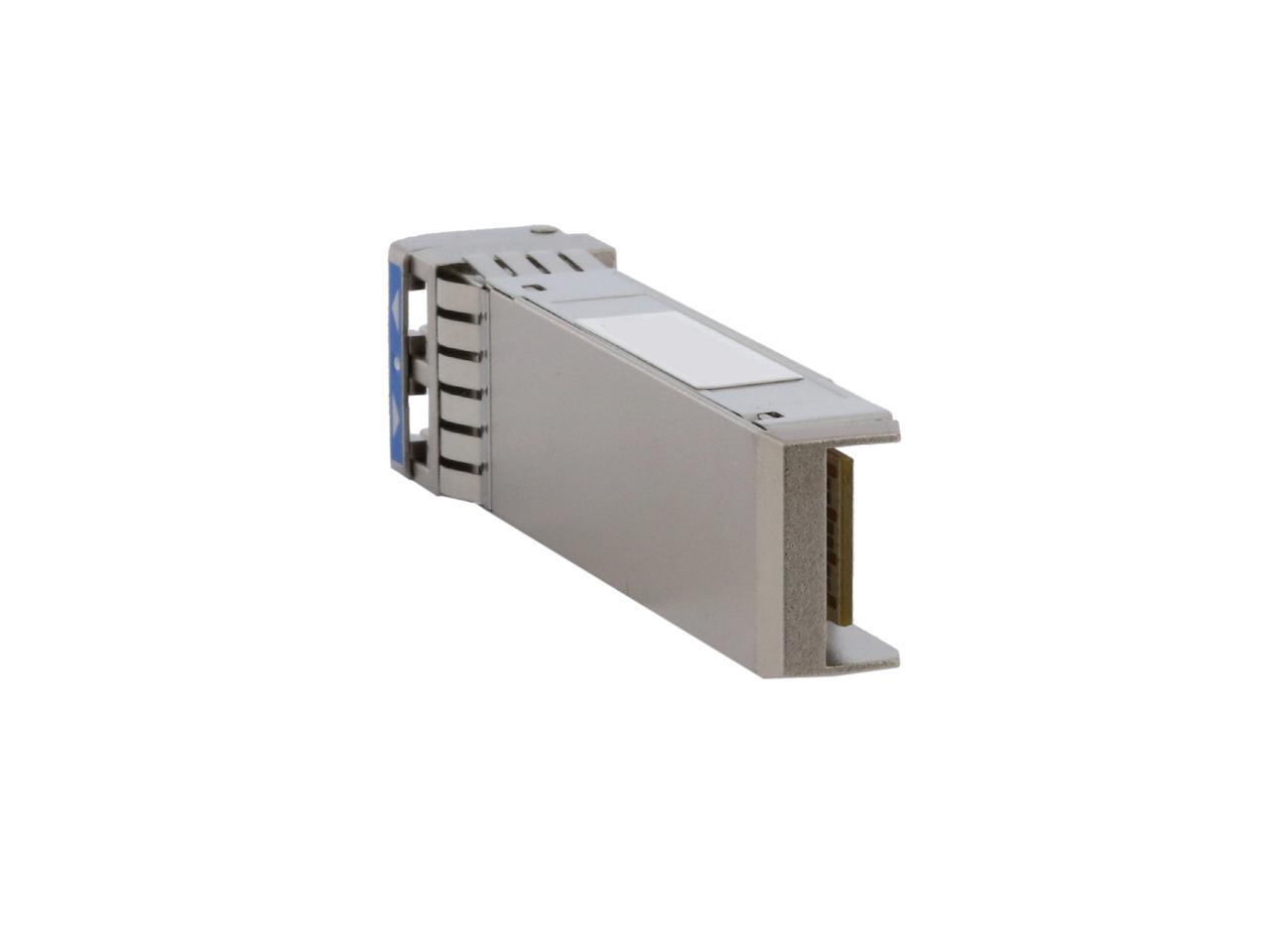

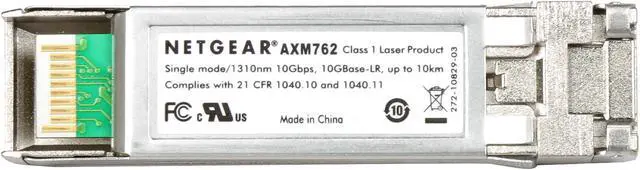

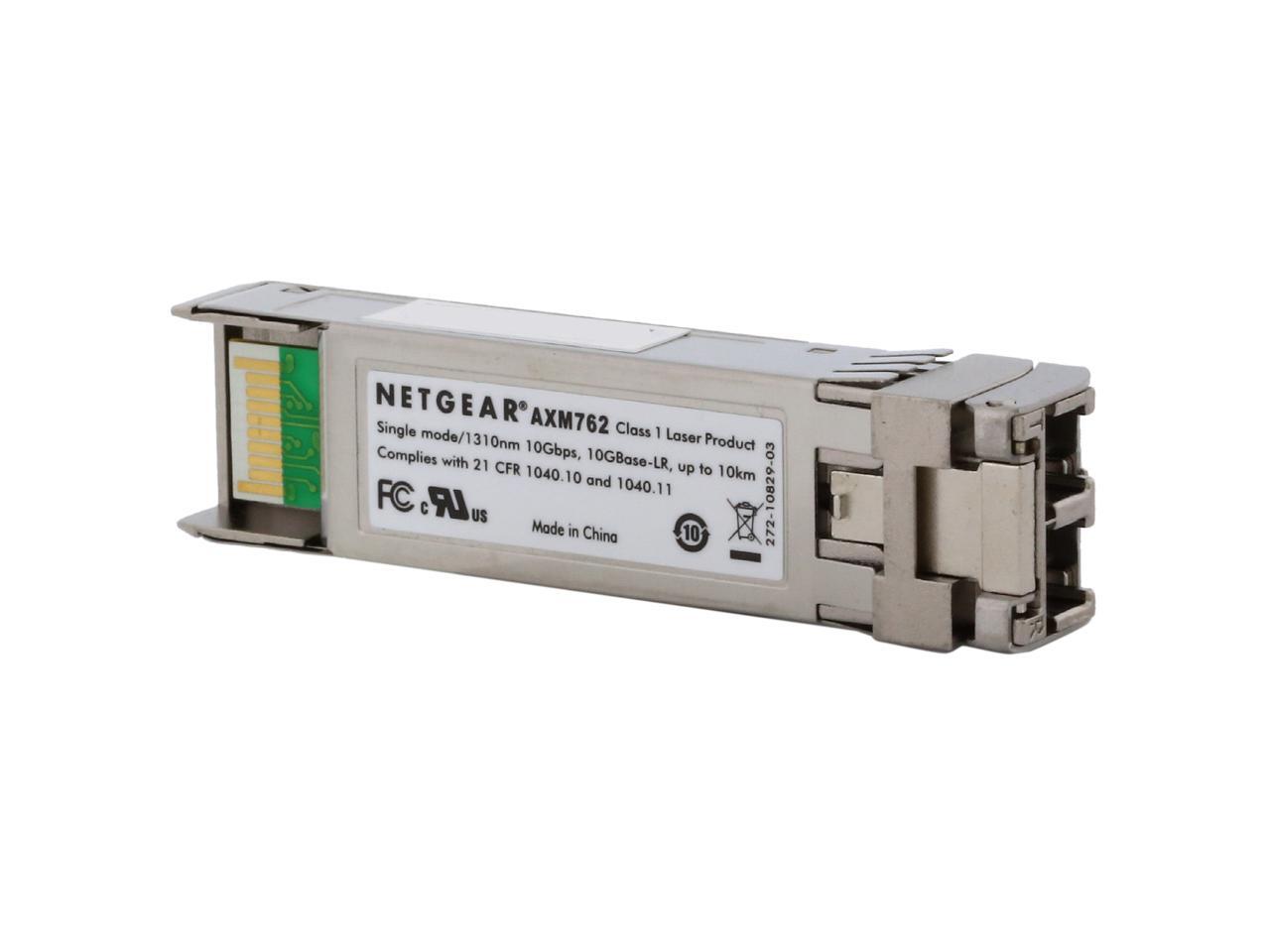

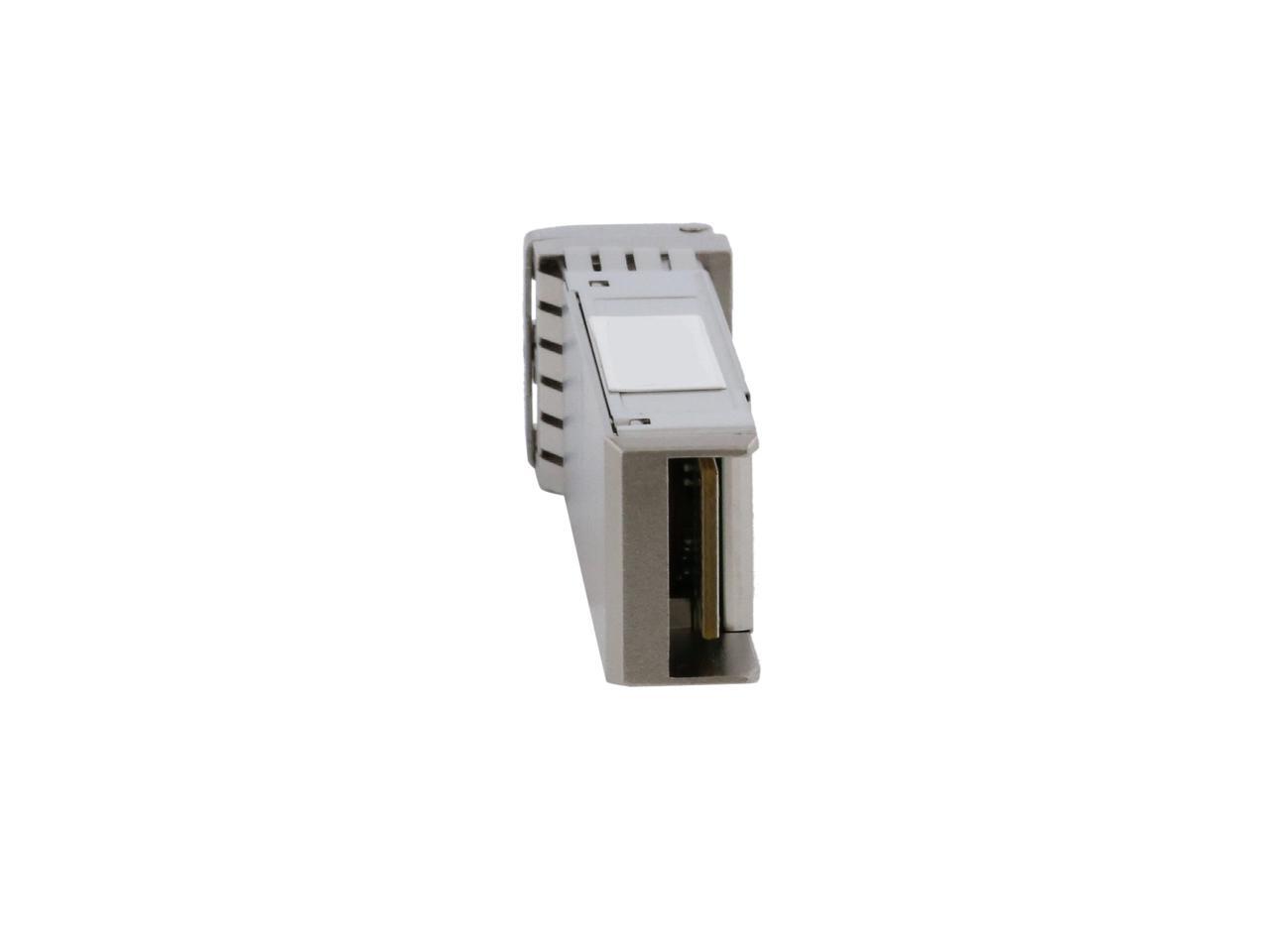

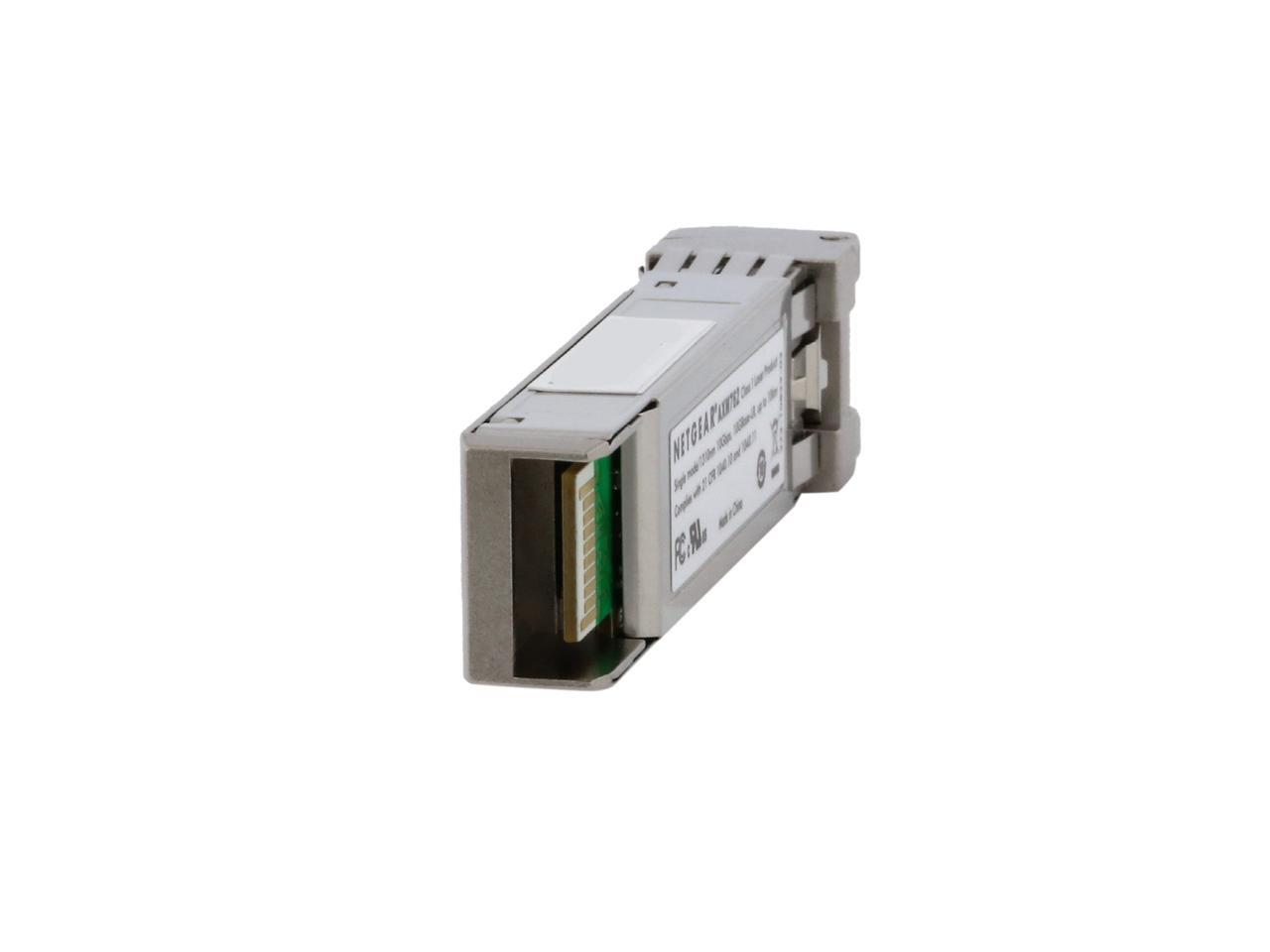

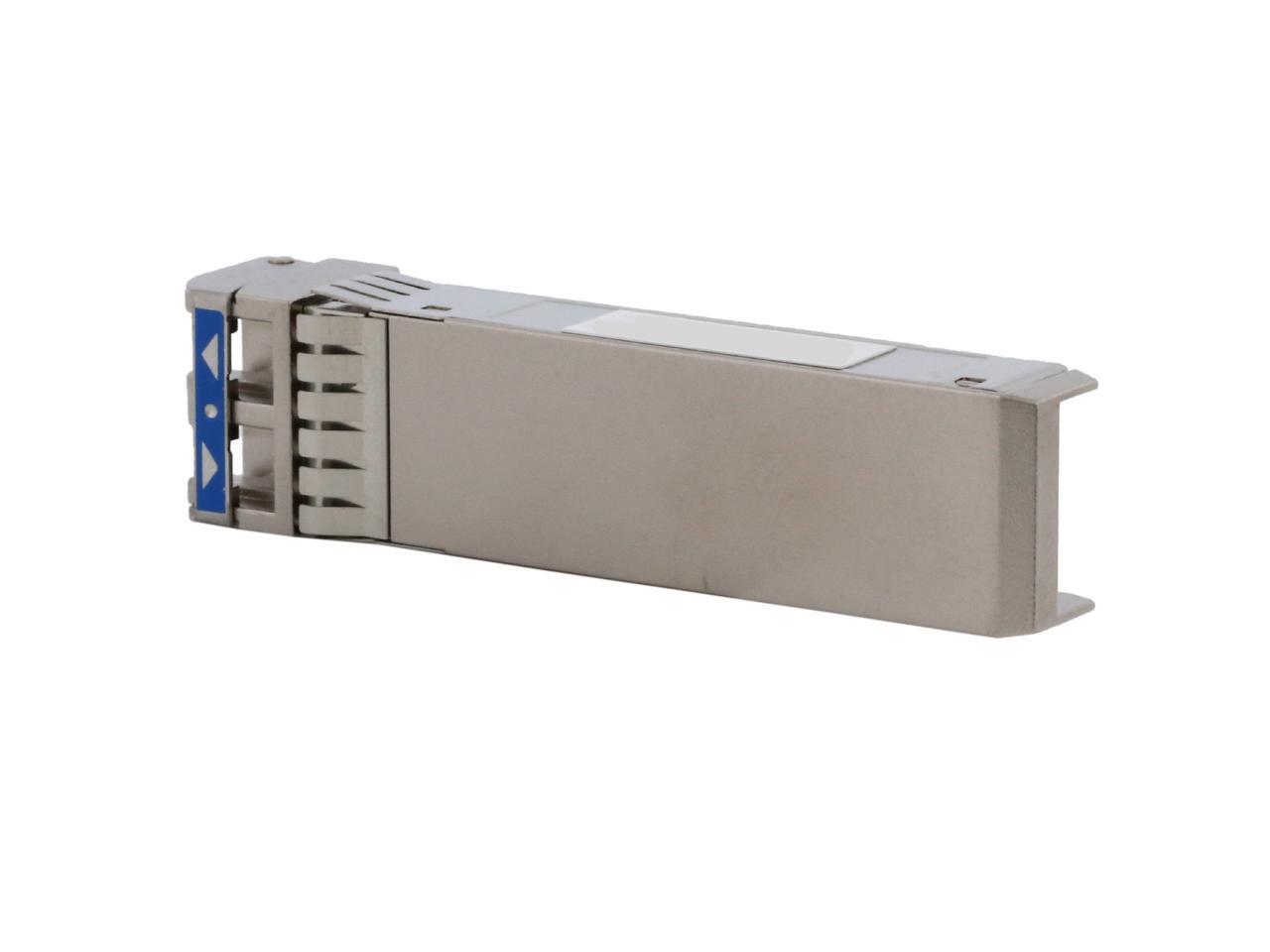

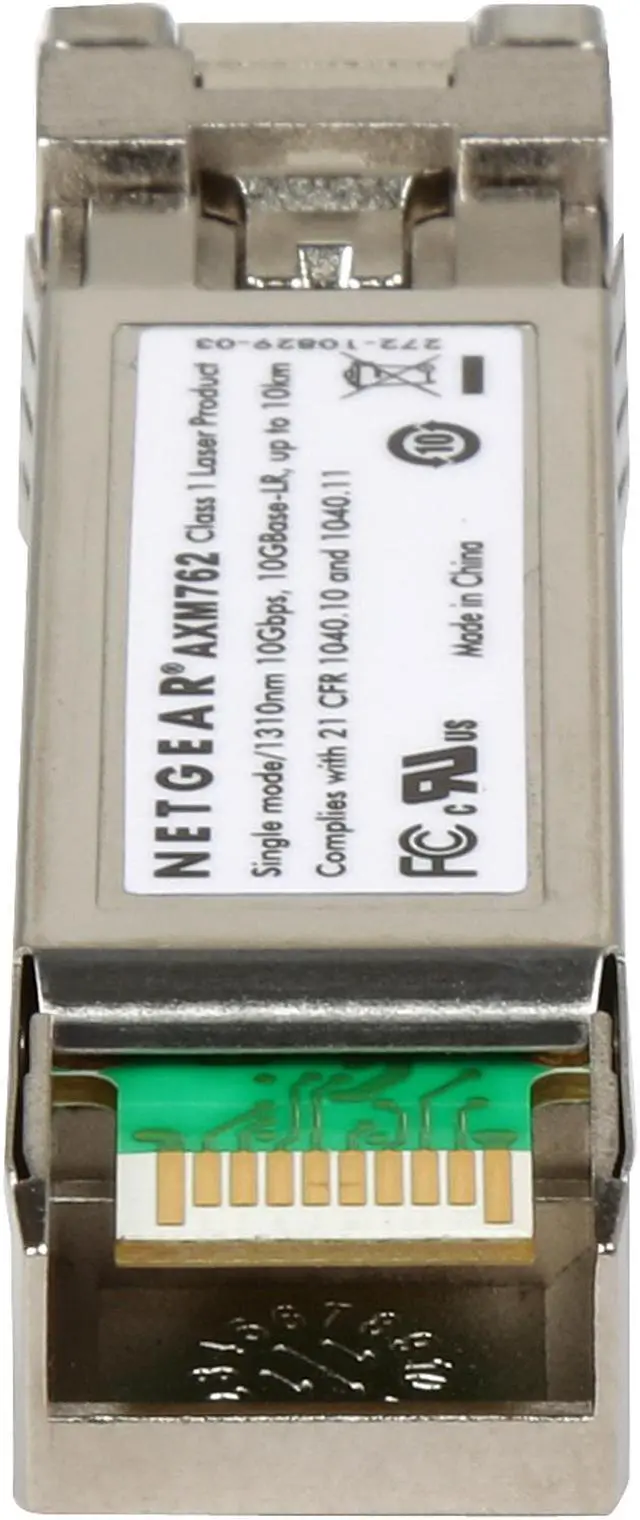

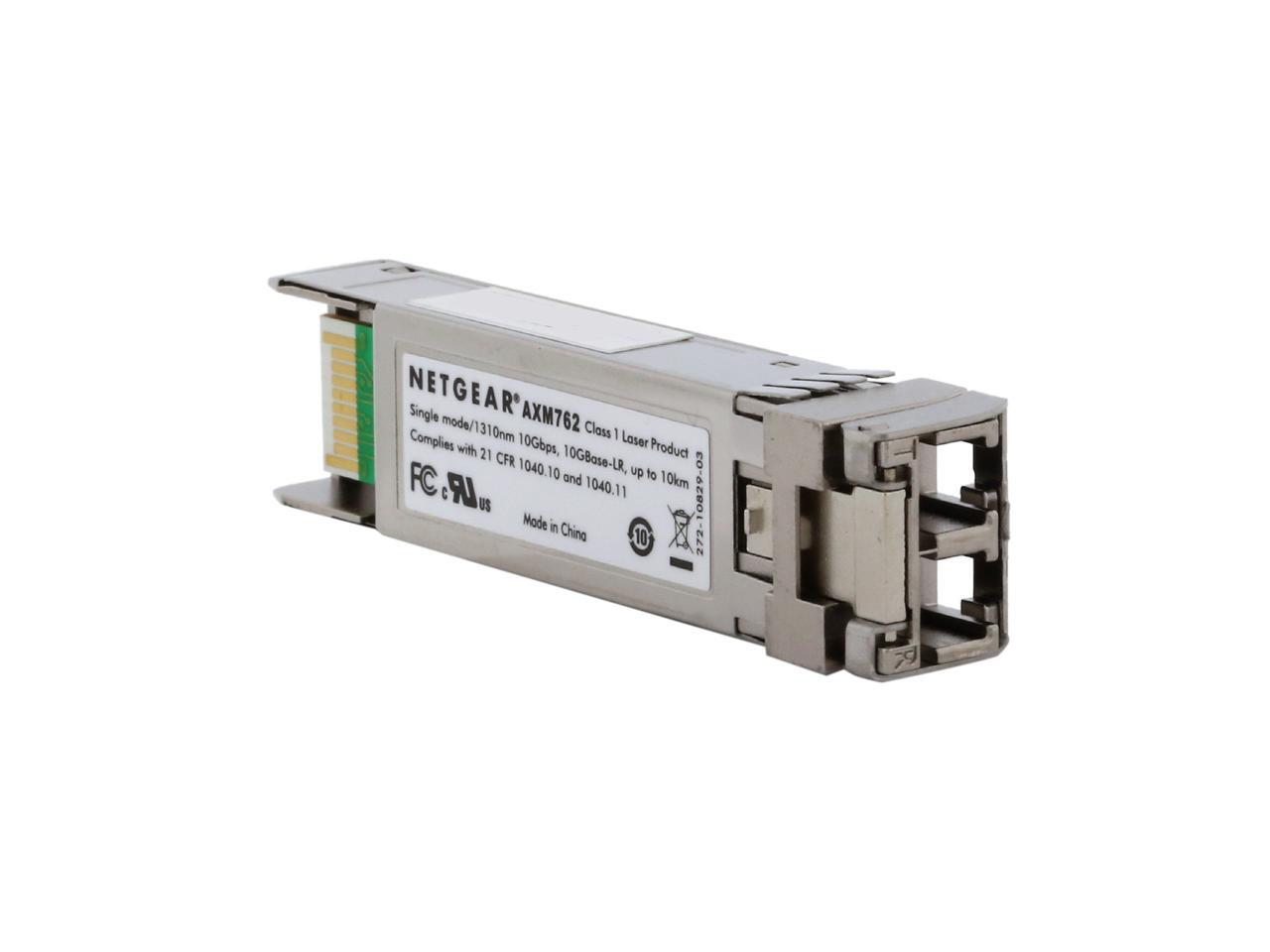

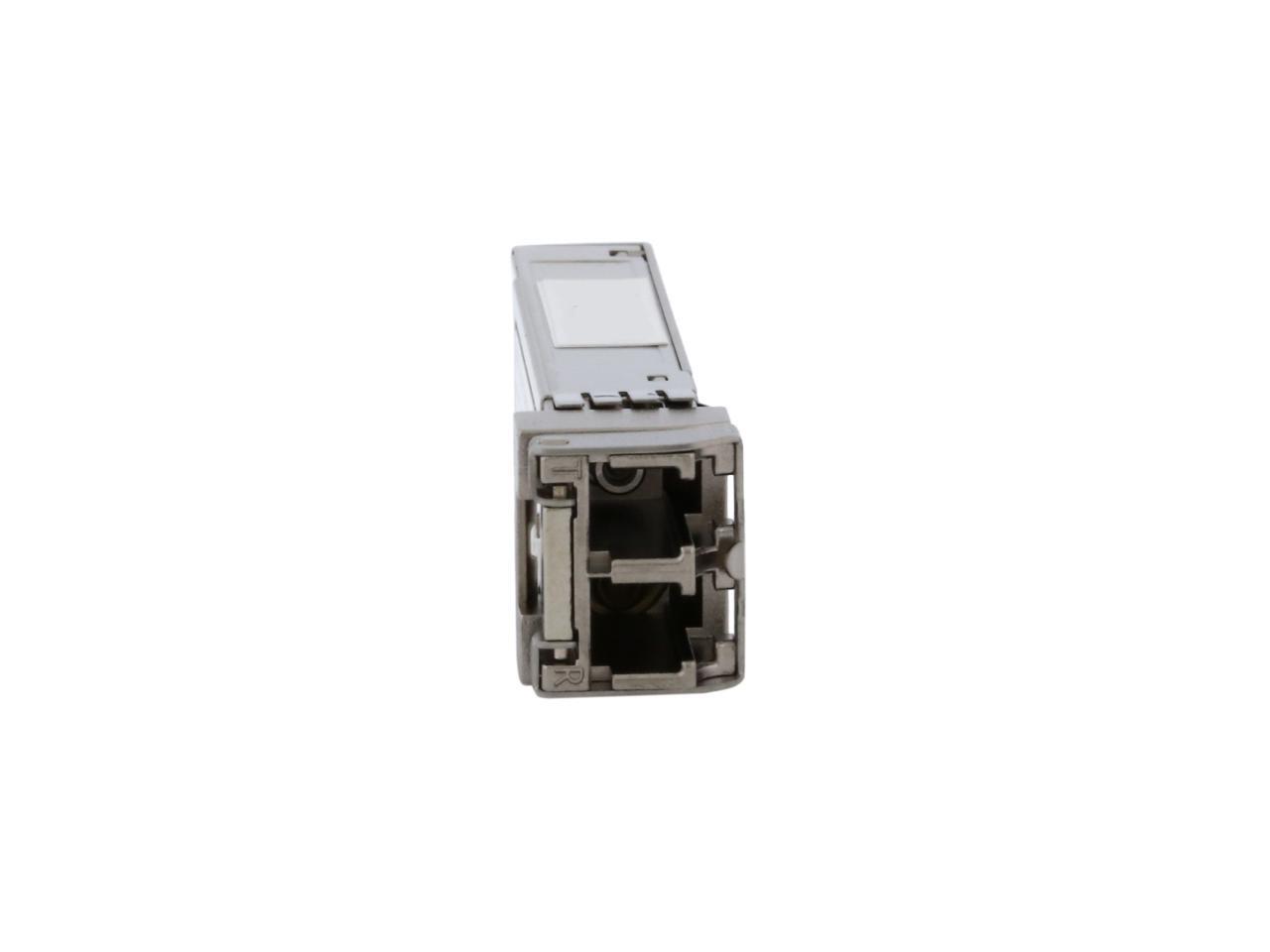

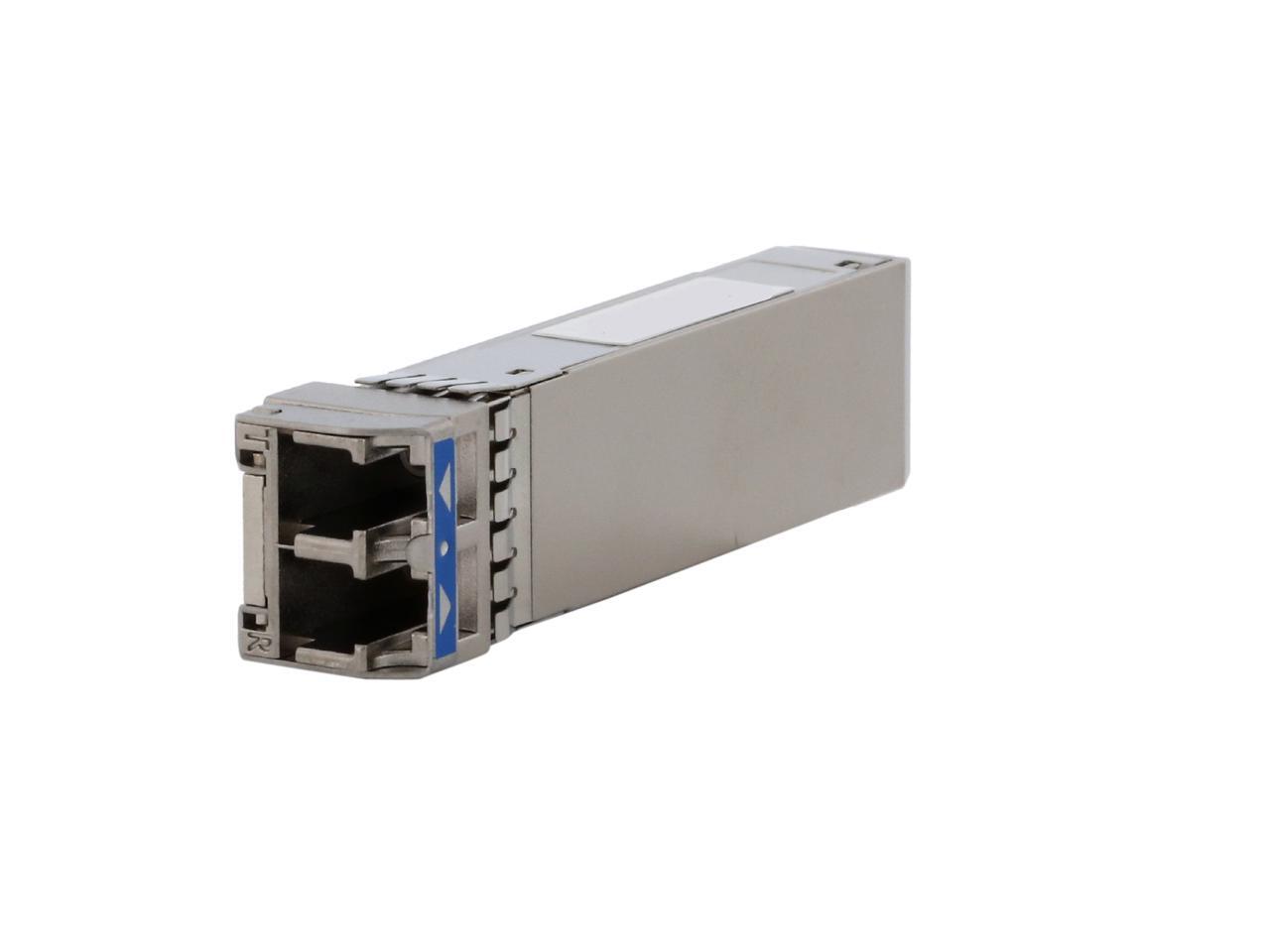

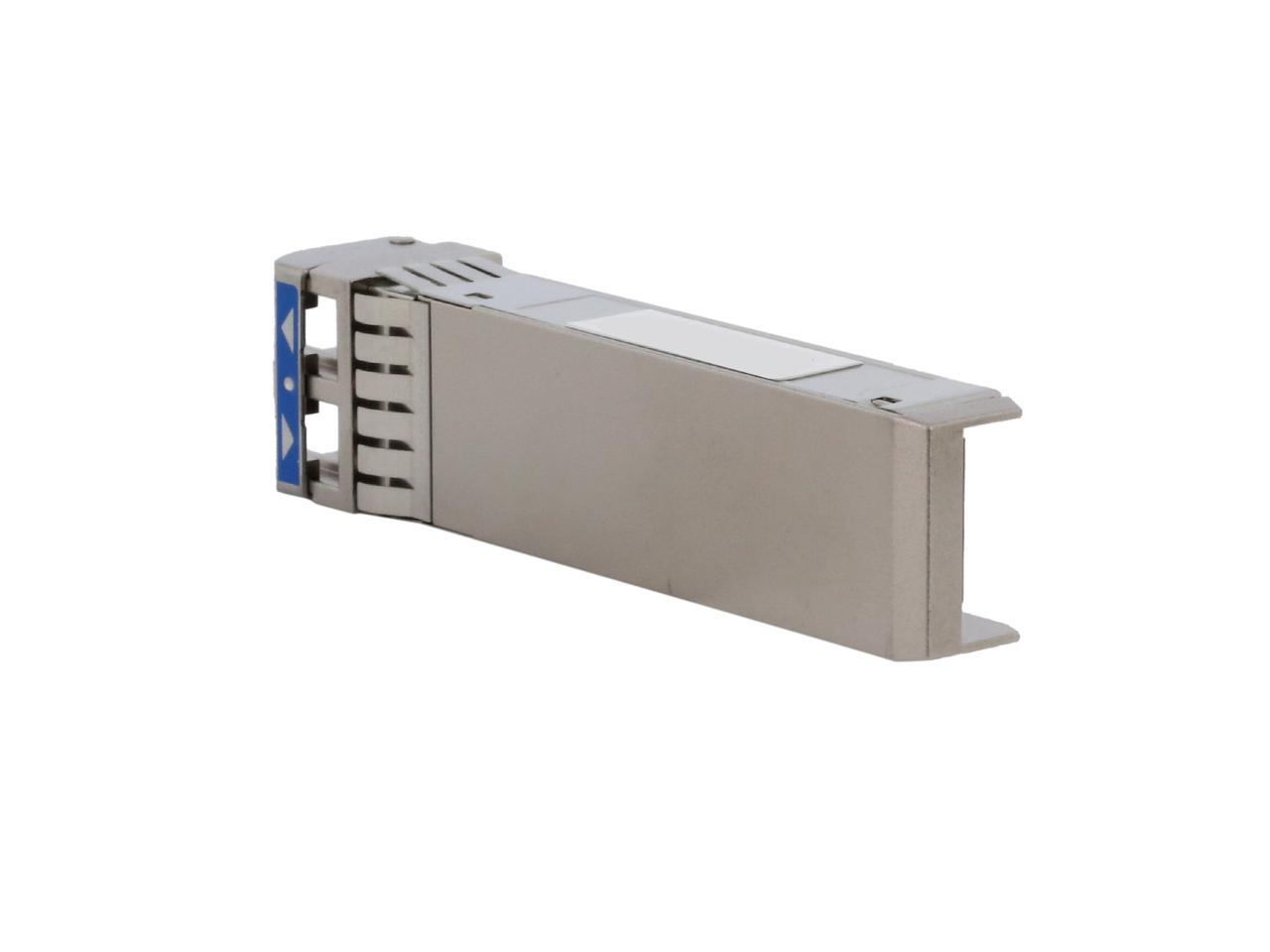

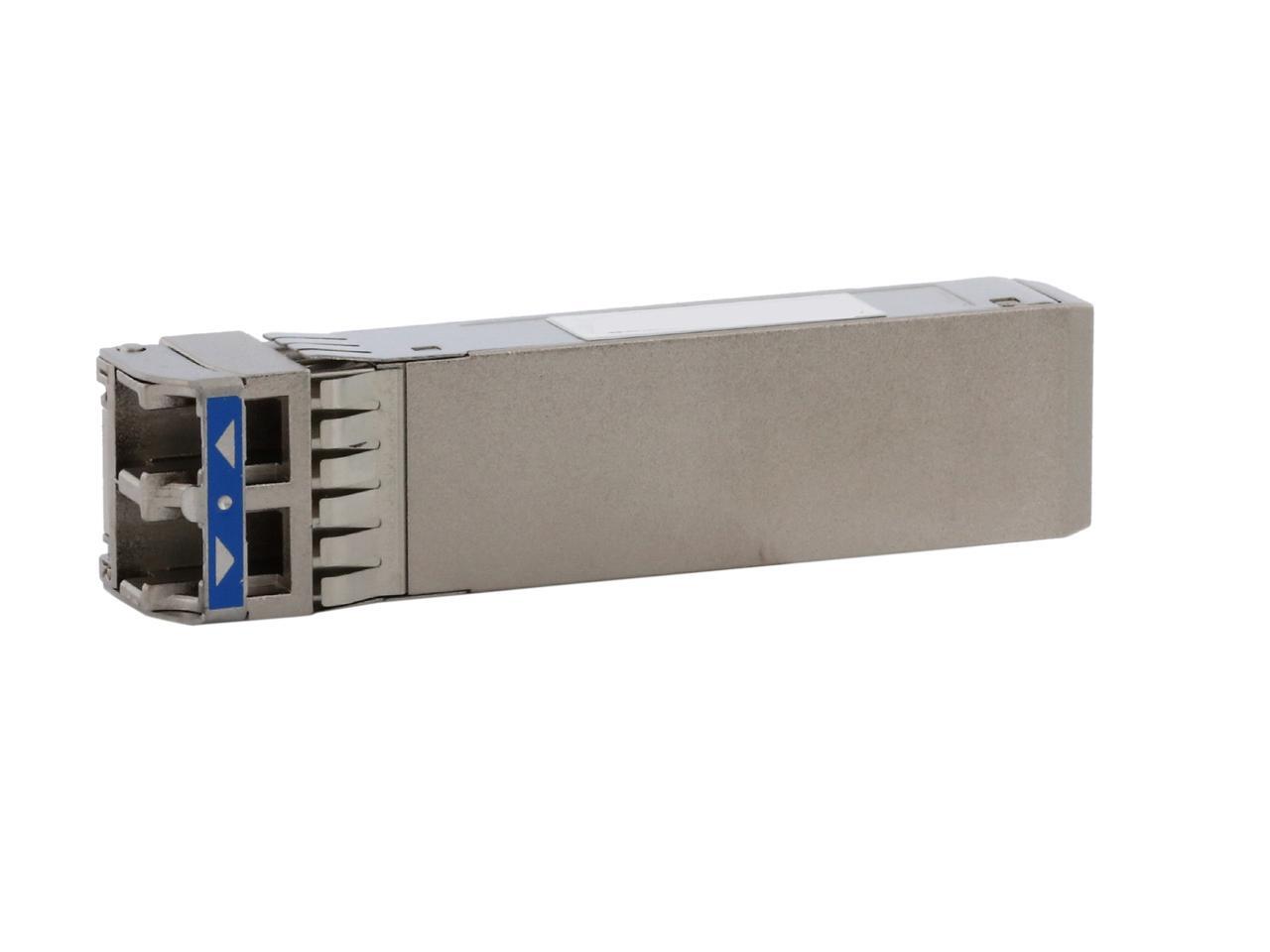

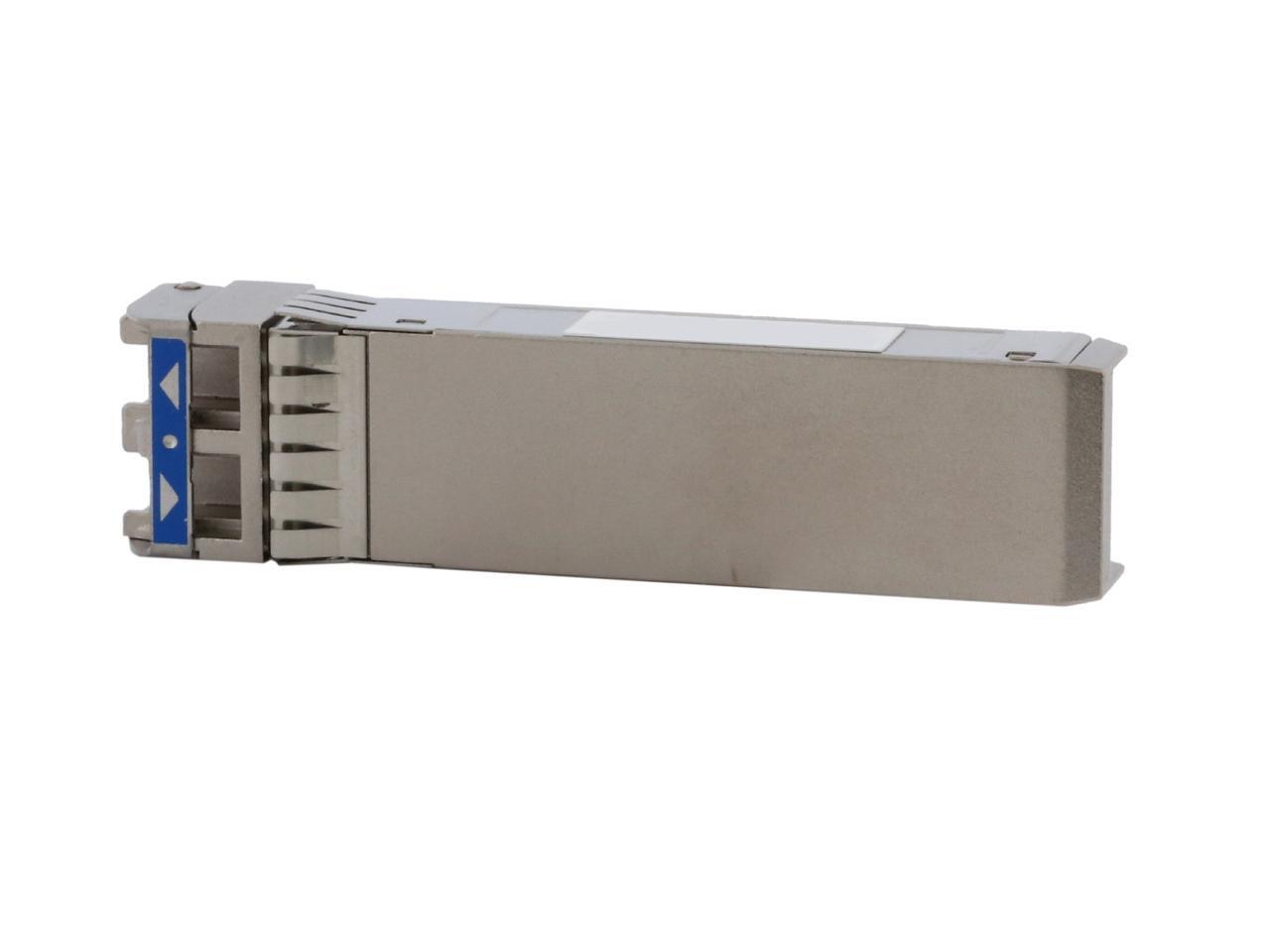

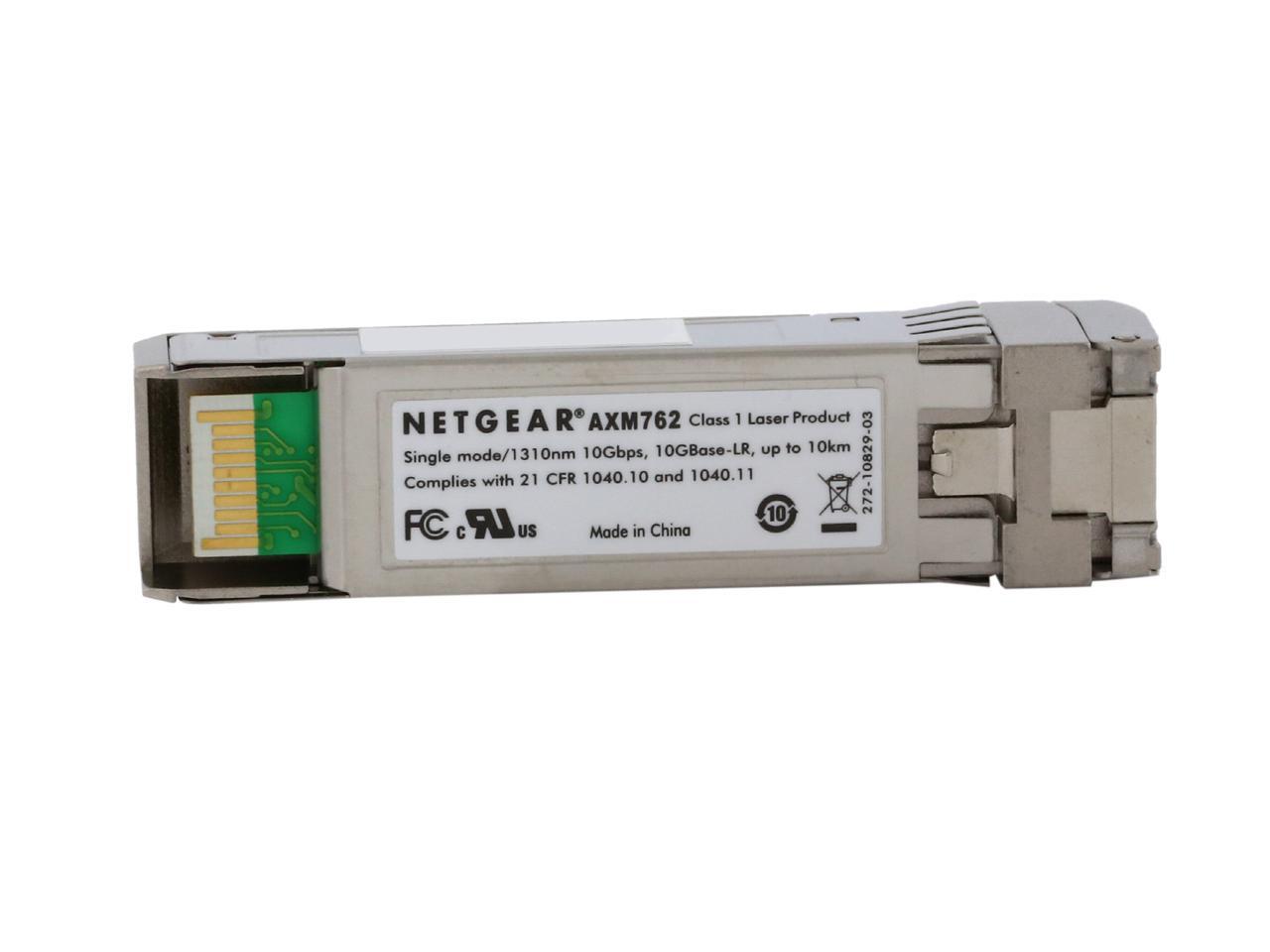

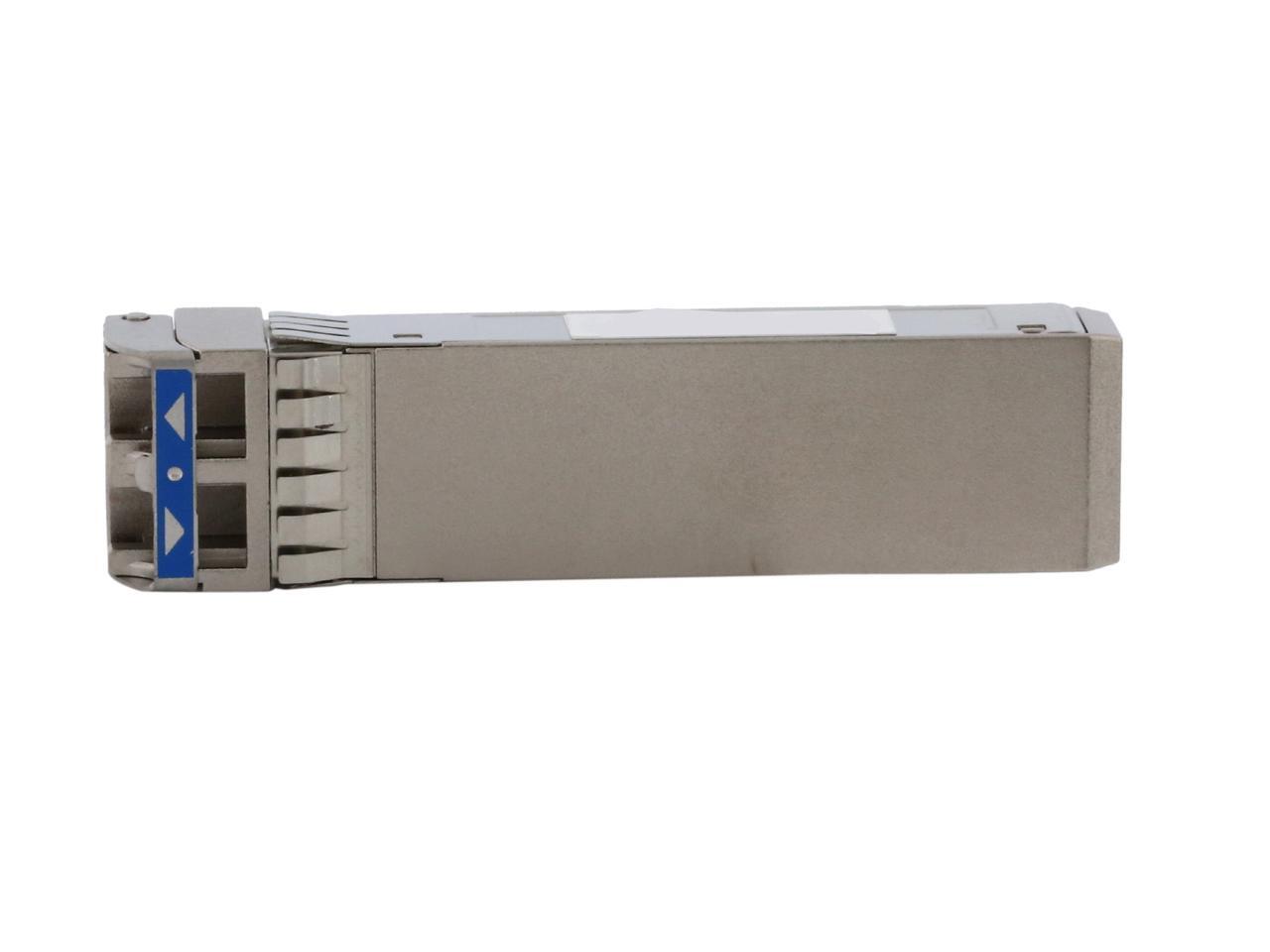

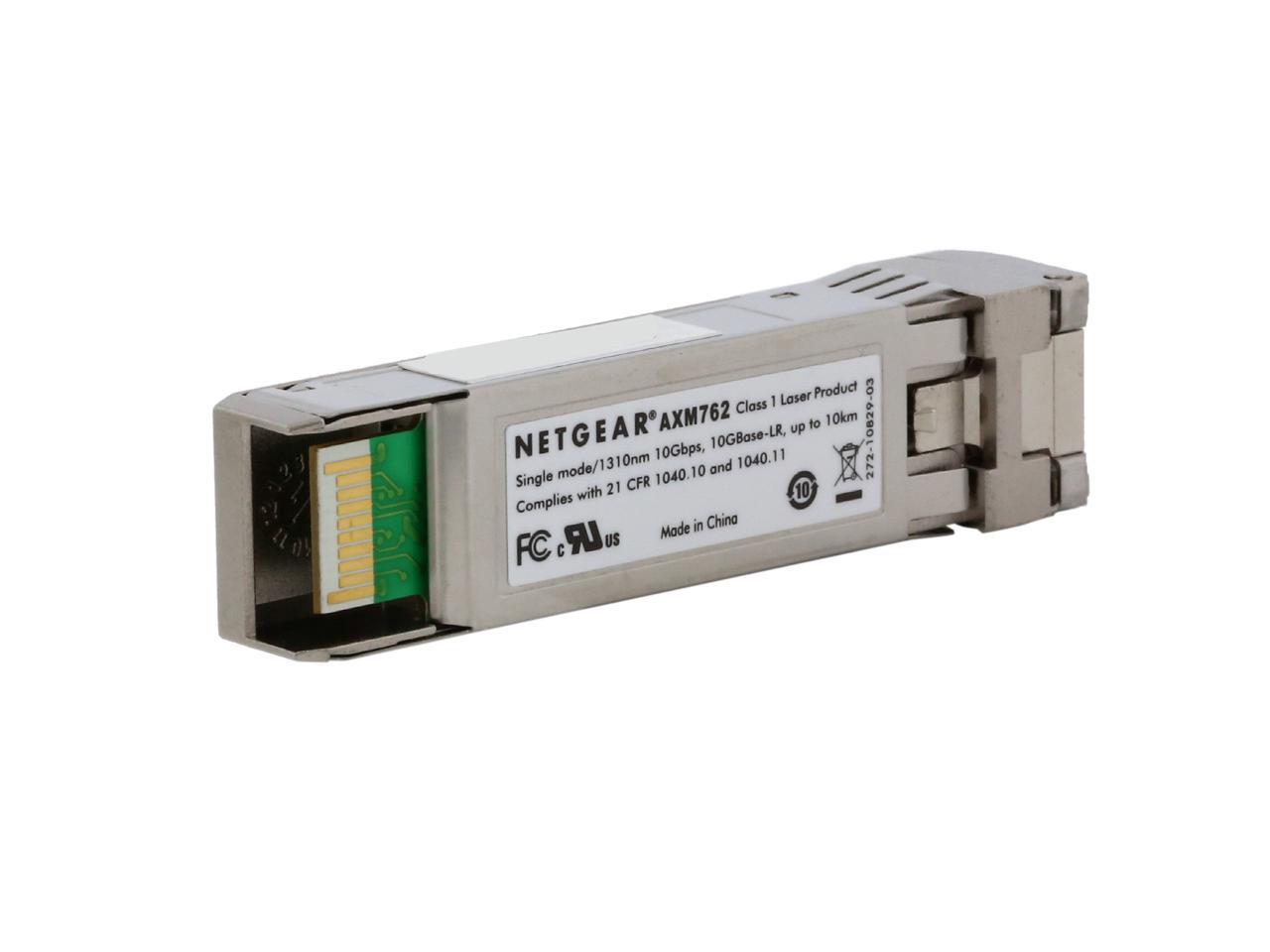

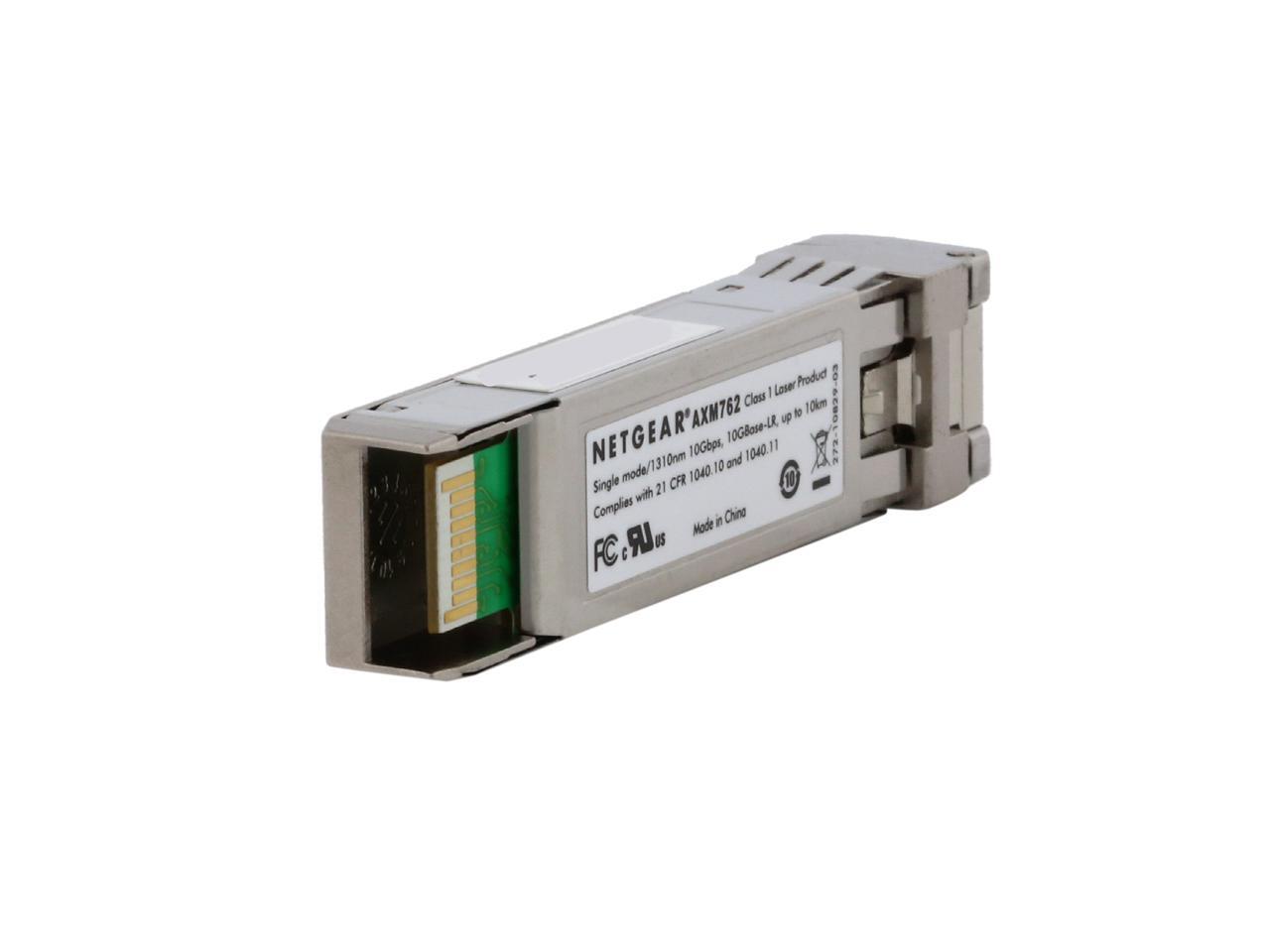

Miscellaneous Learn more about the Netgear Inc. AXM762
ModelBrand | Netgear |
---|
Model | AXM762 |
---|
DetailsDevice Type | Transceiver |
---|
Standards | IEEE 802.3ae 10GBase-LR |
---|
Wavelength | 1310nm |
---|
Ports | 1 x 10GBase-LR |
---|
EnvironmentalTemperature | Operating Temperature 32 -158º F (0 - 70ºC)
Storage Temperature 32 -185 ºF (0 - 85ºC) |
---|
Humidity | Operative relative humidity 85% @ (25ºC) |
---|
FeaturesFeature | Operating Distance 2m - 10km for 9/125 um SMF

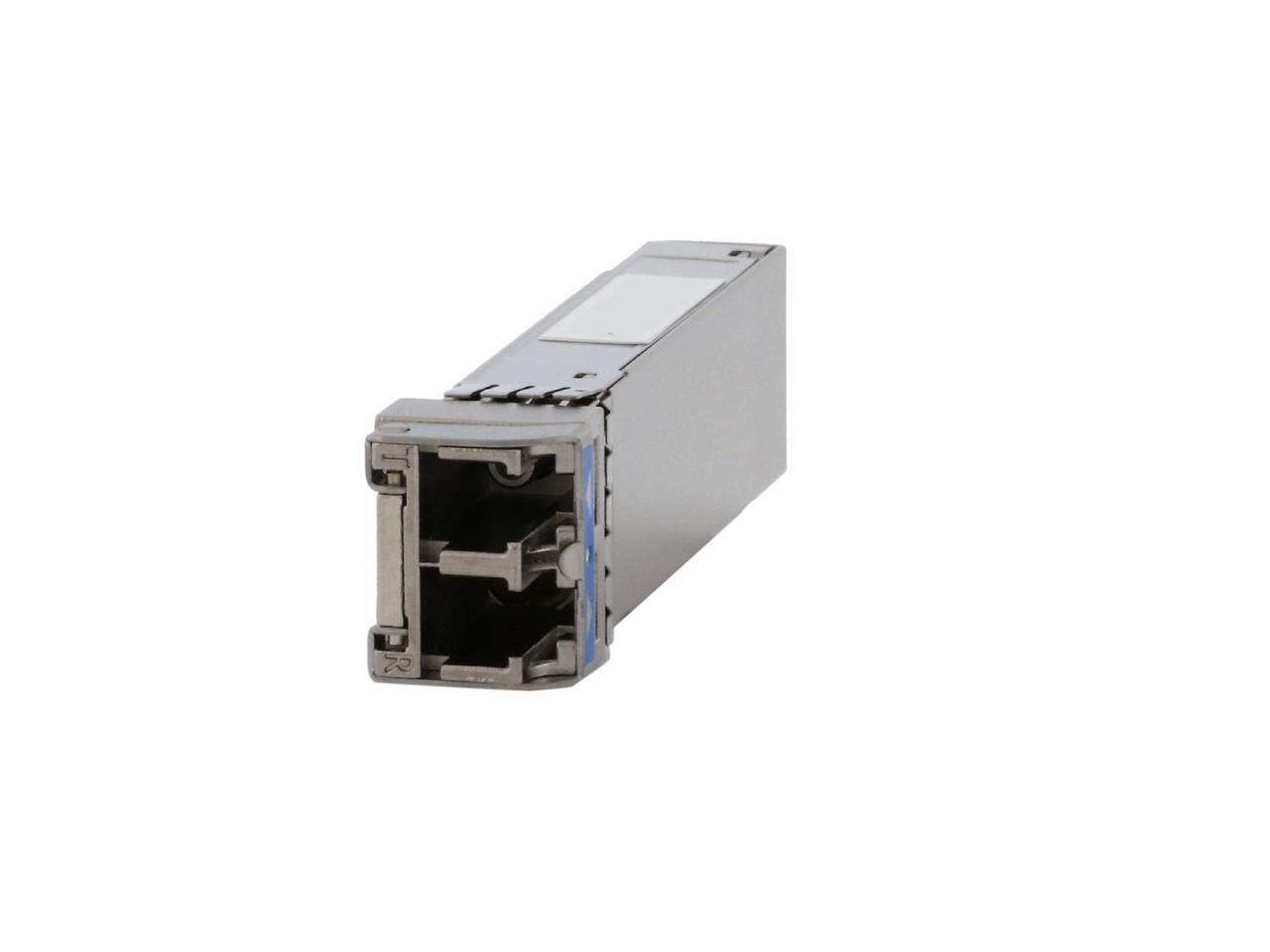

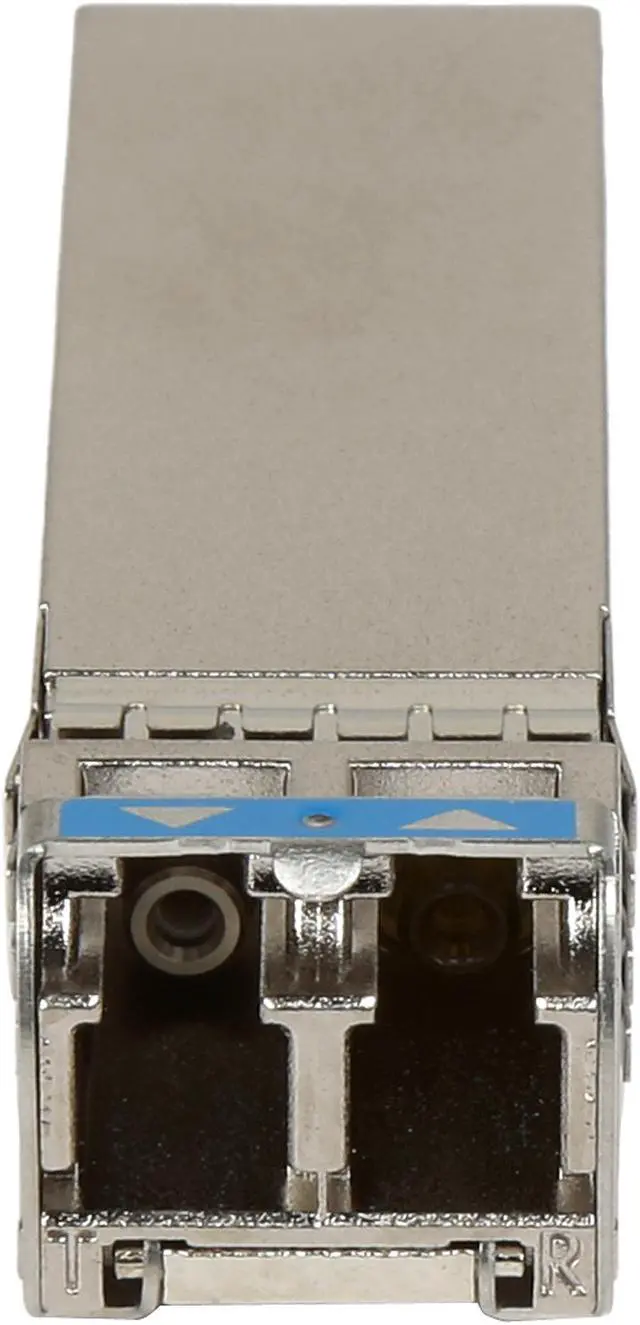

Connectors LC for 9um/125um single mode cable
Power Consumption <1.5w
MTBF 4,986,536 hr (569 years)
Safety Certification UL 1950 CSA 22.2 No. 950
Environmental Compliance RoHS |
---|
Dimensions & WeightDimensions | 0.46” x 0.53” x 2.19” (11.9 mm x 13.7 mm x 55.7 mm) |
---|
Weight | 19.2g |
---|
DisclaimerDisclaimer | Laser Safety Warning This is a Class 1 laser product. Warning: Because invisible laser radiation may be emitted from aperture of the port when no fiber cable is connected, avoid exposure to laser radiation and do not stare into the open aperture. |
---|
Additional InformationFirst Listed on Newegg | December 21, 2010 |
---|
