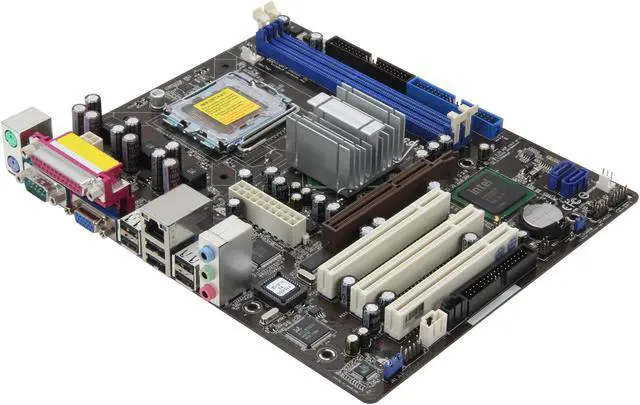

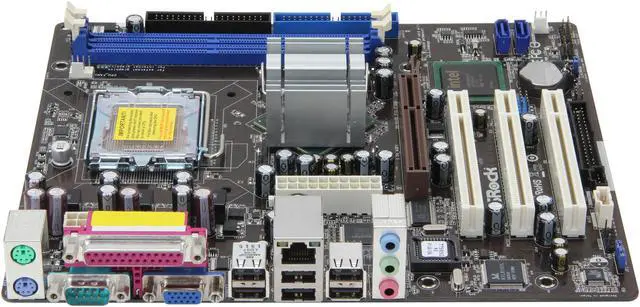

ASRock 775I65G R3.0 LGA 775 Intel 865G + ICH5 Micro ATX Intel Motherboard
- Intel 865G
- Core 2 Extreme / Core 2 Duo / Pentium D / Celeron
- DDR400/333
Specs
Reviews (18)
Learn more about the ASRock 775I65G R3.0
| Brand | ASRock |
|---|---|
| Model | 775I65G R3.0 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Extreme / Core 2 Duo / Pentium D / Celeron |
| FSB | FSB 1066 MHz for external graphics FSB 800/533 MHz for internal graphics |
| Chipset | Intel 865G + ICH5 |
|---|
| Onboard Video Chipset | Integrated Graphics |
|---|
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR400/333/266 |
| Maximum Memory Supported | 2GB |
| Channel Supported | Dual Channel |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Slots | 3 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|
| Audio Chipset | C-Media CMI9761A |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8101L |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 2 x PS/2 / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 6 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x Floppy connector 1 x IR header 1 x Power LED header 1 x CPU Fan connector (4-pin) 1 x Chassis Fan connector (3-pin) 20 pin ATX power connector 4 pin 12V power connector CD in header AUX in header Front panel audio connector |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8" |
| Power Pin | 20 Pin |
| Features | Supports Intel Dual-Core Core 2 Extreme / Core 2 Duo FSB 1066 MHz for external graphics FSB 800/533 MHz for internal graphics Dual Channel DDR memory technology, 2 x DDR400/333/266, Max. capacity: 2GB 3 x PCI slots 1 x APG slot for 1.5V 8X/4X AGP card Integrated Intel Extreme Graphics 2, DirectX 8.0 5.1 CH Audio (C-Media 9761A Audio Codec) 10/100 Ethernet 2 SATA, 10 USB 2.0 Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite |
|---|
| First Listed on Newegg | October 11, 2012 |
|---|
