Type | PCI Express |
---|

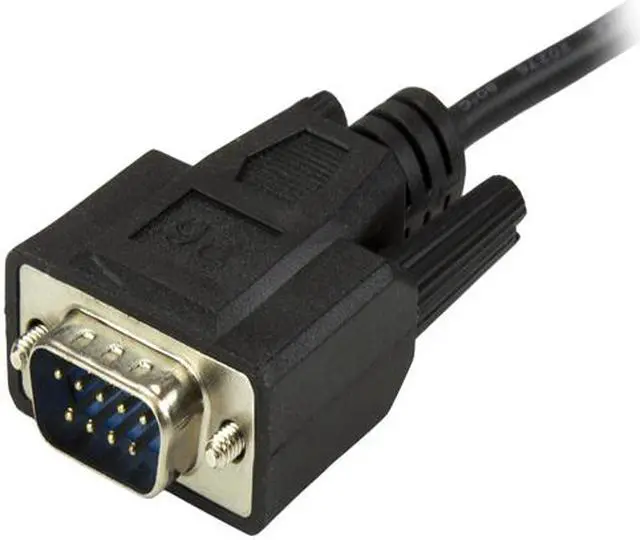

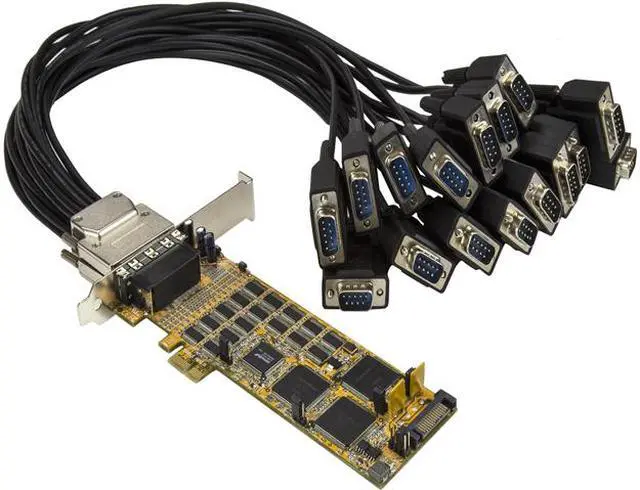

External Ports | 16 x DB-9 (9 pin, D-Sub) Male |
---|
Internal Ports | 1 x SP4 (4 pin, Small Drive Power) Male |
---|
Operating Systems Supported | Windows 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016 Linux 2.6x to 4.2x LTS Versions only |
---|
Specifications | Card Type: Low Profile (SP bracket incl.)
Chipset ID: ASMedia - ASM1083 SystemBase - SB4002A, SB16C1058
Industry Standards: PCI Express 1.1, PCI Power Management 1.2 Interface: Serial Ports: 16 Data Bits: 5, 6, 7, 8 Max Baud Rate: 921.6 Kbps Serial Protocol: RS-232 Stop Bits: 1, 1.5, 2 |
---|
