Question 1

I have an HP S5000.

The PCI slot is marked PCI E1

The slots are smaller

Will this card work?

Accepted Answer

I tried and it did not. The card looked like a PCI but the first part of the card pins were longer than the PCI express size ____ ________________
The lines I included are a representation of the slot. Not sure what kind of
card I need - are there different kinds of PCI besides express and non-express? The card looked like this:

_______ _____________________ ________

The card insert was overall shorter than the slot. But the first section was longer and did not fit...

There are three PCI slots e1, e2 and e3 marked on the motherboard
e1 is the long slot
e2 and e3 are the PCI express slots

Any additional ideas are appreciated

Question 2

This plugs directly into the motherboard with the contacts that are at a right angle to the port, correct? Does it need any other connections/cables?

Accepted Answer

Yes, the unit plugs into a pci port, same type of port that your cards (e.g. graphic, sound, etc) plug into. The unit also comes with several power cords that are designed to address different configurations. Select the correct plug which satisfies your configuration and plug it into a power source, probably the main ribbon that powers your hard dive and cd/dvd drives. I had no problems making the necessary connections. Hope this helps.

Question 3

Is PCI-X and PCI Express the same thing?

Accepted Answer

No they are not the same-

Google it and go to Wiki and you will see that PCI-X is a completely different connector

Question 4

will this card work in a pci-e x4 or x8 slot. Server board does not have an x1 slot ? it has x16,x8 and x4 in a x8 size ?

Accepted Answer

yes you can put a x1 into any other PCIex 4,8,16 slot..

Question 5

What cable connects to power supply sata?

Accepted Answer

The cable that connects to the power supply is a SATA power cable, as the product includes an optional SATA power connector.

Question 6

Is there a model like this that fits a low profile case?

Accepted Answer

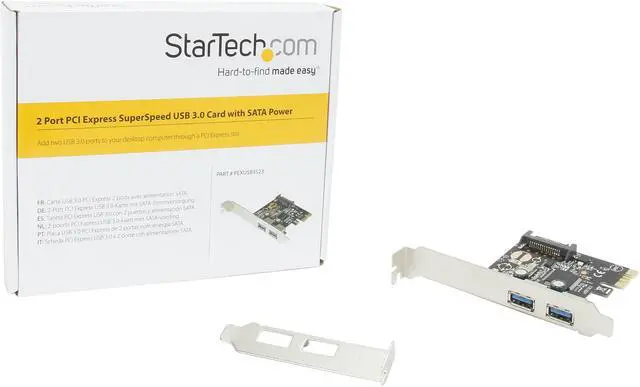

The card comes with both a regular and a low profile bracket according to the photos.

Brand	StarTech.com
Model	PEXUSB3S23

Type	PCI Express to USB Card
External USB Ports	2x USB Ports

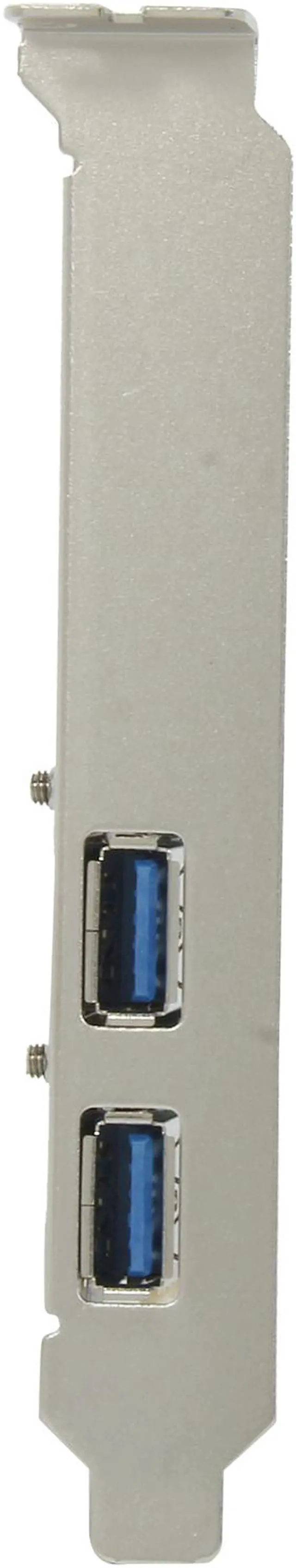

External Ports	2 x USB 3.0 A (9 pin; SuperSpeed) Female
Internal Ports	1 x SATA Power (15 pin) Plug
Standard	USB 3.0
Data Transfer Rate	Up to 5.0 Gbps
Operating Systems Supported	Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64) Windows Server 2008 R2 , 2003 (32/64)

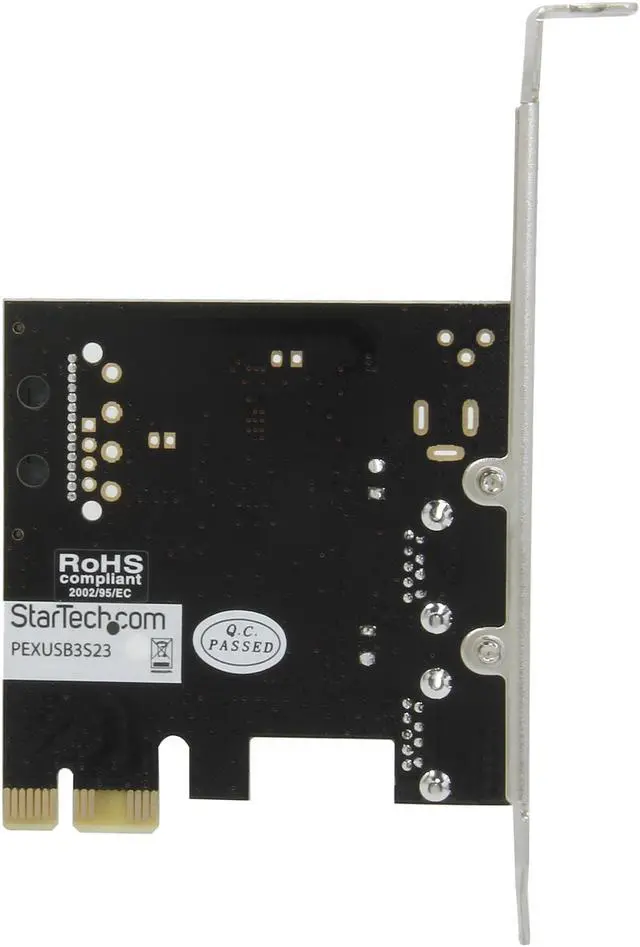

Specifications	1 x PCI Express x1 Male

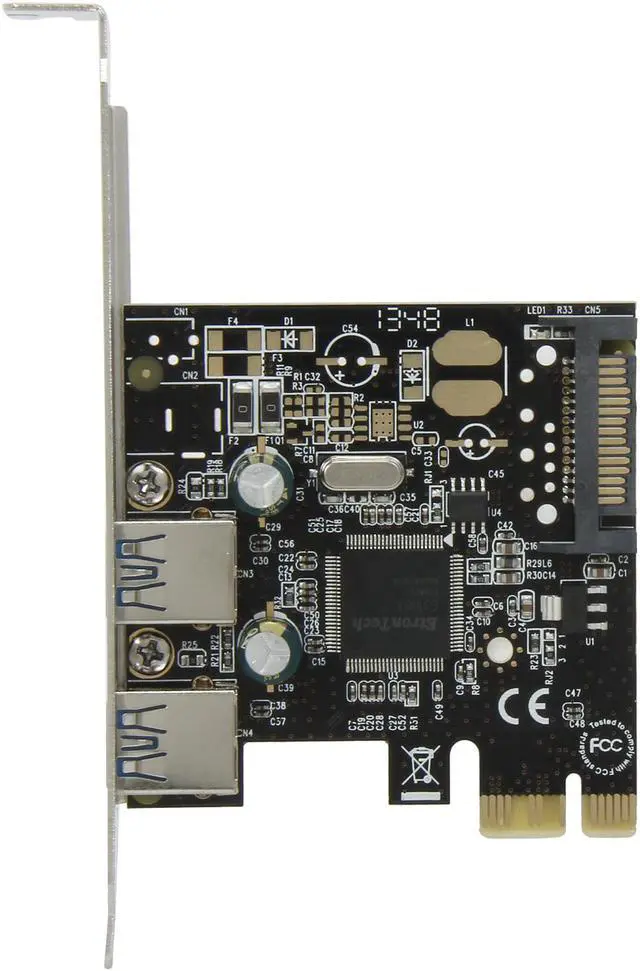

StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power Model PEXUSB3S23

Learn more about the STARTECH PEXUSB3S23

Customer Reviews of the STARTECH PEXUSB3S23

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

Item#: N82E16815158370
