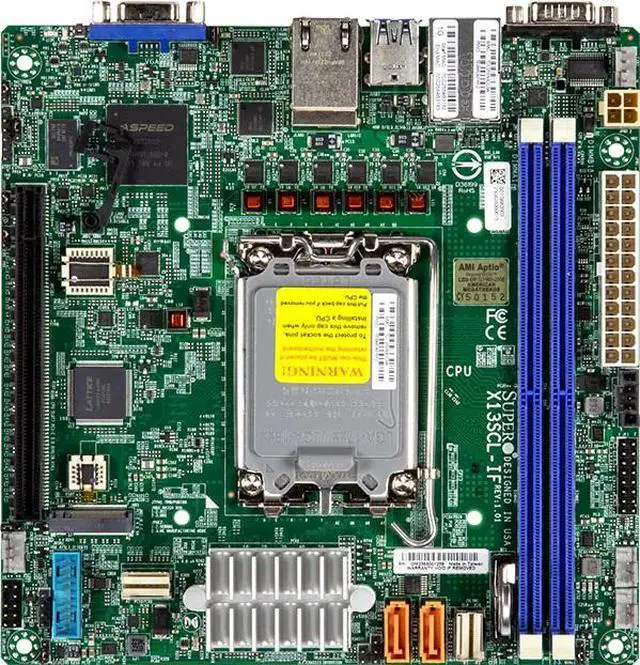

Supermicro MBD-X13SCL-IF-O Intel LGA-1700 Single Socket Mini-ITX Server Motherboard

(1) Write a Review
  • Intel Xeon 6300-series/E-2400 Series Processor, Pentium Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
  • Intel® C262 controller for 6 SATA3 (6 Gbps) ports ; RAID 0,1,5,10
  • Up to 64GB ECC Unbuffered DIMM, DDR5-4800MHz, in 2 DIMM slots
  • 1 PCIe 5.0 x16
  • 2 SlimSAS (2 PCIe 4.0x4 or 1 PCIe 4.0x4 & 4 SATA)
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller
  • M.2 Interface: 1 PCIe 4.0 x4
  • M.2 Form Factor: 2280
  • M.2 Key: M-Key
  • 4 USB 3.2 Gen1 ports (2 rear + 2 via header)
  • 2 USB 2.0 ports (2 rear)
Specs
Reviews (1)

Learn more about the Supermicro MBD-X13SCL-IF-O

Model
Brand SUPERMICRO
Model MBD-X13SCL-IF-O
Supported CPU
CPU Socket Type LGA 1700
CPU Type Intel Xeon 6300-series/ E-2400/Pretium Processor
Number of Processor Support 1
CPU Features Up to 95W TDP
Chipsets
North Bridge Intel C262
Memory
Memory Slots 2 x DDR5 288-pin
Memory Standard DDR5 4800
Maximum Memory Supported 64GB
ECC Supported Yes
Expansion Slots
PCI Express 5.0 x16 1 x PCIe 5.0 x16
PCI Express x4 1 x PCIe 4.0 x4 SlimSAS, 2 PCIe 4.0x4 or 1 PCIe 4.0x4 & 4 SATA
Storage Devices
SATA 6 x SATA 6.0Gb/s
SATA RAID 0/1/5/10
M.2 M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2280
Key: M-Key
Onboard Video
Onboard Video Chipset Aspeed AST2600
Onboard LAN
LAN Chipset Intel I210
LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x D-Sub / 2 x LAN (RJ45) / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 Type-A
Features
BIOS Feature AMI 32MB AMI UEFI
ACPI 6.4
SMBIOS 3.5
UEFI 2.8
Plug and Play (PnP)
PCI FW 3.3
Dimensions
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
