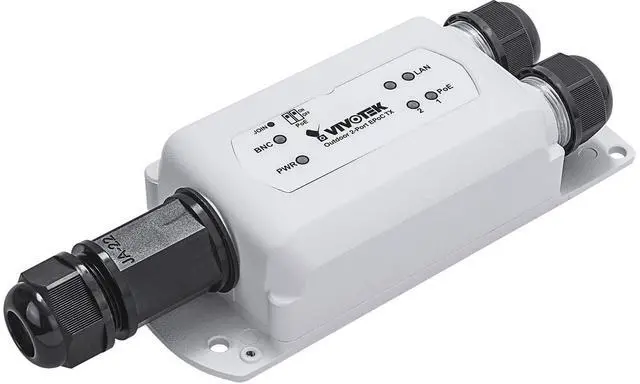

Vivotek 2-Port Outdoor EPoC Extender TX Module

Be the first to review this product...
  • Built-in 6KV Surge Protection for BNC Port
  • Extend Ethernet and Power up to 1,200 m (3,937 ft) over RG6 Coaxial Cable
  • Support Ring Topology up to 4 IEEE 802.3af Camera for Power Redundancy
  • Support Daisy Chain Topology up to 4 IEEE 802.3af Camera
  • Easy Installation for a Smooth Transition from Legacy to IP Camera
  • Both Wall Mount and Rackmount Supported
+
+
Specs
Reviews

Learn more about the VIVOTEK Inc. AP-FEX-0250-T

Model
Brand Vivotek
Model AP-FEX-0250-T
Details
Type Module
Specifications BNC Port (75O): 1
Ethernet Port: 2
PoE On/Off Switch: 2
Transmission Mode: Tx
Max. PoE Distance (RG 6): 500m per port/Total 17W
Max. Ethernet Distance (RG 6): 2.4 km
Power Input: DC 56V
Power Consumption: 3W
Surge Protection: BNC 6KV
PoE Standard: 802.3 at/af
Water Proof: IP67
Vandal Proof: IK10
Dimension: 203 (D) x 73 (W) x 40 (H) mm
Weight: 0.36kg (0.79lb)
Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
Operating Humidity: 5% ~ 95% non-condensing
Safety Certification: CE, FCC, VCCI
Features
Features Weather-proof IP67-rated and Vandal-proof IK10-rated Housing
Built-in 6KV Surge Protection for BNC Port
Extend Ethernet and Power up to 1,200 m (3,937 ft) over RG6 Coaxial Cable
Support Ring Topology up to 4 IEEE 802.3af Camera for Power Redundancy
Support Daisy Chain Topology up to 4 IEEE 802.3af Camera
Easy Installation for a Smooth Transition from Legacy to IP Camera
Both Wall Mount and Rackmount Supported
