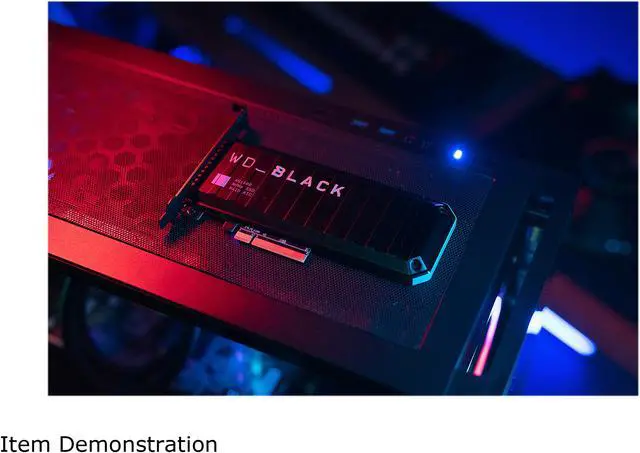

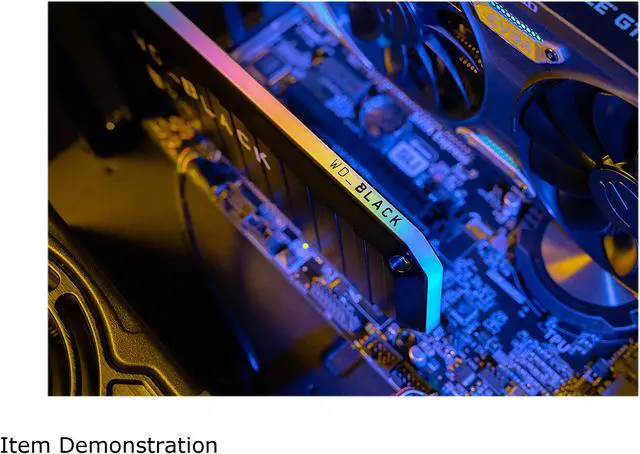

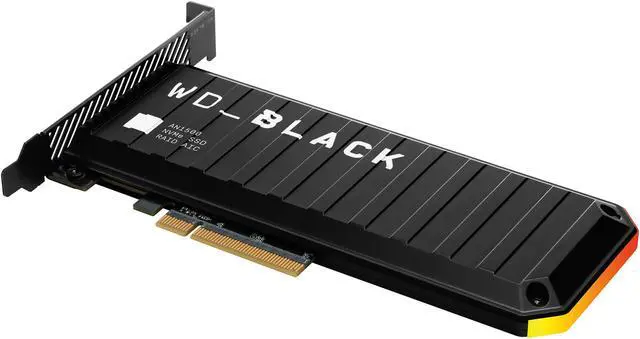

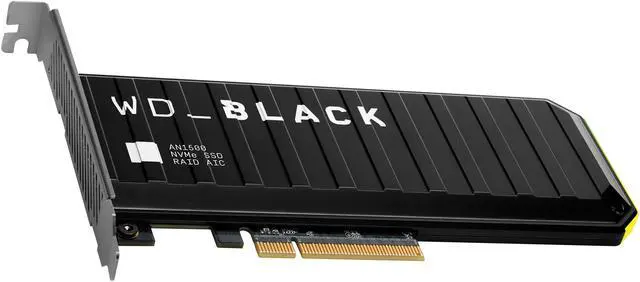

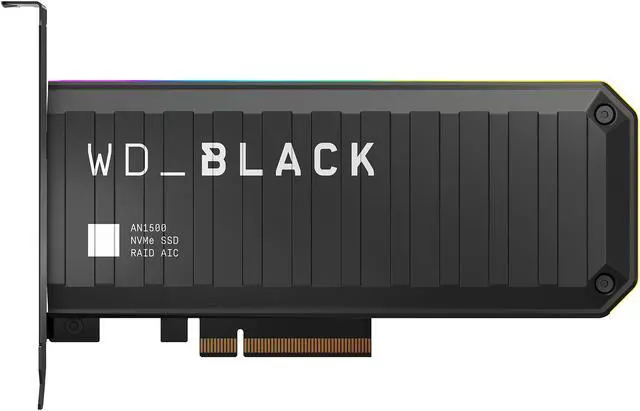

Western Digital WD BLACK AN1500 NVMe AIC 1TB PCI-Express 3.0 x8 Internal Solid State Drive (SSD) WDS100T1X0L
See more "wd black"
OUT OF STOCK.
- PCIe Gen3 technology to provide access to insane read/write speeds up to 6500/4100 MB/s
- Up to 4TB capacity to store your games
- Bootable and easy-to-install RAID0 solution using PCIe slot
- Downloadable WD_BLACK Dashboard software to customize and control your gaming experience

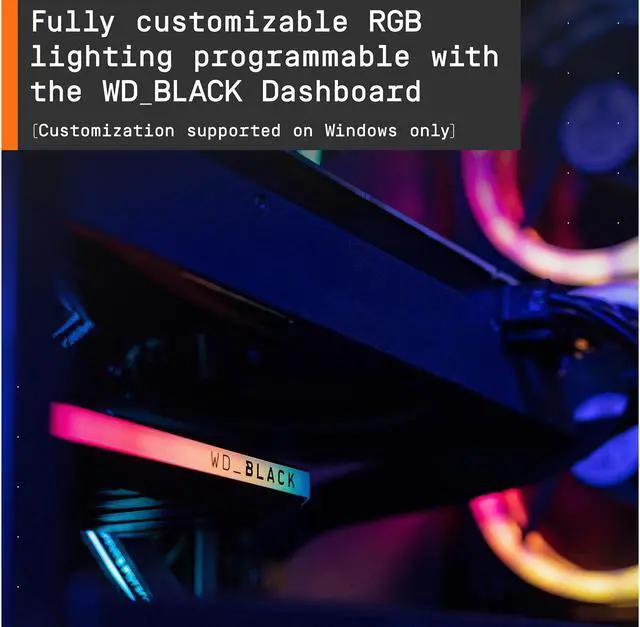

- Customizable RGB lighting with 13 LED pattern effects programmable with our WD_BLACK Dashboard, or seamlessly integrate with motherboards from major brands (Windows only)

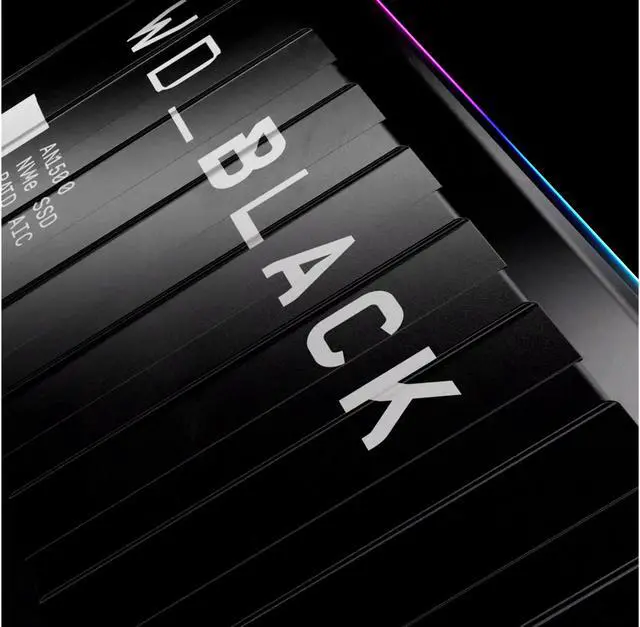

- Engineered to minimize thermal throttling with integrated heatsink technology
Overview
Specs
Reviews
Learn more about the Western Digital WDS100T1X0L
| Brand | Western Digital |
|---|---|
| Series | BLACK AN1500 NVMe |
| Model | WDS100T1X0L |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | AIC |
|---|---|
| Capacity | 1TB |
| Interface | PCI-Express 3.0 x8 |
| Max Sequential Read | Up to 6500 MBps |
|---|---|
| Max Sequential Write | Up to 4100 MBps |
| 4KB Random Read | Up to 760,000 IOPS |
| 4KB Random Write | Up to 690,000 IOPS |
| MTTF | 1.75M hours |
| Features | REACH EXTREME VELOCITY Get in the game faster with the WD_BLACK AN1500 NVMe SSD Add-in-Card. Internally powered by two SSDs using PCIe Gen3 technology, reach up to 6500 MB/s read speed and up to 4100 MB/s write speed to minimize load times. MORE CAPACITY FOR YOUR GAMES Keep numerous games and your rig running smooth with the WD_BLACK AN1500 NVMe SSD Add-in-Card, allowing you to save up to 4TB of data. PLUG AND OUTPLAY Reaching extreme velocity has never been easier. The bootable WD_BLACK AN1500 NVMe SSD Add-In-Card simply connects into your PCIe expansion slot, requiring no external power or cables. Primed with an enterprise grade RAID controller, this plug and play add-in-card can run your entire operating system while you game, giving you solid reliability and effortless performance that holds nothing back. OPTIMIZED WITH THE WD_BLACK DASHBOARD Take total control with the downloadable WD_BLACK Dashboard, allowing you to monitor the health of your drive and optimize performance using gaming mode to ensure you're firing on all cylinders during intense gaming sessions. LIGHT UP YOUR STATION WITH RGB Enhance your gaming station with fully customizable RGB lighting controlled through the downloadable WD_BLACK Dashboard (Windows only), designed to match your style with various colors and 13 different LED pattern effects to choose from. THROTTLE THE ENEMY. NOT YOUR RIG. Help keep your rig running at top speeds with the WD_BLACK AN1500 NVMe SSD Add-in-Card, featuring a fanless and silent heatsink to sustain performance and help keep you from throttling down. |
|---|
| Power Consumption (Idle) | 8.5W |
|---|---|
| Power Consumption (Active) | Read: 15.7W Write: 12.8W |
| Operating Temperature | +5°C ~ +35°C |
| Storage Temperature | -20°C ~ +65°C |

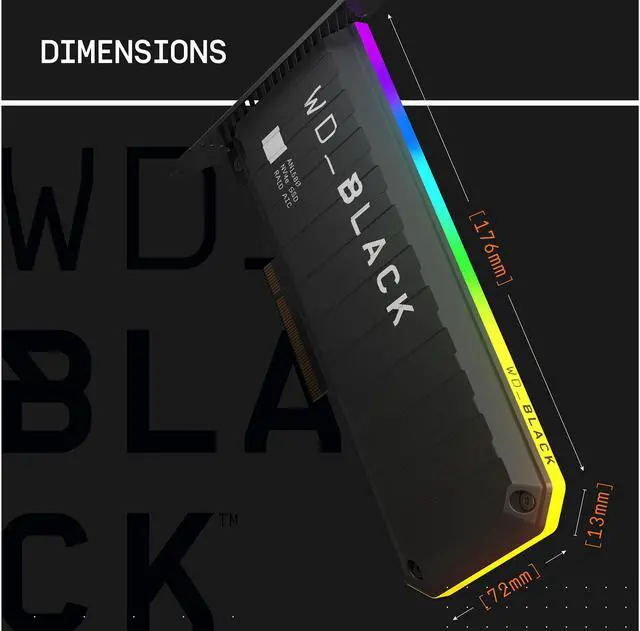

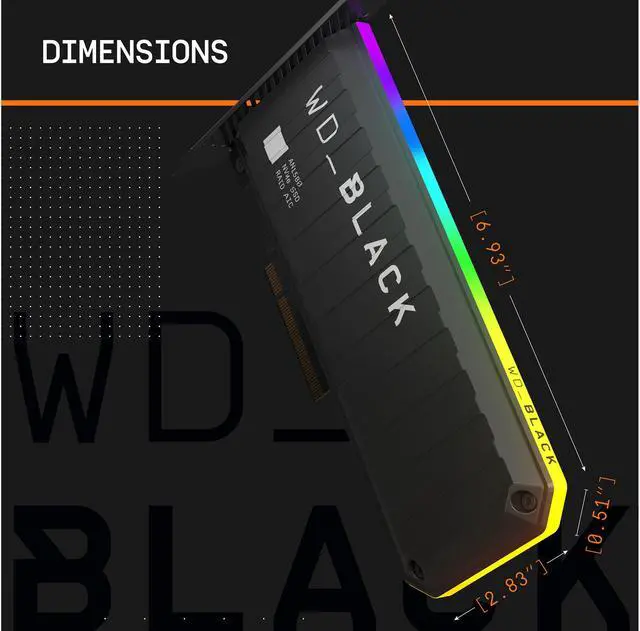

| Height | 13.00mm |
|---|---|
| Width | 72.00mm |
| Depth | 176.00mm |
| Weight | 210.00g |
| Date First Available | October 08, 2020 |
|---|
Anonymous
Ownership: 1 week to 1 month
Verified Owner
Roughly PCIe 4.0 Speeds in 3.0 Form Factor2/13/2021 4:08:52 PM
True Hardware RAID. Does Exactly as Described. Performance is Very Good.12/29/2020 9:44:36 AM
Pros: True Hardware RAID unlike other offerings. Software Raid does not allow TRIM so you will have extremely slow write and read issues eventually. TRIM is supported. Performance is exactly as advertised by Western Digital. Using with Vmware ESXi Hypervisor and using a 2nd AN1500 with Windows 10. Somewhat costly but would recommended to those who want PCIe Gen 4 Performance using a PCIe Gen 3 system.
Cons: Costly.
Overall Review: Would recommend to those who want True Hardware Raid with M.2 Nvme drives and those that want Gen 4 performance in a Gen 3 system.
Anonymous
Ownership: 1 week to 1 month
Verified Owner
Boot times are really fast12/26/2020 3:00:00 PM
Pros: Its incredibly fast, just what I was looking for. The LEDs are a nice little addition as well
Cons: just make sure you're aware this takes up 8 lanes and wipe the drive fully before installing it
Overall Review: I'd recommend this to other people if they were in the market for a new ssd and had the available lanes and free PCIe slots for it
Great upgrade1/5/2022 9:04:18 PM
Pros: Its fast much faster than you expect made my system super smooth and responsive. Games load up quick and seem effortless Fast boot
Cons: Didnt get the promised speed but that I think is something in my setup but not sure what It is yet. Once I get to the bottom of it I will update my review Only Con I think is The price. I could have gotten more space for less money for about the same speed going with a Samsung evo or something. I have installed this 2 tb ssd on my asrock fatality gaming i7 with Z370 chip. I kinda took a chance at this not knowing if a z370 chip will support this ssd and it works. I found the information on WD site focused on selling features and less on compatibility.
Overall Review: Happy with the new life this ssd had given my pc. Btw Was worried about heat issues but that is not a problem it runs at about 49-51 c
Anonymous
Ownership: 1 month to 1 year
Verified Owner
WAY TOO HOT8/13/2021 6:11:00 PM
Pros: - Really fast PCIe Gen 4-like speeds on a PCIe Gen 3 platform
Cons: - SMART health self-assessment failing, warning that temperature is too high: 72C!! Needs active cooling or direct substantial airflow
Overall Review: You need to have decent airflow since this thing runs hot as hell to the point that this drive is throwing SMART errors due to thermals, which is averaging around ~72C for me with admittedly poor airflow.
Manufacturer Response:
Hello Anonymous,
We are sorry to hear about your user experience with WD BLACK NVMe Solid State Drive and appreciate your time providing this review and bringing this matter to our attention.
Please let us confirm that there can be multiple factors that may work with or against the drive and we would like to have the opportunity to address your concerns directly as we think there were greater underlying causes that needed to be investigated with care resulting to a positive outcome.
We would like to follow up with you to help discover the root of your drive’s abnormal behavior. We suggest you contact our Support team by phone regarding the Newegg review for resolution of this concern. We'd be happy to help.
Need Help? Please see our "'Contact Us" page for information.
concept has huge potential but mainstream chipsets have limited PCIE lanes6/7/2021 9:43:39 PM
Pros: fast plug and play RGB looks awesome finally have a use for my 2nd pcie x16 slot doesn't use an m2 slot
Cons: won't run past gen 1 speeds (more test soon to come) kinda pricey
Overall Review: so my specs are 10700k, ASUS ROG MAXIMUS HERO XII, 2x16gb 3600mhz ram, 500 GB, 1tb, and 2tb m2 ssd (all are WD sn750's, EVGA RTX 3090 FTW3 ultra, 850w PSU, I cannpt get this thing to run at gen 3 speeds so I am going to take a m2 drive out and see if there is anything I can do to get this thing running at the right speed Another thing to take note of if you go on the western digital website they claim this thing isn't compatible with intel chipsets past z390 I am sure there is something to get thing running faster hopefully tech support can help tomorrow
Manufacturer Response:
Hi codriver,
We are sorry to hear about your experience with WD Black AN1500 NVMe Solid State Drive add-in-card, and appreciate your time providing this review and bringing this matter to our attention.
Please let us confirm that there can be multiple factors that may work with or against the drive and we would like to have the opportunity to address your concerns directly as we think there were greater underlying causes that needed to be investigated with care resulting to a positive outcome.
All our products must pass our stringent quality standards before leaving our factory to be free from defects in materials and craftsmanship. We stand behind our products throughout the device's factory warranty period. You can contact us directly via phone to address any questions or concerns to ensure a good overall user experience.
Need Help? Please see our "'Contact Us" page for information.
Anonymous
Ownership: 1 day to 1 week
Verified Owner
Awesome!5/19/2021 4:09:21 AM
Pros: This thing is fast! Love the lighting effects as well. Software is easy to use and Im getting the advertised speeds as promised.
Cons: Gets hot but as long as you have good airflow, all is well.
Overall Review: Love it, get it!
beyond excellent as a io bottleneck solution!2/22/2021 3:27:39 AM
Pros: I have two windows servers each with over 20 VMs. Had 2.5" SSD running at 560GBps write as my system drive and place where all VM images resided. Backups to Hard disk of the 1.2TB of all VM machines was taking 30 mins to do all drive exports. Was using VEEAM but continually had problems restoring (parity errors) so using VM export exclusively). VM exports now with the wd_black take 1 minute and throughput is 2600 MBps. Fantastic performance and price is only 2X what I had as a previous solution. I sleep better at night now.
Cons: -works as advertised and I love it. -if you don't have a see through case all you will get is some light pulsing out the back of your server against a wall.
Overall Review: I would recommend to others without reservation. A real SSD solution to a real problem.
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies*
- Return for refund within: 30 days
- Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.
- This item is covered by Newegg.com's International Return Policy. Read full return policy for details.
- *Subject to applicable law
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-275-4932
- Support Website
- View other products from Western Digital
LOADING...
LOADING...
Pros: - Very fast - Easy install - RGB - Software is intuitive
Cons: - Did not work as a boot drive for my X399 Taichi - Runs HOT (61C idle) - Needs 8x PCIe lanes for full functionality (not an issue for me, but something to consider) - Very pricy for what it is
Overall Review: Firstly: Anyone who is considering this as a boot drive, chances are it will not work unless you're on an extremely modern platform like X570. Ultimately it doesn't matter much, but it should be noted- think of it as a way to add NVMe 4.0 speed to an older platform, assuming you've got the 8x PCIe lanes to spare. The drive itself is extremely fast, but runs hot.
