Name: GLOTRENDS M.2 PCIe 4.0/3.0 Adapter Without Bracket for M.2 PCIe SSD (NVMe and AHCI), PCI-E GEN4 Full Speed
Brand: GLOTRENDS
SKU: 17Z-00SW-00001
Price: 8.99 USD
Availability: InStock
Rating: 5 (9 reviews)

GLOTRENDS M.2 PCIe 4.0/3.0 Adapter Without Bracket for M.2 PCIe SSD (NVMe and AHCI), PCI-E GEN4 Full Speed

Check more best sellers of "Add-On Cards"

Check more lowest price of "Add-On Cards"

Check more deals of "Add-On Cards"

In stock.

Ships from United States.

M.2 PCIe SSD Full Speed Adapter: With this PCIe adapter, M.2 PCIe SSD can operate at PCIe X4 full speed. It's like being installed directly on the motherboard, and the speed is basically unaffected.
No Capacity Limitation: Support 2T/4T capacity M.2 PCIe (NVMe/AHCI) SSD, Support 2230/2242/2260/2280 size

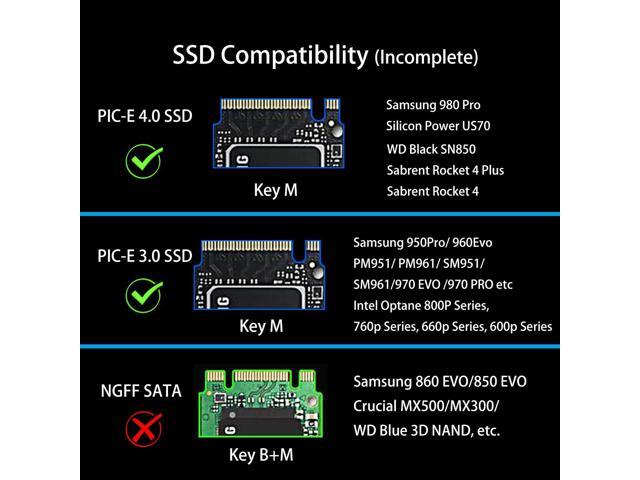

Work with PCIe 4.0/3.0 M.2 SSD, not Support M.2 NGFF SATA SSD: To reach PCIe 4.0 X4 (64Gbps) full speed, CPU and motherboard PCIe slot and M.2 PCIe SSD should all be PCIe 4.0 feature. (Noted: Intel 11th Gen and above CPU support PCIe 4.0)
Support OS booting from PCIe SSD: Need to reinstall OS, and setup BIOS/UEFI booting from this M.2 PCIe SSD.
M.2 PCIe SSD as Storage Disk: Brand new M.2 PCIe SSD need to be Initialized and formated before PC host recognize it.
OS compatibility: Plug and play in Windows 11/10/8/Linux/Mac OS. (Noted: Windows 7 do not have native NVMe driver, so can not support M.2 PCIe SSD)
Low profile horizontal installation for 2U Server

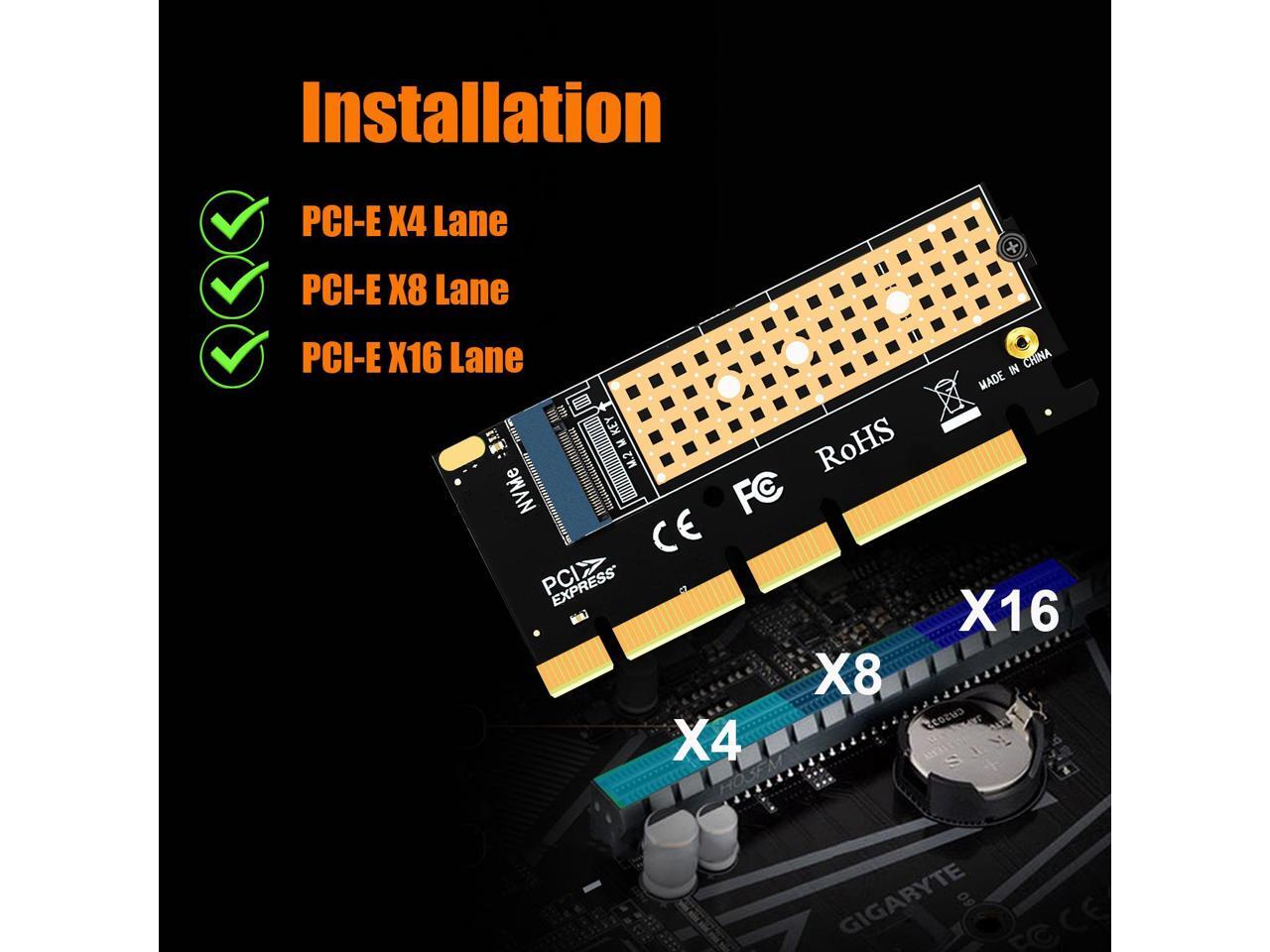

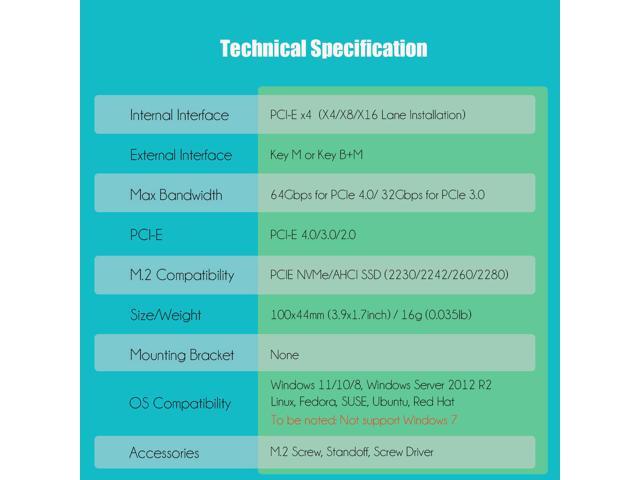

Internal Interface	PCI-Express X4 (X4/X8/X16 lane installation)
External Interface	Key M or Key B+M (Please note that some M.2 SATA SSD is also Key B+M )
Max Bandwidth	64Gbps for PCIe 4.0/ 32Gbps for PCIe 3.0
PCI-E Compatibility	PCI-Express 4.0/3.0/2.0
M.2 Compatibility	PCI-E NVMe SSD and PCI-E AHCI SSD
Form Factor	2230/2242/2260/2280
Profile Bracket	No PC frame bracket, suitable for horizontal PC/server case
OS Compatibility	Windows 10/8, Windows Server 2012 R2, Linux, Fedora, SUSE, Ubuntu, Red Hat

NVMe drive as boot drive or storage drive?

For NVMe boot drive, you need to reinstall the OS (windows 10 64bit/Windows 11 is recommended).

First you need to prepare a bootable usb drive and OS (windows 10 64bit/Windows 11).
When reinstalling the system, please select GUID Partition Table (GPT).
OS will reboot after completing installation, remove the bootable usb drive, enter BIOS to setup UEFI boot mode

For NVMe storage drive, Plug and play in Windows 11/10/8/Linux/Mac OS

Windows 7 can not support nvme drive
Brand new NVMe drive need to be Initialized and formated before OS recognize it.

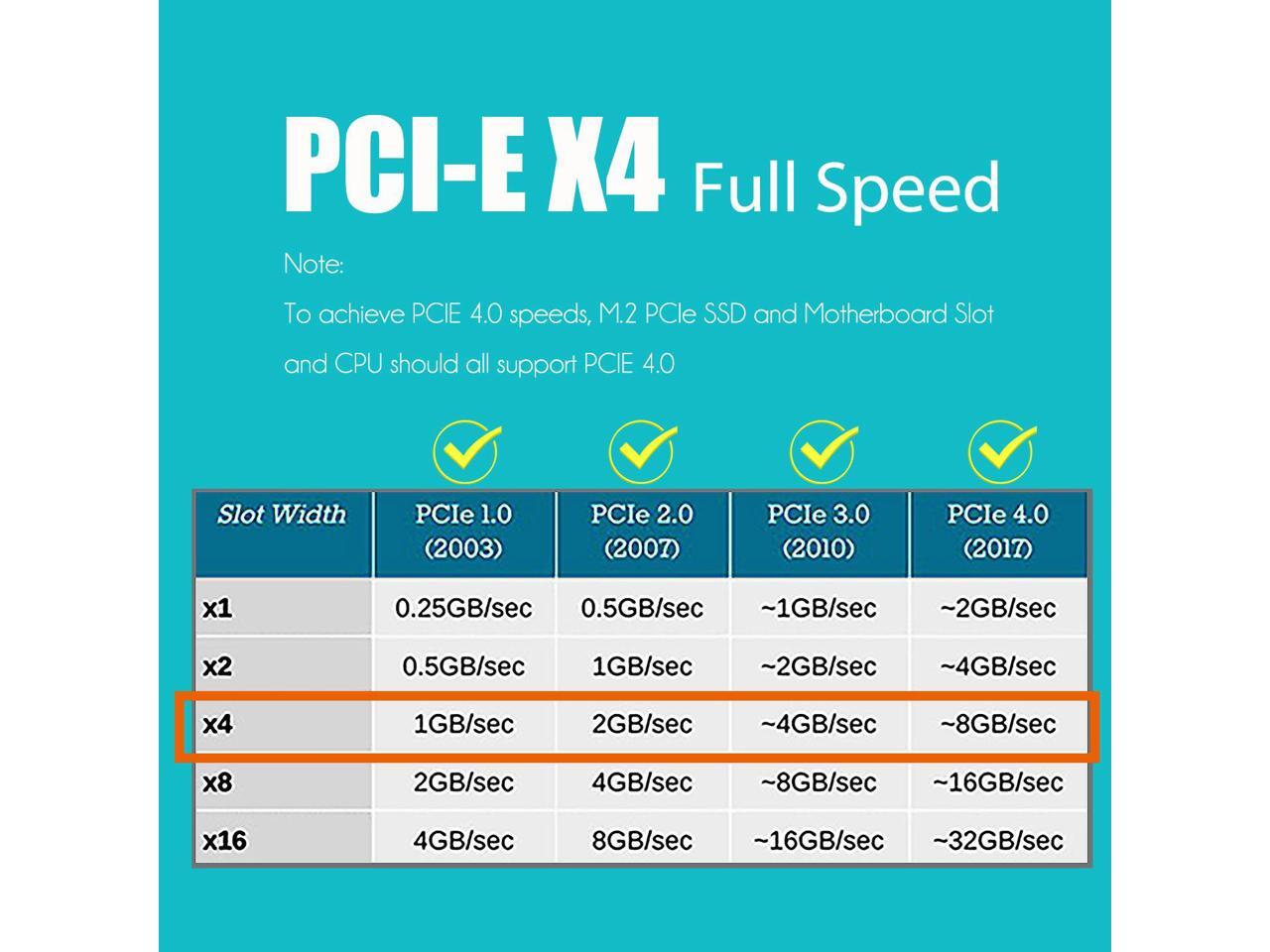

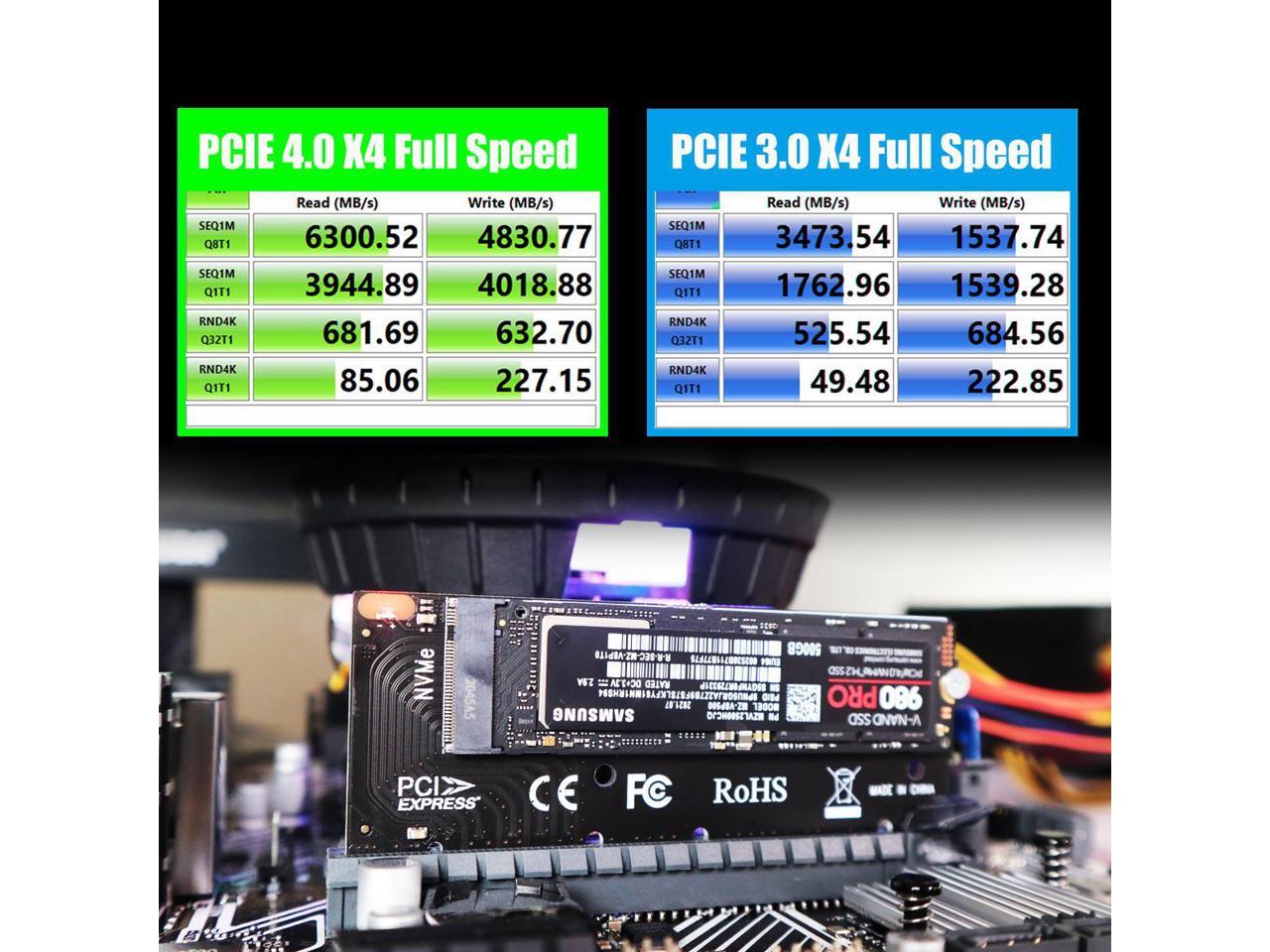

PCI-Express X4 Full Speed

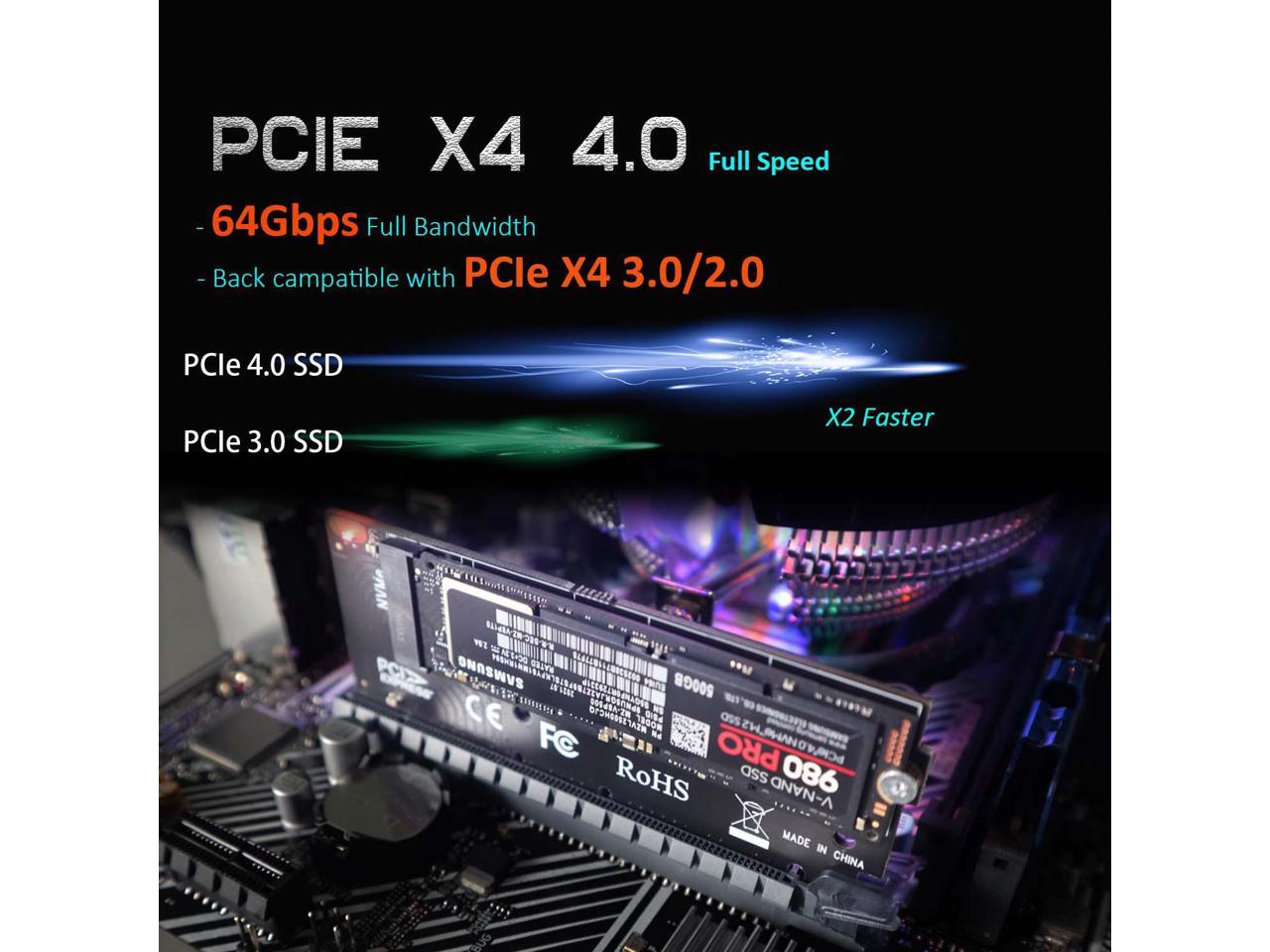

M.2 PCIe adapter supports PCIe X4 full speed and is PCIe 4.0/3.0/2.0/1.0 compliant.
To reach PCIe 4.0 X4 full speed, your motherboard and CPU, and M.2 PCIe SSD should all support PCIe 4.0, otherwise can not reach PCIe 4.0 X4 full speed
Intel CPU 11th generation and above support PCIe 4.0 feature

Step 1

M.2 NVMe SSD is inserted at a 30 degree angle into the Key M Slot

Step 2

Screw M.2 SSD to the PCIe adapter

Step 3

M.2 PCIe adapter plugged into PCIe slot

Package Including

M.2 PCIe X4 Adapter (including M.2 screw and Standoff for 2230/2242/2260 size SSD)
Scew Driver
Copper Standoff for 2230/2242/2260 position installation
M.2 Screw

Brand	GLOTRENDS
Series	M.2 PCIE Adapter
Model	PA05

Type	PCI Express to M.2 Card
External Ports	M.2 Key M
Internal Ports	PCI-E
