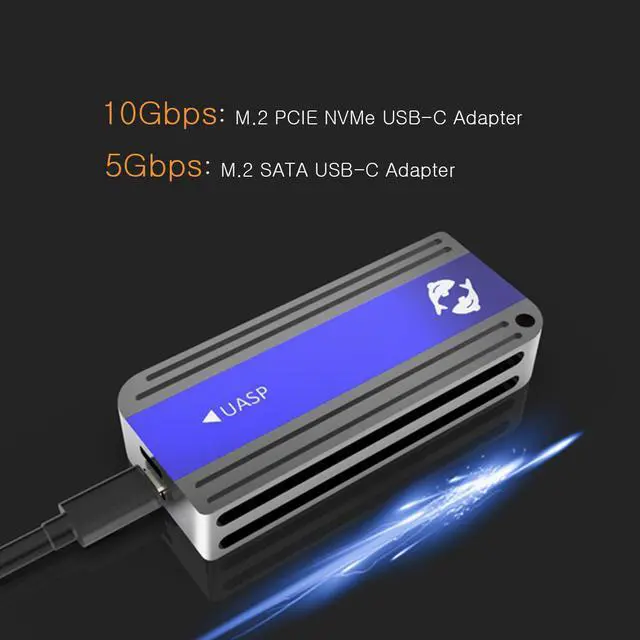

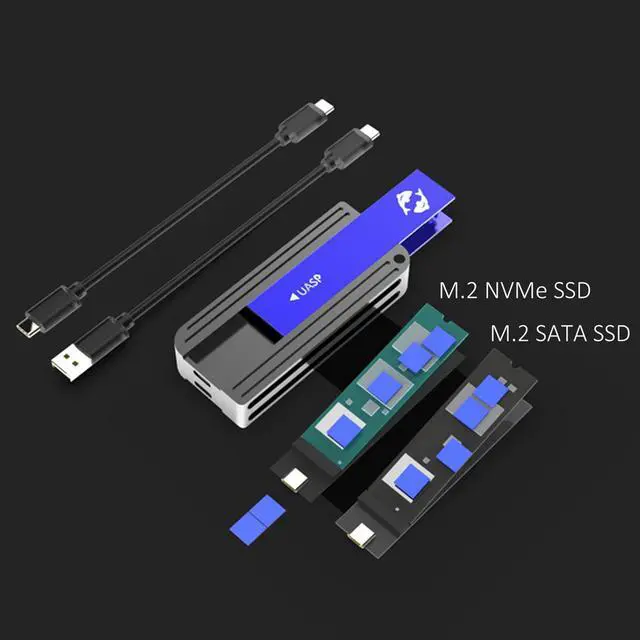

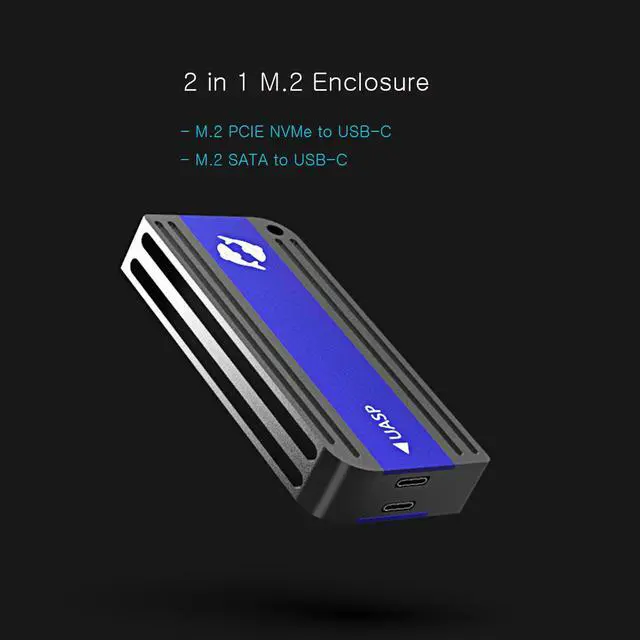

Innovative 2-in-1 design provide 2 bays for M. 2 PCIe NVME SSD and M. 2 SATA SSD respectively. You will feel free to use any kinds of M. 2 SSD, or both of 2 kinds M. 2 SSD at the same time.

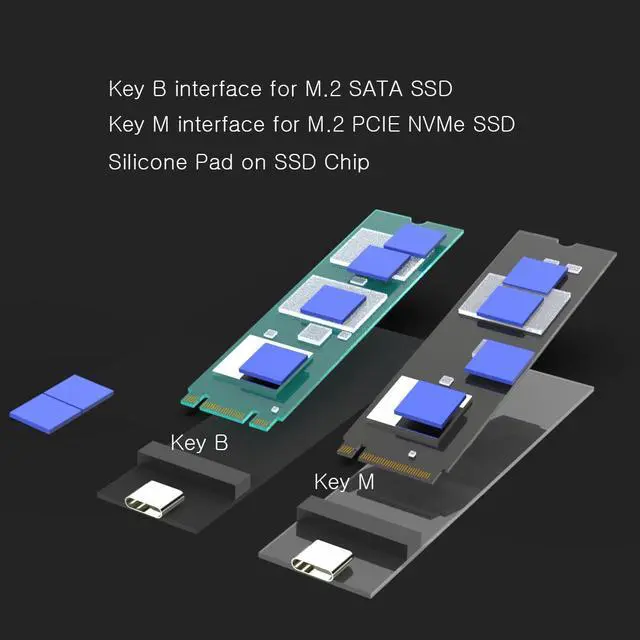

Support M. 2
PCIE NVMe SSD (Key-M):
1) Support Samsung 950Pro/ 960Evo/ PM951/ PM961/ SM951/ SM961/970 EVO /970 PRO and other M. 2 SSDs with PCI-E (M-KEY) Interface Type.
2) Support Intel Optane SSD 800P SeriesS
3) Support Intel SSD 760p SeriesS
4) Support Intel SSD 660p SeriesS
5) Support Intel SSD 600p Series
Support M. 2
SATA SSD (Key-B/B+M):
1) Support Samsung 860 EVO/850 EVO/Crucial MX500/Crucial MX300/WD Blue 3D NAND, etc.

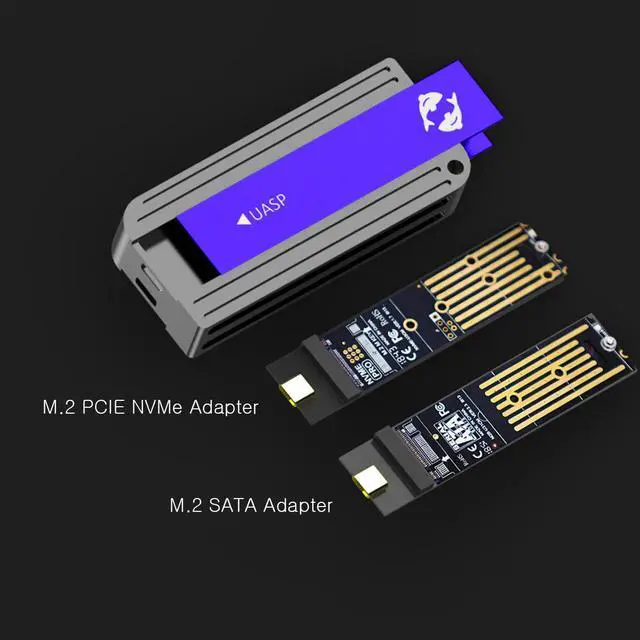

Separate PCB board with different Chip
JMS 583 Chip for NVMe to USB Adapter:
1) It is a USB 3.1 Gen 2 to PCIe Gen3 x 2 bridge controller between USB host and PCIe storage device. The USB 3.1 Gen 2 interface offers data transfer speed up to 10Gbps, doubling the USB 3.1 Gen 1 data rate. Meanwhile, the downstream port of the JMS583 is compatible with storage device with PCIe interface, such as SSD. The PCIe port is compliant with PCIe Gen3 x 2 specifications.
VL716 Chip for M. 2 SATA to
USB Adapter:
1) VL716 is a high performance, low power single chip USB 3.1 to SATA 6Gb/s bridge controller with USB type-C connector support designed for new generation external storage devices.
Features:
1) Aluminum shell
2) Screw installation
3) LED indicates the status of the SSD
4) Support UASP on Windows and Mac
5) Support TRIM, S. M. A. R. T on Windows, but not Mac
6) Compatible with Windows/Mac/Linux, Plug and Play, No Driver needed
7) 2x10 pieces of Heat-conducting Silica Gel Pad for heat dissipation
