Hantek CC-800 AC/DC Current Clamp 5KHz Bandwidth AC/500A DC/800A

Hantek CC-800 AC/DC Current Clamp 5kHz Bandwidth 800A for Multimeter Oscilloscope Use

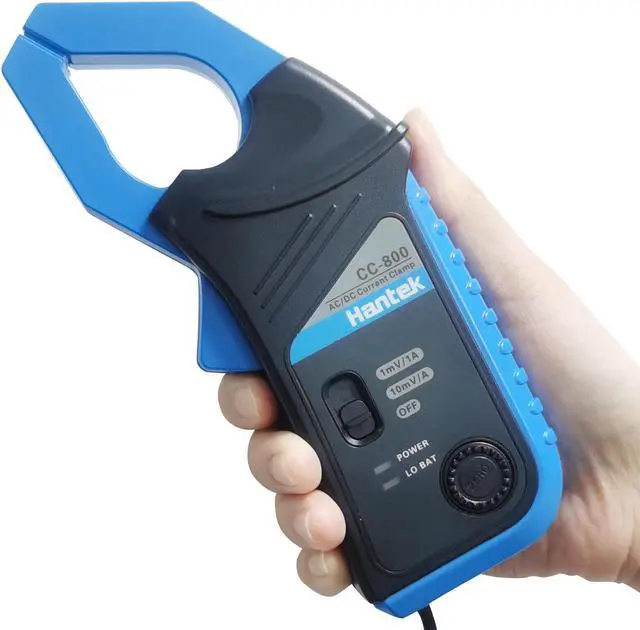

AC/DC Current Clamp CC-800

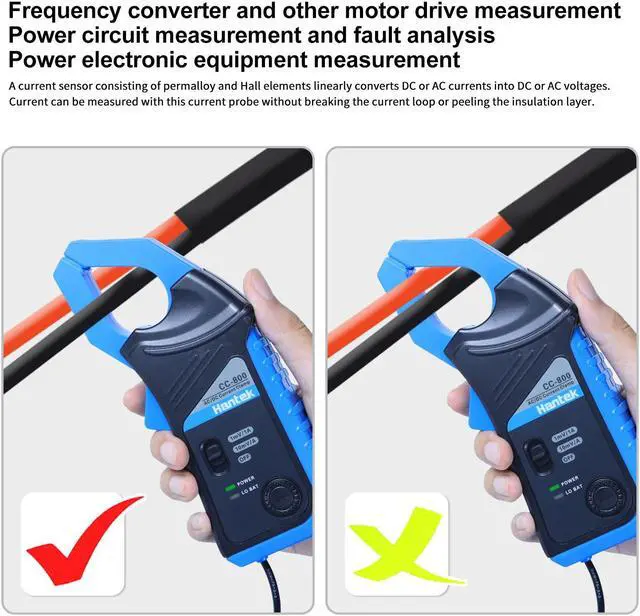

The multimeter/oscilloscope can directly measure the DC current of no more than 800A and the AC current of no more than 500A through the AC/DC current probe, and the measurement frequency is up to 5KHz. When measuring current with this current probe, there is no need to destroy the current loop or peel off the insulating layer.
AC/DC Current Clamp, 5kHz Bandwidth, 800A

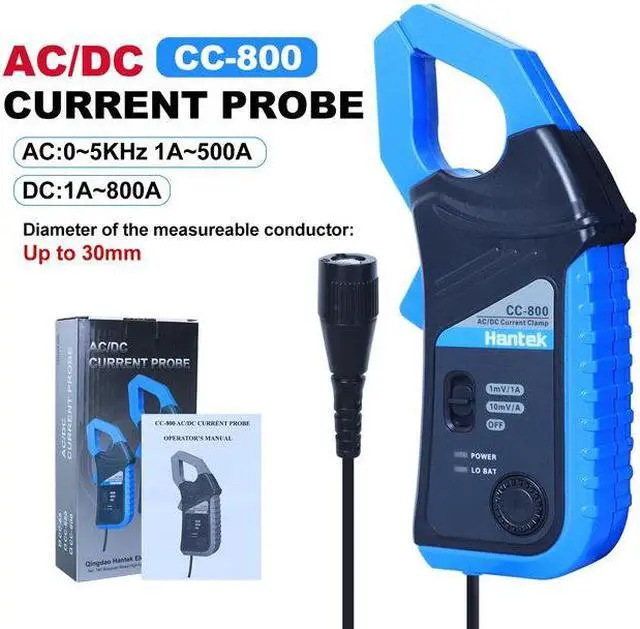

Effective measuring range

10mV/A: 1A to 40A, DC or rms AC

1mV/A: 1A to 500A, rms AC

1A to 800A, DC



Application

Power circuit measurement and malfunction analysis;
Motor drive of frequency converter (or other electronics) measurement;
Power electronics equipments measurement.

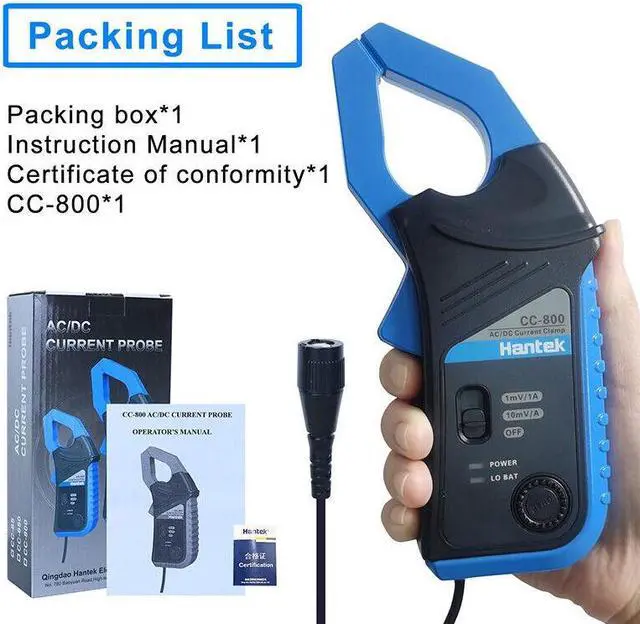

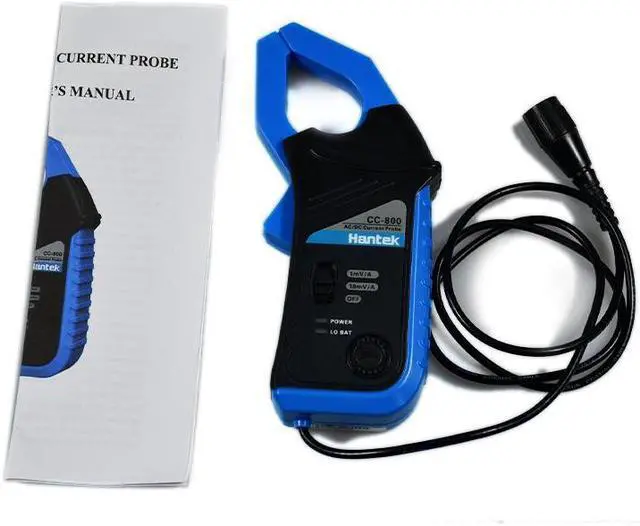

1 * Current Clamp with BNC Plug
1 * User Manual (English)

Note: Not include the batteries because the airplane limits!!!


TAKE A LOOK AT THIS: Hantek AC/DC Current Clamp Meter CC-800 Handheld Oscilloscope Multimeter with BNC Connector Current Sensor Power Measurement
PRODUCT PROPERTY:
1: Hantek is a professional brand. The diy supplies is electrical. Our product is made in cn (origin). The certification is ce.
2: The max waveform capture rate is 30, 000wfm/s. The display resolution is 320*240 pixels.

REASONS TO BUY:
Meter: the meter has a high accuracy and accurate measurement, which can be used to accurately measure the voltage of the oscilloscope.
Oscilloscopes: acoustic oscilloscope with an oscilloscope, which can provide you with the most accurate data on the market.

RELATED INFO: Current
sensor oscilloscope: a current clamp meter is used to measure the current level of oscilloscope, providing a clear and accurate reading.
Oscilloscope multimeter: a multimeter with an oscilloscope for astronomy and field monitoring, which can measure the relative power of your oscilloscope.
