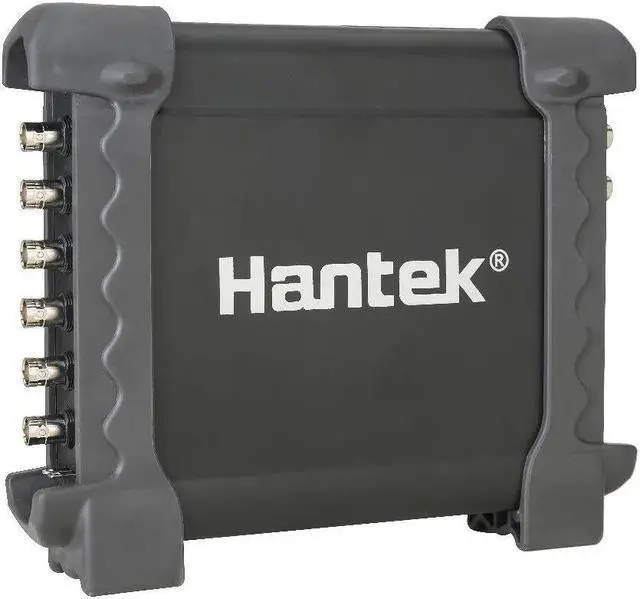

Hantek 1008B 8CH USB Auto Scope/DAQ/8CH Generator 8 Channels Automotive Diagnostic Oscilloscope

Hantek 1008B Automotive Oscilloscope USB 8 Channels PC Based Storage Digital Multimeter Osciloscopio Logic Analyzer Diagnostic-tool



Cost-effective Hantek PC USB 8CH Automotive Diagnostic Oscilloscope/DAQ/Programmable Generator: Highly efficient and cost -effective;

8 channels oscilloscope for vehicle testing;

Auto Ignition Probe;

2.4MS a/s real time sampling rate, 12bit vertical resolution;

spectrum analysis function;

10mV/div to 5V/div input sensitivity;

DAQ card function;

8 channels programmable generator which can analog signals of crankshaft, camshaft, etc.

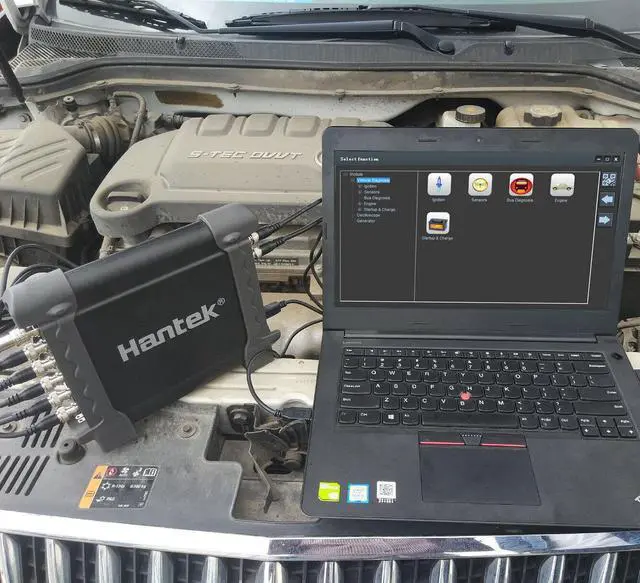

(1) Vehicle Testing

First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition

Ignition: primary and secondary

Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position

Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus

Performer: Petrol/Diesel

Starter and charging circuits

(2) Oscilloscope

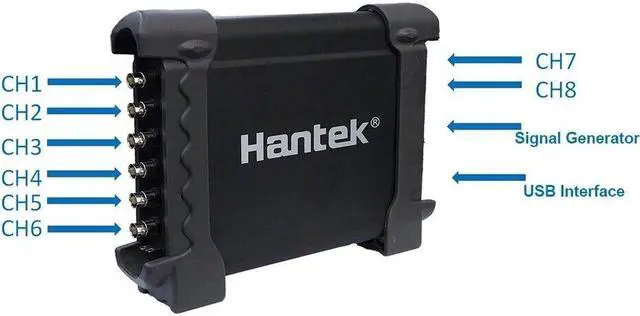

8 channels oscilloscope, 2.4MS a/s real time sampling rate

12 bits vertical resolution, spectrum analysis function

(3) Programmable Generator

8 channels programmable generator

Can analog signals of crankshaft, camshaft etc.

(4) Others

USB 2.0 interface plug and play, and no need extra power supply;

More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;

NOTE: Software
support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7, Window 8, Window 10

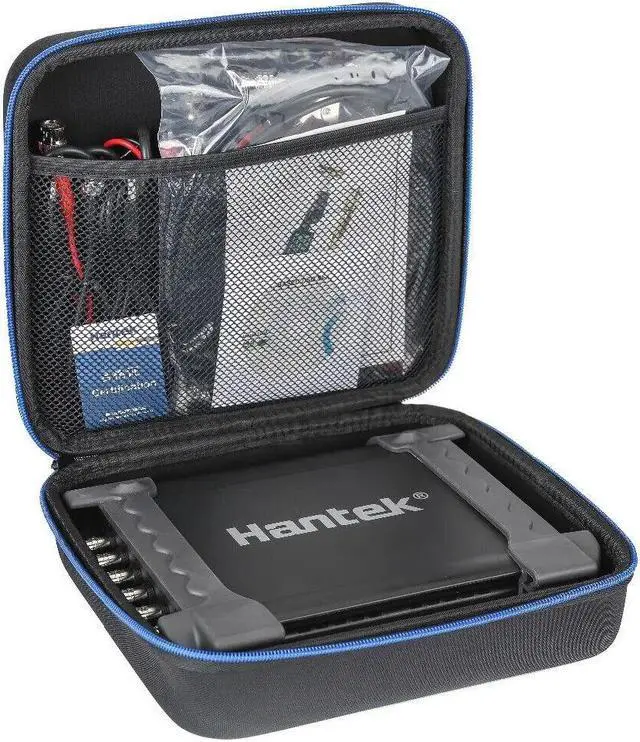

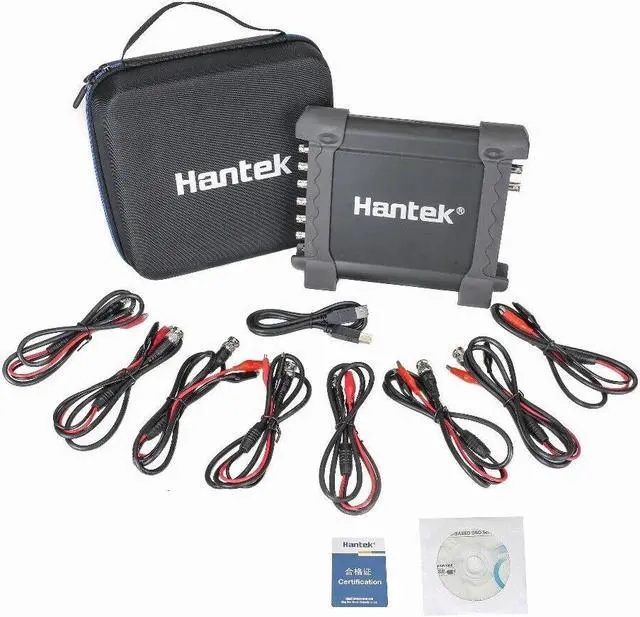

Package:
1 x USB Oscilloscope
4 x Crocodile Probes/Cable
4 x BNC Connectors
1 x USB Cable
1 x CD
