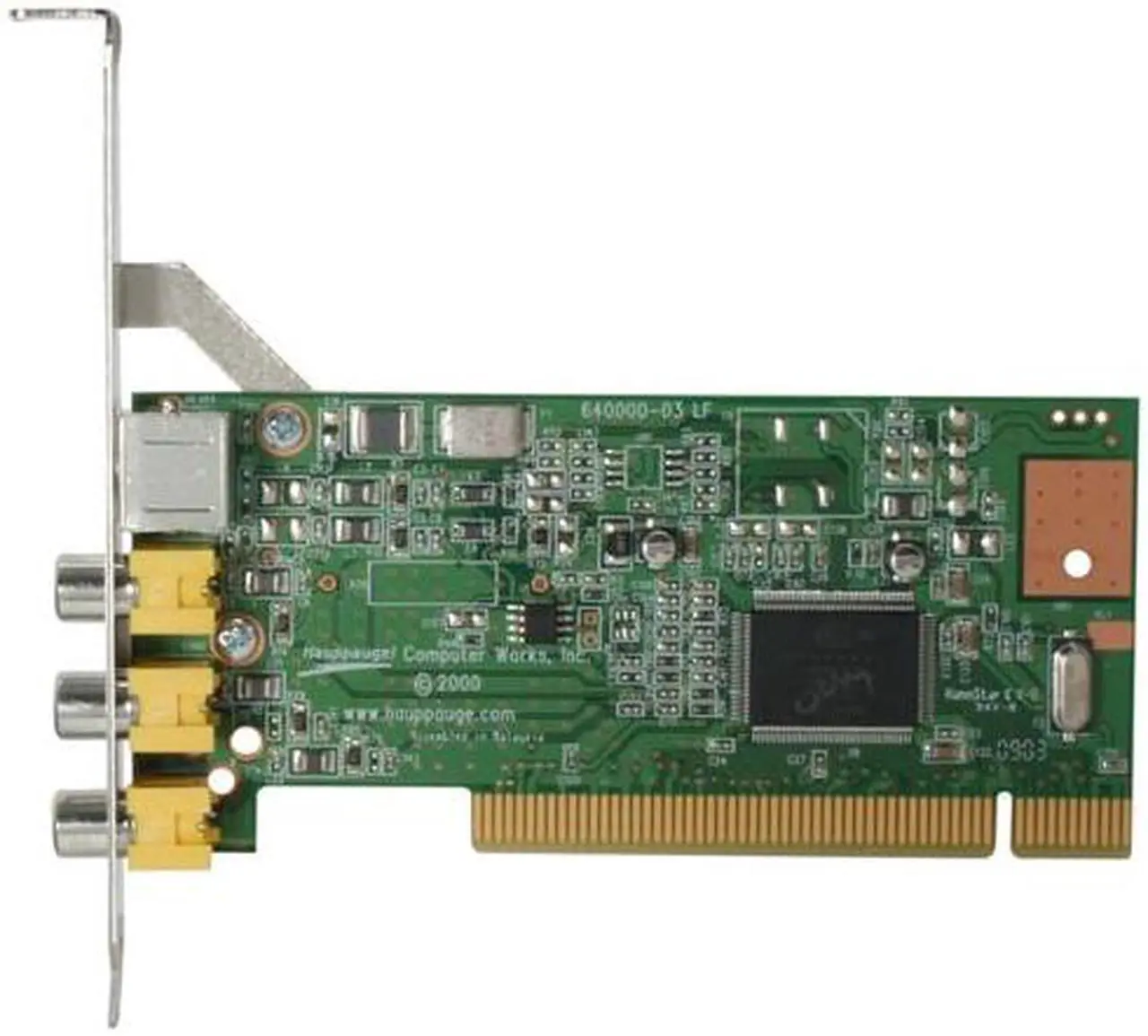

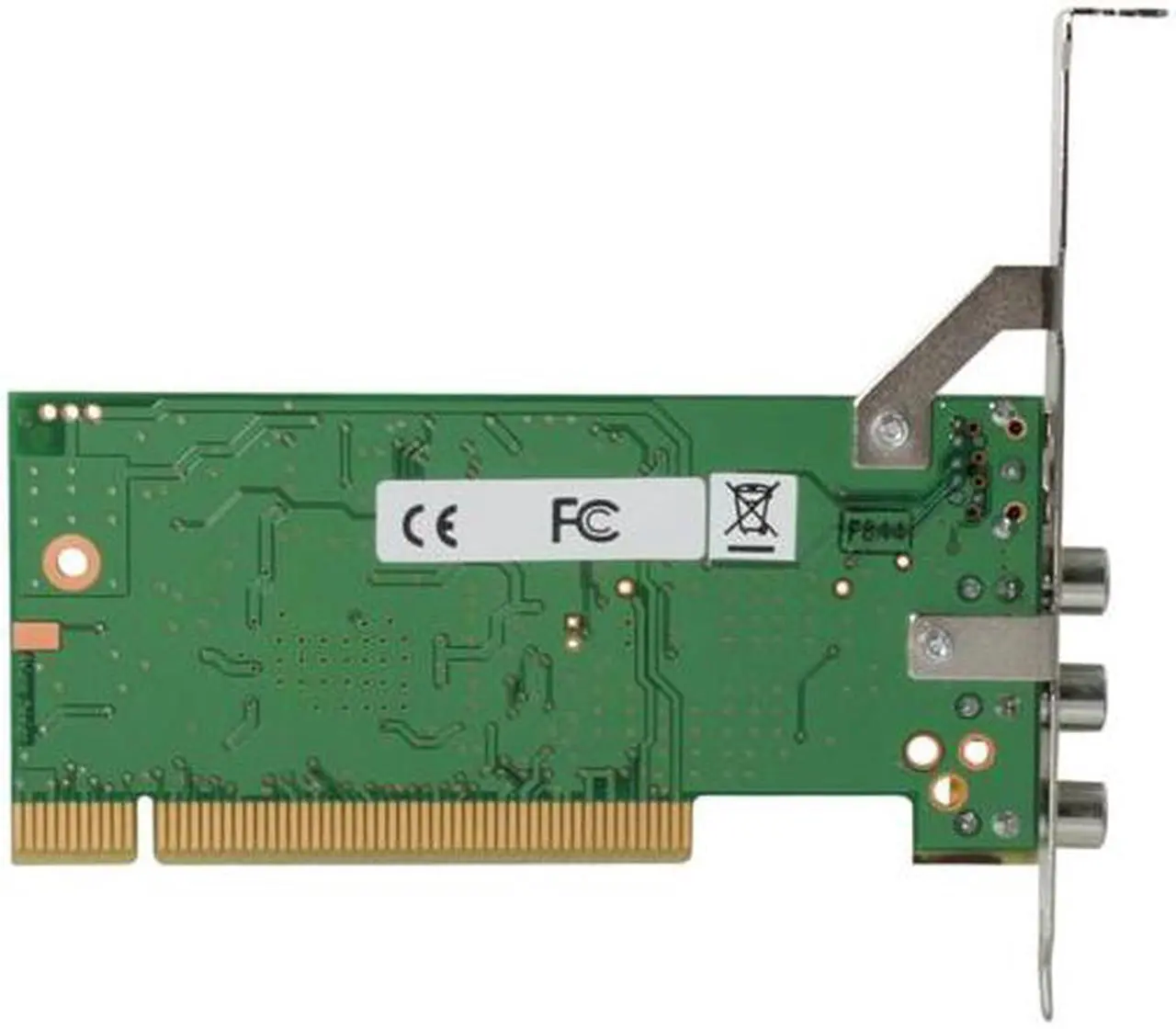

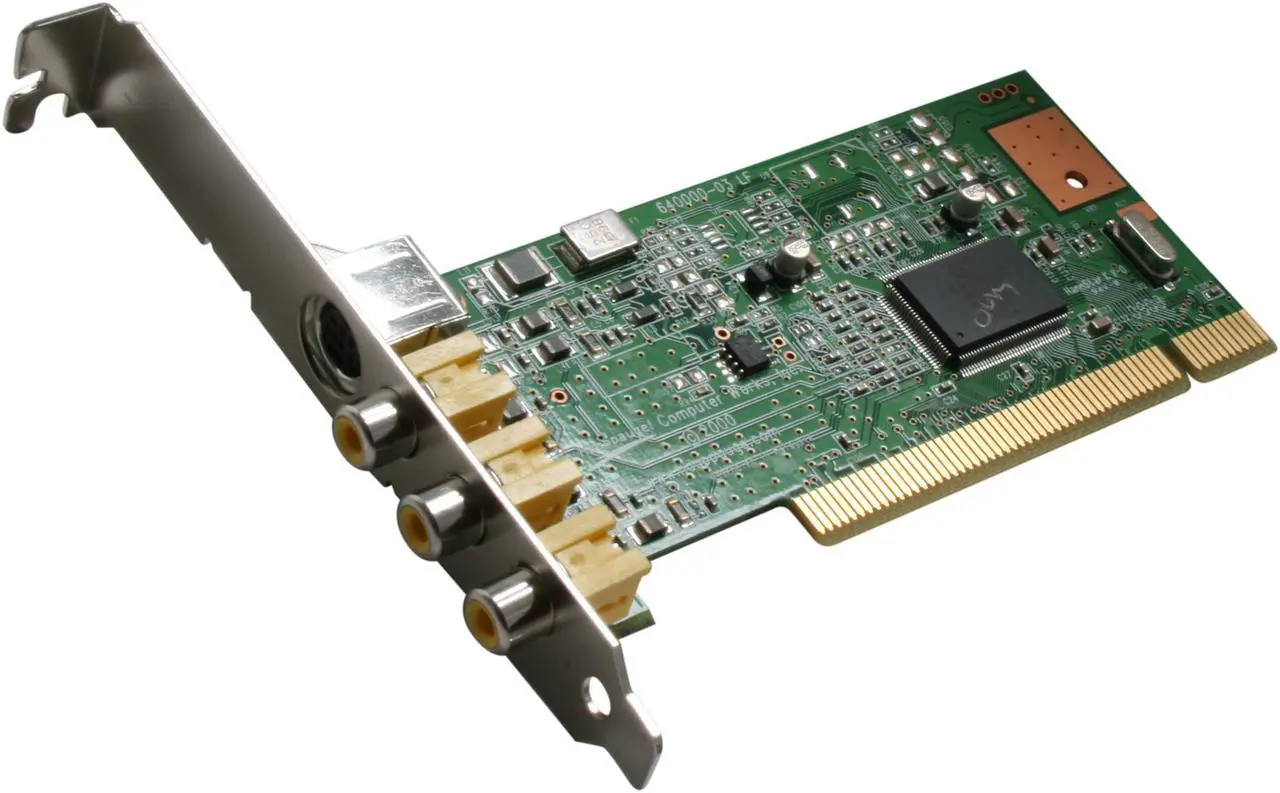

ImpactVCB is a low cost family of video capture boards which can be used as the heart of a live video display, real time video capture, streaming video or video conferencing solution. Ideal for video capturing and video conversionConverts an analog video signal to digital formPlug and Play your video capturing device with the PC and go FunctionsVideo CapturingProduct LineImpactVCBProduct NameImpactVCB Video Capture CardProduct TypeVideo Capturing DeviceVideo SystemNTSCPALVideo FormatsS-VideoHost InterfacePCIPlatform SupportedPCManufacturer Part Number558
The Hauppauge 558 capture card is an ideal solution for transcoding analog video into digital format or capturing images from the desktop CCD camera. Featuring three composite and one S-Video input connector, the Hauppauge 558 can easily connect to a wide range of analog video sources and convert the video into digital format with its built-in digitizer, reach the speed of up to 30fps over the PCI bus.
Besides the capability of capturing motion video or still frame images, the Hauppauge 558 can also display live video from NTSC or PAL video sources in a resizable window on the PC screen. And thanks to the hardware processing, digitizing of the analog video signal and the resizing of the video image is performed by Hauppauge 558 without slowing downing CPU, providing maximum system performance.
Digitize Your Analog Video CollectionThe Hauppauge 558 can easily capture your analog video source as motion video or still frame image with the same quality as original signal.

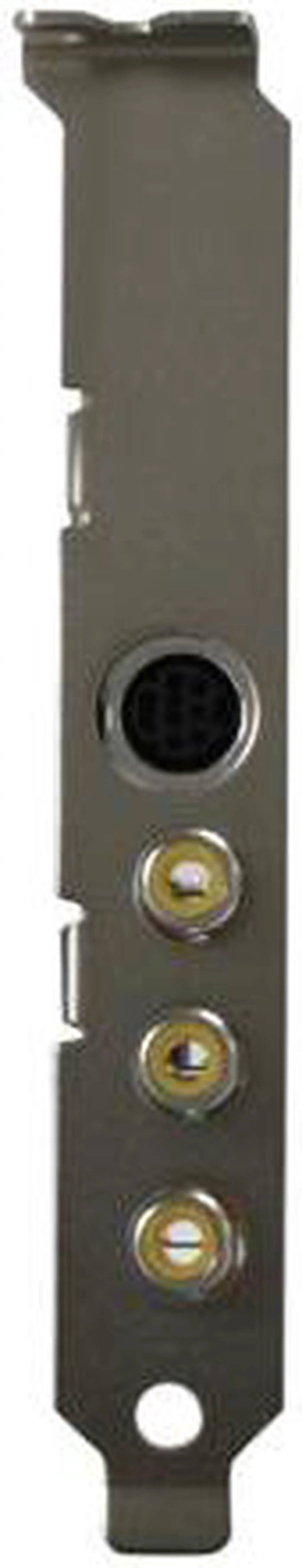

S-Video and Composite InputThe Hauppauge 558 features three composite video and one S-Video input connector to provide easy connection to a wide variety of video devices such as DVD players, VHS players and DVs.
Learn more about the Hauppauge 558
Model
Brand
Hauppauge
Model
558
Details
Type
Video Capture & Editing
TV
TV Standards
No
Remote Control
No
Tuner
Interface
PCI
Low Profile Ready
Yes

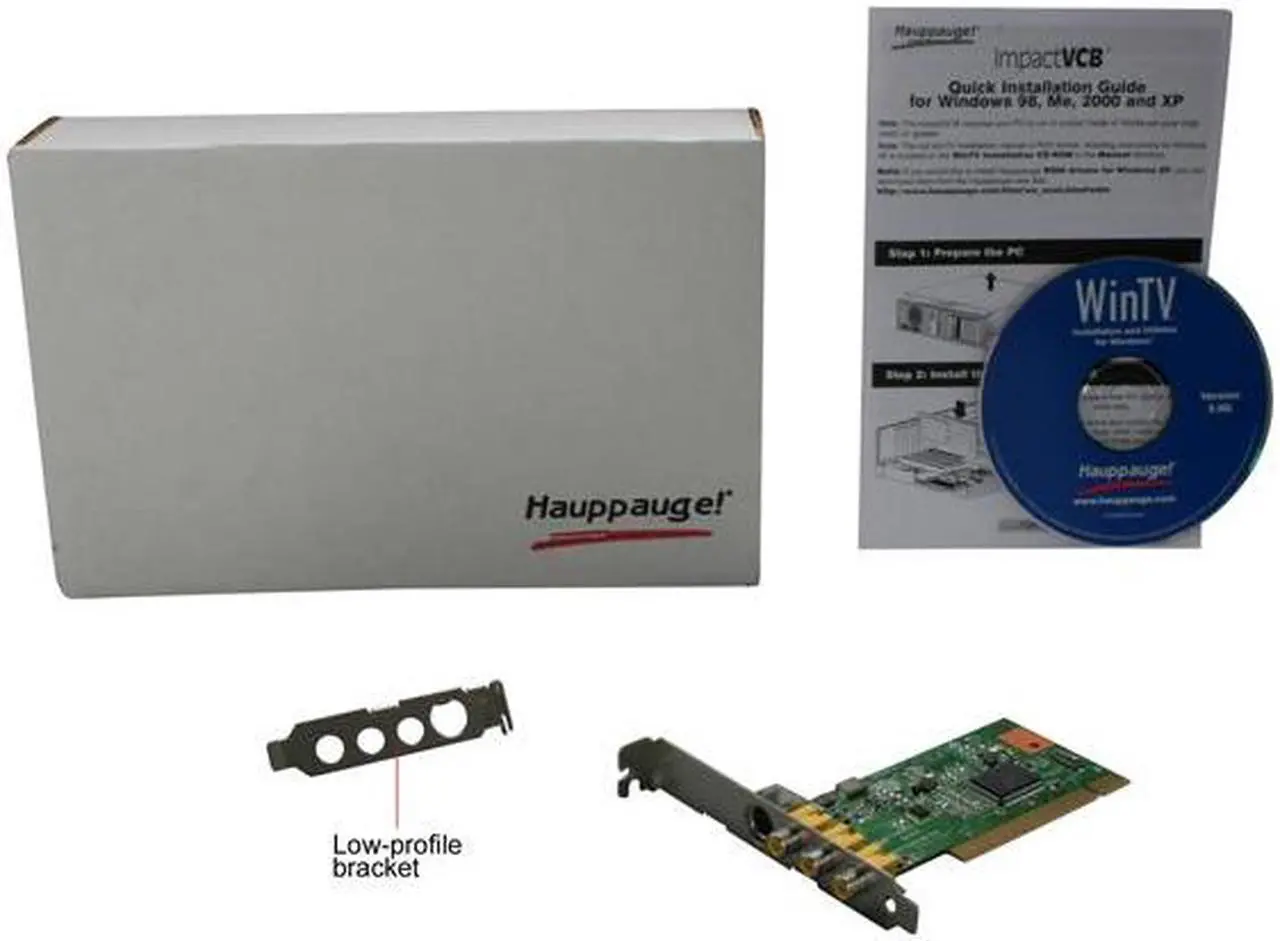

Low Profile Bracket Included
Yes
FM Tuner
No
Ports In
3 x Composite video 1 x S-Video inputs
System
Processor
All Pentium PCs
Graphics Card
All NVidea, 3DFX and ATI graphics cards with WINDOWS Direct Draw support
Available Slot
PCI slot
Operating Systems Supported
WindowsXP, WindowsME, Windows2000, Windows 95, Windows98, and Windows NT 4.0 with Service Pack 3
Features
Features
Video Capture Video from any analog source (composite or S-Video) can be captured as either still frame video images or motion video. Composite video inputs are provided as female RCA jacks, while S-Video uses standard 4-pin DIN connectors. The ImpactVCB comes with a VFW capture driver (Video for Windows)for Windows 95 and Windows NT, and a WDM driver for use with WindowsXP, Windows98SE, Windows Me and Windows 2000. Typical capture rates range from 15 to 30 fps depending on system configuration.
Live Video Display The ImpactVCB can display live video from NTSC or PAL video sources in a resizable window on the PC screen. The digitizing of the analog video signal and the resizing of the video image is performed by hardware on the ImpactVCB, thereby not slowing down the CPU. After video is digitized and resized, the digitized video image is drawn by the ImpactVCB directly into the memory of the PC's VGA card. This uses a feature of Windows called Direct Draw, and the ImpactVCB can be used with most VGA cards which support Direct Draw 5 or higher. This technique is used on Windows95, Windows98, WindowsME, Windows2000 and WindowsNT 4.0
