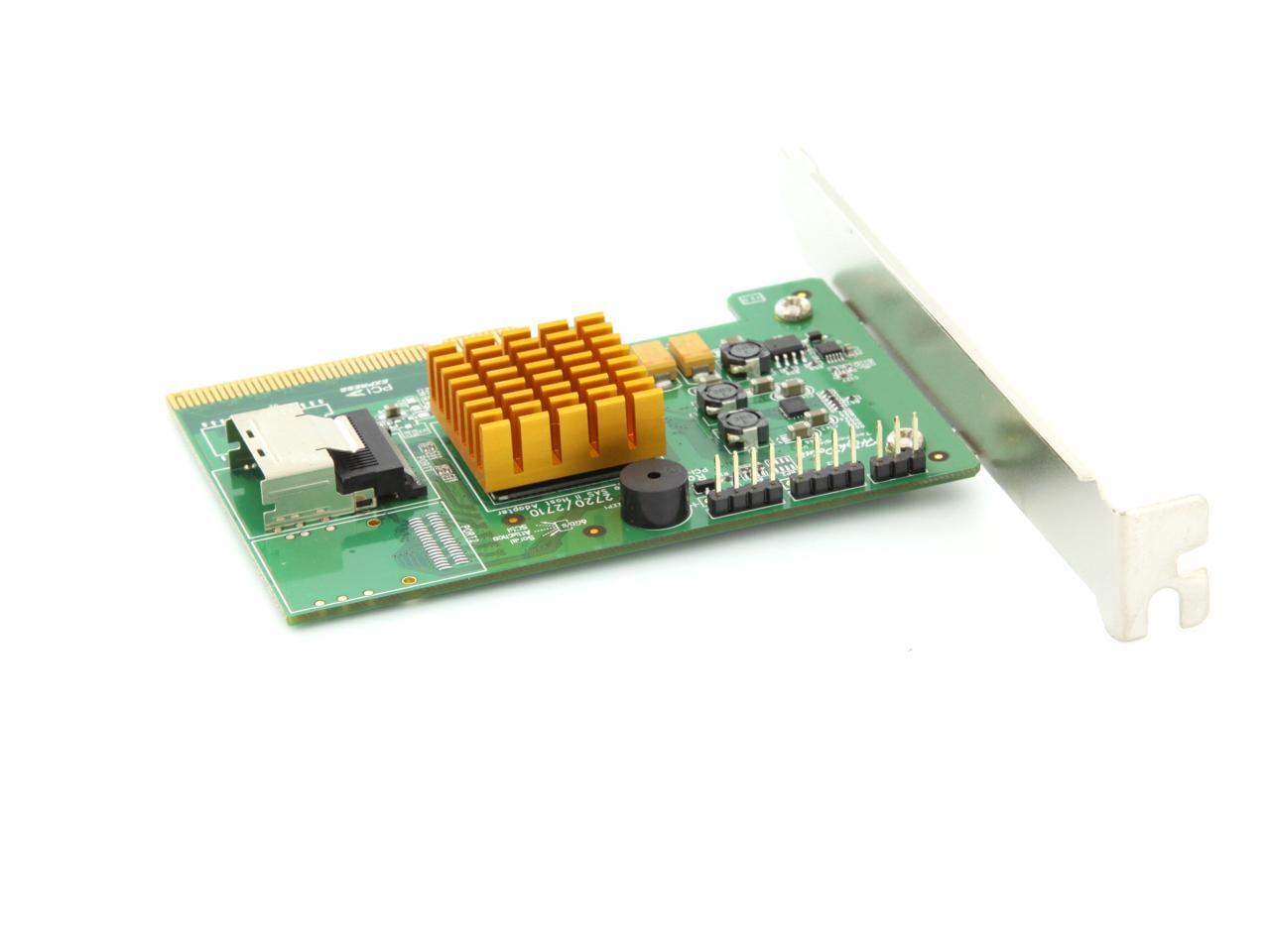

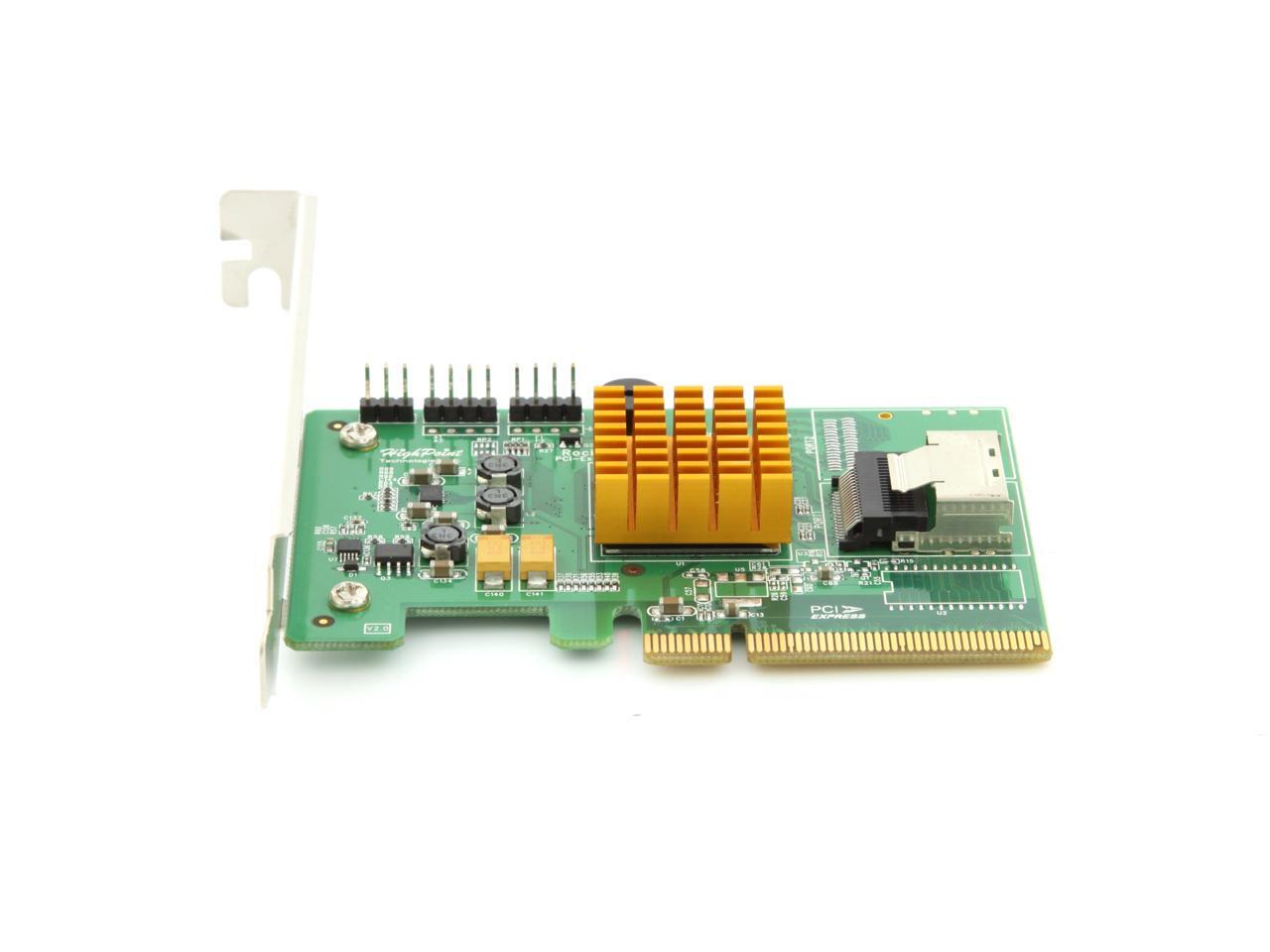

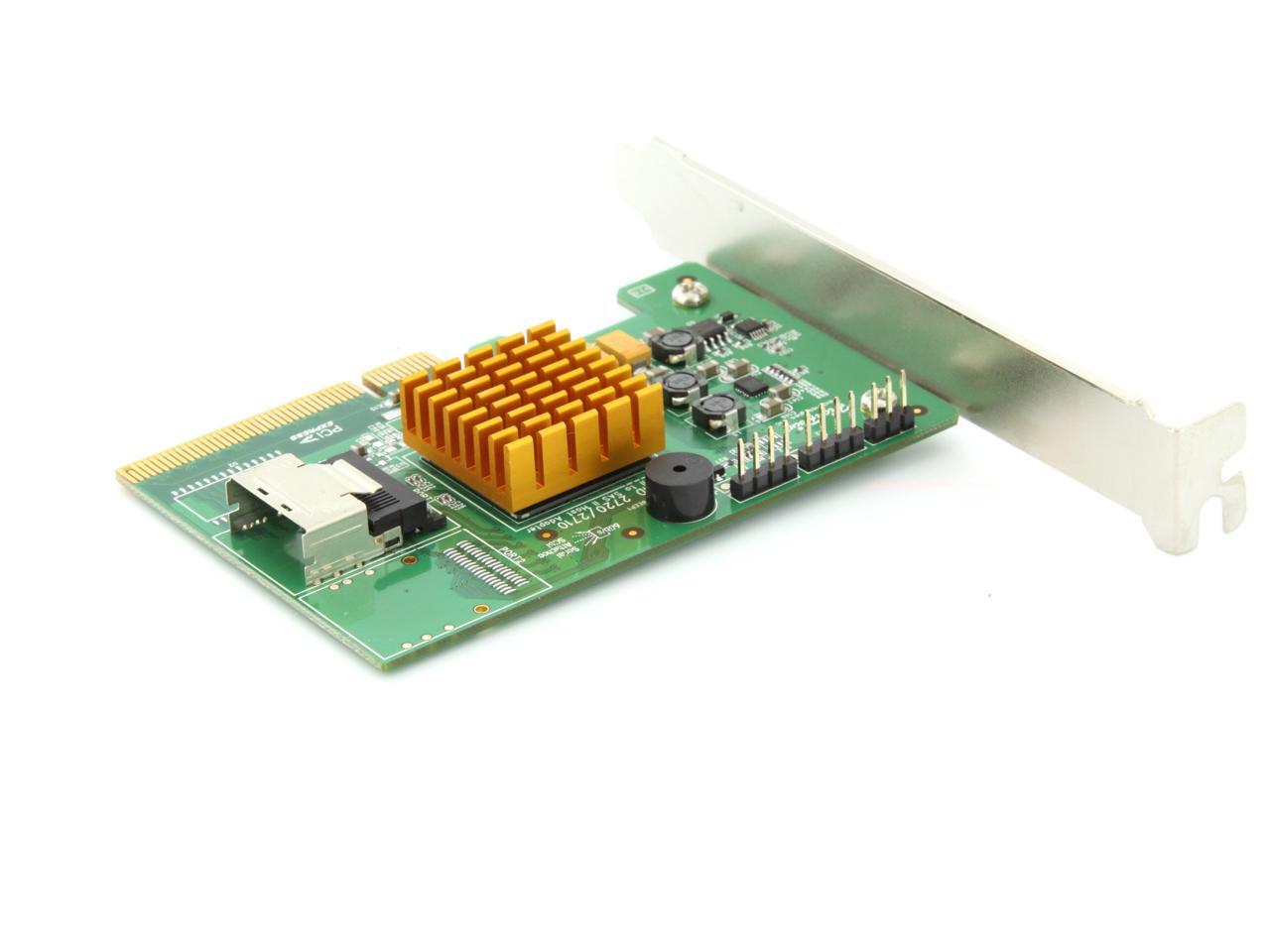

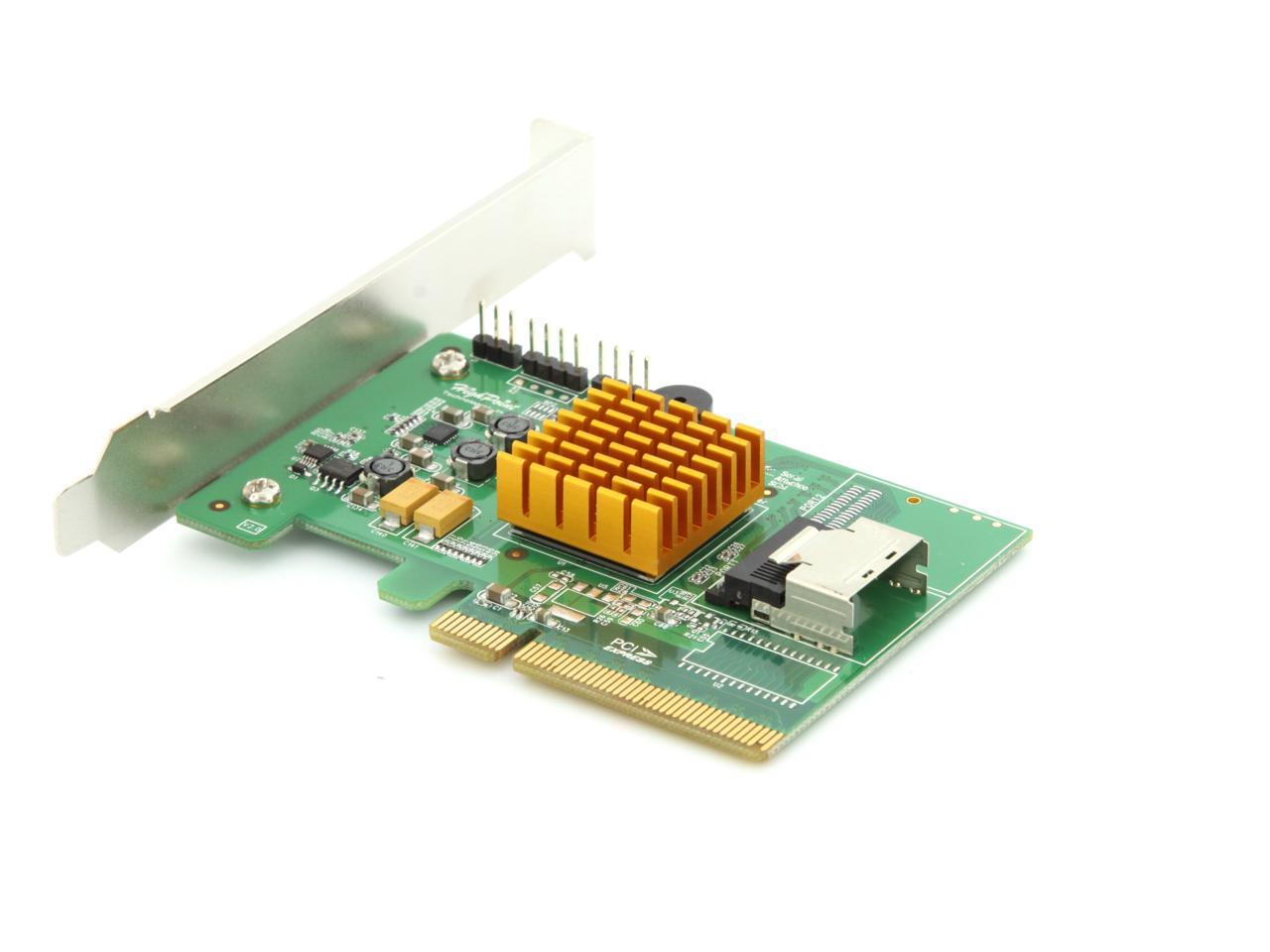

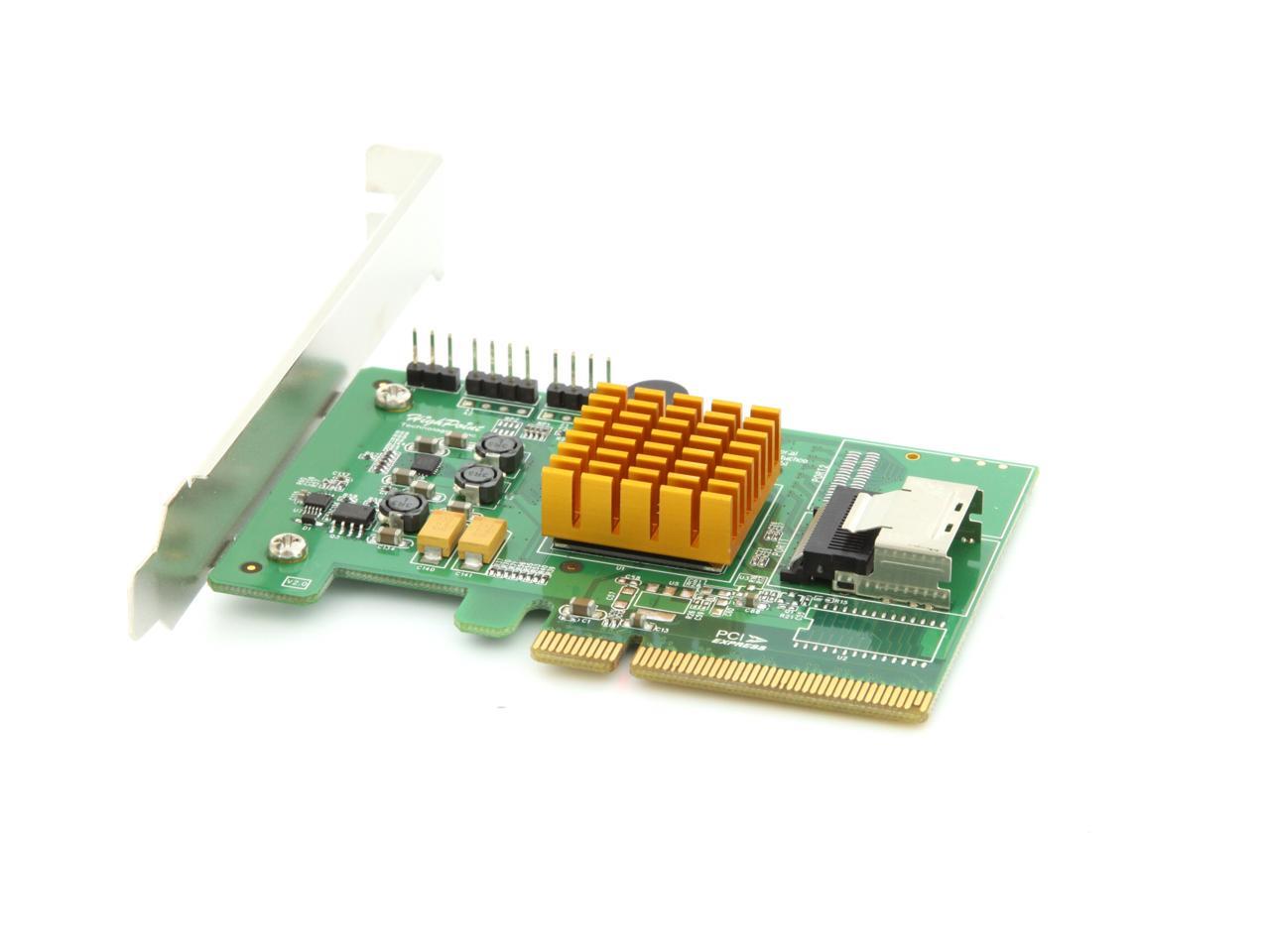

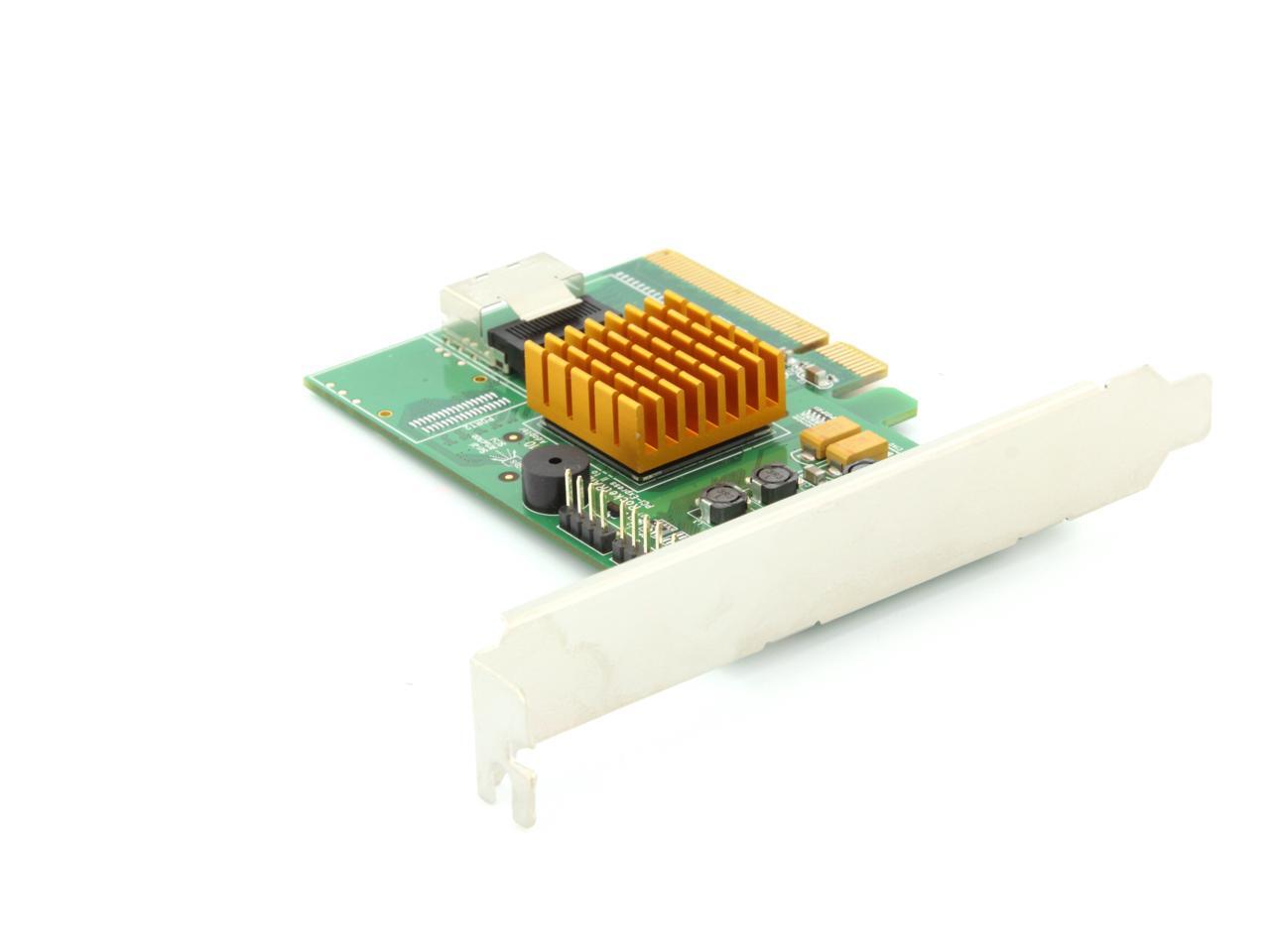

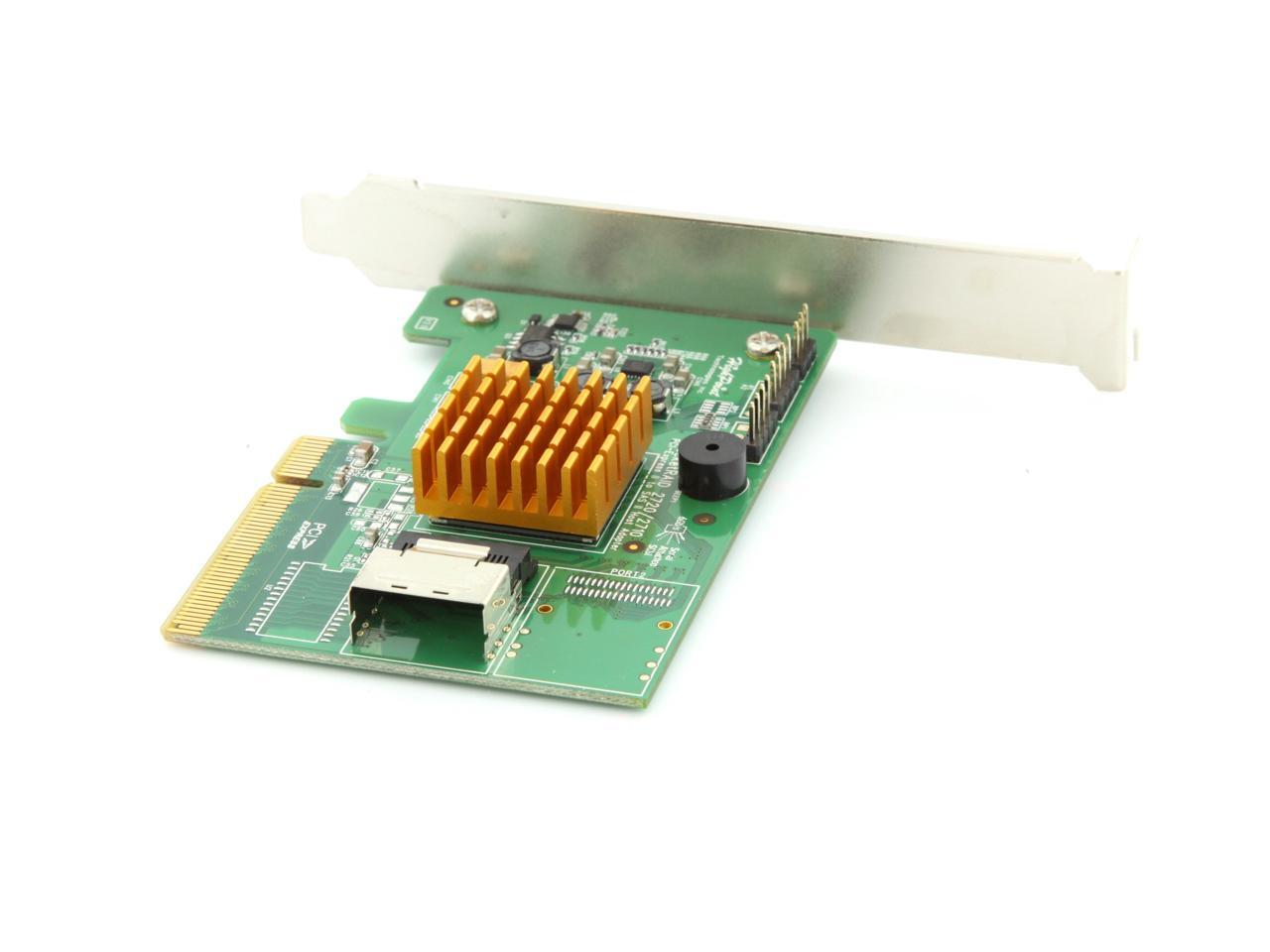

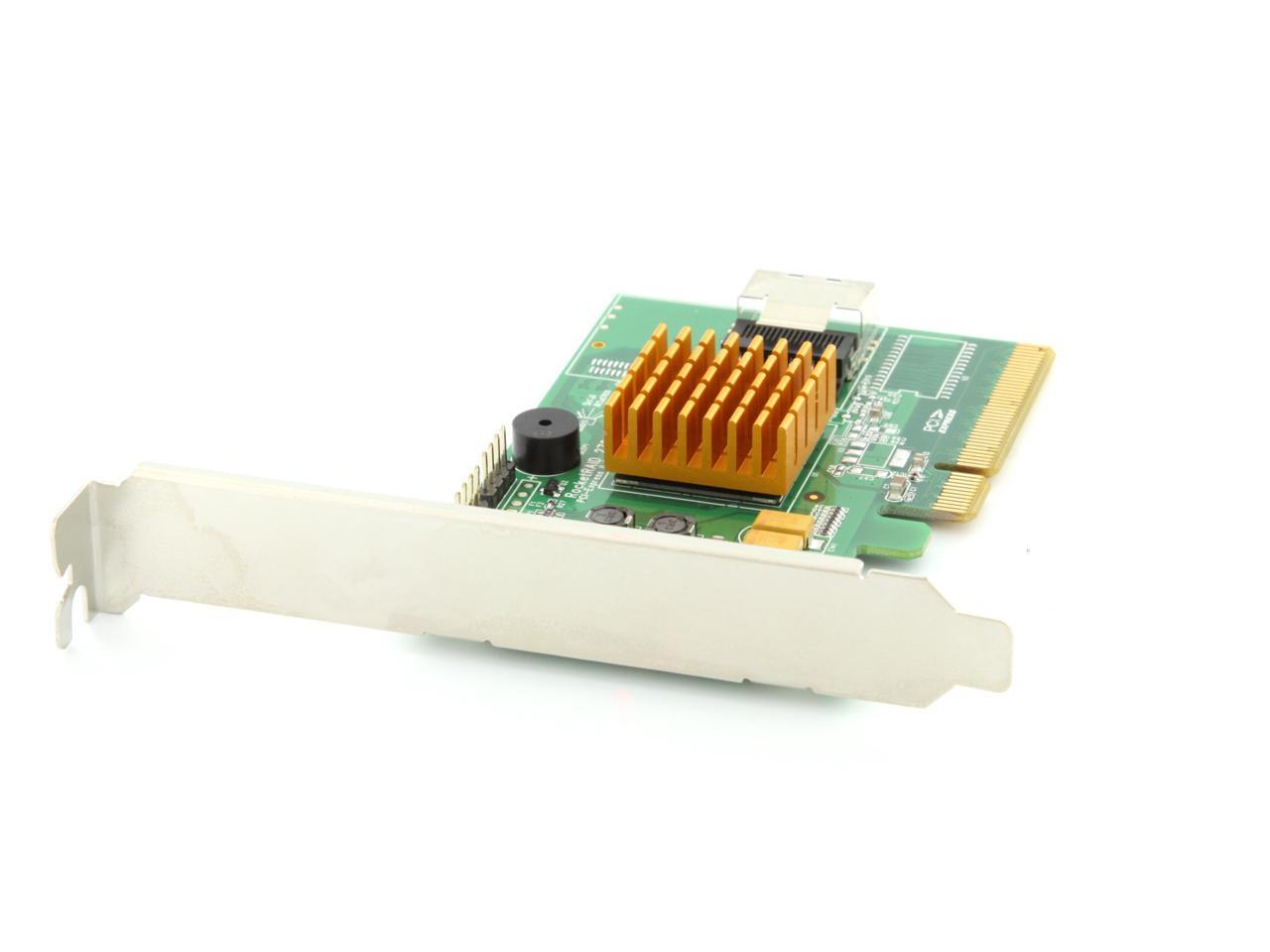

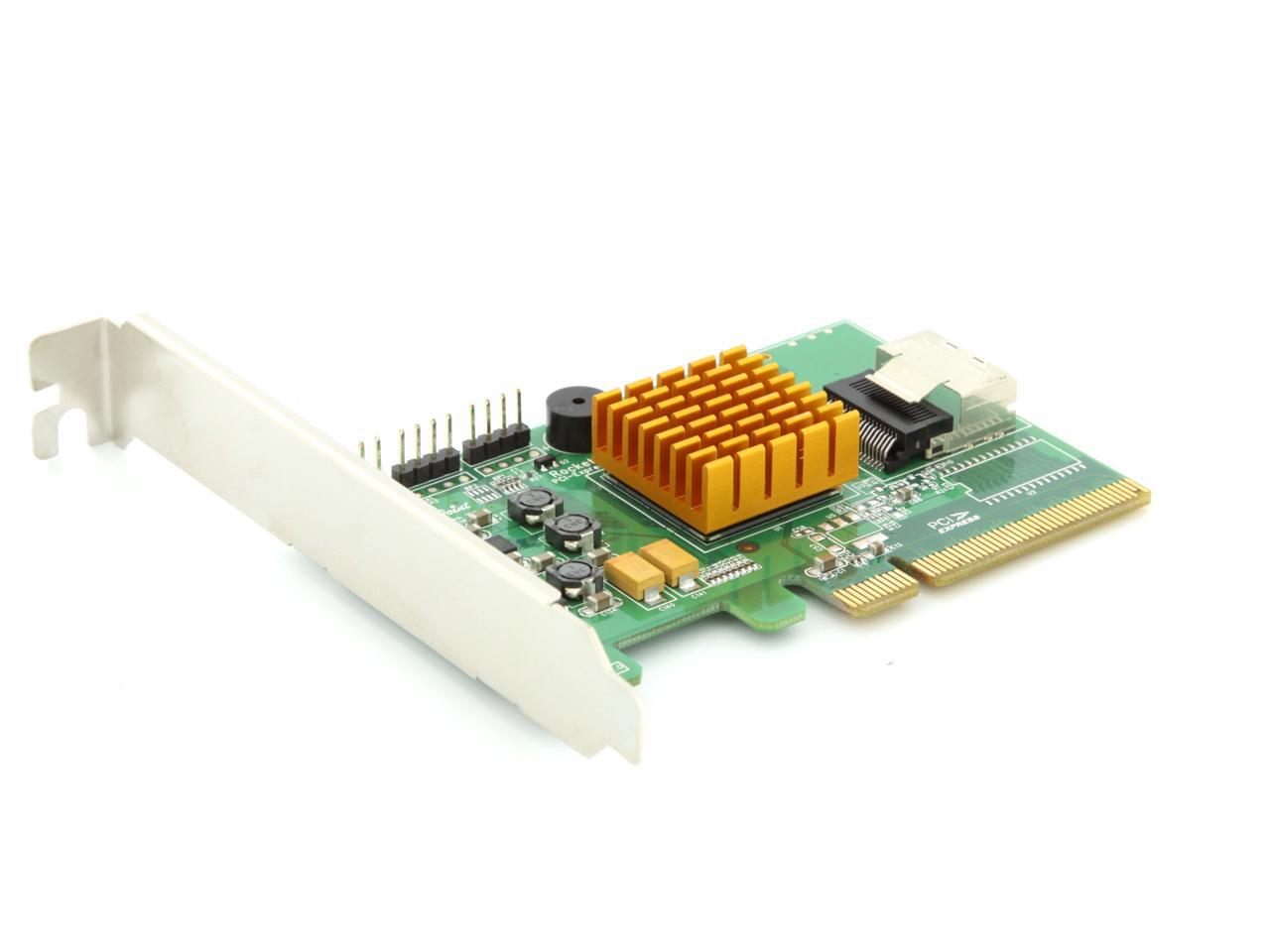

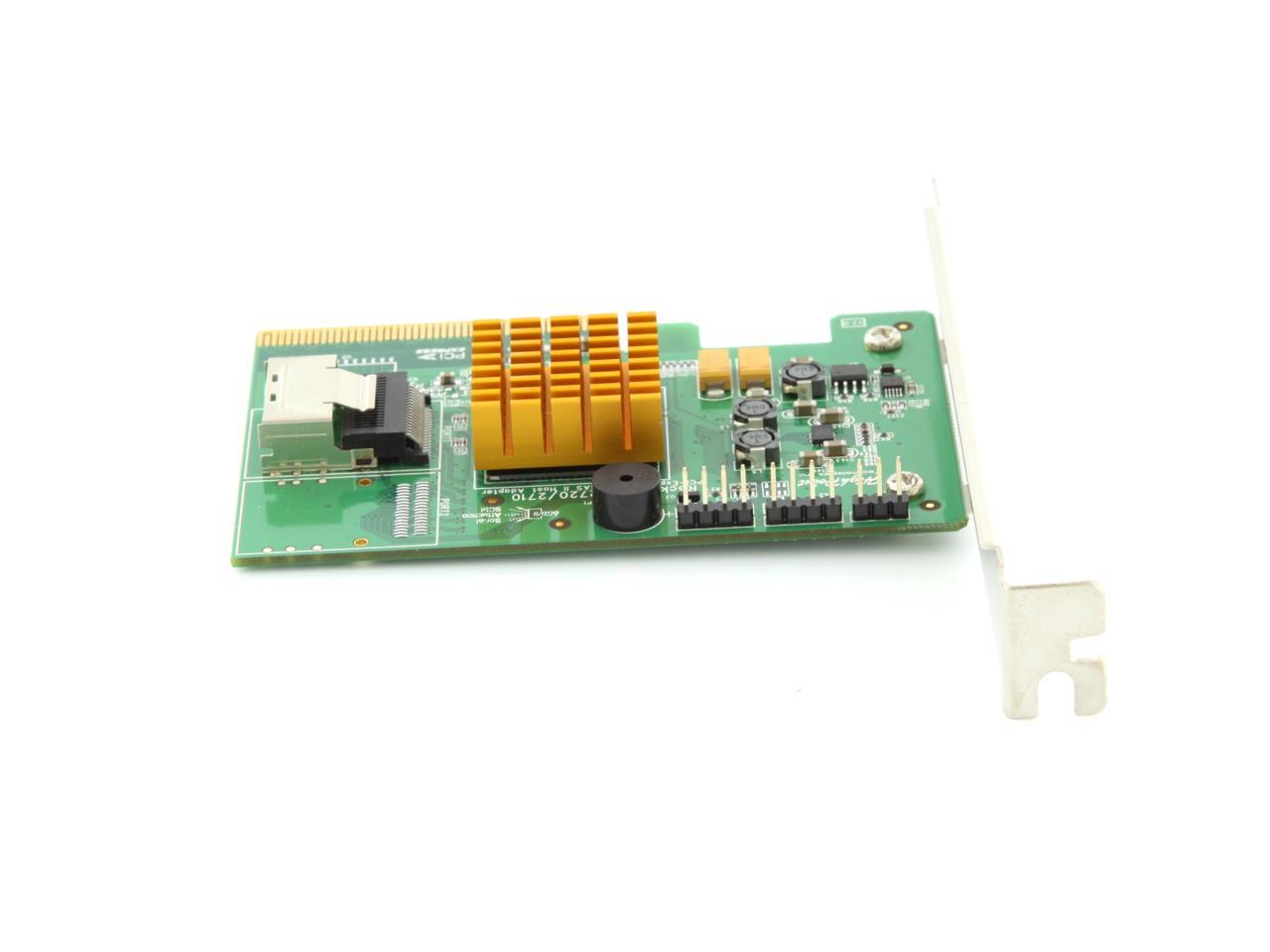

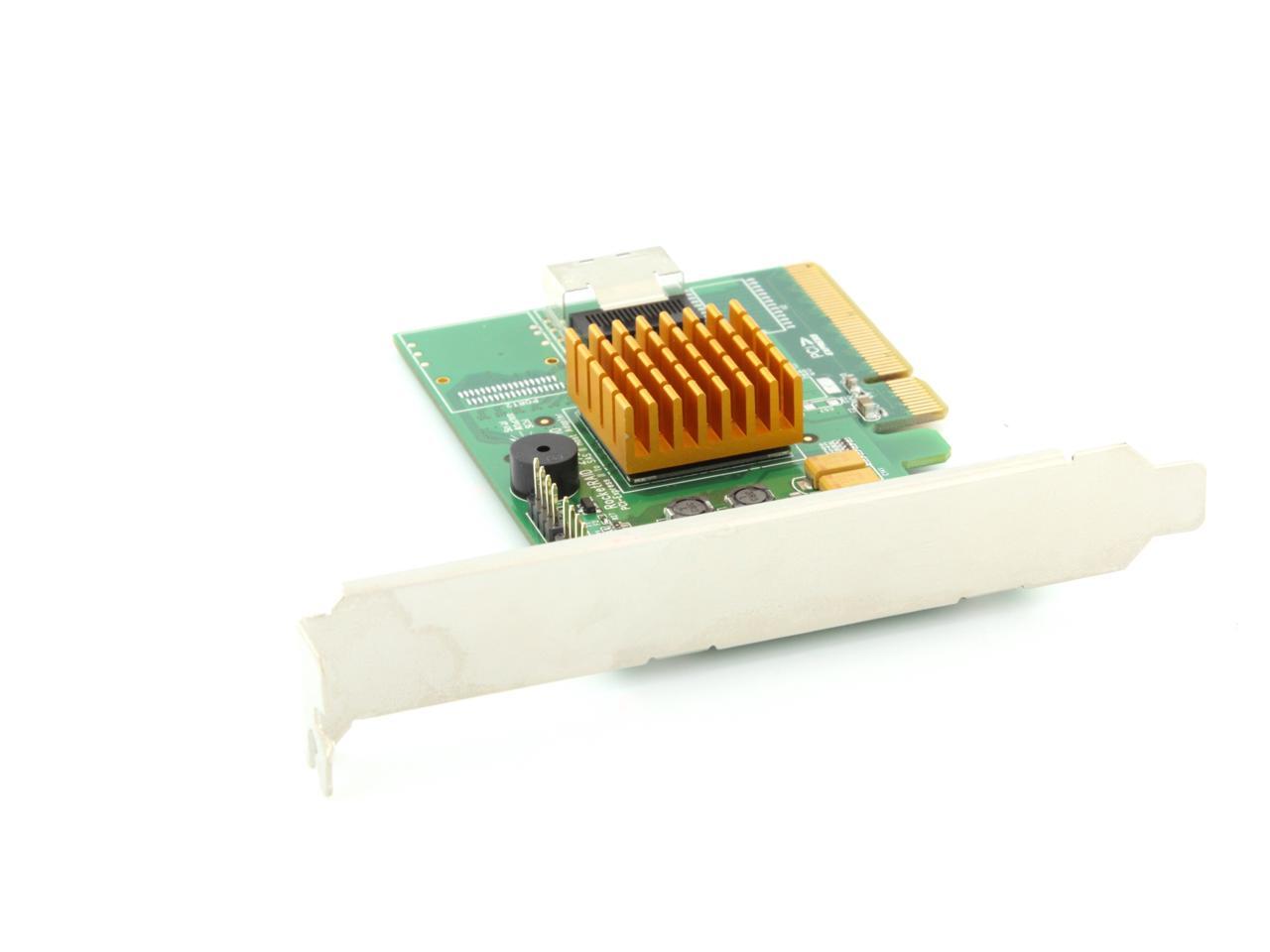

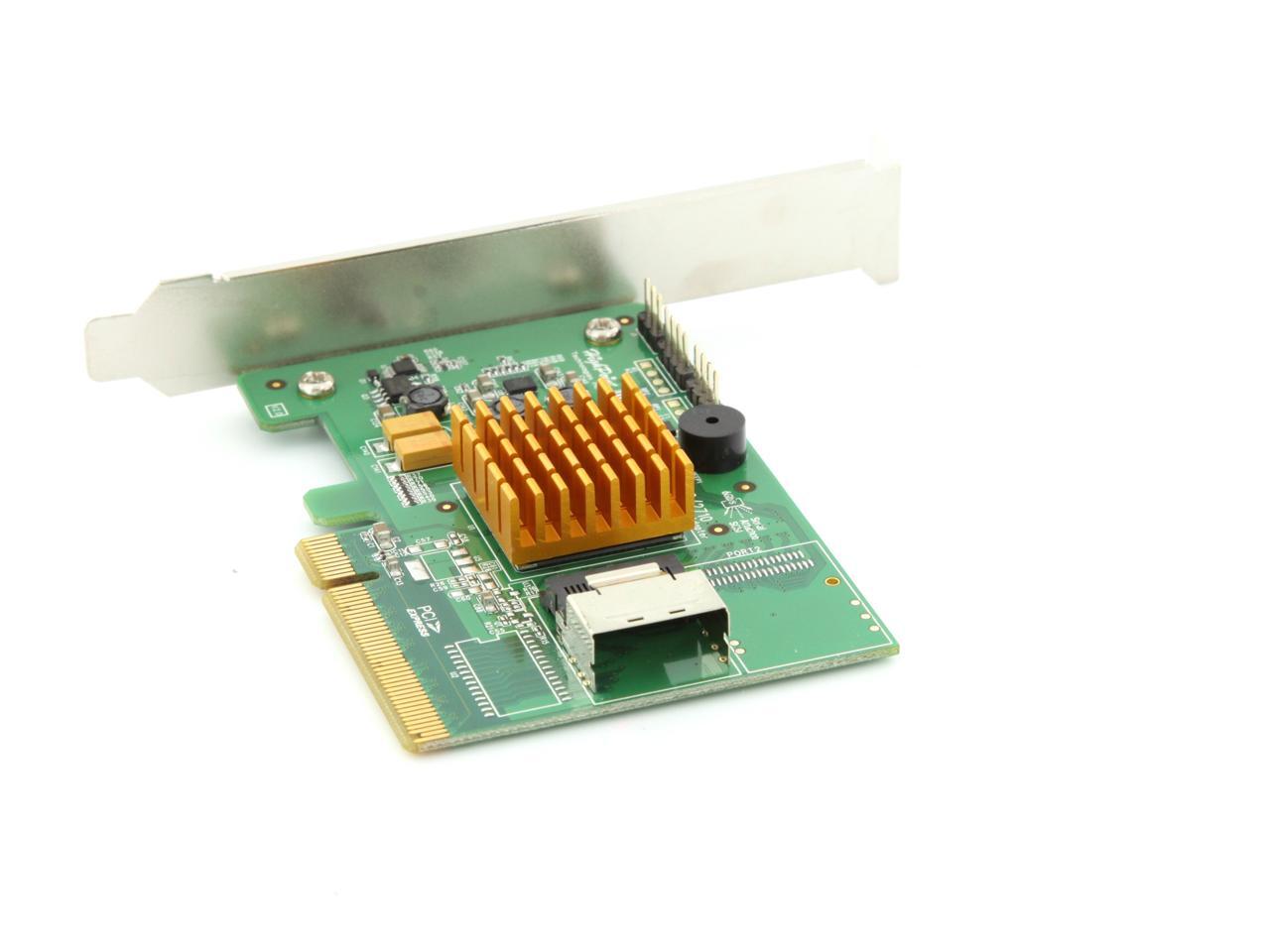

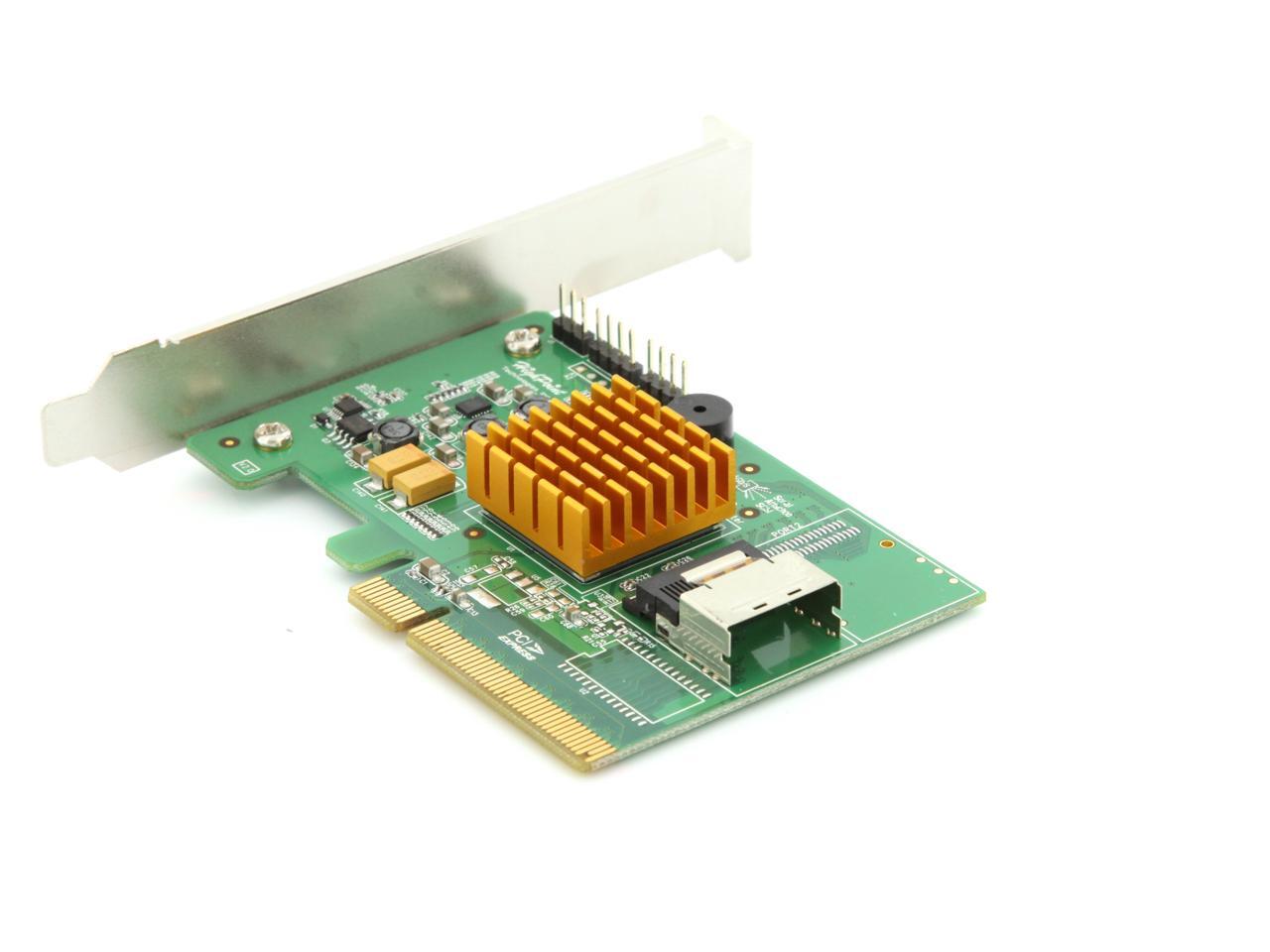

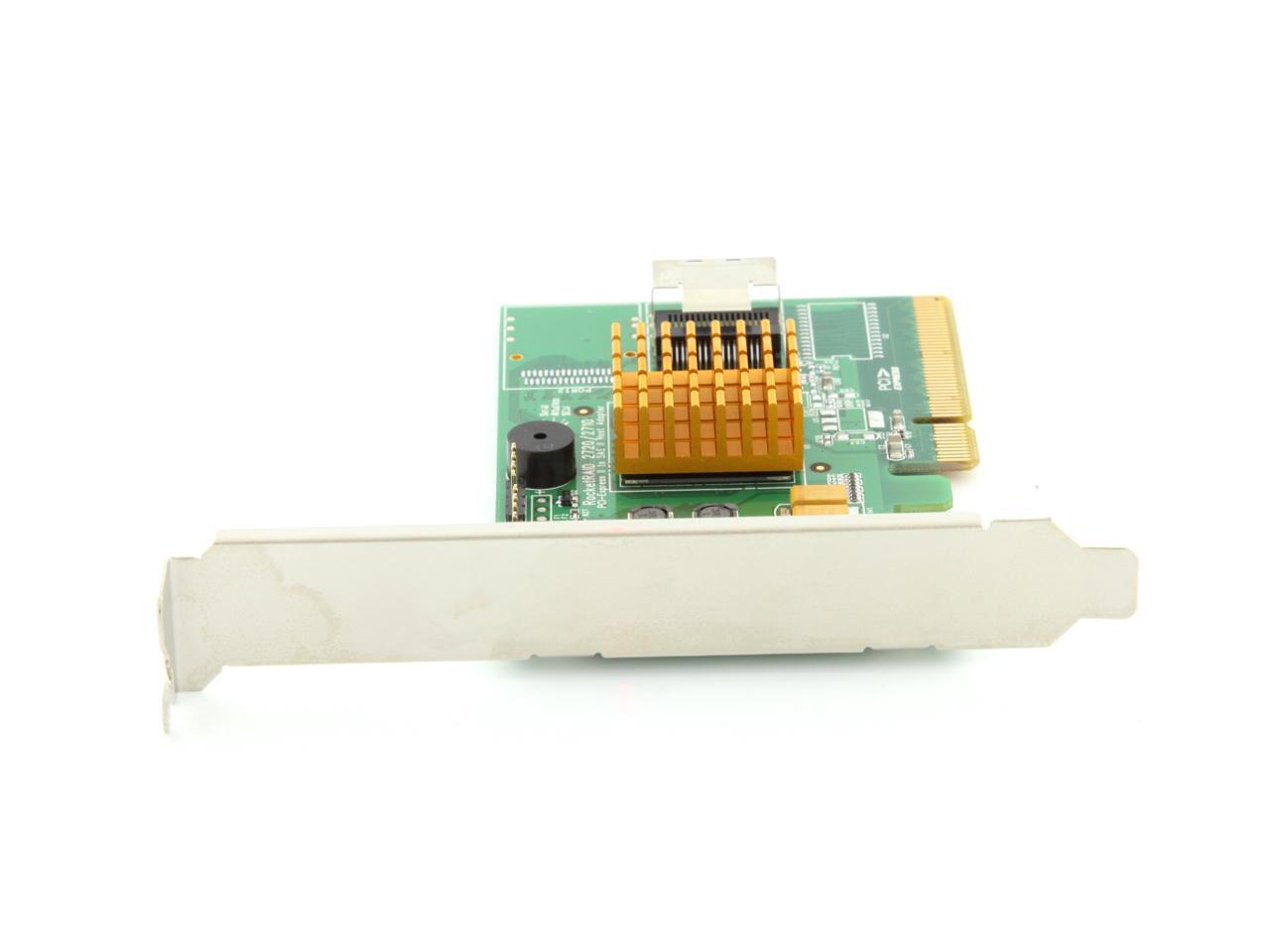

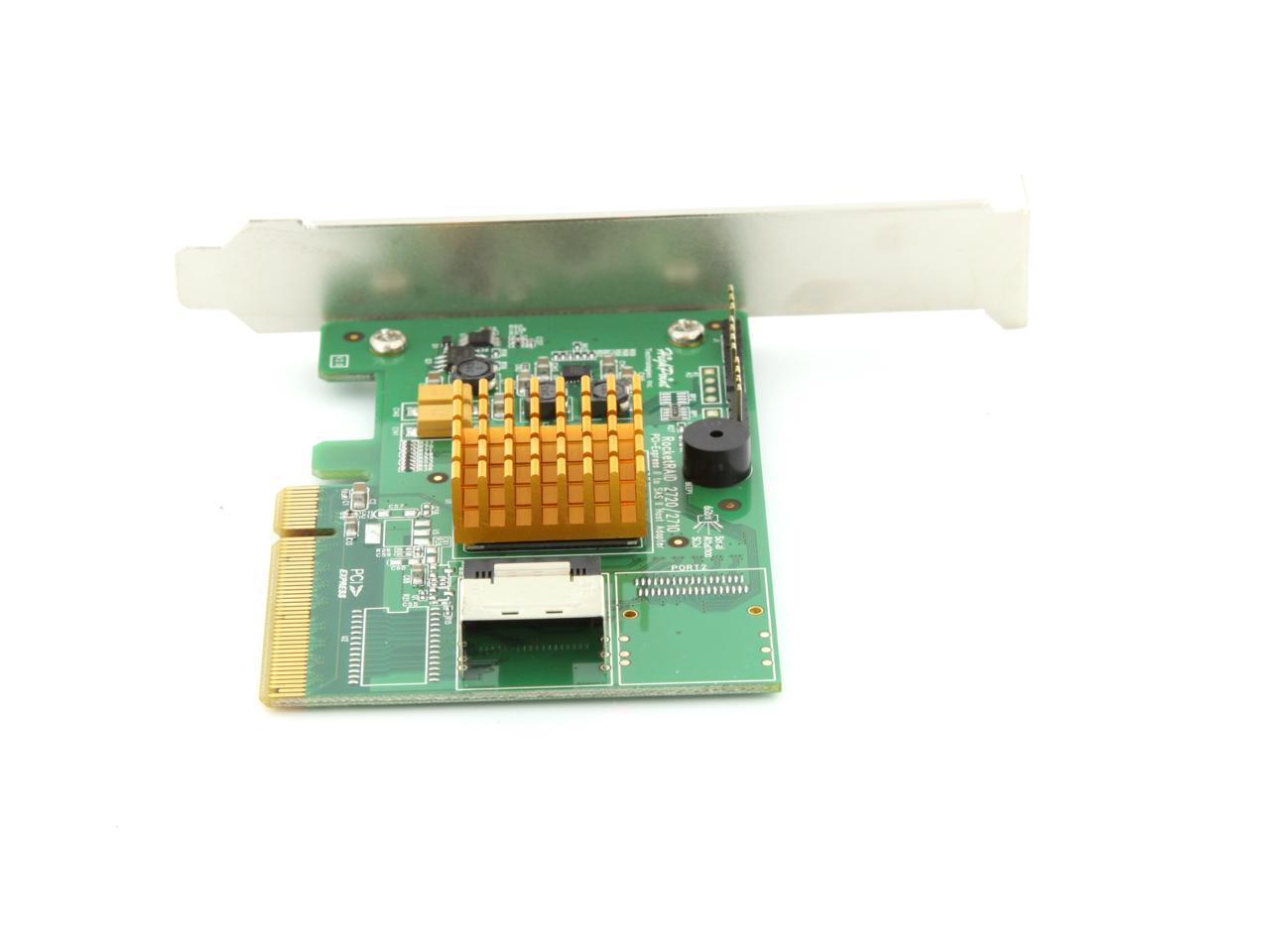

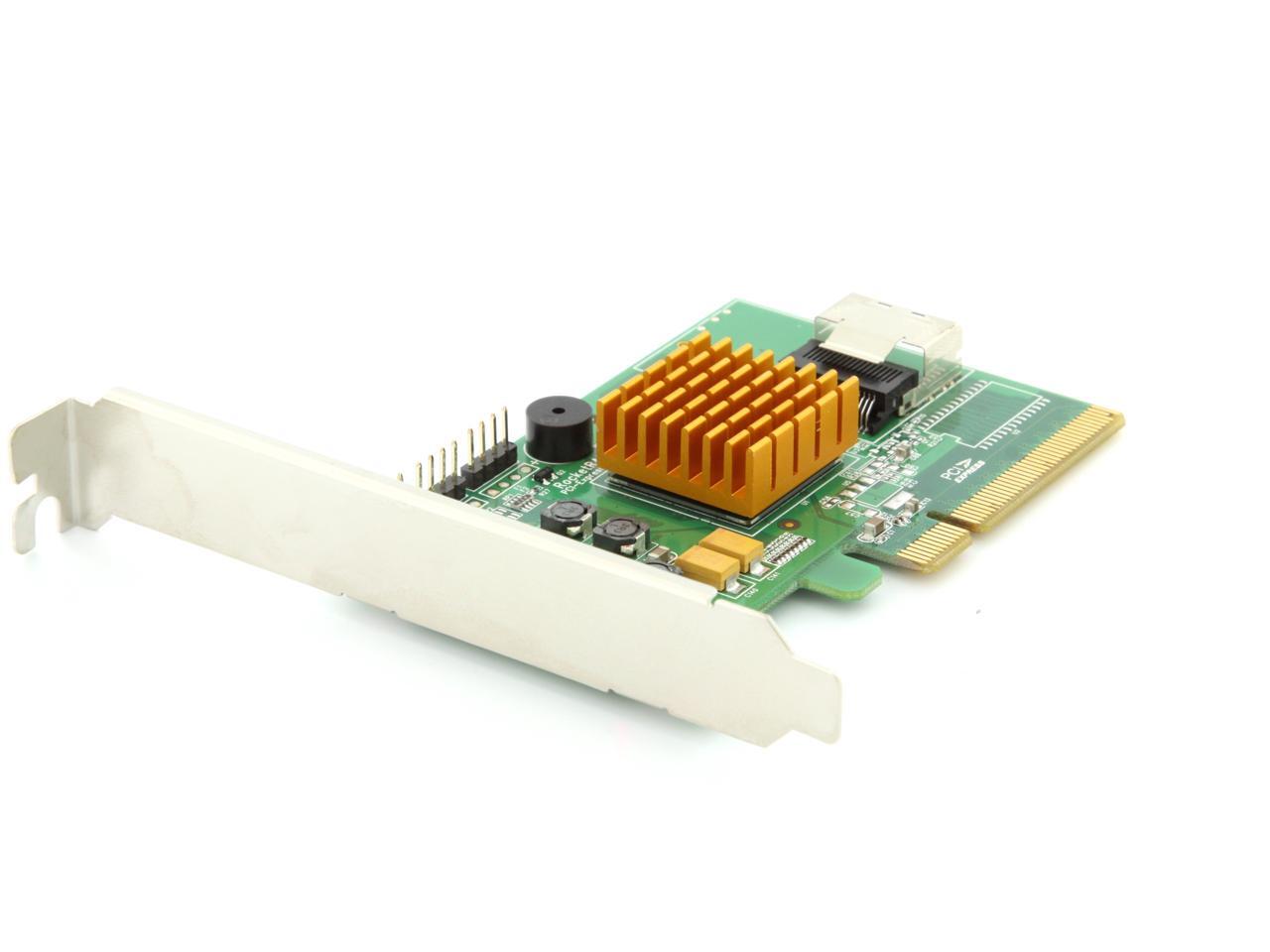

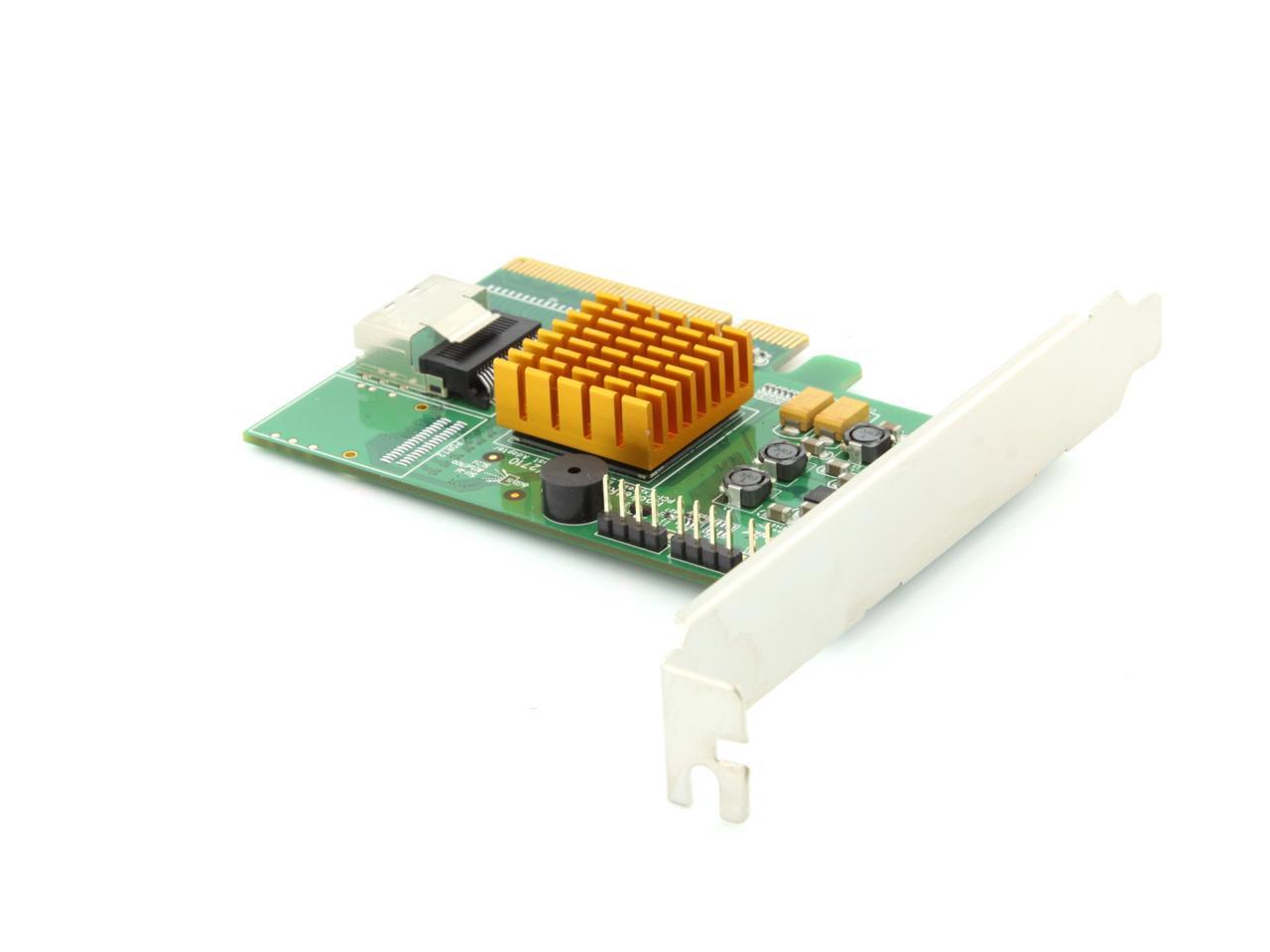

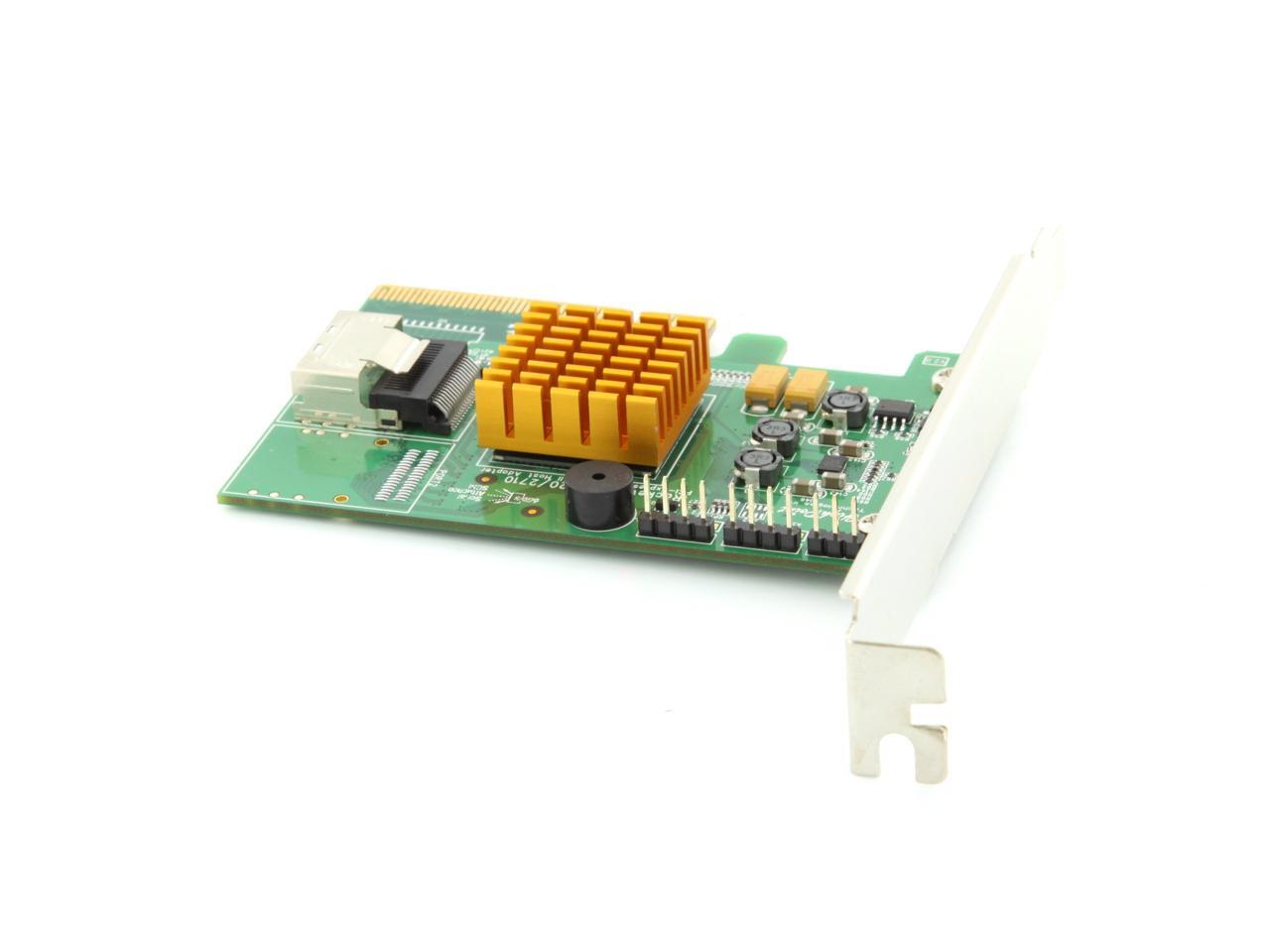

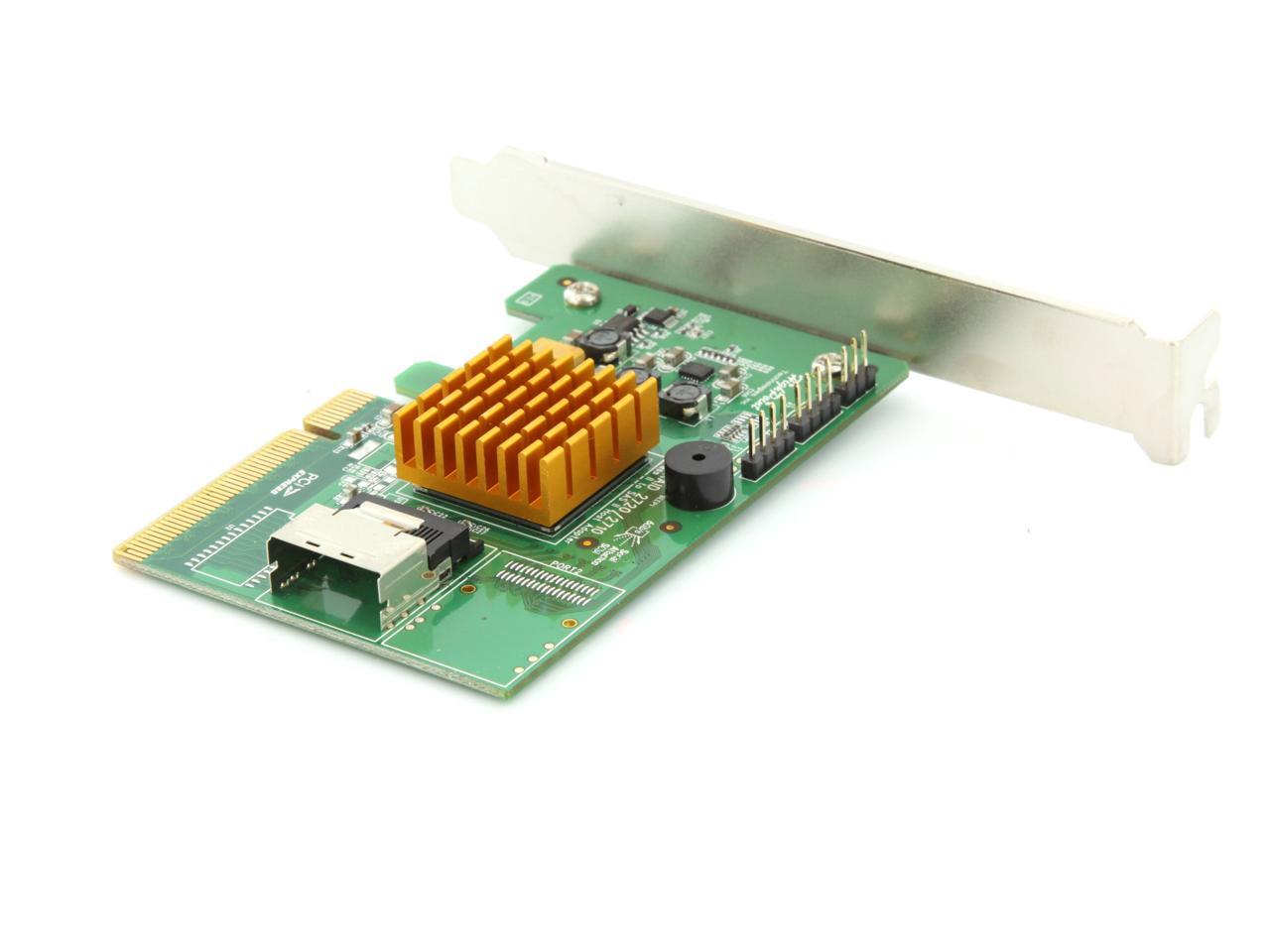

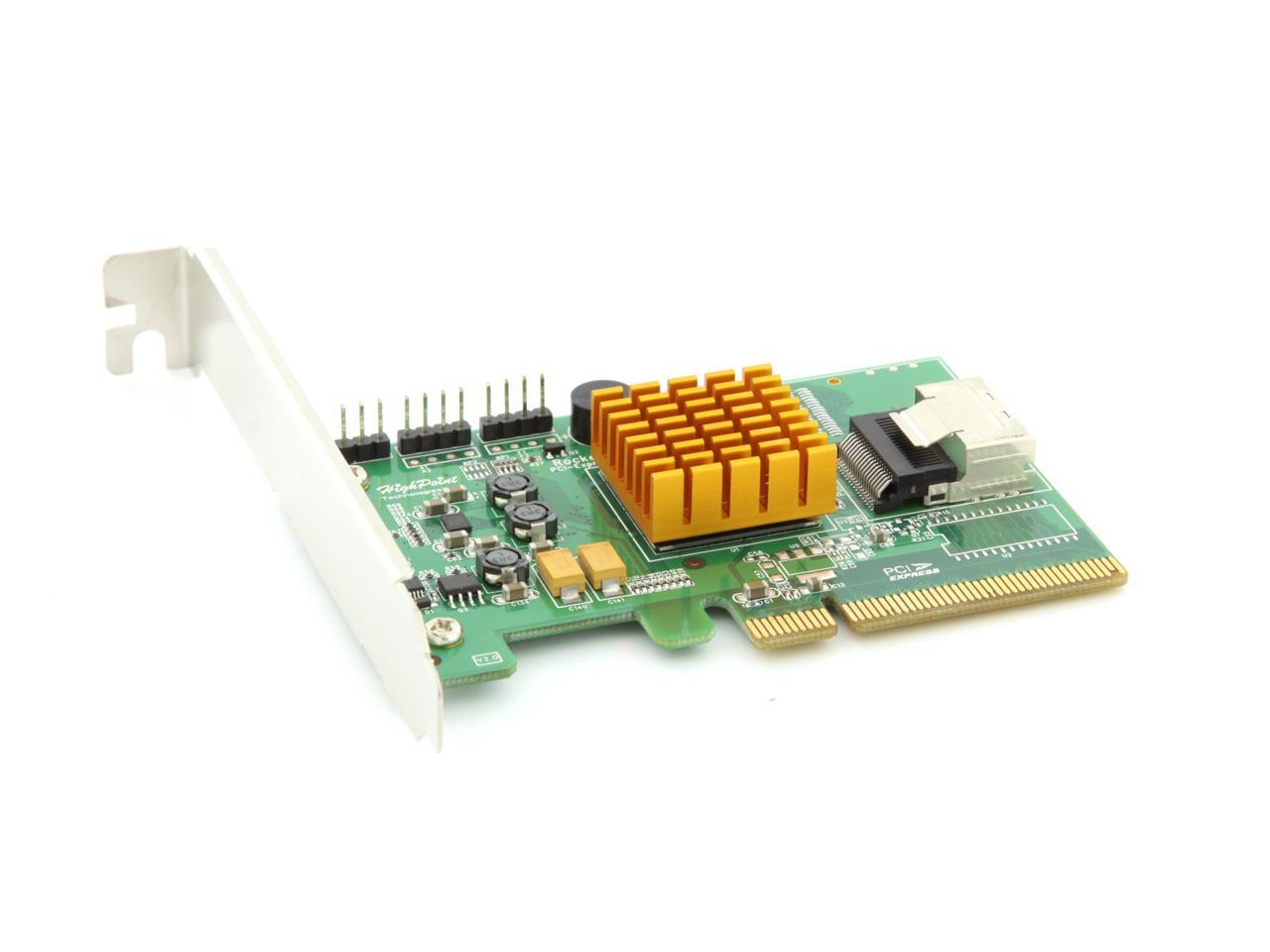

HighPoint RocketCache 3240X8 PCI-Express 2.0 x8 SSD RAID Caching Controller Card

  • 1 x SFF-8087 mini-SAS Internal Connectors
  • Up to 6Gb/s

HighPoint’s RocketCache allows you to create your own high-performance storage solution using off the shelf hard disks and SSD’s. Capitalizing on HighPoint’s industry-proven RAID technology, RocketCache HBA’s can aggregate multiple SSD's and hard disks into single storage units, in order to maximize transfer speeds or data security. The RocketCache 3240X8 puts you in the driver’s seat. You can configure for maximum performance, optimized protection, high performance with cache protection or high protection and cache performance.

  • Use any off the shelf hard disk and SSD
  • Selectable RAID-Cache modes: Link up to 3 SSD’s for Extreme Performance, or multiple HDD’s for Optimal Data Security.
  • PCI-Express 2.0 x8 Host Interface + 4x SATA 6Gb/s Ports
    • neweggHighPoint’s latest SSD caching solutionCombine multiple hard disk drives and SSD’s into high-performance storage solution. Unlike conventional caching products, RocketCache HBAs allow you to link multiple SSDs to a single hard drive for maximum performance, or double up for an ideal balance between Speed and Security. HighPoint’s latest SSD caching solution will revolutionize high-performance storage for desktop PC’s and workstations.
    • neweggRocketCache Puts You in Control: Select from 4 Caching MethodsThe RocketCache 3240X8 offers four Cache Modes. Each Cache Method is optimized for specific applications and storage requirements. Maximize Performance Mode allows you to optimize read/write performance with one or more SSDs. As for High Performance with Cache Protection Mode, the RocketCache 3240X8 combines ultra-fast data access with write protection as your cached files are written directly to disk. The High Protection and Cache Performance Mode is two hard drives in RAID1 for redundancy and one or two SSDs for cache, while the Maximum Protection Mode is two hard drives in RAID1 for redundancy, one or more SSDs for cache with data written directly to the disk.
    • newegg4 x SATA 6 Gb/s ports and 1 x PCI-E 2.0 x8 interfaceThe RocketCache 3240X8 HBA's 4 independent SATA 6 Gb/s ports are powered by a blazing fast PCI-Express 2.0 host interface, and have been optimized for today's fastest SSDs and hard disk drives. The RocketCache 3240X8 was designed for high-performance, Mac and PC platforms, is fully backwards compatible with PCI-E 1.0 x8 and x16 slots, and supports SATA hard disks and SSDs of any generation.
    • neweggRocketCache ManagementThe easy to use, web-based RocketCache Software Interface allows you to tailor caching configurations that are best suited to your specific applications and storage requirements. The interface works with any Web Browser.
    • neweggApplicationsHighPoint’s RocketCache HBAs combine high-value and high performance into a solution that appeals to a wide array of clients-types, ranging from the home PC enthusiast to Media Professionals, Graphic Artists and Photographers.
