The RocketRAID 4300 series controllers feature the Intel IOP348 at 1.2GHz I/O Processor. The Intel IOP348 is the fastest I/O processor in Intel’s product line. The RocketRAID 4300 series has unparalleled design flexibility to support both high performing SAS and lower cost SATA hard drive configurations. By using the Intel IOP348, the RocketRAID 4300 series offers unlimited storage design flexibility from scalability, cost and performance perspectives. The RocketRAID 4300 series supports both direct-attach and SAS expander connectivity modes.
The RocketRAID 4300 family series are powered by Intel IOP348 and have a maximum of 512MB of ECC DDR-II onboard cache. The RocketRAID 4300’s family series support the fastest bus speeds at PCI-Express x8 and offer complete port connectivity with 8 internal, 8 external and hybrid (4 internal and 4 external) configurations.
The RocketRAID 4300 series controllers feature the Intel IOP348 at 1.2GHz I/O Processor. The Intel IOP348 is the fastest I/O processor in Intel’s product line. The RocketRAID 4300 series has unparalleled design flexibility to support both high performing SAS and lower cost SATA hard drive configurations. By using the Intel IOP348, the RocketRAID 4300 series offers unlimited storage design flexibility from scalability, cost and performance perspectives. The RocketRAID 4300 series supports both direct-attach and SAS expander connectivity modes.
The RocketRAID 4300 family series are powered by Intel IOP348 and have a maximum of 512MB of ECC DDR-II onboard cache. The RocketRAID 4300’s family series support the fastest bus speeds at PCI-Express x8 and offer complete port connectivity with 8 internal, 8 external and hybrid (4 internal and 4 external) configurations.
Serial Attached SCSI InterfaceWith an internal mini-SAS port, the HighPoint RocketRAID 4310 supports both SAS and SATA devices for enhanced flexibility and speed.
RAID SupportThe HighPoint RocketRAID 4310 supports multi-level RAID configuration including RAID 0, 1, 3, 5, 6, 10 and JBOD for better performance, enhanced data security and flexible capacity upgrades.
On-board I/O ProcessorThe HighPoint RocketRAID 4310 features an integrated 800MHz Intel IOP348 processor for fast hardware RAID parity calculations.
256MB Cache Memory with ECC Protection256MB of DDR2 533 SDRAM with ECC protection is integrated into the HighPoint RocketRAID 4310 for maximum data integrity.
PCI Express x8 InterfaceCompatible with PCI Express x16 slot, the PCI Express x8 interface provides sufficient throughput and full-duplex operation for enhanced performance.
Learn more about the HighPoint Technologies, Inc. RocketRAID 4310
Model
Brand
HighPoint
Model
RocketRAID 4310
Form Factor
Low Profile Ready
Details
Type
SATA / SAS
Internal Connectors
1 x SFF-8087 mini-SAS
Interface
PCI-Express x8
Cache Memory
256MB DDR2 533
RAID
RAID 0/1/3/5/6/10/ JBOD
Operating Systems Supported
Microsoft Windows 2008/2003/XP/ 2000/x64 Edition/Vista 32 and 64 bit Red Hat Enterprise Linux, Open SuSE, Fedora Core, Debian FreeBSD Mac OS X Linux Open Source Drivers Native Support in Linux kernel 2.6 VMware ESX/ ESXi 4.0

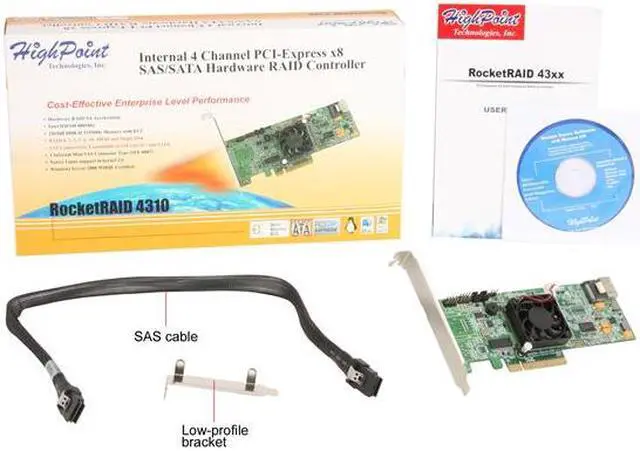

RocketRAID 4310 Series SAS/SATA Hardware RAID Controller RocketRAID SAS/SATA user manual Software CD with (Drivers and Manual) Low profile bracket 1 internal mini-SAS to internal mini-SAS
Additional Information
Date First Available
April 02, 2009
