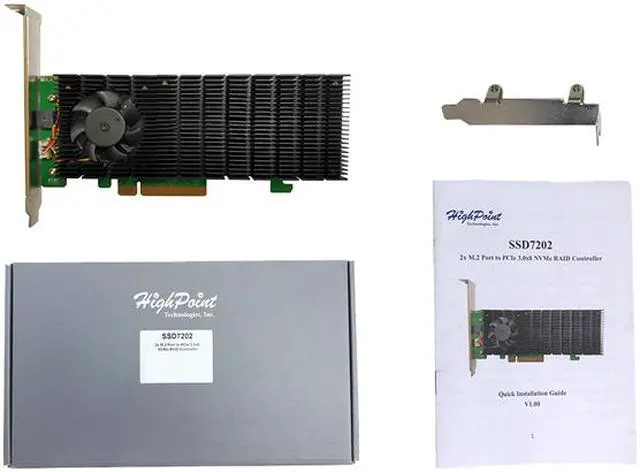

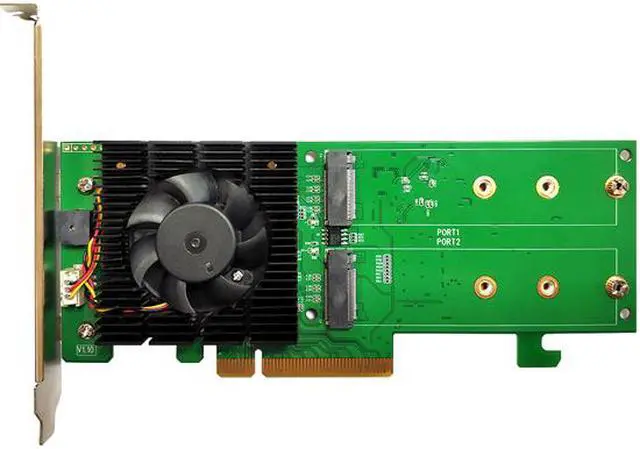

HighPoint SSD7202 - Low-Profile, Bootable, 2x dedicated M.2 Ports to PCIe 3.0 x8 NVMe RAID Controller
See more "raid controller"
In stock.
Ships from United States.
- New, Low-Profile Bootable NVMe Solution for Linux & Windows
- Ideal for compact, low-profile 1 &2U servers, or workstations
- Flexible solution: compatible with PCIe x8 and x16 slots

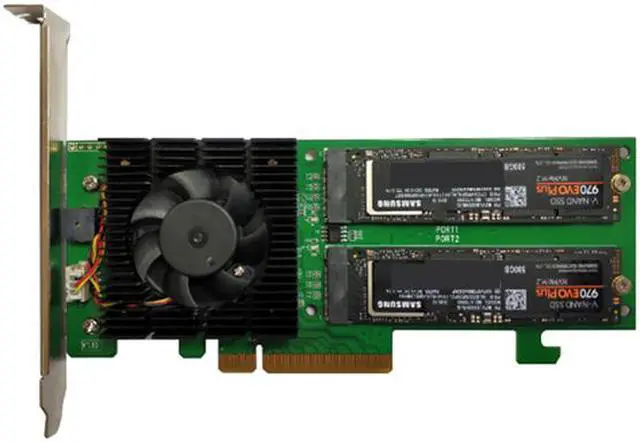

- Up to 2 off-the-shelf M.2 MLC, TLC & QLC NVMe SSD’s
- RAID 0, 1, single disk
- Dedicated PCIe 3.0 x8 bus bandwidth
- Dedicated PCIe 3.0 x4 bandwidth for each NVMe M.2 SSD
Specs
Reviews
Learn more about the HighPoint Technologies, Inc. SSD7202
| Best Seller Ranking | #38 in Controllers / RAID Cards |
|---|
| Brand | HighPoint |
|---|---|
| Model | SSD7202 |
| Form Factor | Low Profile |
| External Connectors | 2 x M.2 NVMe port (Dedicated PCIe 3.0 x4 per port) |
|---|---|
| Interface | PCI-Express 3.0 x16 |
| RAID | RAID 0/1 |
| Operating Systems Supported | Windows 10 Windows Server 2016 or later Linux Kernel 3.3 or later Microsoft Hyper-V & Xen Server 7.6 and later Proxmox 6.1 and later |
| Dimensions | 6.29" x 4.76" x 0.85" |
| Features | Low-Profile Bootable NVMe Solution for Linux & Windows Ideal for compact, low-profile 1 &2U servers, or workstation Flexible solution: compatible with PCIe x8 and x16 slots Up to 2 off-the-shelf M.2 MLC, TLC & QLC NVMe SSD’s RAID 0, 1, single disk Dedicated PCIe 3.0 x8 bus bandwidth Dedicated PCIe 3.0 x4 bandwidth for each NVMe M.2 SSD |
|---|
| Date First Available | May 22, 2020 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
LOADING...
LOADING...
Pros: It is easier than the instructions indicate to put a "true image" of a Windows 10 system on a raid 0 disk created by the SSD7202. Set the computer to disable fast boot and set boot for other OS. the computer at startup then reads the Hipoint driver.
Overall Review: I would recommend it.
