| Brand | HIS |
|---|---|
| Model | H165XTQT256GDDN-R |
| Interface | PCI Express x16 |
|---|
| Chipset Manufacturer | AMD |
|---|---|
| GPU | Radeon X1650XT |
| Core Clock | 630MHz(Turbo) |
| PixelPipelines | 24 |
| Effective Memory Clock | 1460MHz(Turbo) |
|---|---|
| Memory Size | 256MB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR3 |
| DirectX | DirectX 9 |
|---|---|
| OpenGL | OpenGL 2.0 |
| DVI | 2 x DVI |
|---|---|
| TV-Out | HDTV / S-Video Out |
| RAMDAC | 400MHz |
|---|---|
| Max Resolution | 2560 x 1600 |
| RoHS Compliant | Yes |
| CrossFireX Support | Yes |
| Cooler | With Fan |
| Dual-Link DVI Supported | Yes |
| HDCP Ready | Yes |
| Features | CrossFire Ready for Extreme, Accelerated Gaming IceQ cooling technology Ultra-threaded SM 3.0 Engine ATI Avivo |
|---|

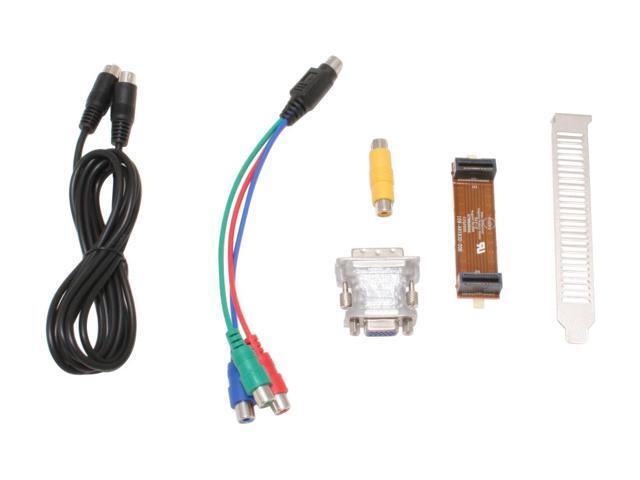

| Package Contents | H165XTQT256GDDN-R HDTV Cable S-Video Cable S-Video to Composite Adapter DVI to VGA/D-sub Adapter CrossFire Bridge Ventilation Bracket |
|---|
| Date First Available | November 13, 2006 |
|---|
Pros: Large heatsink, OC'ed ram and GPU out of the box: definitely features any gamer wants from a video card. The more recent drivers have also improved my framerate (using catalyst 7.3 right now). 630 (575) MHz gpu, 770/1540(700/1400) ram (ram is reported incorrectly as 730/1460 on newegg's spec sheet), these are the values out of the box (compared to a normal X1650XT's speeds).
Cons: No temperature sensor. Even with a heatsink this large, temp sensors can warn you of fan failure, dust buildup, etc. OC settings are at the limit, which has lead me to: Artifacts. Using Google Earth I get artifacts 30 seconds after launching it in the default opengl mode (no problems in DX9). WoW also develops artifacts after about 2-4 hours of play (DX9 mode). Haven't seen artifacts in other games like SupCom, NFS Carbon, ST: Legacy, or 3DMark yet (all ran in DX9), but I haven't had time to test it extensively.
Overall Review: To solve my artifact problem, I reduced the speeds to 621 MHz cpu, 756/1512 MHz ram. I tried several different driver versions (both from ATi and modified ones), and each produced the same artifact problem. The large heatsink will block a neighboring expansion slot. If you have a small PCIe 1x card you might be able to get them to fit, but longer boards will block the video card's heatsink fan inlet.
