Memory Standard: DDR3 1066 1333 1600 Number of Memory Slots: 2 PCI Express x16: 1 x PCI Express x16 Audio Chipset: Realtek ALC662 Onboard Video Chipset: No Onboard Video Chipset Max LAN Speed: 10/100Mbps SATA 3Gb/s: 4 x SATA 3Gb/s CPU Type: Core i7 / i5 / i3 (LGA1155)

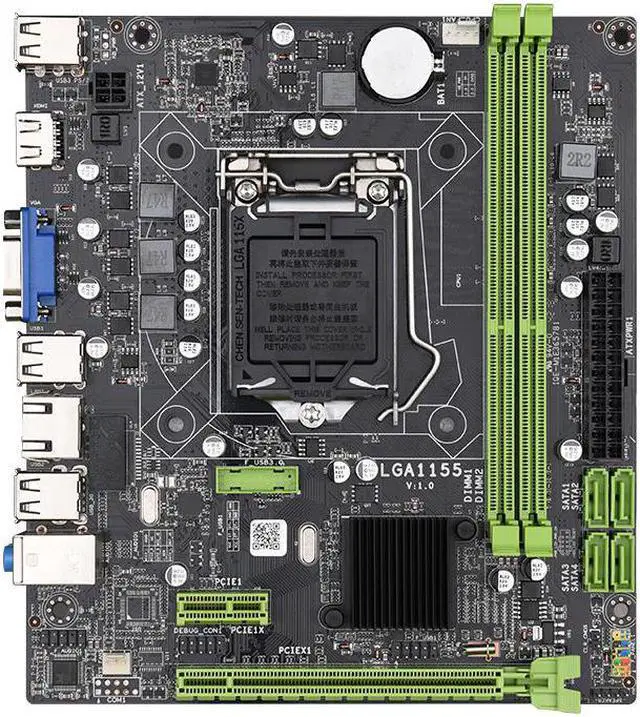

Learn more about the Hoengager H61MATX
Model
Brand
Jingsha
Series
Micro ATX
Model
H61MATX
Supported CPU
CPU Socket Type
LGA 1155
CPU Type
Core i7 / i5 / i3 (LGA1155)
Chipsets
Chipset
Intel H61
Memory
Number of Memory Slots
2
Memory Standard
DDR3 1066 1333 1600
Maximum Memory Supported
16GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express x16
1 x PCI Express x16
PCI Express x1
1 x PCI Express x1
Storage Devices
M.2
Not Available
Intel Optane Ready
Not Available
mSATA
Not Available
Onboard Audio
Audio Chipset
Realtek ALC662
Audio Channels
5.1 Channels
Onboard LAN
Max LAN Speed
100Mbps
Wireless LAN
Not Available
Bluetooth
Not Available

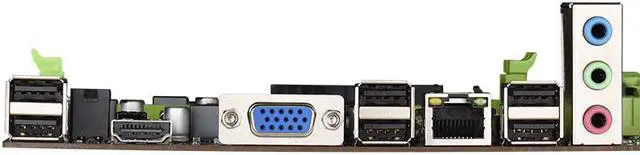

Rear Panel Ports
Back I/O Ports
1 x HDMI / 2 x PS/2 / 4 x USB 2.0/1.1
PS/2
2
Video Ports
VGA + HDMI
HDMI
1 x HDMI
RJ45
1 x RJ45
DisplayPort
0
Thunderbolt Ports
0
USB 3.1
0
USB 3.0
0
USB 1.1/2.0
4 x USB 2.0
USB Type-C
0
Thunderbolt 3
0
Audio Ports
3 Ports
Internal I/O Connectors
Onboard USB
4 x USB 2.0
Physical Spec
Form Factor
Micro ATX
LED Lighting
No RGB
Dimensions (W x L)
170mm x 190mm
Power Pin
24 Pin
Packaging
Package Contents
Motherboard *1 I/O Shield *1 Chinese Manual*1
