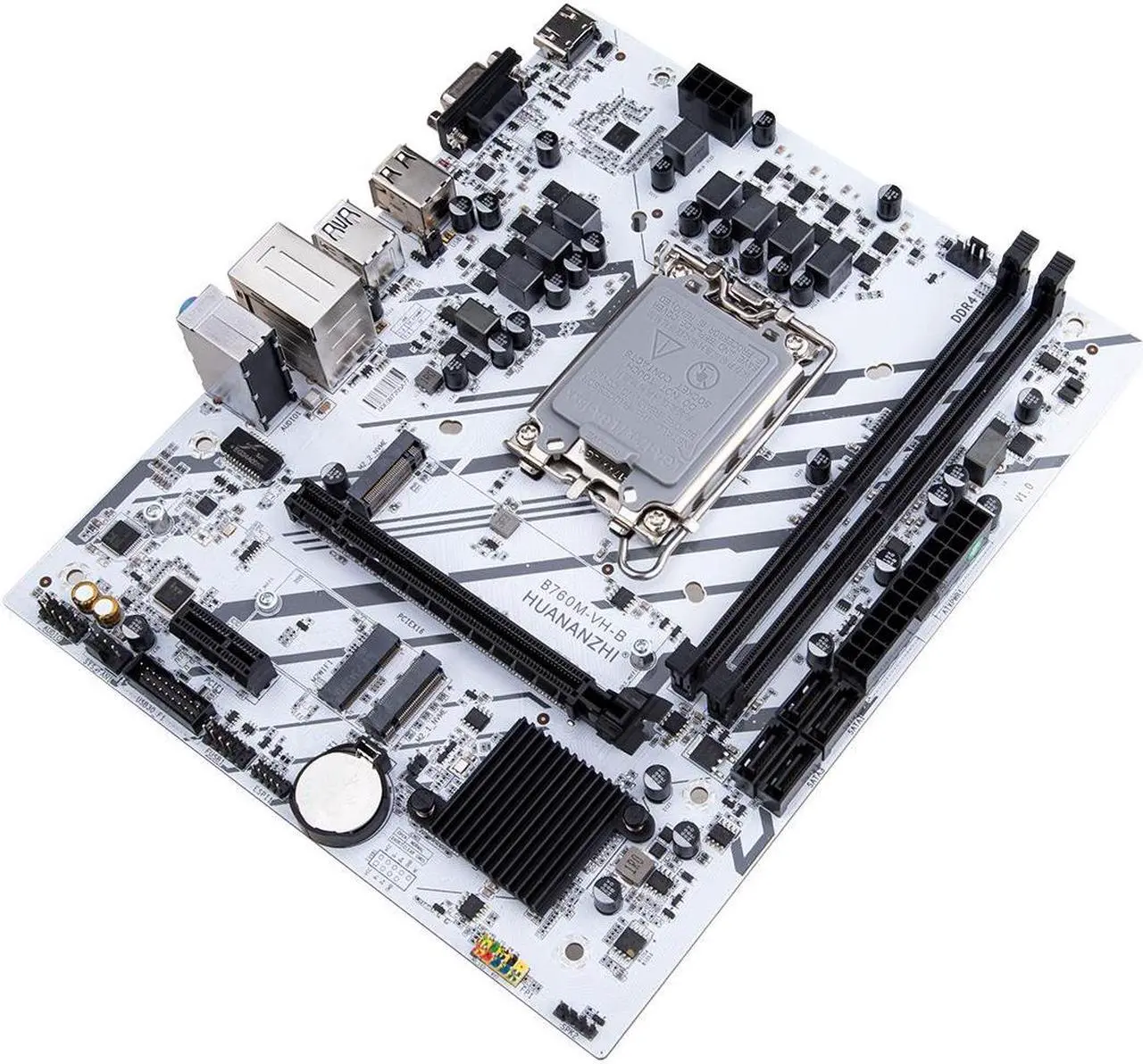

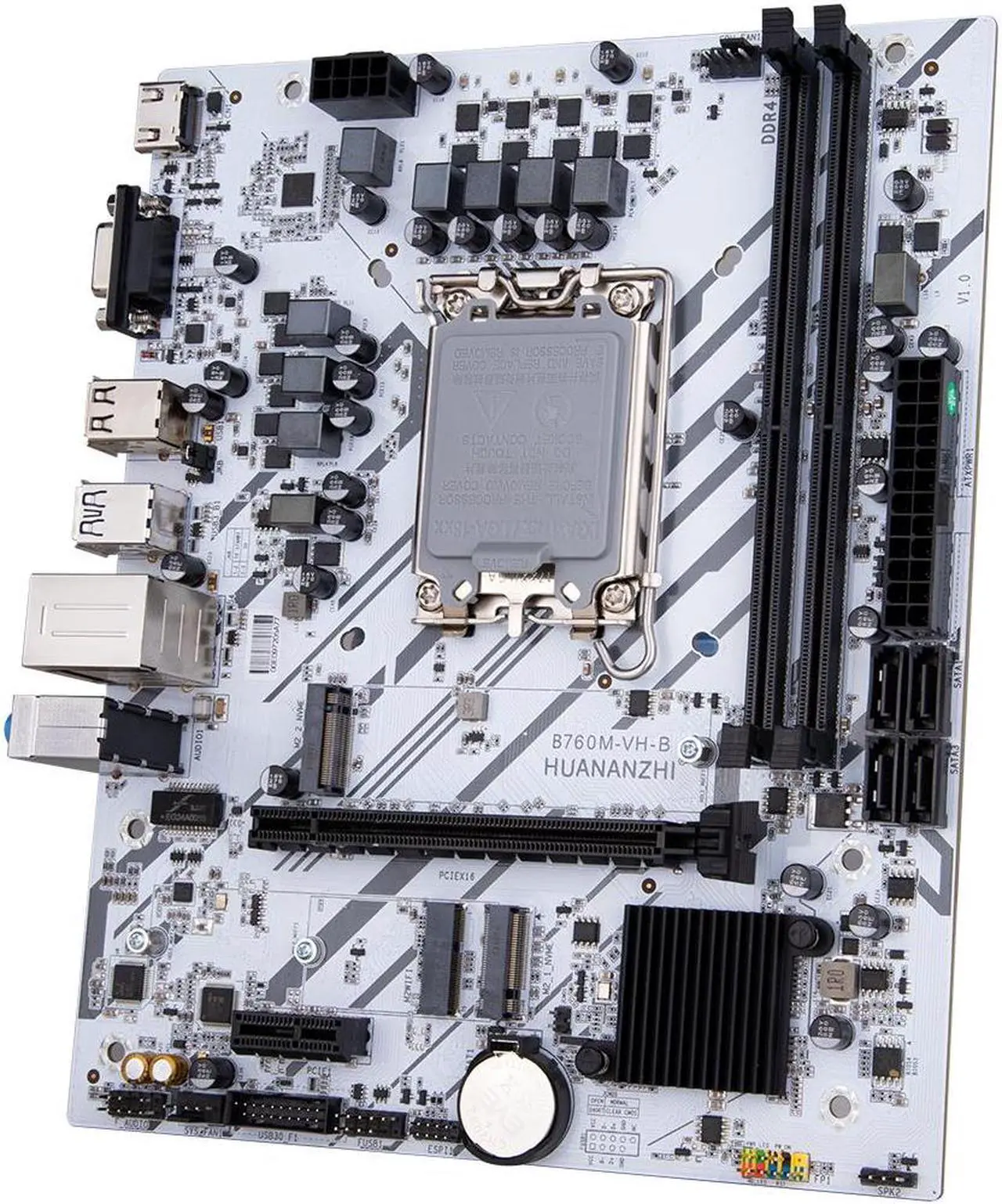

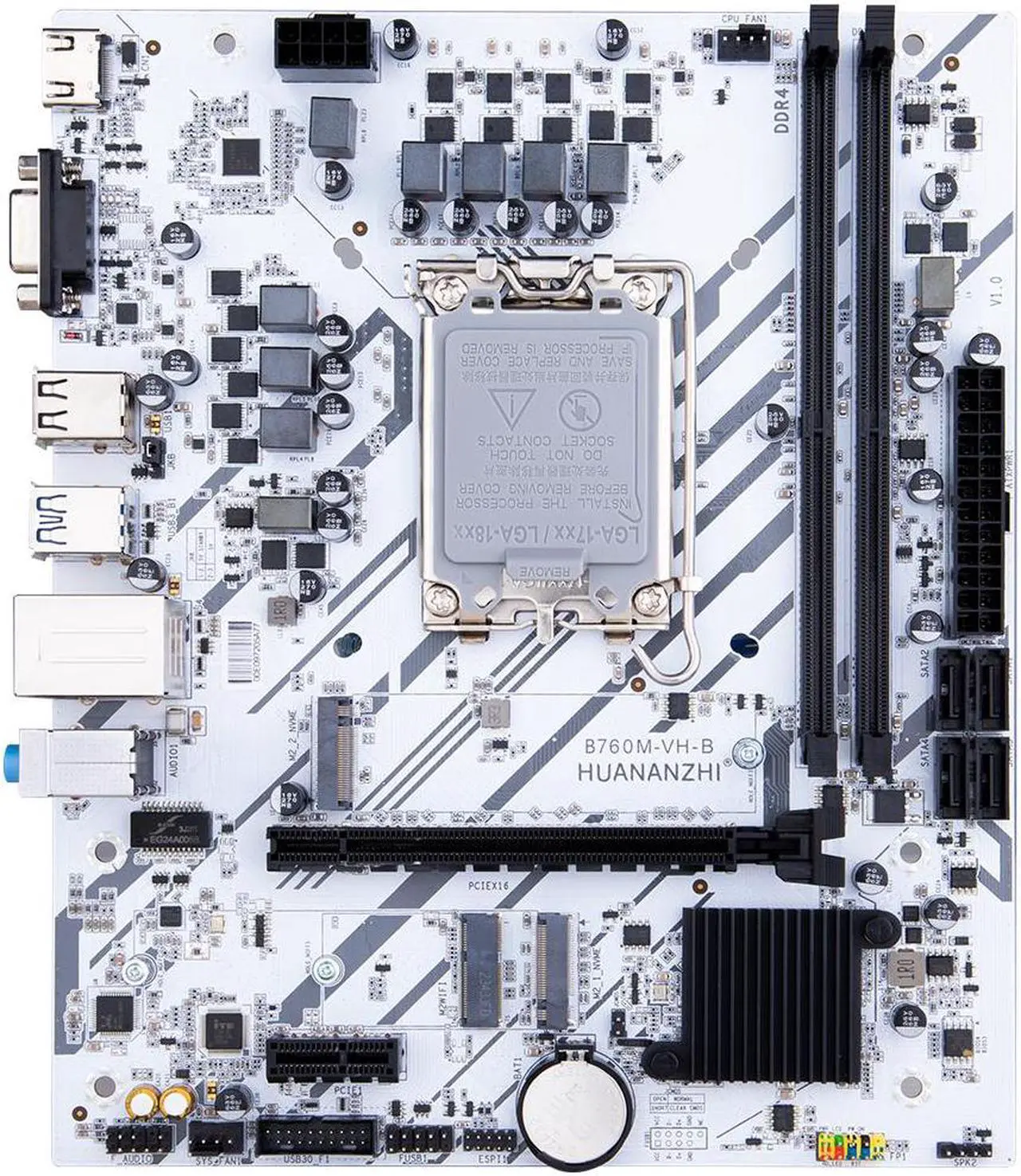

HUANANZHI B760M VH B M-ATX DDR4 Motherboard Support 12 13 Gen(LGA 1700 CPU 12100F/12400F/12490F/12600F/12700F/13600F)

Specifications:

Model:HUANANZHI B760M-VH-A/B Motherboard
Chipset:Intel B760
CPU Socket:Supports IntelLGA1700
Memory Slot:2 x DDR4 Memory Slot
Memory Standard:Support dual channels DDR4 3200/2933/2666/2400MHz,Max Support 64GB
Storage Interface:4xSATA3.0 6Gbps
Expansion Slots:1xPCI Express 4.0 x16,1xPCI Express 3.0 x1
Expansion Interface:2xM.2 2280 NVME PCIE X4 4.0 ,1xM.2 WIFI
Soud Track:Realtek High Definition Audio
Network Card:Realtek Gigabit Network Card
Power Interface:24PIN+8PIN
FAN PIN:1xCPU_FAN PIN,1xSYS_FAN PIN
Power Supply:8 Phase Power Supply
PCB Layers:4-layer PCB
Dimension:220*180MM M-ATX

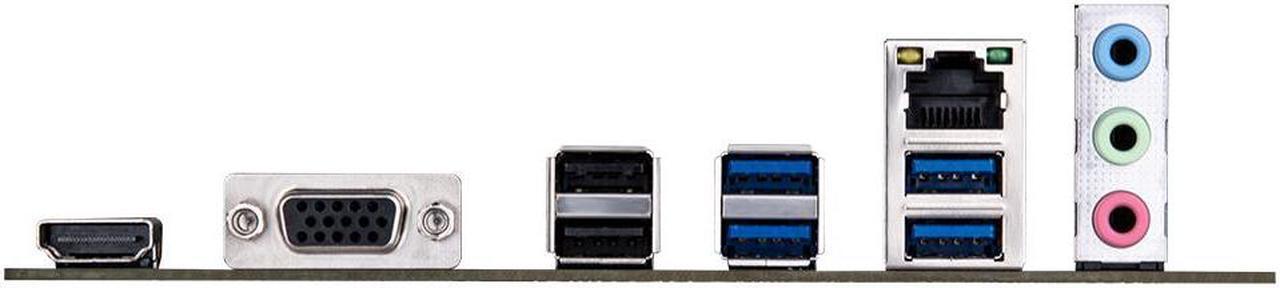

Rear Panel Interface:2xUSB2.0 480Mbps,2xUSB3.2 10Gbps,2xUSB3.2 5Gbps,1xNetwork Card Interface,1x3-Hole Audio Interface,1xVGA Interface,1xHDMI 2.0Interface
Front Panel Interface:1xUSB2.0 480Mbps PIN,1xUSB3.2 5GbpsPIN,1xFront Audio PIN,1xCOM PIN,1xPower On/Restart PIN,1xDebug PIN
Support System:Windows10 Windows11(Support incoming power on/timed power on/network card startup/network wake-up)
BIOS:AMI UEFI BIOS

Before Packaging

Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
