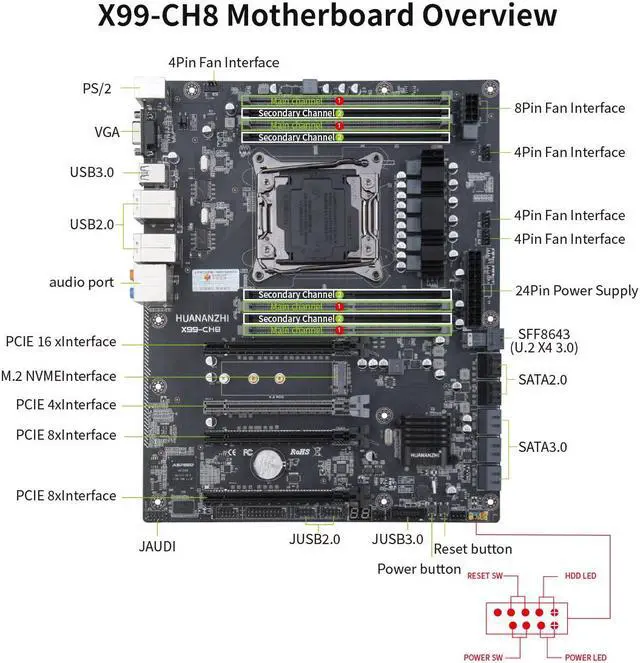

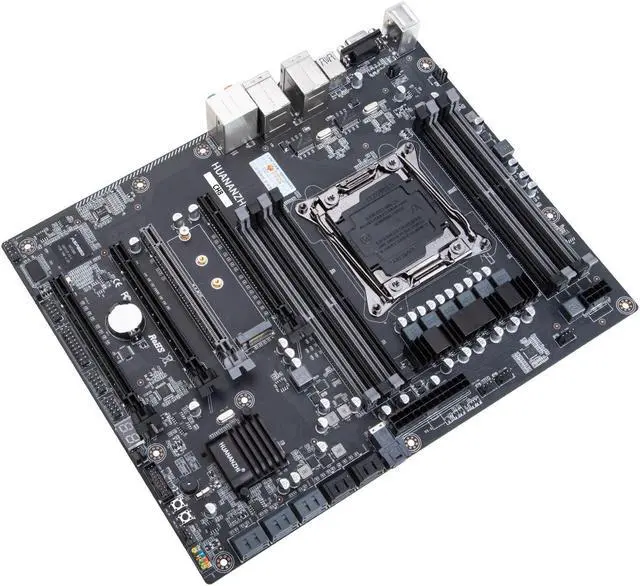

Model | HUANANZHI X99-CH8 Motherboard |
---|---|
Main chipset | Inte C612 |
CPU Socket | Support Intel LGA2011-3 |
Memory slot | 8 x DDR4 memory slot |
Memory standard | Support four channelsDDR4 2400/2133/1866MHz, Max support 256GB |
Storage interface | 6x SATA3.0 6Gbps, 4xSSATA 3.06Gbps |
Expansion Slots | 1xPCI Express3.0X16, 1xPCIExpress3.0x4, 2xPCIExpress3.0x8 |
Expansion interface | 1xM.2 2280 NVME PCIEX43.0 32Gbps, 1xU.2X43.0 |
Soud Track | 7.1 |
Network Card | Gigabit Ethernet |
Power interface | 24pin+8pin |
FAN PIN | 1xCPU_FAN PIN, 4xSYS_FAN PIN |
power supply | 6-phase power supply |
PCB layers | 10-layer PCB |
Dimension | 300*244MM E-ATX |

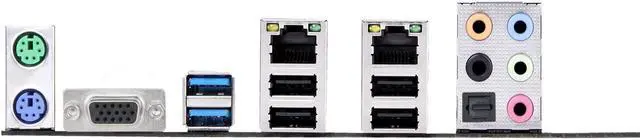

Rear panel interface | PS/2 Mouse and Keyboard port, 4xUSB2.0 Interface, 2xUSB3.0 Interface, 1x Network card interface, 1x5-hole audio interface, 1xAudio fiber interface (integrated on audio interface), 1xOn-board integrated display VGA |
Front panel interface | 2 x USB2.0 PIN, 1 x USB3.0 PIN, 1 x Front audio pin, 1xCOM pin, 1xMotherboard, 1xbuzzerpost card, 1xStart/restart button |
Support system | Windows7 Windows10 Windows11 |
BIOS | AMI UEFI BIOS |



Before Packaging
Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
