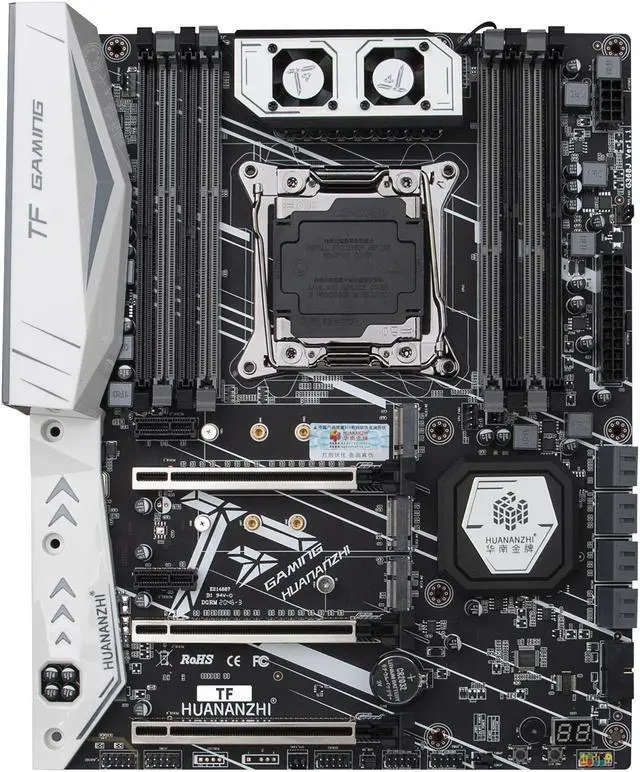

    HUANANZHI X99 TF LGA 2011-3 X99 Motherboard support E5 2666 2678 2696 v3 v4 DDR3 DDR4 RECC NON-ECC memory NVME

    Limited time offer, ends 09/30 By HUANANZHI Store

    Be the first to review this product...
    • · support Intel LGA2011-3
    • · 4 x DDR4+4 x DDR3memory slot,Max support 128GB
    • · 2xPCI Express3.0X16,1xPCIExpress3.0x4,2xPCI Express2.0x1
    • · 2xM.2 22110 NVME PCIEX4,1xM.2WIFINGFF
    • · 4xUSB2.0,4xUSB3.0,2 x USB2.0 PIN,1 x USB3.0 PIN
    • · 10-layer PCB,6-phase power supply
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Model HUANANZHI X99-TF Motherboard
    Main chipset Inte X99
    CPU Socket Support Intel LGA2011-3
    Memory slot 4 x DDR4+4 x DDR3 memory slot
    Memory standard Support Four channels DDR3 1866/1600/1333MHz, DDR4 2400/2133/1866MHz, Max support 128GB, The simultaneous use of D3/D4 is not supported (DDR3 memory needs to be used with E5 2666V3/2673V3/2676V3/2678V3/2696V3/2696V4/2686V4 2629V3/2649V3/2669V3)
    Storage interface 4 x SATA3.06Gbps, 4xSSATA3.06Gbps
    Expansion Slots 2xPCI Express3.0X16, 1xPCIExpress3.0x4, 2xPCI Express2.0x1
    Expansion interface 1xM.2 22110 NVME PCIEX43.0 32Gbps, 1xM.2 2280NVME PCIEX42.0 20Gbps, 1xM.2WIFINGFF
    Soud Track 7.1
    Network Card Gigabit Ethernet
    Power interface 24pin+8pin
    FAN PIN 1xCPU_FAN PIN, 2xSYS_FAN PIN
    power supply 6-phase power supply
    PCB layers 10-layer PCB
    Dimension 300*244MM ATX

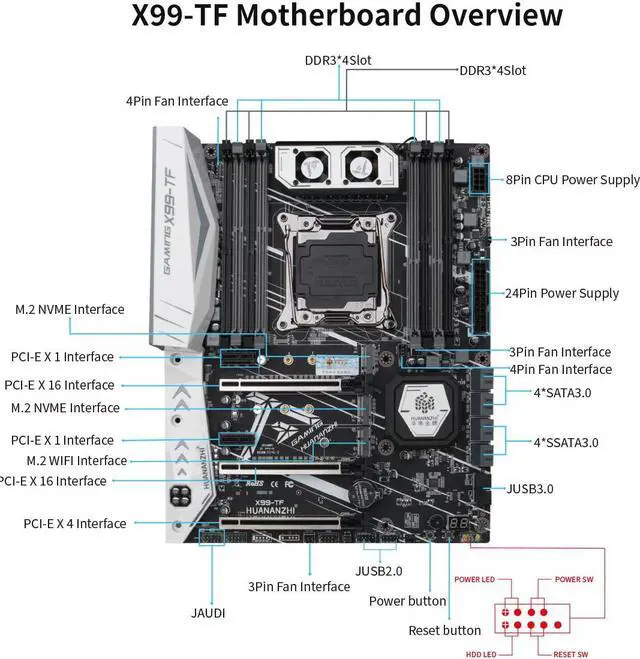

    Rear panel interface PS/2 Mouse and Keyboard port, 4xUSB2.0, 4xUSB3.0, 1x Network card interface, 1x5-hole audio interface, 1xOptical audio interface
    Front panel interface 2 x USB2.0 PIN, 1 x USB3.0 PIN, 1 x Front audio pin, 1xCOM pin, 1xMotherboard buzzer, 1xpost card, 1xStart/restart button
    Support system Windows7 Windows10 Windows11
    BIOS AMI UEFI BIOS
    X99
    X99
    X99

    Before Packaging

    Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment

    x99
    x99

    Specifications

    :

    Model: HUANANZHI TF Motherboard
    CPU Socket: Support Intel® 2011-3 Processors
    Main chipset: C612... Etc chipset shipped randomly
    Memory Socket: 4*DDR3 Memory, 4*DDR4 Memory, (when use DDR3 memory support Intel® 2678V3/2676V3/2673V3/2629V3/2649V3/2669V3/2696V3), Maximum Memory Capacity 4*32G
    Memory Standard: Support Dual channel DDR3 1866/1600/1333MHz, DDR4 2400/2133/1866MHz
    SATA Inderface: 6*SATA 3.0 interface, 2*SSATA 3.0 interface
    Extended Inderface:
    IO: 1*PS/2 Mouse / keyboard interface, 4*USB 2.0, 4*USB 3.0, 1*Gigabit Ethernet Card, 6* 3.5MM Audio interface; 1*Digital audio nterfac, Expansion
    pin: 2*9pin USB 2.0, 1*19pin USB 3.0, 1*Front audio output pin
    Expansion Slots: 2*PCI Express 3.0X 16, 2*PCI ExpressX1, 1*PCI ExpressX4, 2*M. 2 NVME, 1*M. 2 WIFI
    Soud Track: 7.1
    Network interface: Gigabit Ethernet
    Power interface: 24pin+8pin
    Fan interface: 4
    PCB layer: 10 layer PCB, 6Phases power supply
    Dimension: 300*244MM ATX

    Motherboard does not support RGB

    Note:

    1. The platform needs powerful power. Please make sure your power supply is sufficient to support it (at least 500w power supply).
    2. Please allow 1-3mm differs due to manual measurement.
    3. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
    4. The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
    5. We show photos of motherboard, pictures are for reference only, subject to our available products.
    6. For Customs duties problem, pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding!
    7. Due to computer accessories is toomuch, are likely to have some small brand, bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard. You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation. Mind please don't buy!

    We promise to test and deliver the order you submitted within 24 hours
