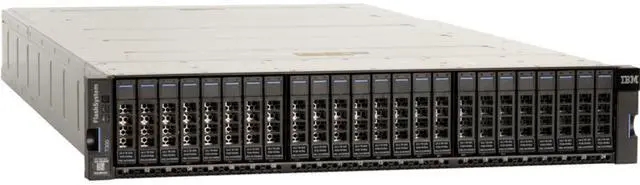

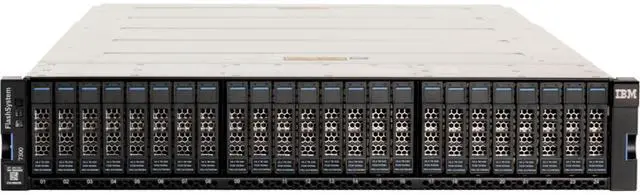

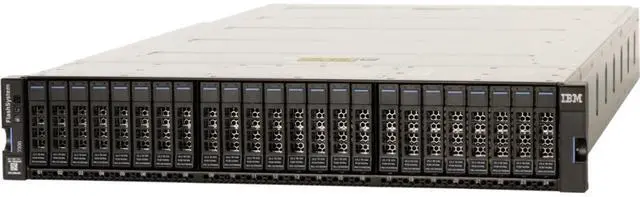

IBM FlashSystem 7300 All Flash 85TB - 2U

Be the first to review this product...
  • IBM Storage Area Networks (SAN) Solutions
  • 12 x 4.8TB IBM FlashCore Module (FCM) 4
  • 4 x 4-port 32Gb Fiber Cards
  • 756GB Cache
  • 16 x 5m OM3 Fiber Cables (LC)
  • IBM Patented IBM FlashCore Module (FCM) 4 Technology
  • 2:1 Hardware Assisted Data Reduction with no performance impact
  • Hardware Assisted Encryption
  • Fully inclusive software
  • Flash Copy and Remote Mirror as standard
  • 10GB iSCSI
  • Dual (Active/Active) Controller
  • Fully redundant, hot-swappable fans and power supplies
  • Standard 19-inch Rack Support
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the IBM 7300 All Flash 85TB

General
Brand IBM
Series FlashSystem
Model 7300 All Flash 85TB
Form Factor 2U Rackmount
Workload Storage Server
Storage Supported
SCSI 2.5-inch flash drives
SFF 2.5-inch disk drives
LFF 3.5-inch disk drives
IBM FlashCore Modules. Storage Class Memory
Max IOPs: 3.5M IOPs
RAID levels: Distributed RAID 1, 5 and 6
Min latency: Under 50µs
Max bandwidth: 45 GB/s
Maximum drives supported: Maximum of 392 drives per system
Communications
Max. LAN Speed 16/32 Gbps Fibre Channel (FC, NVMeoF)
10 Gbps Ethernet (iSCSI)
10/25/100 Gbps Ethernet (iSCSI and NVMe RDMA)
Features
Features IBM Safeguarded Copy: Yes
CyberVault Support for Cyber Resiliency: Yes
Data Reduction Pools (Compression, DeDuplication, Thin Provisioning, UNMAP): Yes
Encryption: Yes
VMWare Integration: Yes
Remote Replication (Synchronous Metro Mirror, Asynchronous Global Mirror): Yes
Hyperswap High Availability: Yes
NVMe Flash: Yes
FC-NVMe Host Connections: Yes
Easy Tier AI-driven automated tiering: Yes
Storage Class Memory: Yes
Transparent Data Migration: Yes
Red Hat OpenShift Container Integration: Yes
Scale-out Clustering: Yes
Heterogenous Support for >500 storage systems: yes
Metro Mirror (synchronous): Yes
Global Mirror (asynchronous): Yes
IBM Spectrum Virtualize Software: Yes
Snapshots: Yes
Maximum drives supported: Maximum of 392 drives per system
Dual Controller: Yes
Cache per control enclosure: From 256 GB up to 1,536 GB
Cache per clustered system: 6 TB
Cores per control enclosure: 40
Cores per clustered system: 160
Maximum standard expansion enclosure capacity: Up to 10 standard expansion enclosures per controller
Maximum high density expansion enclosure capacity: Up to 4 high-density expansion enclosures per controller
Redundant, hot-swappable fans: Yes
Redundant, hot-swappable power supplies: Yes
Standard 19-inch rack support: Yes
