Does this utilize six sata cables, one for each drive?

I find this question odd because newegg has obviously provided an extra enlarged photo of the back of this device clearly showing 6 ports for 6 data cables and 2 ports for 2 power cables.

How loud are the fans on high?

I read a few reviews that indicated they would be loud. They are loud when on the full setting. Given the nature of where these systems would be placed for my use case, I replaced them with Noctua fans (which are also loud on full settings). However, I was concerned with longevity as well, so I was willing to pay the Noctua premium. On the low setting, you can't really hear them at all (stock or Noctua) over ambient noise.

What is the total height/tallest point of this board?

This isn't a board. It's a drive bay that holds six 2 1/2 inch SSD's or hard drives and fit's in a standard 5 1/4 inch external drive bay like those used for a full sized optical drive. Click on the specifications tab on Newegg's web page for this item and the dimensions are listed there. If you click on the warranty tab for an item there's a link to the manufacturer's web page for that item. The manufacturer's web page often has more detailed information and downloads.

$98^.43

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Technology Galaxy

Top Rated

4.2 (2,318 seller ratings)

Shipped by Technology Galaxy

Best Sellers

antonline

Top Rated

4.5 (17,946 total ratings)

$99^.00
+ FREE SHIPPING

BeachAudio

Top Rated

4.4 (8,544 total ratings)

$107^.19

AS Group LLC

Hot Seller

3.6 (82 total ratings)

$115^.72
+ FREE SHIPPING

Meet Your Seller

Technology Galaxy

See Seller Store

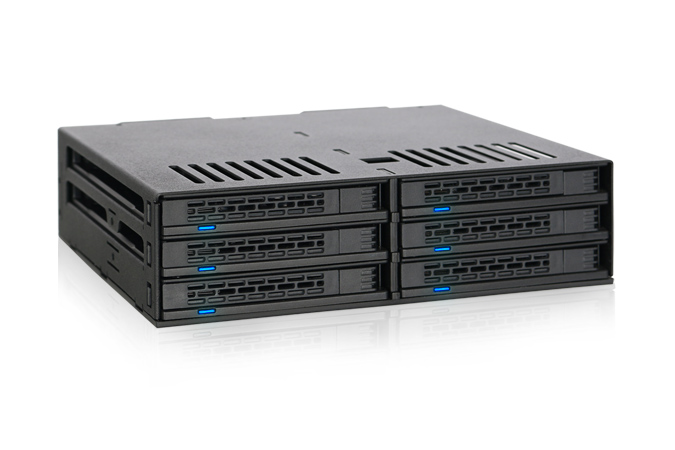

Main image of ICY DOCK MB326SP-B | 6 Bay 2.5” SATA HDD / SSD Hot Swap Backplane Cage Enclosure for External 5.25” Bay | ExpressCage Series

100%

Alt view image 2 of 4 - ICY DOCK MB326SP-B | 6 Bay 2.5” SATA HDD / SSD Hot Swap Backplane Cage Enclosure for External 5.25” Bay | ExpressCage Series

Alt view image 3 of 4 - ICY DOCK MB326SP-B | 6 Bay 2.5” SATA HDD / SSD Hot Swap Backplane Cage Enclosure for External 5.25” Bay | ExpressCage Series

Alt view image 4 of 4 - ICY DOCK MB326SP-B | 6 Bay 2.5” SATA HDD / SSD Hot Swap Backplane Cage Enclosure for External 5.25” Bay | ExpressCage Series

360^°

Customer images

Shop All ICY DOCK Products | Visit Technology Galaxy Store

ICY DOCK MB326SP-B | 6 Bay 2.5” SATA HDD / SSD Hot Swap Backplane Cage Enclosure for External 5.25” Bay | ExpressCage Series

(75)(1) Write a Review

Model: 1 Pack

2 x 2.5in (SATA)
4 x 2.5in
1 Pack

Option: Express Cages 6Bay

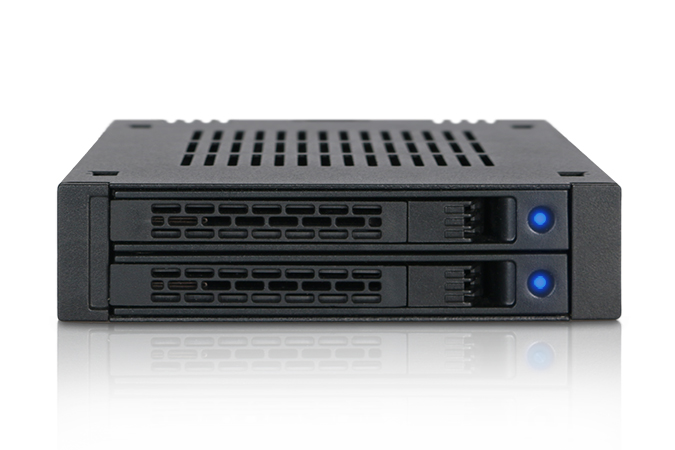

Express Cages 2Bay
Express Cages 2Bay + HDD

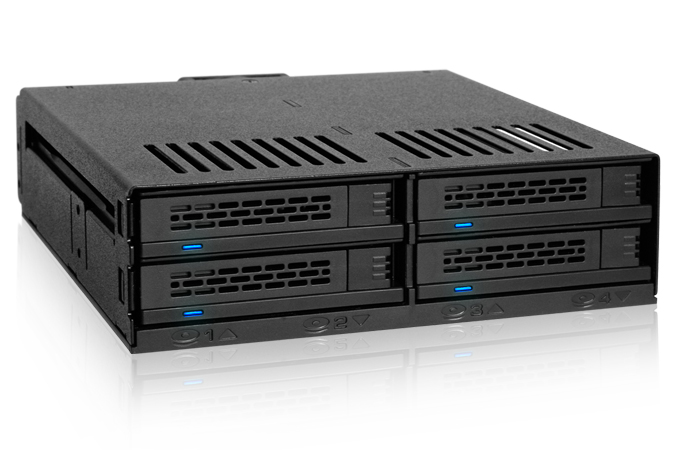

Express Cages 4Bay
Express Cages 6Bay
Express Cages 2 Bay + ODD

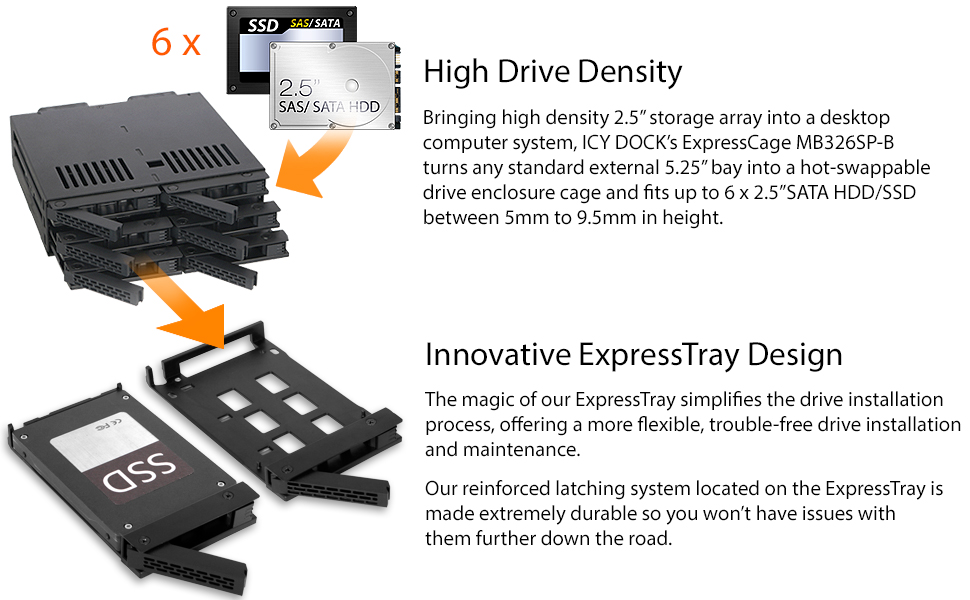

Supports up to 6 x 2.5" SATA HDD/SSD into a single 5.25" bay
Support SATA III 6Gbps
Hot-swappable bays for quick drive installation
Accommodates 2.5" drives with 5mm, 7mm & 9.5mm height

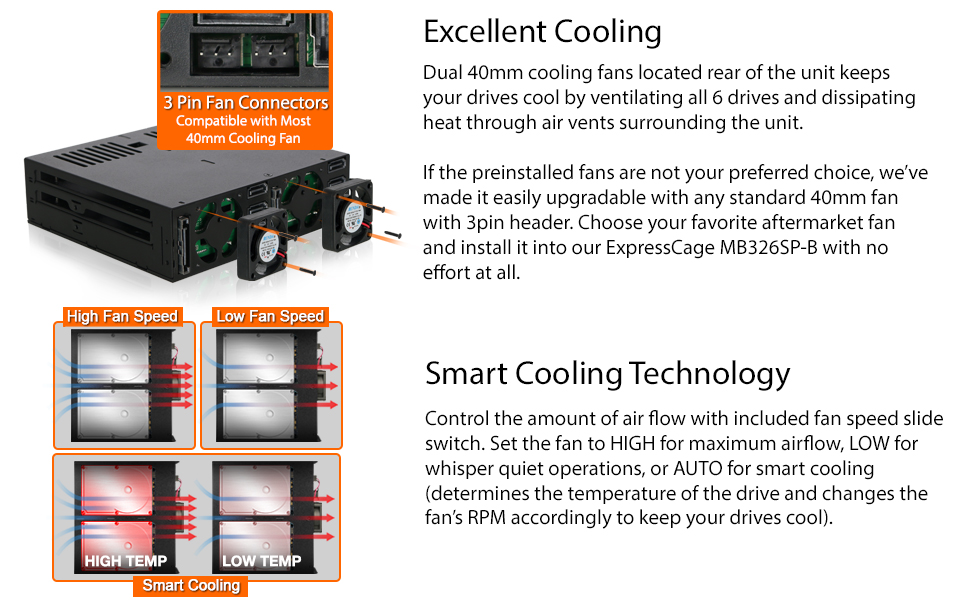

Dual 40mm fan for drive cooling
Fan speed control for HIGH, LOW, and AUTO (smart cooling) settings

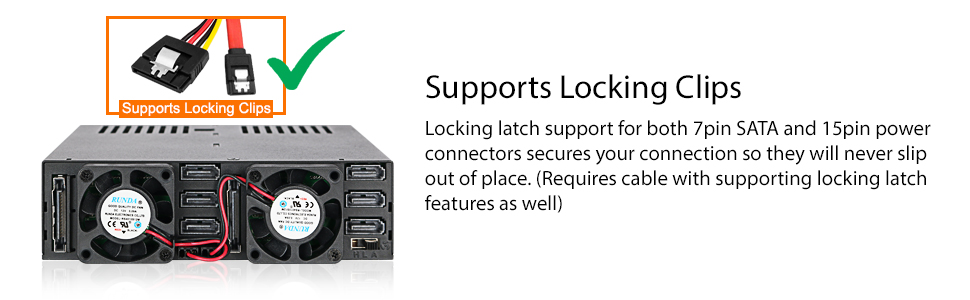

2 x 15pin SATA power connection powers all 6 drives
Designed for power users and system builder applications, mainly space saving and hot swap usage and for 2.5" HDD or SSD
3 Years Warranty

Overview

Specs

Reviews (75)

Any questions? Our AI beta will help you find out quickly.

Try me now

ICY DOCK 6 x 2.5? SATA HDD / SSD Hot Swap Cage for External 5.25? Bay | ExpressCage MB326SP-B (MB326SP-B)

Best Seller Ranking	#21 in HDD / SSD Accessories

Model
Brand	ICY DOCK
Model	MB326SP-B
Color	Black

Details
Conversion Tray	6 x 2.5" SATA 6Gbps/SAS HDD/SSD Mobile Rack / Cage in 1 x 5.25" bay
Mobile Rack Drives Support	1 x 5.25" Drive to 6 x 2.5" Bay
Mobile Rack Interface	SATA I/II/III/SAS
Protection Case	Multiple Drives
Compatible Products	2.5"
Specifications	Host Interface: 6 x 7pin SATA Compatible Drive Heights: 5mm, 7mm & 9.5mm Transfer Rate: Up to 6 Gb/sec. (depending on hard drive speed) Power Input: 2 x 15pin SATA power port Insert& Extract connection Via: Direct SAS/ SATA hard drive connection Structure: Plastic and metal Drive Cooling: 2 x 40mm rear cooling fan Fan Speed Control: High / Low / Auto Switch Power Indicator: Solid blue LED HDD Access Indicator: Blinking blue LED Dimension: 5.77" x 1.63" x 5.74" Weight : 0.97 lb.
