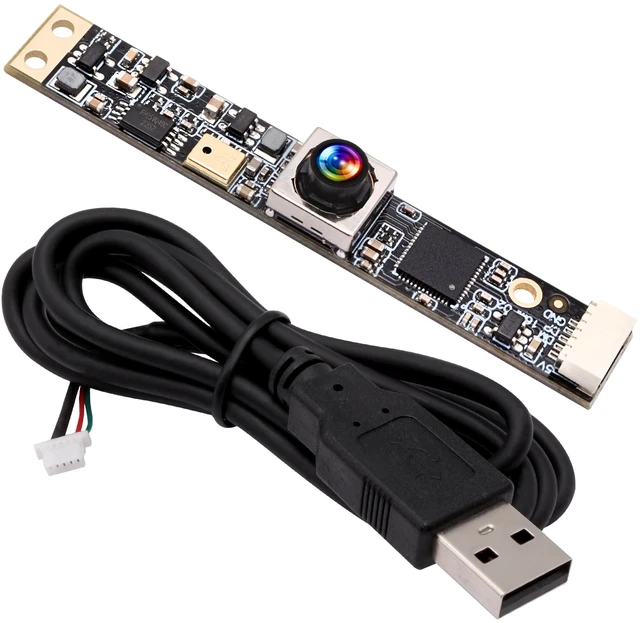

16mp Mini Strip Autofocus USB Camera Module with Microphone for Computer | UVC USB2.0 Lightburn Camera for Laser, Auto Focus Micro USB Security PC Camera, Industrial CCTV Video Webcam for Robotics

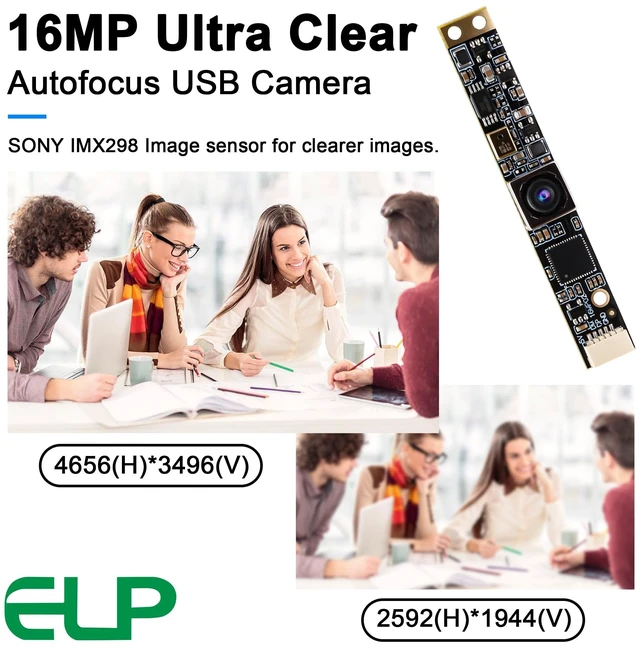

- Ultra HD:This small camera module adopts 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max.

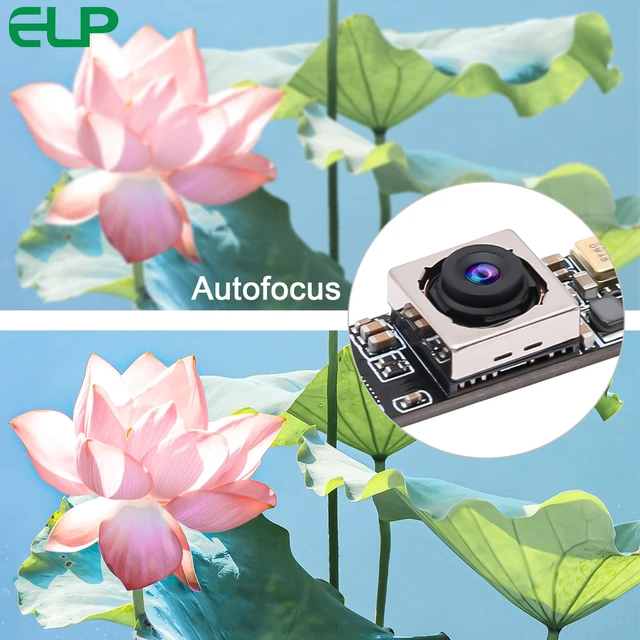

- Autofocus: Mounted a High quality Autofocus lens, which can get about HOV 68degree

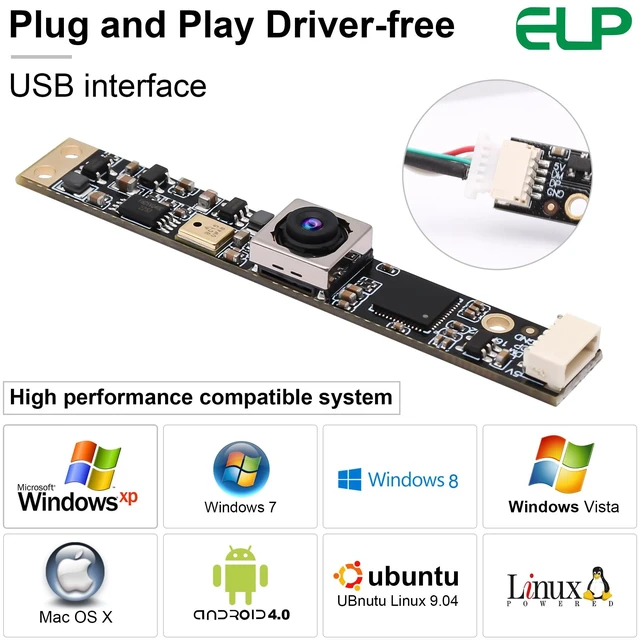

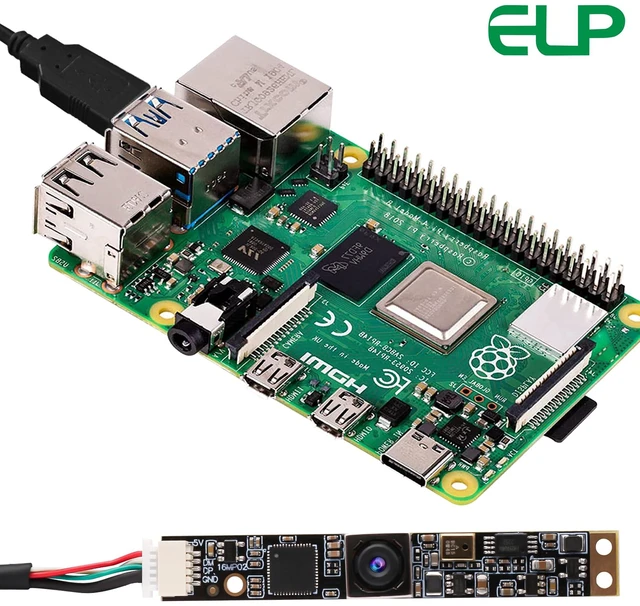

- Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
- High Frame Rates:MJPEG 10fps@4656x3496/4160X3120/ 3840X2160/2592X1944, MJPEG 30fps@2048X1536/1600X1200/1280X720;
- Applications:This micro mini size 62.3*9*7mm camera board can be installed in most narrow position, highly recommended for a home video surveillance system, dashcam and other vision applications demand high resolution.Great for document scan or computer vision, machine vision, High Resolution Video Capture.
- Camera with UVC for computer, laptop, pc, etc.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Model: WB-USB16MP02-AF68/100
Sensor: IMX298
Sensor Size:1/2.8inch
Pixel Siz:e1. 12umx1.12um
Image Area:6.4mm x5.3mm
Max. Resolution:4656(H) X3496(V) 16 Megapixel
Compression Format: MJPEG / YUY2 (YUYV)
Resolution& Frame Rate:
4656 x3496 MJPEG@ 10fpsYUY2@ 1fps
4208 x3120 MJPEG@ 10fps
4160 x3120 MJPEG@ 10fps
4000 x3000 MJPEG@ 10fps
3264 x2448 MJPEG@ 10fpsYUY2@ 1fps
2592 x1944 MJPEG@ 10fpsYUY2@1fps
2320 x1744 MJPEG@ 15fpsYUY2@1fps
2048 x1536 MJPEG@30fpsYUY2@ 1fps
1920 x1080 MJPEG@30fpsYUY2@5fps
1600 x1200 MJPEG@30fpsYUY2@5fps
1280 x960 MJPEG@30fpsYUY2@ 10fps
1280 x720 MJPEG@30fpsYUY2@ 10fps
1024 x768 MJPEG@30fpsYUY2@ 10fps
800 x600 MJPEG@30fpsYUY2@ 15fps
640 x480 MJPEG@30fps
Min Illumination:0.5 Lux
Shutter Type: Electronic Rolling Shutter/ Frame Exposure
Connecting Port Type: USB2.0 HighSpeed
Free Drive ProtocolUSB Video Class( UVC)
AEC Support/AWB Support/AGC Support
Adjustable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White
Balance,Backlight Contrast,Exposure
Lens Parameter: AF LENS HFOV: about 65 Degree
Power Supply: USBBUSPOWER4P- 1.0mmSocket
Digital Audio Support
Operating Voltage: DC5V
Working Current: 150mA~280mA
Working Temperature: -10~70C
Storage Temperature: -20~85C

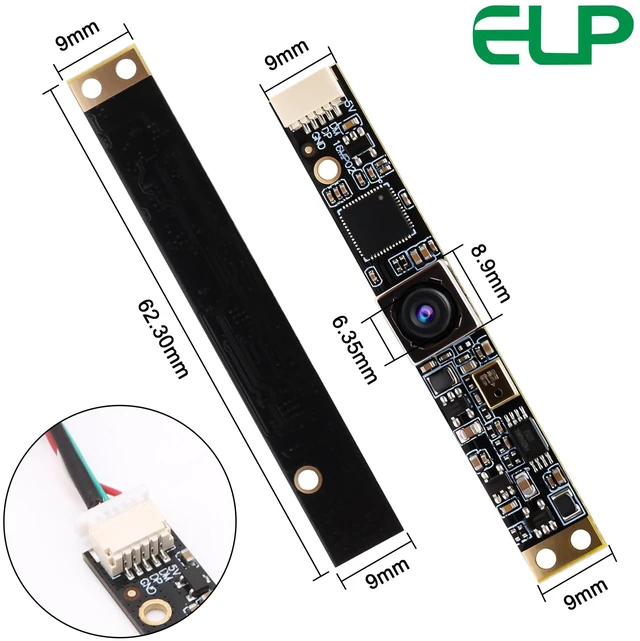

Board Size/Weight: 62.3 x9 x5.5mm/ about20g
Cable: Standard1m
Operating System Request
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (aboveLinux-2.6.26)
MAC-OSX10.4.8 or later
Android4.0 or above with UVC
