Send audio & video from 1 HDMI source to 4 HDMI displays
Cinema 4K resolutions up to 4096 x 2160 @ 60Hz, (4:2:0)
Long distance connections to 49 ft. (24 AWG)
Dolby True HD and DTS HD Master Audio
Supports up to 10.2 Gbps data speeds for high performance video
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

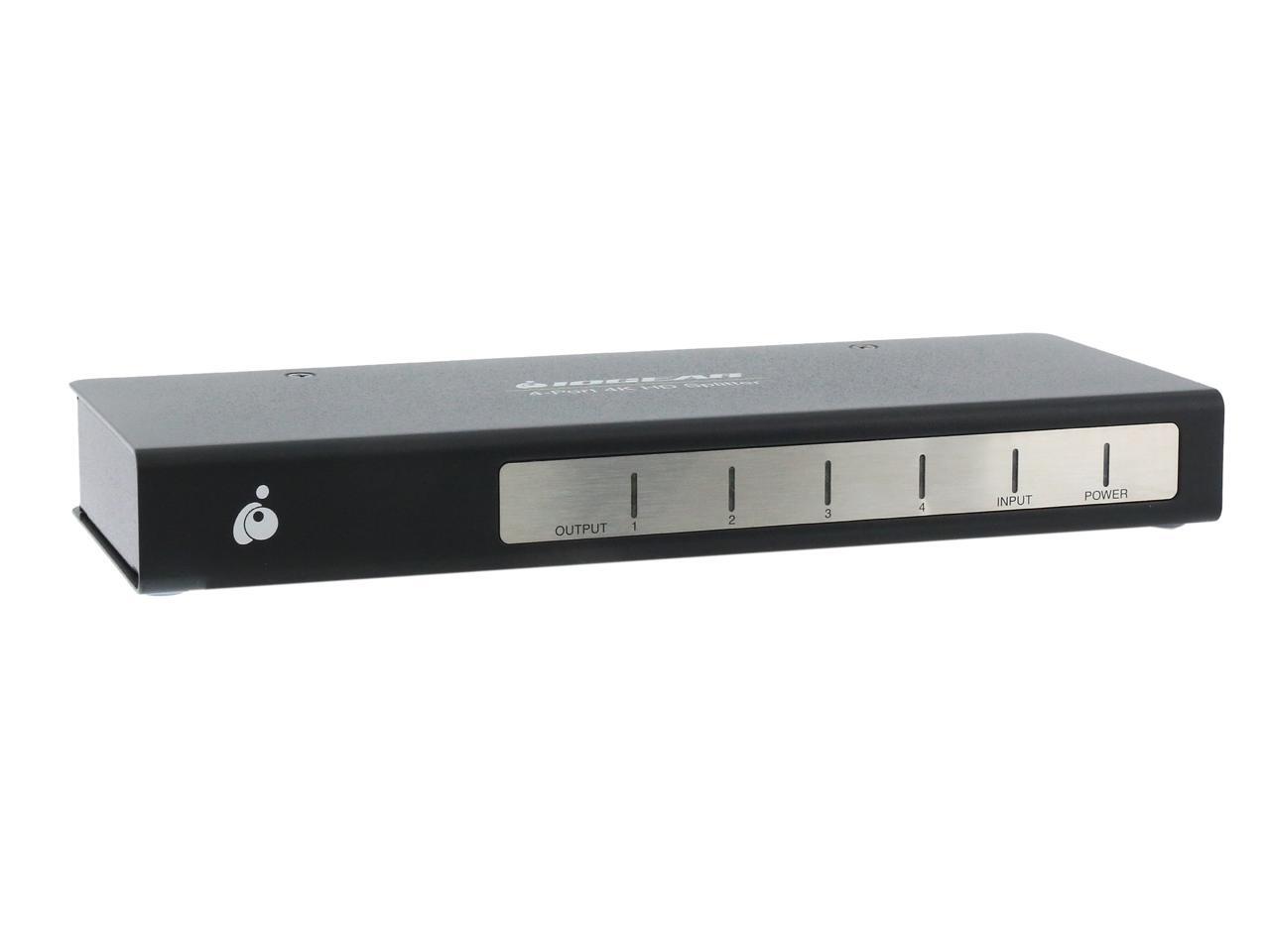

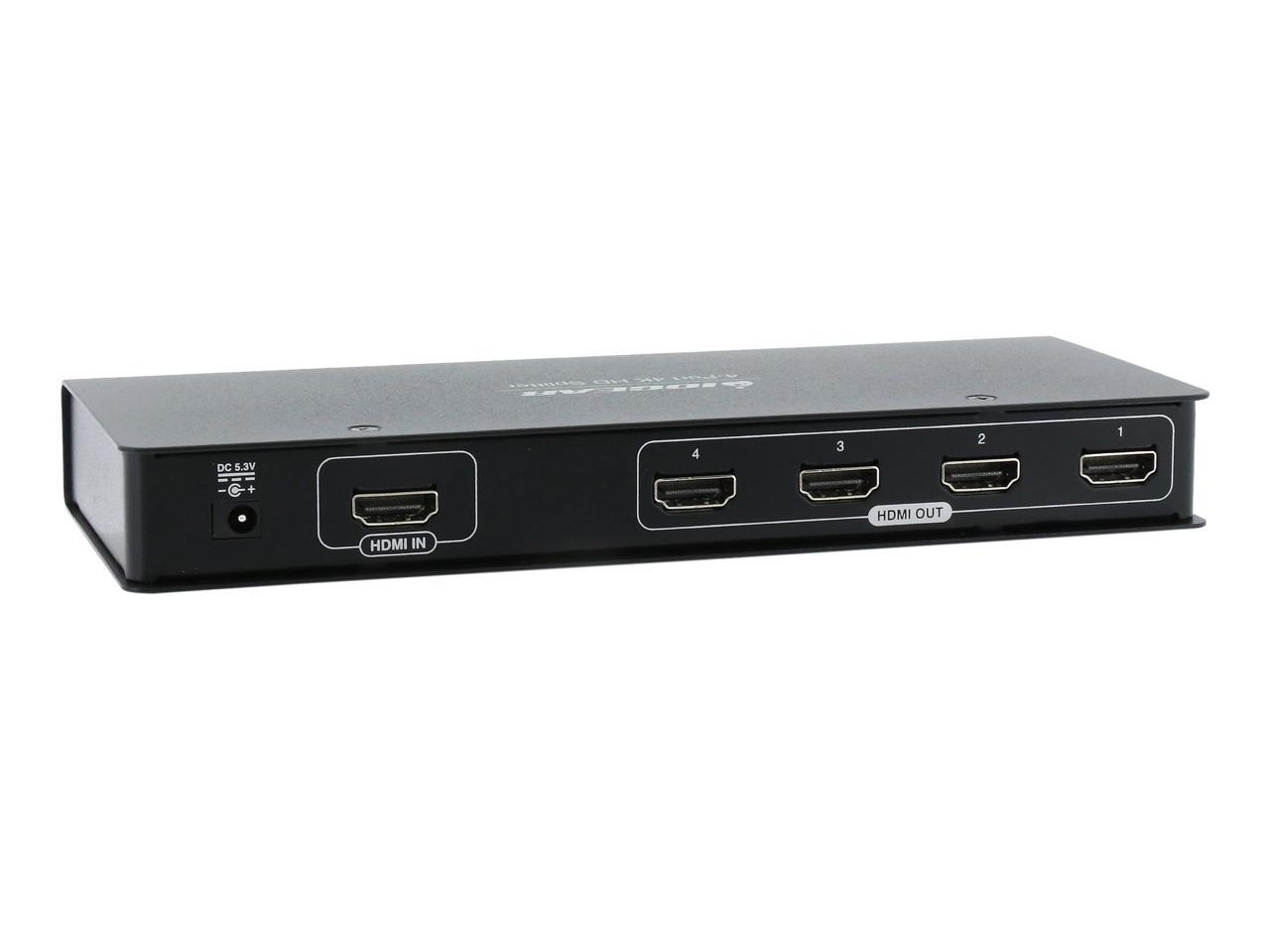

4-Port Cinema 4K Splitter With HDMI® Send Cinema 4K audio and video from a single HDMI source such as a set-top box, game console, Blu-ray™ player or media server or computer to four 4K displays or projectors. Highest Quality Video at Extended Distances Deliver exceptional Cinema 4K resolutions (4096 x 2160 @ 60Hz) with crisp, 3D, and Deep Color images up to 4K 12- bit (4:2:0), or 68 billion colors, for a remarkable visual experience. The splitter extends the distance between your HDMI video sources and your HDMI displays up to 49 feet with data rates up to 10.2 Gbps, providing greater flexibility in system design. Package Contents: 4-Port Cinema 4K Splitter with HDMI Connectors 1 x Power Adapter 1 x HDMI Cable 1 x Mounting KIt 1 x Quick Install Guide Material: Metal Product Type: Signal Splitter Product Type: Signal Splitter Input Voltage: 5.3 V DC Manufacturer Part Number: GHSP8424B Packaged Quantity: 1 Limited Warranty: 3 Year Weight (Approximate): 14.11 oz Length: 7.9 Manufacturer: IOGEAR, Inc Product Name: 4-Port Cinema 4K Splitter with HDMI Connectors Brand Name: IOGEAR Brand Name: IOGEAR Height: 1 Depth: 3.2 Number of HDMI Inputs: 1 Number of HDMI Outputs: 4 Environmentally Friendly: Yes Environmental Certification: WEEE Environmental Certification: RoHS Maximum Video Resolution: 4096 x 2160 Maximum Operating Distance: 49 ft Number of HDMI Inputs: 1 Number of HDMI Outputs: 4 HDMI In: Yes HDMI Out: Yes
Learn more about the IOGEAR GHSP8424B
Model
Brand
IOGEAR
Model
GHSP8424B
Details
Splitter Type
HDMI
Specification
Video Streaming: Max Data Rate 10.2 Gbps Operation Temperature: 0 - 50 celsius degree Storage Temperature: -20 - 60 celsius degree Humidity: 0 - 80% RH, Non-Condensing
Performance
Resolution Support
4096 x 2160 @ 60 Hz
Connection
HDMI

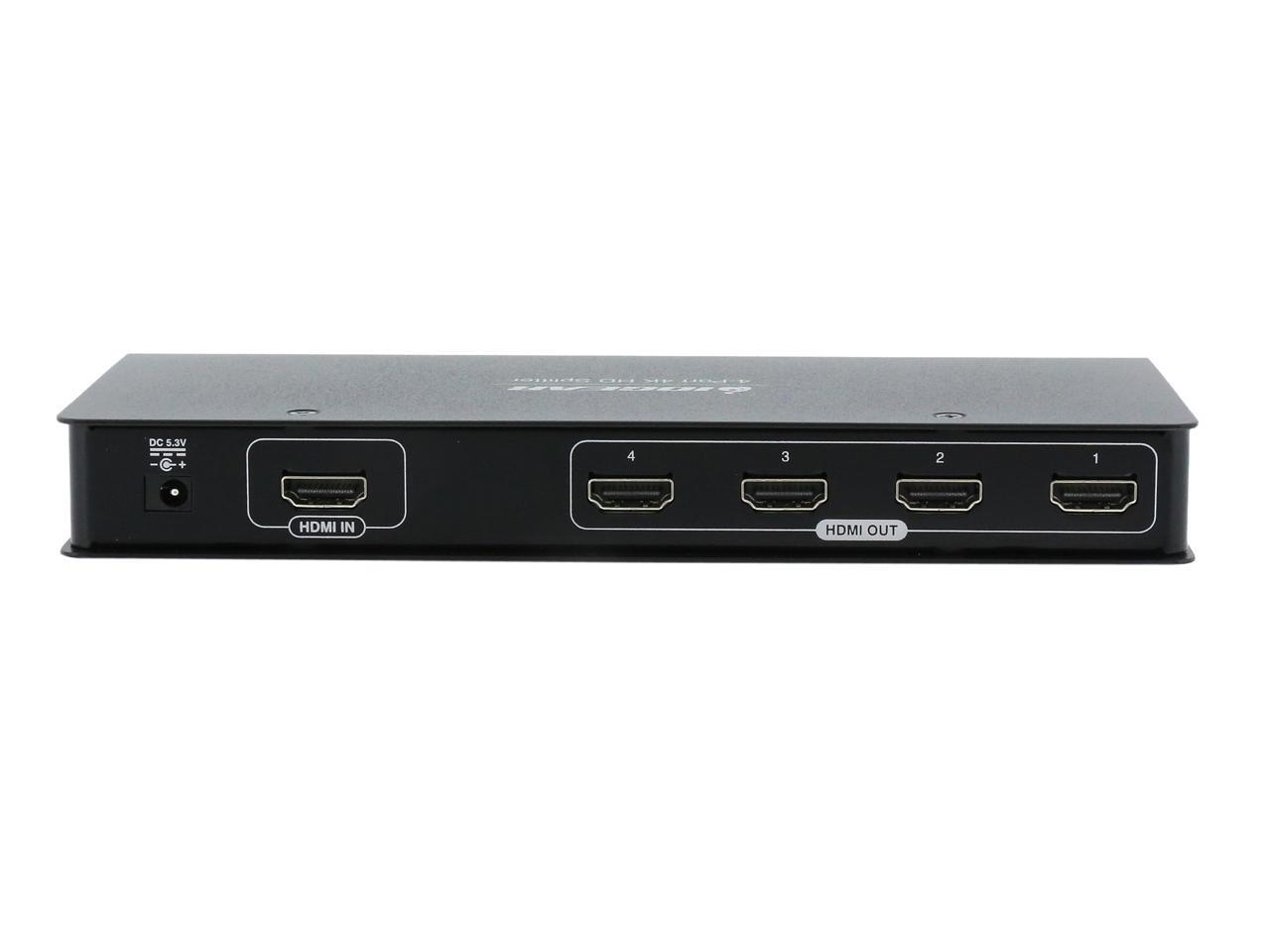

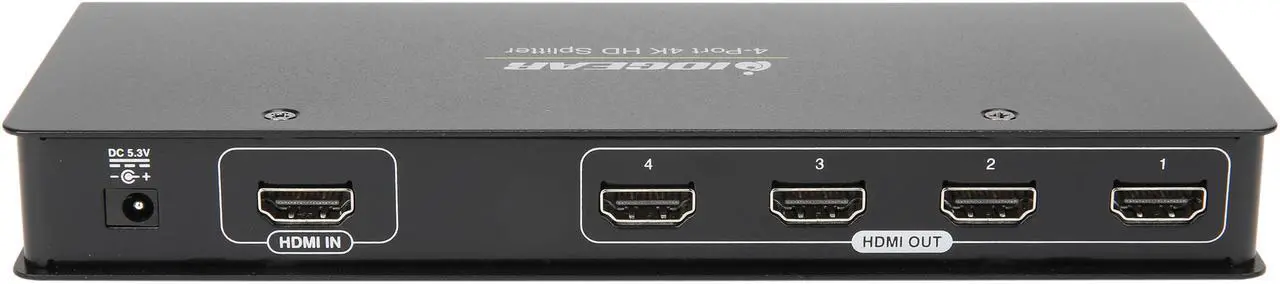

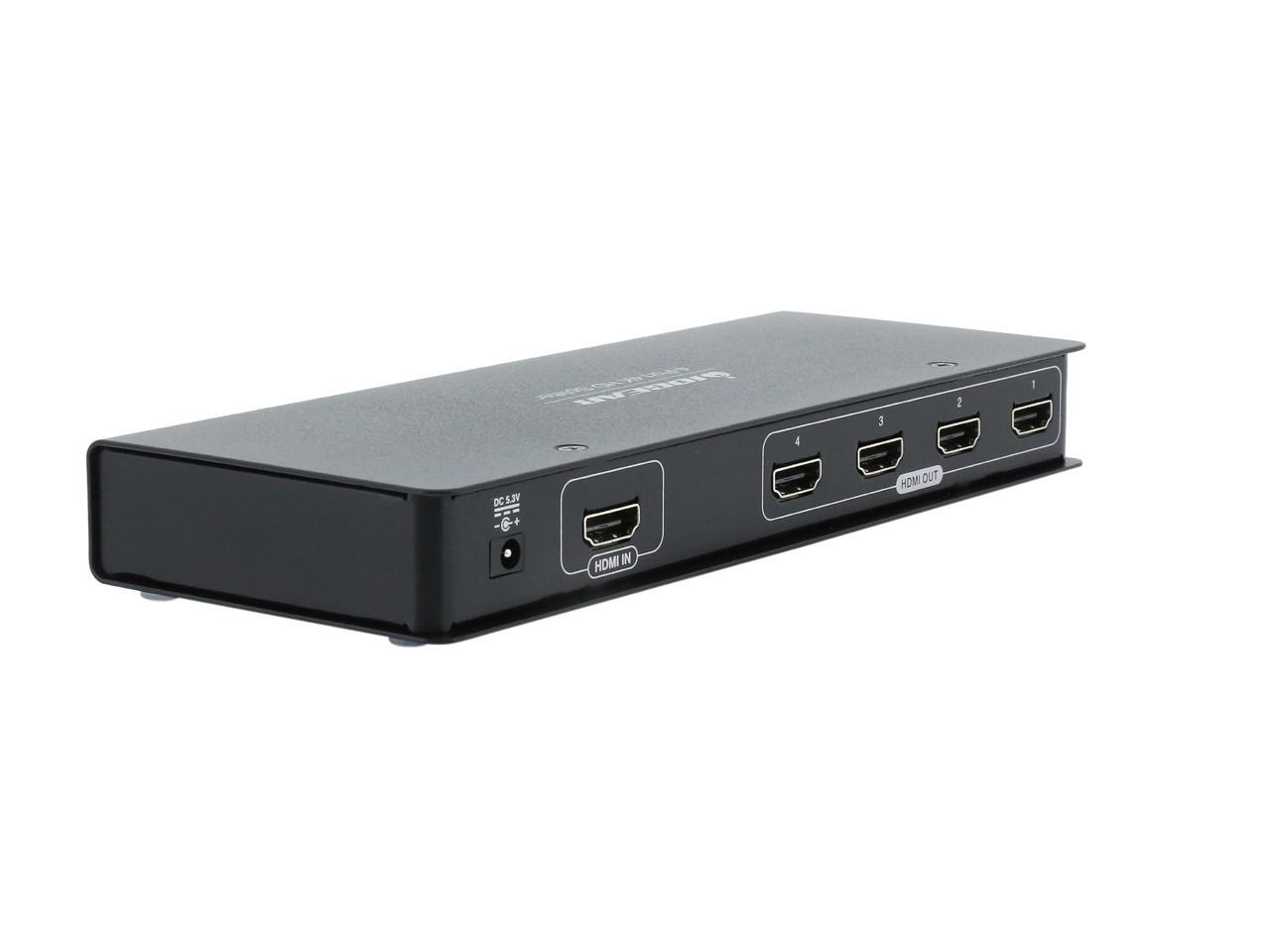

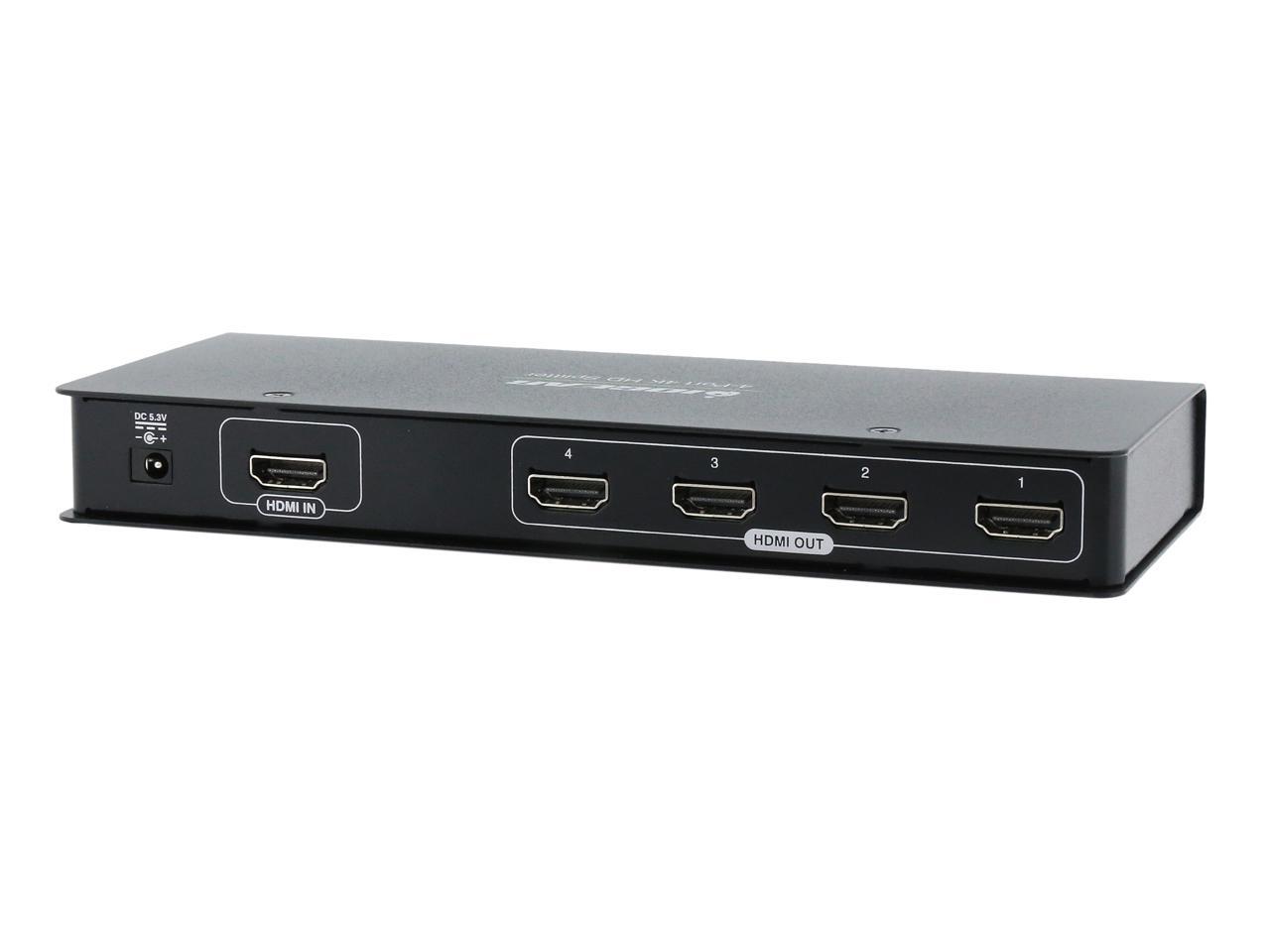

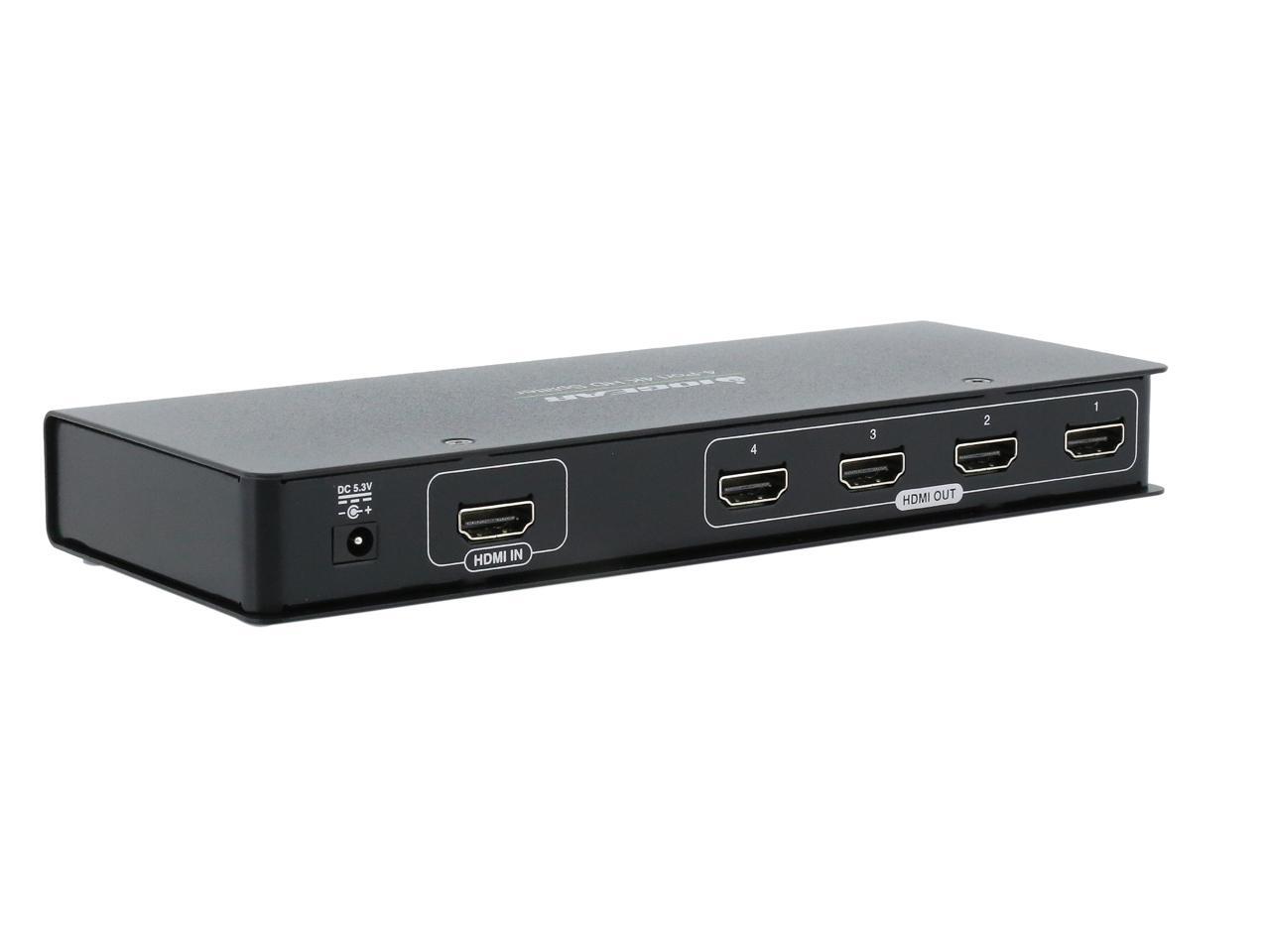

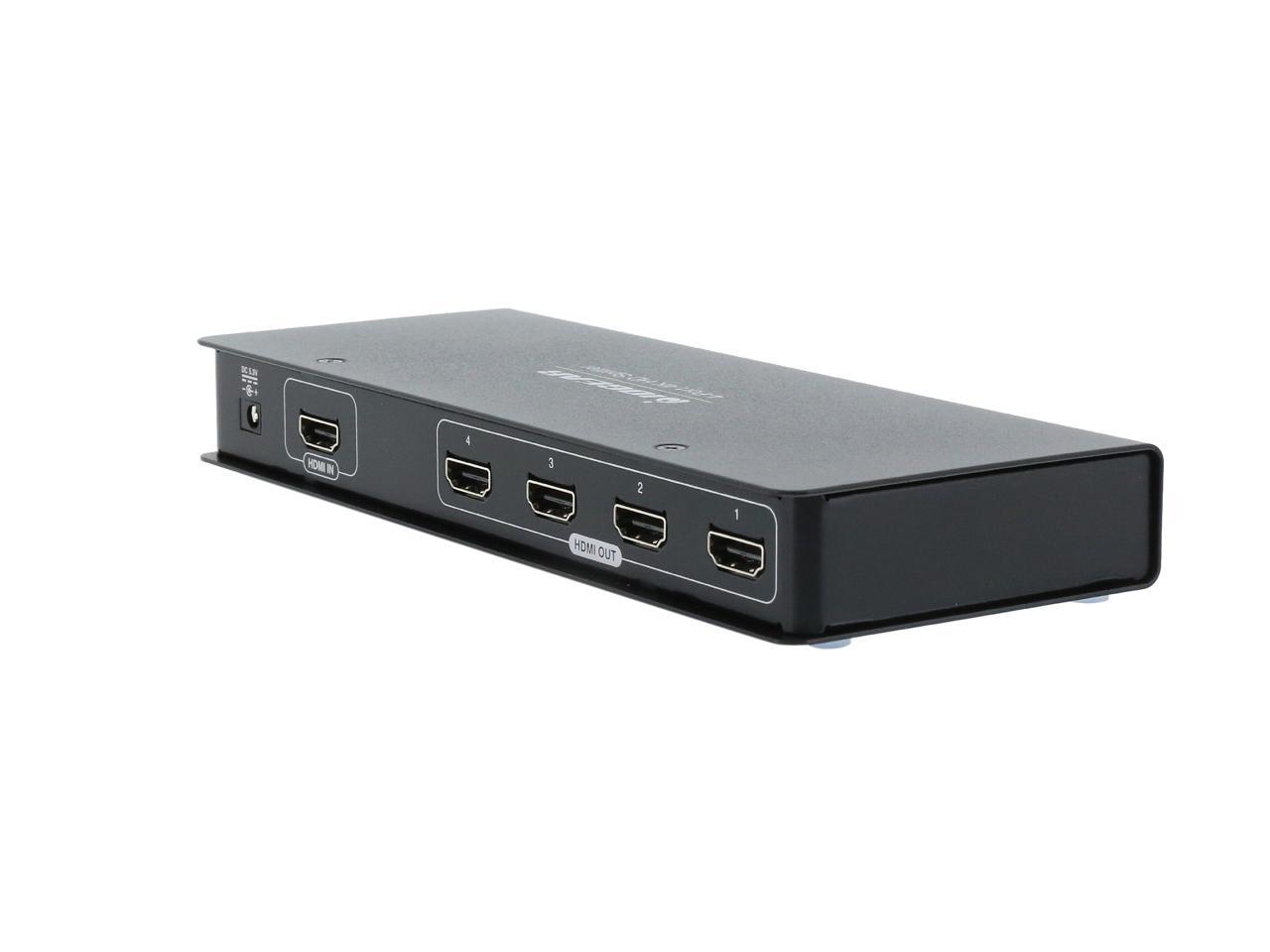

Input: HDMI Type A Female Output: HDMI Type A Female
Compatibility
System Requirements
Video source with HDMI output Display with HDMI input
Power
Power Consumption
6.02W
Power Supply
5.3V/2.4A
Feature
Feature
Send audio & video from 1 HDMI source to 4 HDMI displays
Cinema 4K resolutions up to 4096 x 2160 @ 60 Hz (4:2:0)
Long distance connections to 49 ft. (24 AWG)
Dolby True HD and DTS HD Master Audio
Supports up to 10.2 Gbps data speeds for high performance video
Plug-n-play - No software installation required
HDMI 1.4 & HDCP 1.4 compatible
Rack Mountable
All metal chassis
Dimensions & Weight
Dimensions
0.98" x 7.87" x 3.15"
Weight
1.09 lbs.

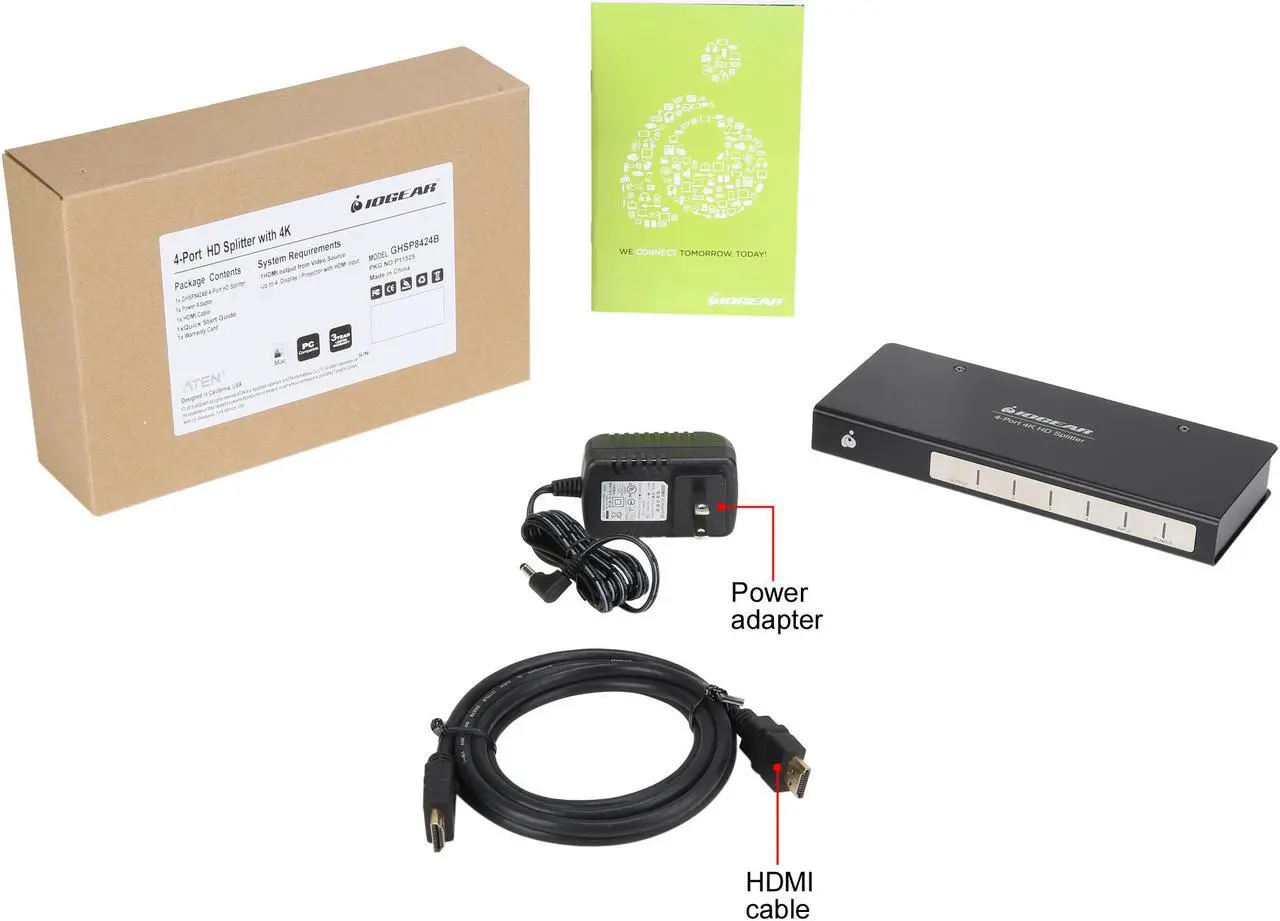

Package Contents
Package Content
1 x GSP8424B 4-Port HDMI Splitter 1 x Power Adapter 1 x HDMI Cable 1 x Mounting KIt 1 x Quick Install Guide
