Hi I purchased this computer case from you a few months ago: Rosewill RSV-L4500 - Server Case or Chassis, 4U Rackmount - 15 Internal Bays, 8 Cooling Fans Included I was wondering if this case would house that? Thanks Ray Miller

Ray Yes I think it believe so. I will double check with my installer and reply back to you again Friday.

What are the dimensions of the iStarUSA WD-1245 server rack?

The dimensions of the iStarUSA WD-1245 server rack are 20.28" x 27.50" x 17.70".

What is the weight capacity of the iStarUSA WD-1245 server rack?

The weight capacity of the iStarUSA WD-1245 server rack is 220 lbs.

Does this rack come with the wheels and is it 27.5" with or without wheels?

Yes the rack comes with wheels and is 27.5" tall with the wheels installed.

Out of stock

$322^.99

$379.99

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

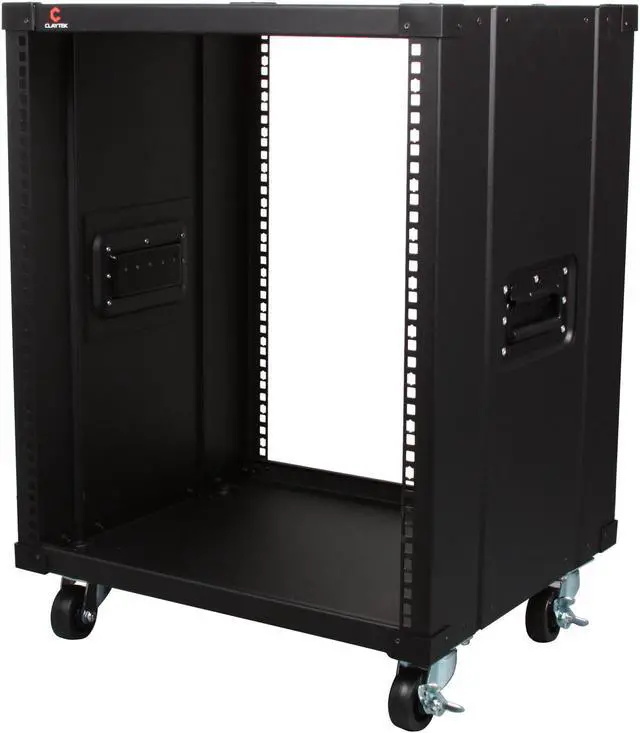

Main image of iStarUSA WD-1245 12U 450mm Depth Simple Server Rack

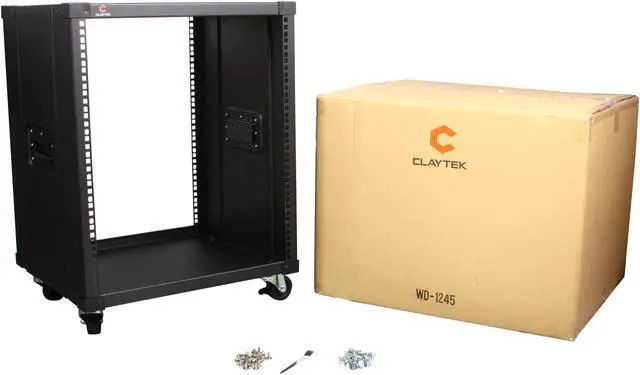

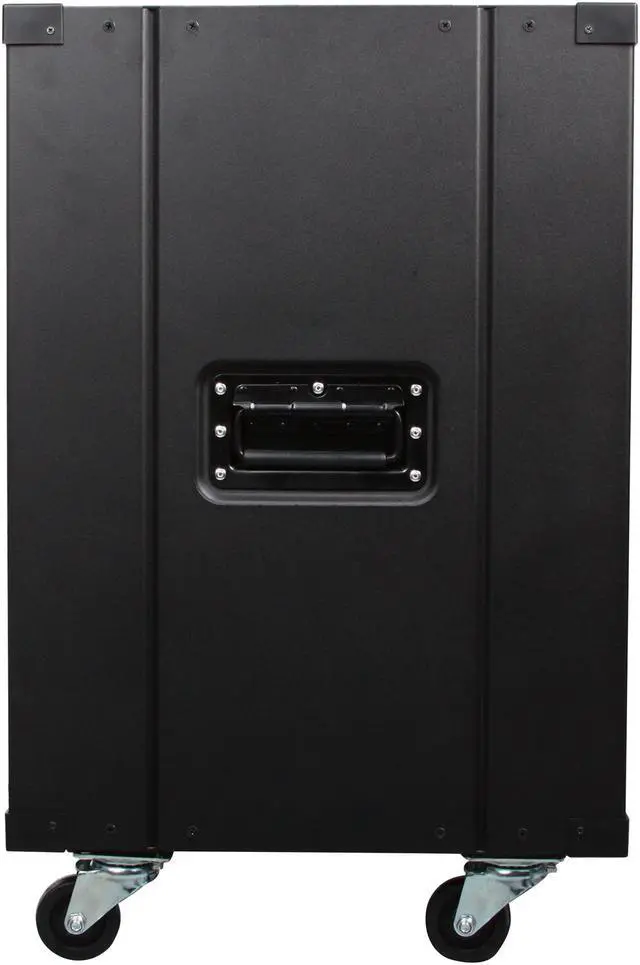

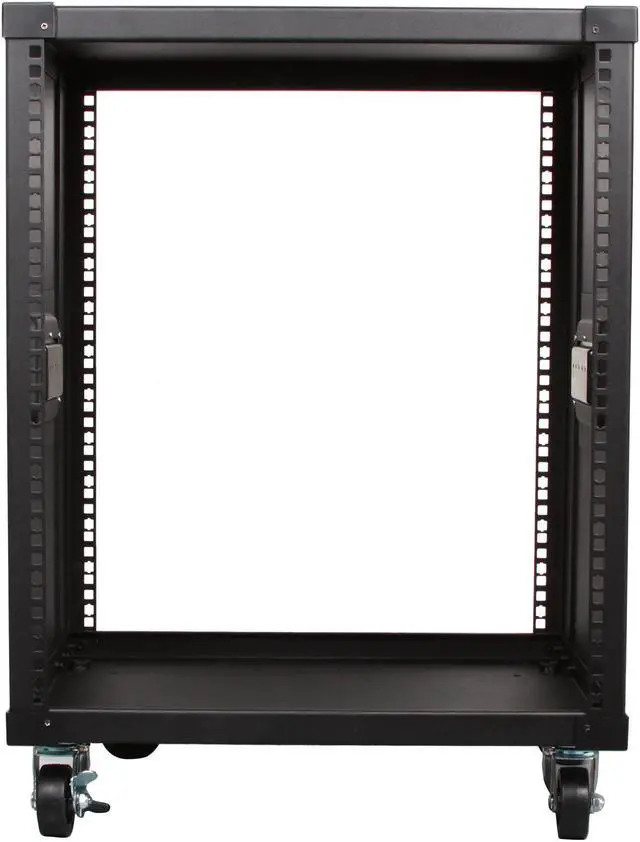

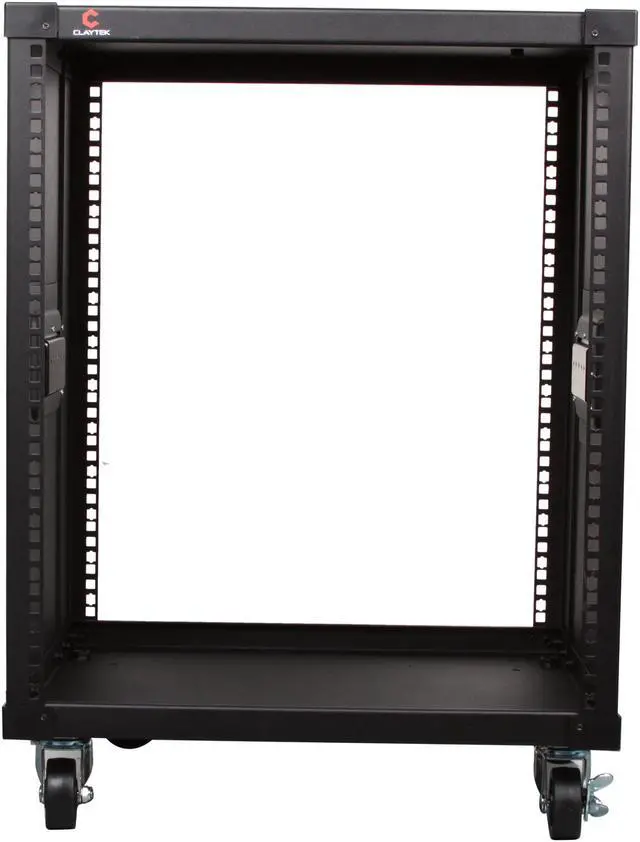

Alt view image 2 of 5 - iStarUSA WD-1245 12U 450mm Depth Simple Server Rack

Alt view image 3 of 5 - iStarUSA WD-1245 12U 450mm Depth Simple Server Rack

Alt view image 4 of 5 - iStarUSA WD-1245 12U 450mm Depth Simple Server Rack

Alt view image 5 of 5 - iStarUSA WD-1245 12U 450mm Depth Simple Server Rack

Shop All IStarUSA Inc. Products

iStarUSA WD-1245 12U 450mm Depth Simple Server Rack

(6) Write a Review

Black
Steel SPCC 2.0mm
220 lbs. Weight Capacity
Rack Enclosure

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (6)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

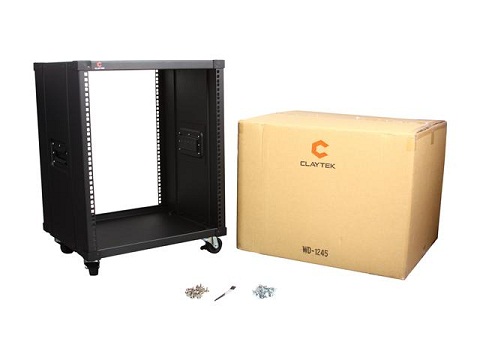

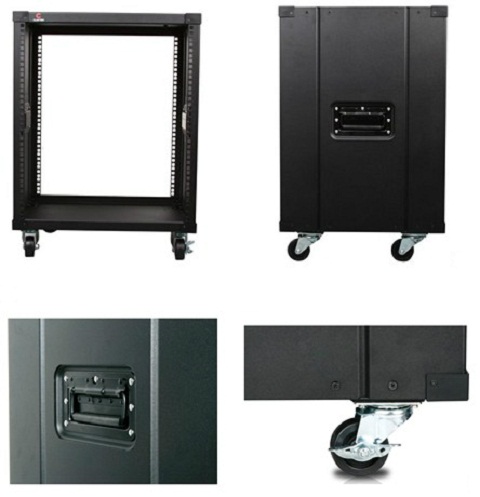

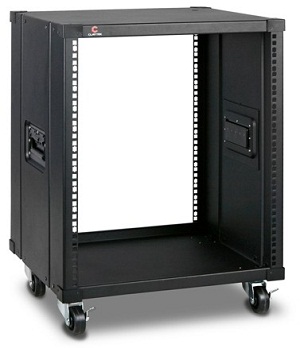

iStarUSA Server Rack WD-1245

WD simple portable rack series is built with 3 different depth, 450mm, 600mm, and 800mm, and with high-quality steel structure. It is lightweight with casters loaded to provide ultimate mobility for your critical rackmount equipment. Optional heavy duty wood top, LCD arm, and feet can be equipped with the rack for easy maintenance. These stylish open racks are optimized for small business, research institutions, and professional studio, and are also ideal for countertops or under desk applications. From 4U to 18U, WD series supports any combination of standard rack mount servers or equipment in a compact form factor.

Product Features

Compatible with Most of Rackmount Chassis and Equipment
Applications: Countertops or Under Desk
Lightweight and Easy to Transport with Caster
Max Air Flow and Temperature Control by Central AC
Quick Access to Rackmount System
Optional LCD Monitor ARM (part #: WA-LCDARM)
Optional Wood Top (part #: WA-WJW450)
Optional Feet (part #: WA-FEET)
Compatible with HP/Dell/ IBM servers equipped with sliding rails
Comes with M5 Mounting Screws and Cage Nuts
Easy and Quick Installation

Specifications

Model Number	WD-1245
RoHS Compliance Version	Yes
Form Factor	12U
Material	Steel SPCC 2.0mm
Color	Black (Special Color on Request)
Loading Capacity	220 lbs
Supported Chassis Depth	17" and under
Dimensions (WxHxD)	20.28" x 27.50" x 17.70"
Notes	- HTS code: 8473.30.5100 (ECCN is not applicable).

What's in the box

Model
Brand	iStarUSA
Model	WD-1245

Details
Type	Rack Enclosure
Rack Units	12U
Color	Black
Material	Steel SPCC 2.0mm
Weight Capacity	220 lbs.
Specification	Supported Chassis Depth: 17" and under

Features
Features	Compatible with Most of Rackmount Chassis and Equipment Applications: Countertops or Under Desk Lightweight and Easy to Transport with Caster Max Air Flow and Temperature Control by Central AC Quick Access to Rackmount System Optional LCD Monitor ARM (part #: WA-LCDARM) Optional Wood Top (part #: WA-WJW450) Optional Feet (part #: WA-FEET) Compatible with HP/Dell/ IBM servers equipped with sliding rails *1. HTS code: 8473.30.5100 (ECCN is not applicable).

Dimension & Weight
Unit Dimension	20.00" x 27.50" x 17.70"

Group
Rack Units	12U

Additional Information
First Listed on Newegg	February 09, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for replacement - Contact Manufacture for Assistance

This item is covered by Newegg.com's Manufacturer Only Return Policy. Read full return policy for details.
