Jetway HBJC310U91-2930-B Black Mini / Booksize Barebone System

OUT OF STOCK.
  • Intel Mobile Celeron N2930 1.83GHz
  • 1 x 204Pin SO-DIMM
Overview
Specs
Reviews

Jetway 204-Pin SO-DIMM Black Mini / Bookshelf Barebones System

  • INTEL® Bay Trail-M N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W
  • Embedded Long-life Series, 5-Year Availability
  • NUC Form Factor (101mm X 101mm) Design for Fanless Systems
  • 9 - 24VDC jack on back panel for external power supply
  • Two HDMI & DDR3L
  • ECO-design for EuP/ErP
  • Windows 10 Technical Preview tested and verified

Specifications

Model No. JBC310U91-2930-B | JBC310U91-2930-S
Part No. HBJC310U91-2930-B | HBJC310U91-2930-S
Motherboard Specifications
CPU Fanless INTEL® Bay Trail-M Celeron N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W
Memory 204-Pin DDR3L-1333 SO-DIMM Single Channel, up to 4GB (1.35V required)
VGA Intel® HD Graphics
LAN Intel® WG82574L Gigabit Ethernet
Audio Realtek ALC887 Audio CODEC with SPDIF out
Storage Full size mSATA Slot
Wireless / Mini-PCIE Slot Half size Mini-PCI Express Slot Wireless 802.11 b/g/n + Bluetooth 4.0
Board Form Factor NUC Form Factor (101mm X 101mm)
Chassis Specifications
Product size 4.5 x 4.3 x 1.9 in. (116 x 110 x 49mm)
Material Lightweight aluminum alloy with exterior aluminum IO panel
Color Black and Sliver
HDD NA

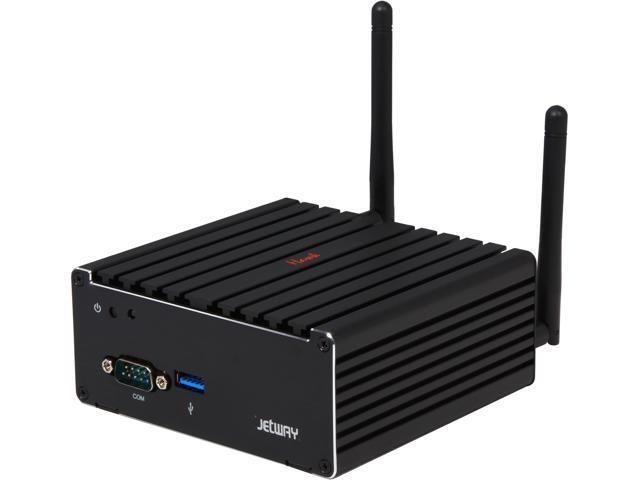

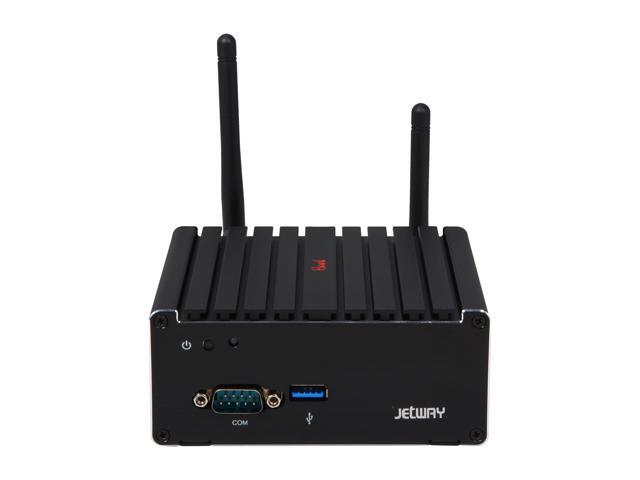

Front I/O Port
  • Power Button
  • Power LED
  • COM Port
  • USB 3.0 Port

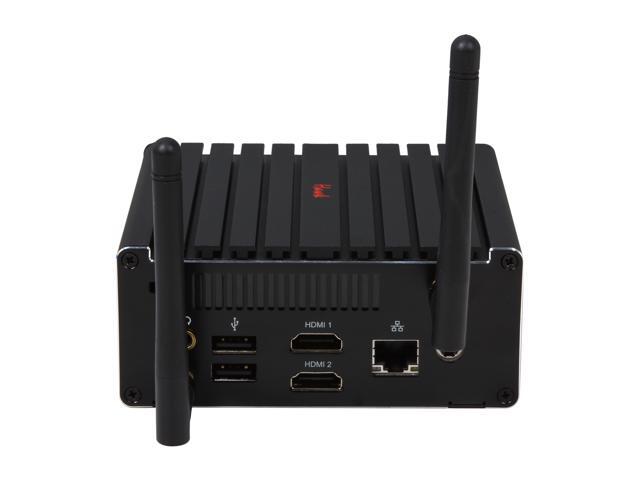

Rear I/O Port
  • Two USB 2.0 ports
  • Two HDMI
  • One RJ-45 Port
  • Audio line out with SPDIF out
  • 9 - 24V DC-in Jack
  • SMA Connector for Wi-Fi Antenna
  • Kensington Lock Hole
Power Adapter: AC 90 ~ 240V / DC 12V 3A/36W
Environment Operating Temperature: 32 - 104°F (0 - 40°C) with air flow
Storage Temperature: -4 - 176°F (-20 - 80°C)

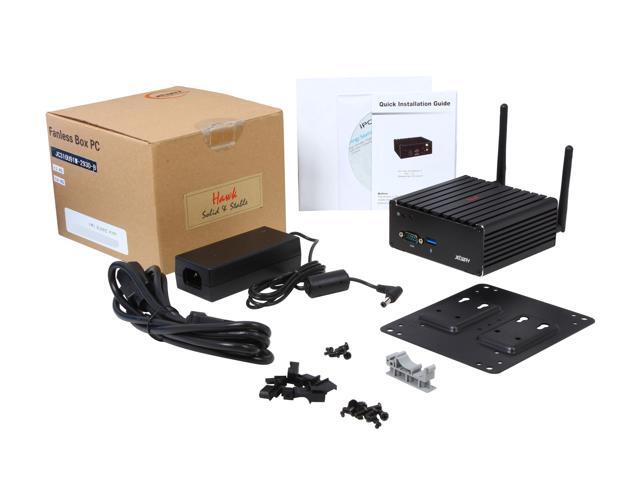

Standard Accessory
  • 36W AC Adapter
  • Power Cord
  • Screw pack
  • DVD Disk
  • Manual
  • WALL + VESA + DIN Rail Mounting Kit (Black)
  • Din Rail Clip
  • Wi-Fi Antenna (with HBJC310U91W-2930 model)
Functional Digital Signage, Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK, HTPC
Certificates CE, FCC, ErP For Barebones
CE, FCC, TUV, UL, CCC, CB, ErP For Power Adapter
