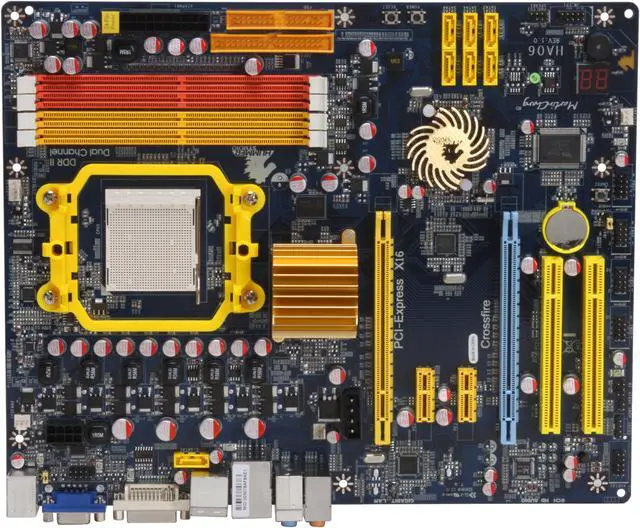

JetWay JHA06 AM2+/AM2 AMD 780G ATX AMD Motherboard
- AMD 780G
- Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
- DDR2 800
Specs
Reviews (14)
Learn more about the JETWAY JHA06
| Brand | JetWay |
|---|---|
| Model | JHA06 |
| CPU Socket Type | AM2+/AM2 |
|---|---|
| CPU Type | Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 |
| FSB | 2600 MHz |
| Chipset | AMD 780G |
|---|---|
| South Bridge | AMD SB700 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | ATI Radeon HD 3200 |
|---|
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111C |
|---|---|
| Max LAN Speed | 1Gbps |

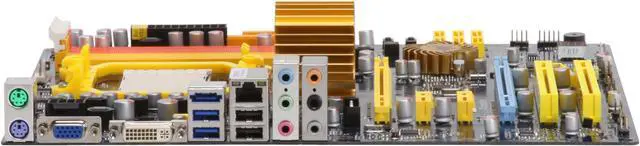

| Back I/O Ports | 1 x D-Sub / 1 x DVI / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0/1.1 headers for 8 USB 2.0/1.1 ports |
|---|
| Form Factor | ATX |
|---|---|
| Power Pin | 24 Pin |
| Features | High-polymer solid electrolysis aluminum capacitors Special 5 + 1 PWM Design Integrated ATI Radeon HD 3200 GPU(For Directx 10) GPU Clock Adjustable Supports ATI Hybrid CrossFire Technology Supports Dual Channel DDR2 800 Integrated Serial ATA? 3Gb/s with RAID function Integrated Gigabit LAN and e-SATA Integrated ALC888 HD Audio CODEC with 8.0 CH Supports Blu-ray/Full HD DVD playback CPU Vcore 7-Shift / DVI Port/ Debug Port Ready for Windows Vista Integrated 128MB side port memory |
|---|

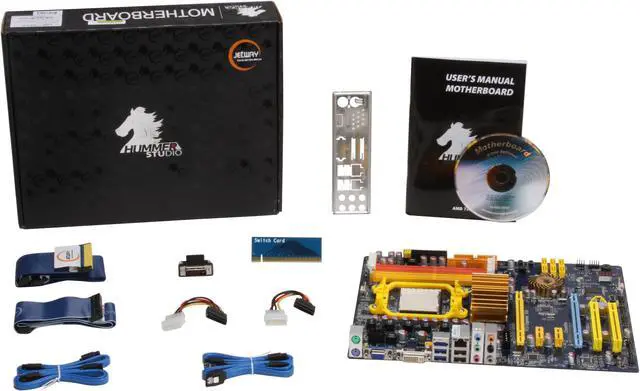

| Package Contents | JHA06 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable DVI to HDMI Adapter |
|---|
| First Listed on Newegg | June 16, 2008 |
|---|
