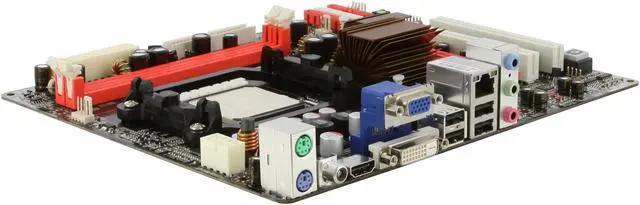

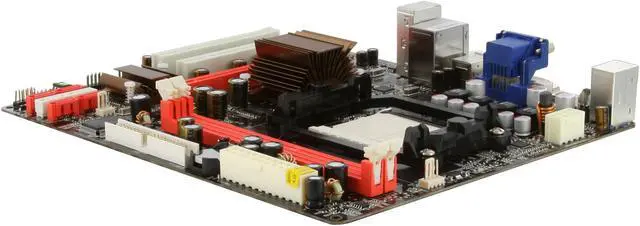

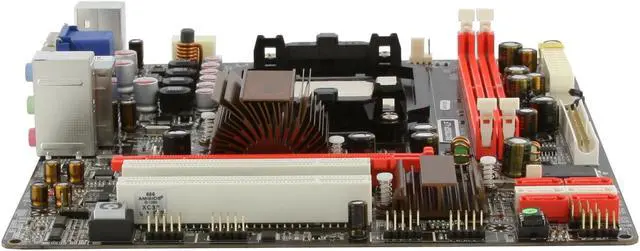

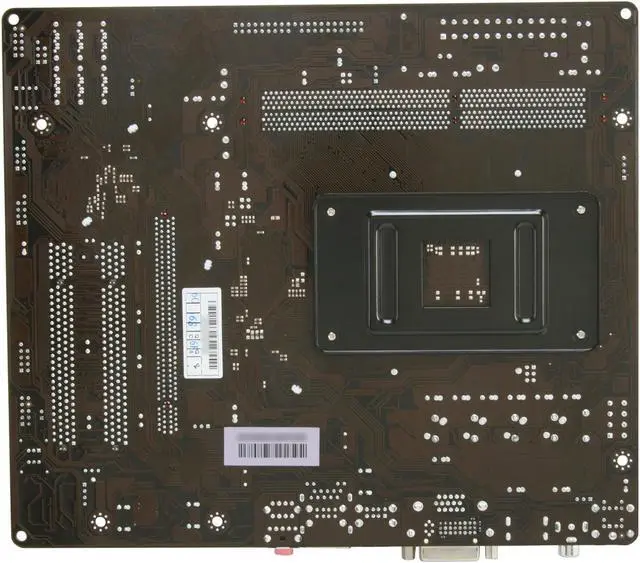

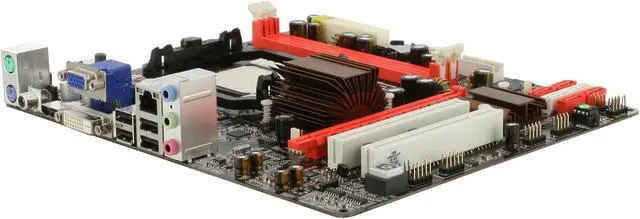

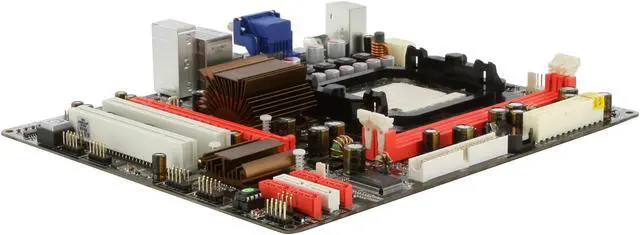

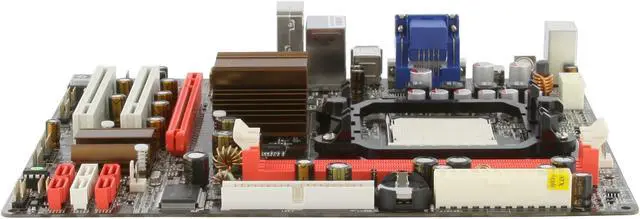

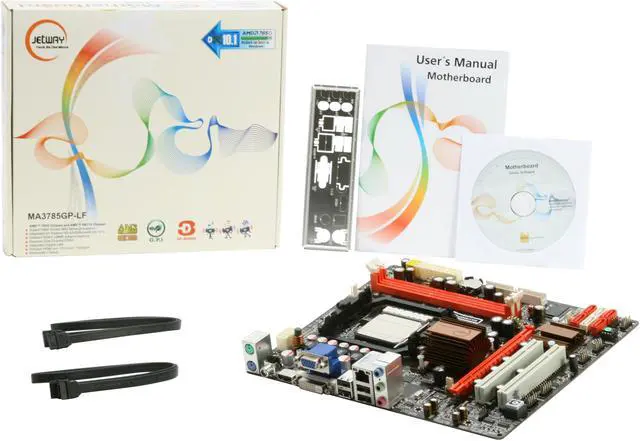

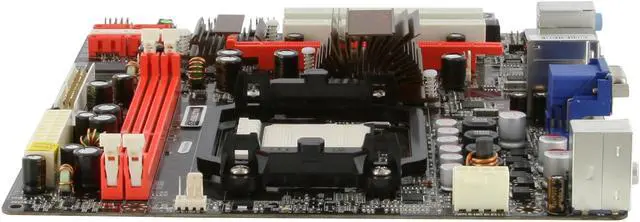

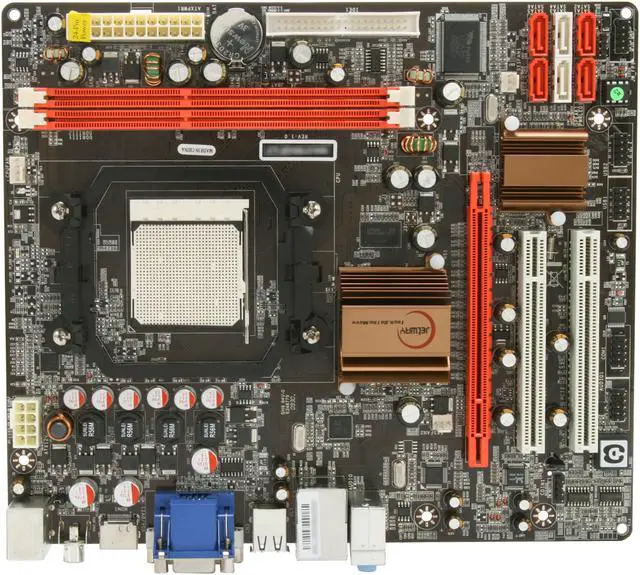

JetWay JMA3-785GP-LF AM3 AMD 785G HDMI Micro ATX AMD Motherboard
- AMD 785G
- Phenom II / Athlon II / Sempron
- DDR3 1333/1066
Specs
Reviews (13)
Learn more about the JETWAY JMA3-785GP-LF
| Brand | JetWay |
|---|---|
| Model | JMA3-785GP-LF |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | Phenom II / Athlon II / Sempron |
| FSB | 2600 MHz |
| Chipset | AMD 785G |
|---|---|
| South Bridge | AMD SB710 |
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1333/1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/JBOD |
| Onboard Video Chipset | Integrated ATI Radeon HD 4200(Support Microsoft DX 10.1) Onboard DDR3 128MB sideport memory |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Coaxial |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0/1.1 headers for 4 USB 2.0/1.1 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Power Pin | 24 Pin |
| First Listed on Newegg | September 17, 2009 |
|---|
