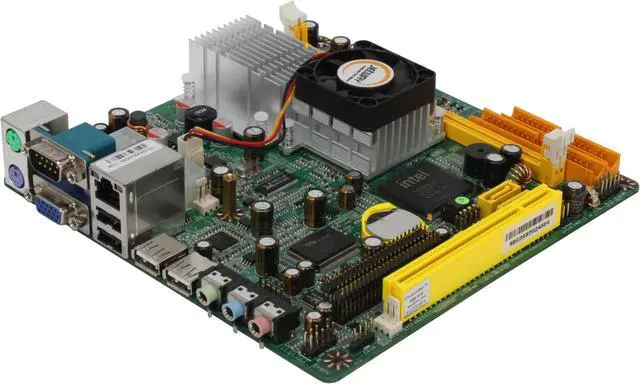

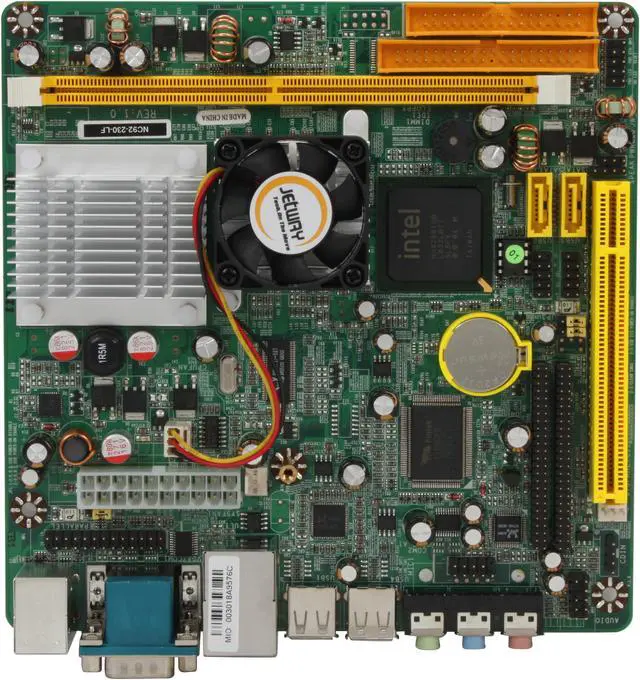

JetWay JNC92-230-LF Intel Atom N230 1.6GHz Intel 945GC Mini ITX Motherboard / CPU Combo

(2) Write a Review
  • Intel Atom
  • DDR2 533
  • Intel GMA 950
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the JETWAY JNC92-230-LF

Model
Brand JetWay
Model JNC92-230-LF
Combo Type Motherboard / CPU Combo
Bundle
CPU Intel Atom N230 1.6GHz
Supported CPU
CPU Type Intel Atom
FSB 533MHz
Chipsets
North Bridge Intel 945GC
South Bridge Intel ICH7
Memory
Number of Memory Slots 1x240pin
Memory Standard DDR2 533
Maximum Memory Supported 2GB
Expansion Slots
PCI Slots 1 x PCI Slot
Storage Devices
PATA 1 x ATA 100 2 Dev. Max
SATA 2 x SATA 3.0Gb/s
Onboard Video
Onboard Video Chipset Intel GMA 950
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Max LAN Speed 1Gbps

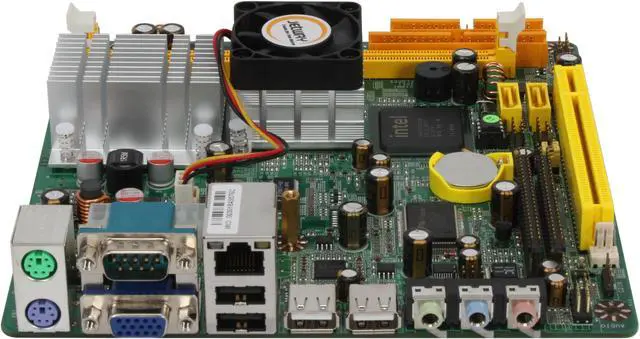

Rear Panel Ports
PS/2 2
COM 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0/1.1 headers for 4 USB 2.0 ports
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Additional Information
First Listed on Newegg December 16, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
